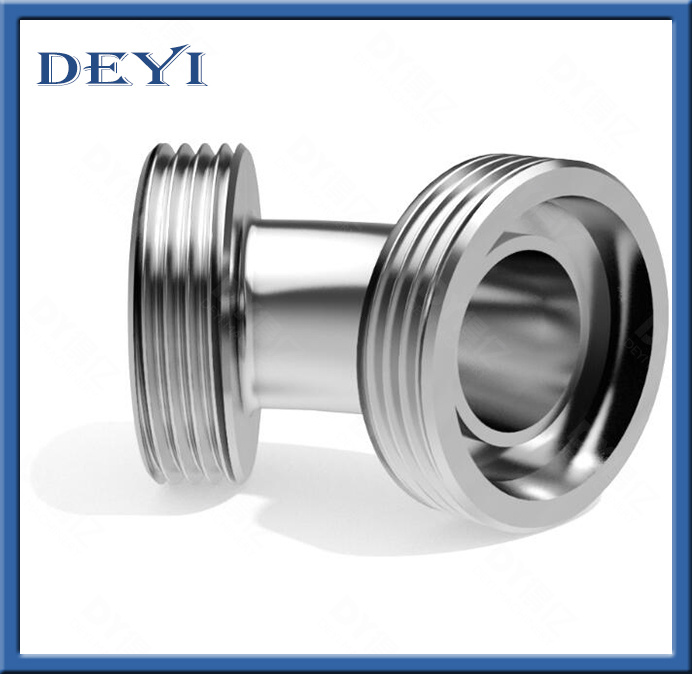

Stainless Steel Hygienic 45° Male Threading Pipe Elbow
| Price: |
US $ 1.4-1.5/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Product Specifications
| Prod Model: |
DY-ELB-90W |
| Temperature Range: |
-20degree Celsius~135degree Celsius |
| Available Polishing: |
180 Grit, 240 Grit, 320 Grit, 420 Grit, Unpolished |
| Available Thickness: |
1.5mm, 1.65mm, 2mm, 2.5mm, 3mm |
| Type Of Elbow: |
45 Degree, 90m Degree, 180 Degree, U Type |
| Pressure Range: |
1.5~3bar |
| Availabe Connection: |
Welding Ends, Triclamp Ends, Union Ends, Male End |
| Material Quality: |
Ss304, Ss304L, Ss316, Ss316L |
| Name: |
Stainless Steel Hygienic Male Threading Pipe Elbow |
| Connection: |
Male |
| Shape: |
Equal |
| Head Code: |
Round |
| Angle: |
90 Degree |
| Wall Thickness: |
Sch5s |
| Material: |
Stainless Steel |
| Technics: |
Hot-pressed |
| Certification: |
GS |
| Color: |
Silver |
Product Description
Name: Stainless Steel Hygienic Male Threading Pipe Elbow.Application: It is applied to the stainless steel pipeline system, which is used for milk ,food, juice, beer, pharmacy, etc.Technical Data | Availably standard | SMS,DIN,3A,IDF,RJT, BS, ISO |
| Material Quality | SS304,SS304L,SS316,SS316L |
| Specification | 1"-6",DIN 25-150 |
| Available Connection | Welding ends, triclamp ends, union ends, male ends |
| Available Polishing | 180 Grit ,240 Grit, 320 Grit ,420 Grit,Unpolished |
| Type of elbow | 45 degree,90 degree,180 degree, U type |
| Available Thickness | 1.5MM,1.65MM,2MM,2.5MM,3MM |
| Sorts of elbow | With/Without straight ends |
| Temperature Range | -20degree Celsius~135degree Celsius |
Advantage of products | 1 | Each kind of products has strong corrosion resistance and over-long service lifetime |
| 2 | DEYI accessories are easy to be installed |
| 3 | Problem-free welding and assembly and highest possible strengths. |
| 4 | Welding requirements: aware of the constantly increasing demands for quality of welding. In accordance with these demands, all our weld and fittings meet the highest of standard. The reducers have cylindrical welding ends and are available for all tube combinations, ensuring you that the right diameter and wall thickness for your process. |

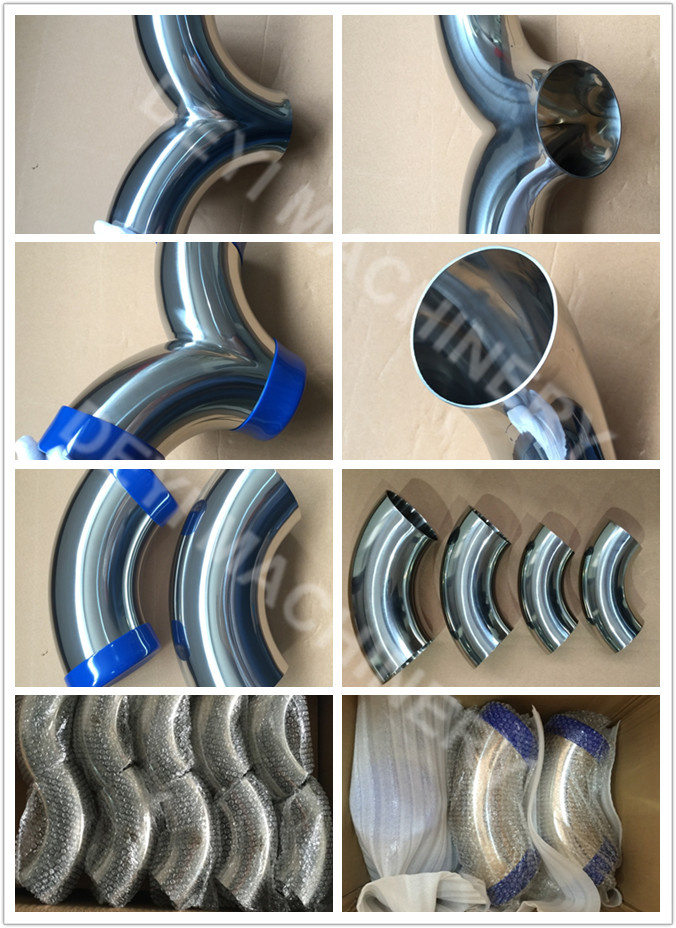

Tolerances Requirements:We ensure that all the angles are exact and that all the tube, bend and tee connections and uniform. It is very importance that you do not have to compensate for any welding irregularities Product Pictures
Packing & shipping information of the Stainless Steel Hygienic Male Threading Pipe Elbow. Port: Shanghai Port or Ningbo Port,China
MOQ: 5piece
Supply ability: 10,000 pieces/month
Payment terms: T/T,Western Union, Paypal, L/C
Packaging:Shrink Wrap-Carton Case-Exporting Plywood Case
Delivery time:Depends on quantity
Shipping mode:By sea,by air,by expressOur Service | 1. Samples: Buyer bear the air fee, but this fee will be reduced from order directly |
| 2. Delivery: Never delay delivery time |
| 3. Ensure material pure |
| 4. After Sales: Please contact our After-sales service department in time within 30days after you received the cargo. Tel: 0086-0577-86995593,Working Time: 9:00 a.m.- 6:00 p.m. (Beijing time) |
| Process | Please provide the copy of Sales Contract and describe the problems appeared. |
| Slight problem | Please send the proof to our After-Sales Department, we will reply within two days. |
Serious problem
| a. We will dispatch our Quality and Problems Appraisers to make a confirmation |
| b. Have a negotiation of the compensation and sign agreements |
| c. Our After-Sales Department will perform the duties as the agreements |
| Replacement | Free replacement if there is any quality problem |
1. Five years of export experience
2. Pass SGS Certificate
3. Experienced R&D Department
4. Reliability
5. Reputation
6. Buyer's Specifications AcceptedWelcome to contact us for the Stainless Steel Hygienic Male Threading Pipe Elbow. Other Products We Manufacture 1 .Sanitary valve
