Product Specifications
| Prod Model: |
MR-PV4/1 |
| Products Name: |
Solar String Connection Box PV Array 4 Strings |
| Protection: |
IP65 |
| Operation Voltage: |
DC 1000V |
| Installation: |
Fixed |
| Structure: |
4/6/8/10/12 Arrays |
| Use: |
AC/DC System |
| Material: |
Cold Rolled Steel Enclosure |
| Maximum Output Current: |
40A/60A/80A/100A |
| Numbers Of Output: |
1/2 |
| Quantity Per C.T: |
1PC |
| Application: |
Commercial |
| Specification: |
Normal |
Product Description

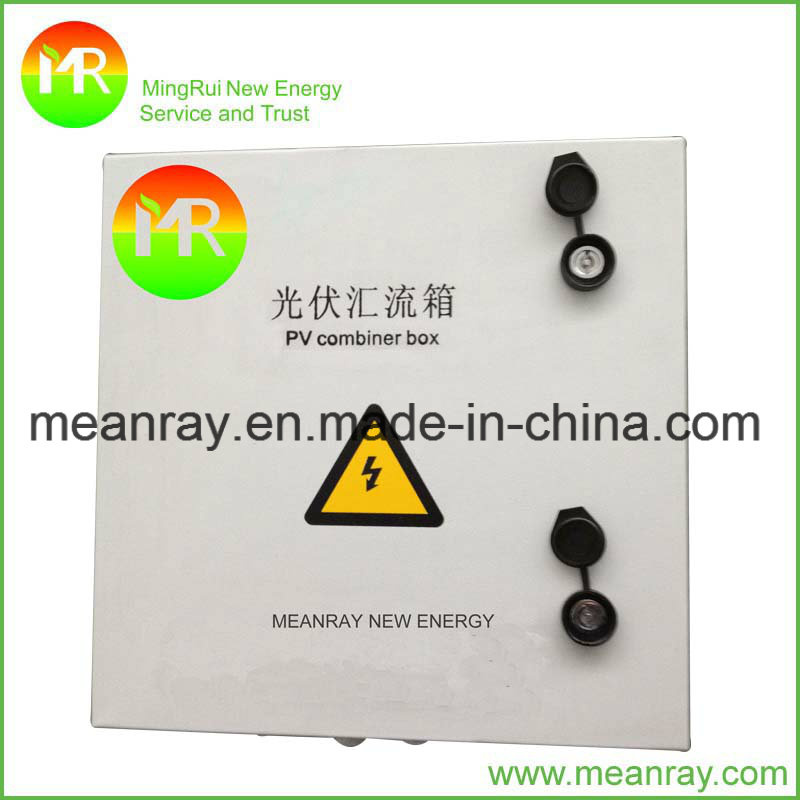

Solar String Connection Box PV Array 4 Strings
Solar String Connection Box PV Array 4 Strings Description:
MR-PV4/1 combiner box is suitable for inverter(MAX input voltage DC1000V, 4 PV input channel,1 output channel, double MPPT inverter). Box body is made of PVC engineering materials, with test for fire retardant, tempature rise, anti impact, anti ultraviolet, and other testing. IP65 protection grade. Design and configuration striclly accordance with the "Technical specification for photovoltaic junction equipment "CGC/GF 037:2014. Provide users with a safe, brief, beautiful and applicable photovoltaic system products.
Solar String Connection Box PV Array 4 Strings Features:a. High reliability:
DC Fuse, DC Surge Protecion Device, DC Circuit Breaker or DC isolator Switch
b. Strong adaptability:
1.IP65 design, waterproof, anti dust and anti ultraviolet
2.Strict test for high and low temperature, used widely
3.The simple installation, the simplified system wiring, the convenient wiring.
4.The box doby is made of cold rolled steel and other metal materials.
c. Flexible configuration
Used for single crystal sillicon solar modules, polycrystalline silicon solar modules, thin film modules. Current rating of the photovoltaic fuse, circuit breaker, load isolation switch is modified.
Solar String Connection Box PV Array 4 Strings Specification:| Products Name | MR-PV4/1 Combiner Box |
| | Electric parameter |
| System maximum dc voltage | 1000 |
| Maximum input current for each string | 15A |
| Maximum inputs strings | 4 |
| Maximum outpot swithc current | 20A/32A |
| Number of inverter MPPT | N |
| Number of output strings | 1 |
| | Lightning protection |
| Category of test | 2 grade protection |
| Nominal discharge current | 20kA |
| Maximum discharge current | 40kA |
| Voltage pretection level | 3.8kV |
| Maximum continuous perating voltage Uc | 1050V |
| Poles | 3P |
| Structure characteristic | Plug-push module |
| | System |
| Protection grade | IP65 |
| Output switch | DC isolator switch(standard)/DC circuit breaker(optional) |
| MC4 waterproof connectors | Standard |
| PV dc fuse | Standard |
| PV surge protector | Standard |
| Monitoring module | Optional |
| Prevening diode | Optional |
| Box material | PVC |
| Installation method | Wall mountion type |
| Operating temperature | -25ºC-+55ºC |
| Elevation of temperature | 2000m |
| Permissible relative humidity | 0-95%, no condensation |
| | Mechanical parameter |
| Width*High*Depth | 410mm*285mm*140mm |

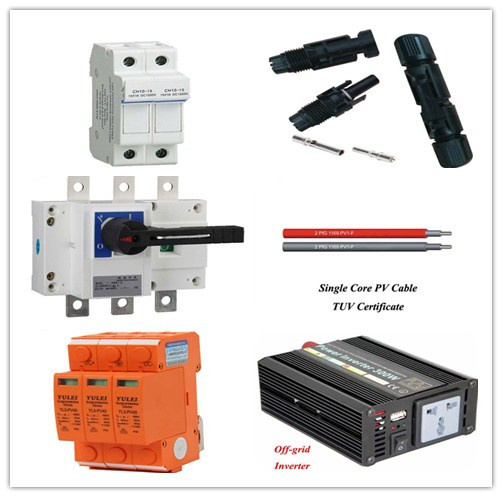

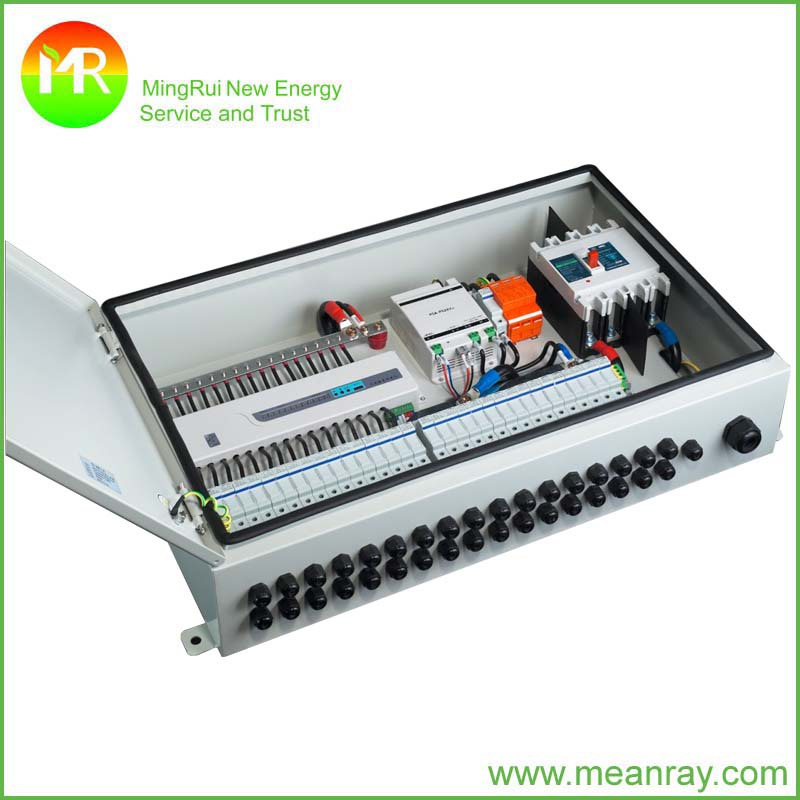

Solar String Connection Box PV Array 4 Strings Components:

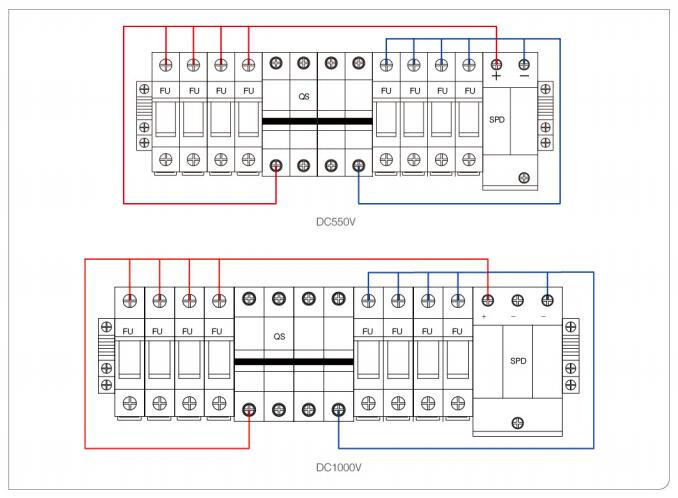

Solar String Connection Box PV Array 4 Strings Schematic Diagram:
Solar String Connection Box PV Array 4 Strings Shipping:
