Slim Rental LED Display/Indoor LED Video Wall Screen (P2.5 board)
| Price: |
US $ 975-1300/Square Meter |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
Product Specifications
| Prod Model: |
P2.5 |
| Deliver Time: |
15-20 Days |
| Warranty Period: |
2 Years |
| Drive Type: |
Constant Drive |
| Life Span: |
100000 Hours |
| Brightness: |
1600 |
| Modle Size: |
160mm*160mm |
| Package Mode: |
2121 |
| Color Display: |
Full Color |
| Use: |
Indoor Display |
| Scan Type: |
1/32 Scan |
| Tube Chip Color: |
Full Color |
| Display Function: |
Market Display |
| Pixel Configuration: |
1R,1G,1B |
| System Operating Platform: |
WIN XP |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Certification: |
CF |
| Pixel Density: |
160000 DOT/Square |
| Scanning Mode: |
1/32 |
Product Description
Parameters| LED Lamp |
| Type | SMD2121 black body |
| Brand | Epistar |
| Arrangement | 1R1G1B |
| Chip parameters | Red (625-630nm) IV:(65-115mcd) |
| Chip parameters | Green (523-526nm) IV:(215-265mcd) |
| Chip parameters | Blue (470-473nm) IV:(33-83mcd) |

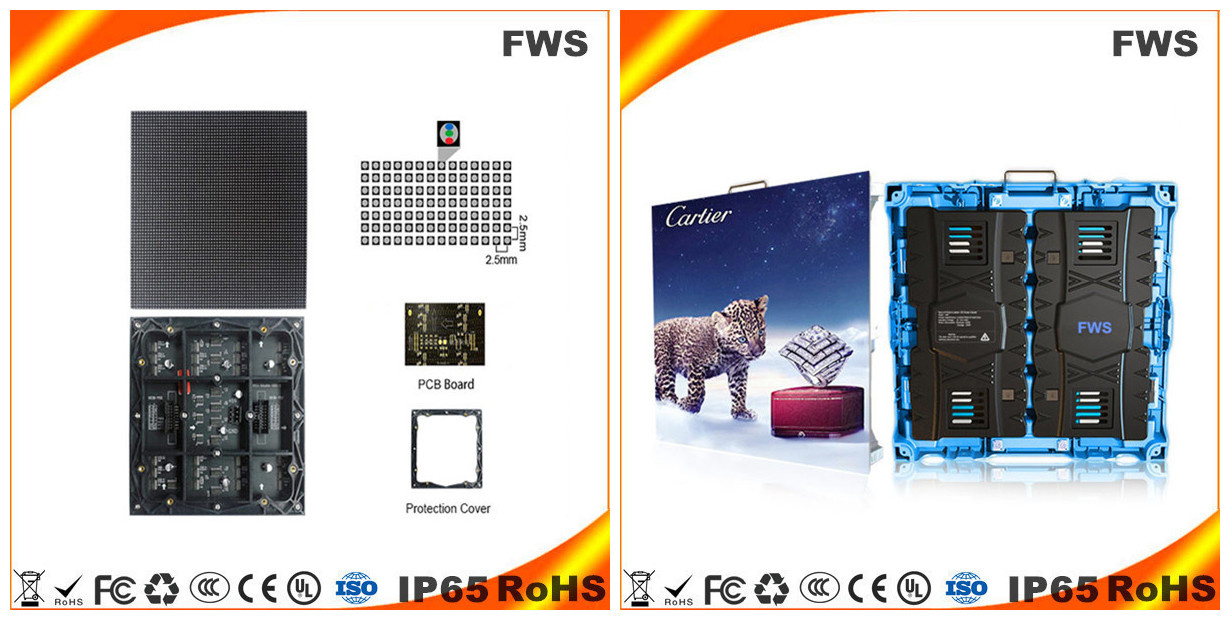

| LED Module |
| Pixel Pitch | 2.5mm |
| Module Size | 160×160mm |
| Module Resolution | 64×64=4096(Dots) |
| Module Weight | 0.48kg |
| LED Cabinet |
| Pixel Density | 160000 Dots/sqm |
| Frame Frequency | no less than 60 frame/sec |
| Cabinet Resolution | 256×256=65536(Dots) |
| Input Voltage | AC110-220V±10%, 50/60Hz |
| Cabinet Dimension(W*H*D) | 640×640×95mm |
| Output Voltage | DC-5V, 40A/60A/80A |
| Module Quanty /Cabinet | 4×4=16(Pcs) |
| Color Grayscale | 16bit |
| Gray Scale per Color | 65536 level |
| Cabinets Material | Aluminum-magnesium alloy Cabinet |
| Color Processing | R(1024)×G(1024)×B(1024) |
| Cabinet Weight | 13kg |
| Brightness Adjustment | 256 color levels, can be adjusted manually and automatically optional |
| Brightness | >1200cd/sqm |
| MTBF( mean time between failures) | 5000 hours |
| Viewing Angle | 140(Horizontal), 140(Vertical) |
| Life-span | 100, 000 hours |
| Nearest Viewing Distance | 5m |
| Protection Level(front/back) | IP31/IP54 |
| Power Consumption (Max) | 1300 w/sqm |
| Malfunction Dot Rate | less than 0.0001 |
| Power Consumption (Average) | 400 w/sqm |
| Working Temperature | -15oC-50oC |
| Display Function | Text, Graphics, Video |
| Humidity | 15%-85% |
| Refresh Rate | >800Hz |
| Drive Mode/Driver Position | Constant driving 1/32 Scan, Combined diver board |
| Control System |
| Control Mode | Synchronization/Asynchronization |
| Input Signal | AVI/MPG/MPEG/TXT.etc |
| Control System | Sending Card, Receiving Card, Receiving HUB |
| PC Operating System | Microsoft Windows 10 , Windows 7 and XP |
| Software | LED Studio(FWS-linsn) |
| Communication Type | Net cable; 3G, WIFI(Sold separately) |
| Language | Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German |
| Certificate | CE, ROHS, FCC, ISO9001, TUV |
| Control Card Input | DVI, USB, RJ45, HDMI(Sold separately) |
Features:
PH2.5 Indoor Rental LED Display offers stunning definition, contrast and color reproduction that present crystal-clear pictures in every condition.
The displays are widely used for bank, stage, concert, hotel, station, summit, exhibition and theater etc.
The Seamless Splice Screen has remained the hottest product in 2015 loved by thousands of people.
The quick-lock feature requires no technical skills to install and uninstall.f
Chips are purchased from big brands like Cree (USA), Nichia (Japan), Opto (Taiwan).
The Seamless Splice Screen is manufactured as per latest technology-dynamic scanning mode which offers higher brightness and high refresh rate.
You may use it at indoor areas like exhibition, school, malls, stages, stadium and at many more indoor places.
The 72 hours aging test is conducted without die lamp, dim lamp, color difference and mosaic.

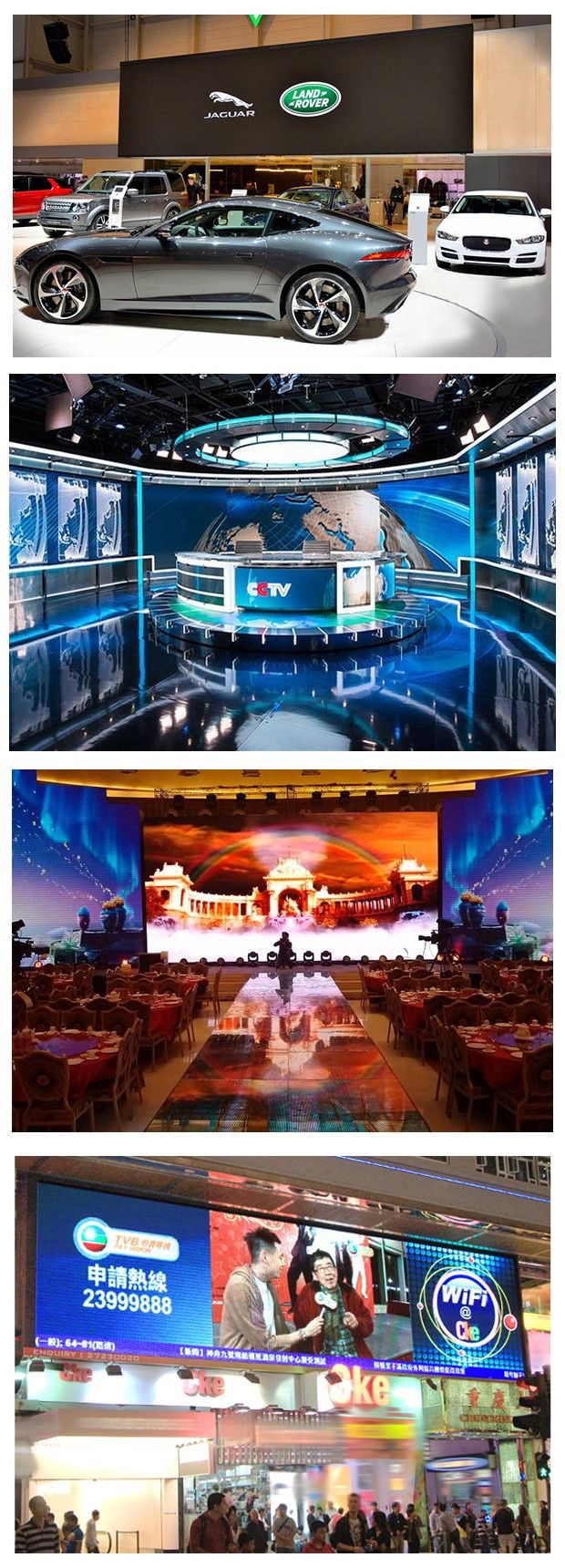

Case
Our clients

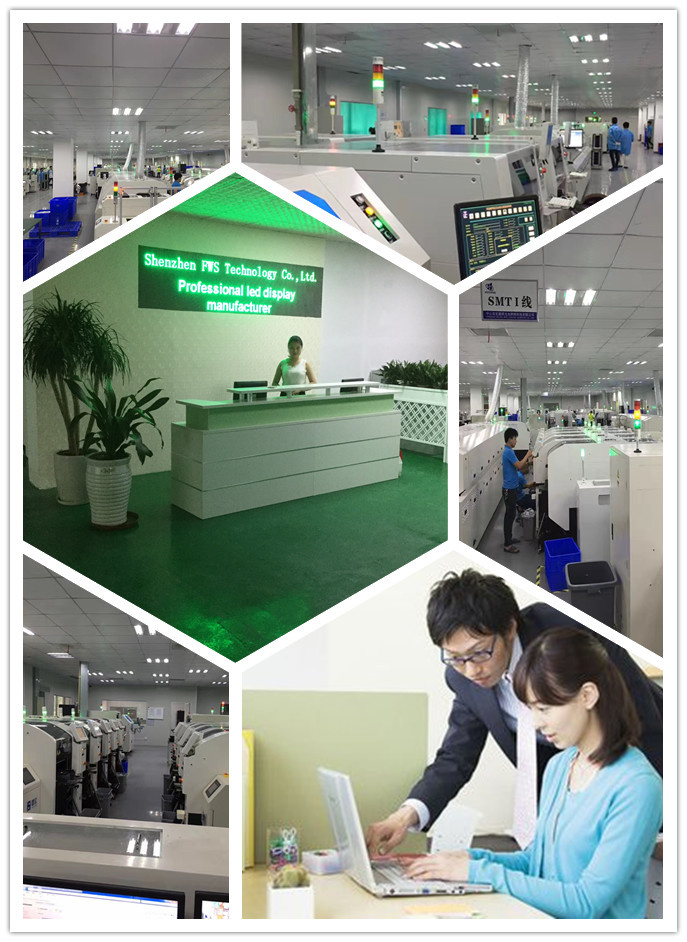

Our factory
FWS Technology Co., Ltd. is a professional LED display industry and trade integration. R & D, production and sales of high-tech enterprises, the company registered capital of 5000, 000 yuan, the staff of 100-200 people, is located in Shenzhen, China, has set up eight years history, production covers an area: 5, 000 square meters, is equipped with the highest degree of automation, the most complete automated production lines, the company can also provide indoor and outdoor full color LED screen, indoor and outdoor LED display, LED modules, LED panels, LED lights waterproof series, and other related products and passed ISO9001-2008, CCC, CE certification.
FWS Technology Co., Ltd. For the past eight years, 10 per cent of the total number of professional and technical staff and a contingent of excellent sales team, to provide customers with high quality, good service and laid a solid foundation. We adhering to the "quality of survival, honesty is the Founding of the; Character is the foundation of this network of people is the wealth of the" business philosophy, innovation management, in eastern, southern, Central, North, the establishment of a sound marketing system and service system, with the bright colors of the world started simultaneously, we force national industry to make great efforts, to build a world of international brands.
