Product Specifications
| Prod Model: |
SMQ-EB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Light Source: |
Intense Pulsed Light |
| Wavelength: |
Sr:560-1200nm/Hr:690-1200nm |
| Transfer System: |
Crystal Light Guide |
| Safety Category: |
Class I Type B |
| Pulse Duration: |
IPL:up to 150ms Shr:1-10ms |
| Cooling System: |
Semiconductor Refrigetor Wind Cooling |
| Dimensions: |
490mm*525mm*952mm |
| Net Weight: |
35kg |
| Type: |
Hair Removal Instrument |
| Theory: |
IPL |
| Application: |
Salon |
| Portable: |
Non Portable |
Product Description
Working principle

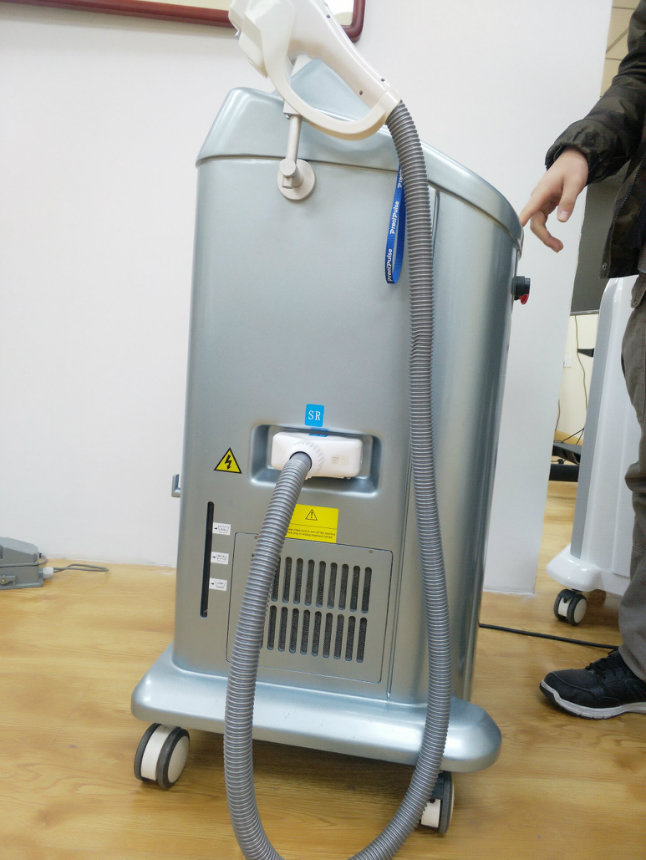

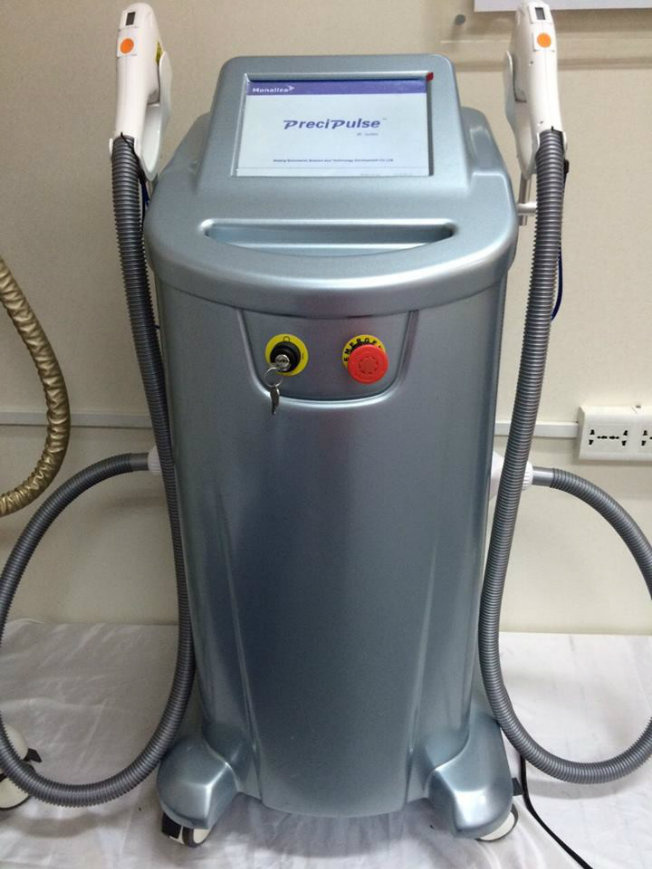

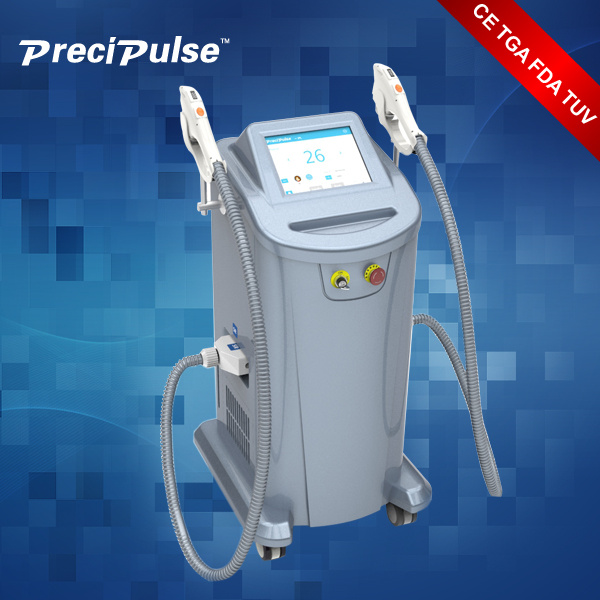

SMQ-NYC3 is also an Intensive Pulse Light(IPL) treatment therapeutic machine in a vertical type . This is our third generation of Intensive Pulse Light(IPL) treatment therapeutic machine. It has 10.4 inch touch panel controller, a user-friendly multi-language operating system. With the adoption of perfect pulse technology, stable and even outputing of the energy can be easily realized. The standard configuration of this machine contains a HR handle piece with big size light spot and a SR handle piece with small size light spot.
Applications
- Hair removal
- Skin rejuvenation
- Wrinkles reduction
- Skin tightening
- Acne Lightening and eliminating
- Skin elasticity improving
- Vascular lesions removal
- Telangiectasis curing
- Freckles eliminating
- Removal of pigmentations, age spots, sun spots, etc
Advantages of IPL SHR System:
- PreciPulse, accurate energy output (deviation <5%)
- 3 treatment heads: HR; SR; VR
- 3 treatment modes, traditional IPL, FP (FlY POINTS) mode, SHR mode for different diseases
- 2000W IPL power supply system, discharge frequency 1Hz
- Strong cooling system and 100W power guarantees continuous working for one hour and a half
- Mini and delicate treatment hand Piece, easy to output
- TDK-Lambda switching power supply system
- USB reserved connector for future upgrading
OPT Precipulse Technology
1. Multi-pulse technology makes treatment more efficient through selectively adopting different pulse width and duration on different target tissues.
2. Perfect square, balanced energy output and "in-motion" treatment will be well realized.
3. Epidermis will be maximally protected and gradual increasing of epidermis temperature is guaranteed.
4. Target tissue reaches treatment temperature rapidly so as to guarantee therapeutic result.
5. Totally comfortable treatment, no side-effect. | The parameters of our IPL machine |
| Equipment mode | SMQ-NYC3 |
| Operation mode | continuous operation |
Wavelengths | SR treatment handpiece: 560nm-1200nm |
| HR treatment handpiece: 690nm-1200nm |
Maximum Fluence | SR treatment handpiece:40J/cm2±20% |
| HR treatment handpiece:45J/cm2±20% |
Spot size | SR Aperture: 8mm*34mm, error range±0.1mm |
| HR Aperture: 16mm*57mm, error range±0.1mm |
| Dimensions | 525mm*490mm*1080mm(L*W*H) |
| New weight | 45kg |
| Note: The VR treatment handpiece is an option that can be ordered separately and shares the same handpiece connection with SR treatment handpiece. Basic treatment parameters for VR treatment is as follow: |
| Wavelength | 420nm-1200nm |
| Spot size | 8mm*34mm, Error range±0.1mm |
| Maximum Fluence | 45J/cm2±20% |
About our company:
Why Choose Us?
1.Experience--For over 18 years, we only specialized in developming, manufacturing and selling medical beauty equipment
2.Certifications--most of our products have approved by authorative medical organizations like Medical CE, FDA, TGA etc
3.Technology--our company has technical cooperation with hi-tech companies in US and Germany,
4.Talents--over 51% employee in our company have graduate degree
5.Service--we have complete after sales service departmend provide 24 hours serivce. we also have professional engineer service and branch office in Euro, Australia and HK, quick after-sale service!
Our IPL machine would be packed with carton box
outside and air cushion & foam inside to protect the machine from broken. It can also be packed according to customers special request.
Beijing Sincoheren S & T Development Co., Ltd. Is a large professional manufacture engaging in research & development as well as production and distribution of Health&beauty treatment Laser, IPL, RF, Elight, Cavitation and LED in an early time in China.
By introducing the advanced technologies from abroad, it developed MONALIZA Series products such as Mini-eyebrow purifying device, IPL Hair removal System, RF Wrinkle Removal system, Skin-care laser machine, speckle removal device, photon-skin tendering instrument, photon unexpect hairing instrument and Monaliza SMS laser-based whitening device, with all of which exercise a effective treatment against birthmarks, nevus, splashes, flecks and speckles, blood streaks, wrinkles excessive hair for face & limbs, meanwhile can claim to function well towards tattoos, eyebrow drawing, lip mark lines and eye mark lines, while, rinse and adjustment of teeth are also included.
Relying on trustworthy quality and services, also the advanced management mode, Beijing Sincoheren Science & Technology developing Co., Ltd have passed SFDA, ISO9001 ISO13485, CE certificates and so on.
