Simulation Climate Environment Cold Thermal Shock Test Equipment
| Price: |
US $ 19500-50000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
LTS-100B |
| Stainless Steel: |
SUS304 Stainless Steel |
| Type: |
Cold Thermal Shock Test Chamber |
| Load Way: |
Mechanical Load |
| Accuracy Grade: |
0.01 |
| Controller: |
Program-Controlled Liquid Crystal Touch Screen |
| Shock Range: |
-60 Degrees to 150 Degrees |
| Structure: |
Three Chambers Design |
| Interior Dimension(W* D* H): |
500*400*500 |
| Cooling Method: |
Water Cooling / Air Cooling |
| Power Source: |
AC380V 3 5 Lines, 50/60Hz |
Product Description
Simulation Climate Environment Cold Thermal Shock Test EquipmentThermal Shock Test Chamber is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment , that is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm. Testing box is divided into two parts, one is high-temperature zone, another is low-temperature zone, the testing samples are placed in the moving basket, using unique heat storage and cool storage, the cylinder taking basket moves up and down in hot zone and cold zone to complete the extremely high and low temperature impact testing. Applicable rangeSimulation Climate Environment Cold Thermal Shock Test Equipment are applicable for testing the changes in physical of the electronic chip IC, PCB, semiconductor ceramic and polymer materials. And composite material and material structure's result which under continuous environment with high temperature or low temperature shock in short time; it means this product can test the material's chemical change or physics change by expansion and contraction within short time. It's application to metal, plastic, rubber, food, electronic etc.alternation environment.
Features(Simulation Climate Environment Cold Thermal Shock Test Equipment)1. With the 7 inches large color control screen, the running status are displayed clearly.
2.User can save 32 test programs written by themselves.is over 20, and it avoid the chemical couple from stainless steel or aluminum.
3. According to reset time requirments, the machine can automatically set precooling and preheating temperature to adjust the working status of the machine to be optimal.
4.Lowest error, high speed, test samples exposure smooth.
5. Energy saving, low consumption, low noise design.
6. Friendly human-computer interface, with full functions of program setting and troubleshooting
7. The chambers are all designed into integral three boxes if the inside size less than 1 cubic meter and equipped with a unique subequipment, it could satisfy test request of different sizes. If the inside size more than 1 cubic meter, the chambers are designed into split two-box type.
8. Intelligent color microcomputer control system as below:1): Two-box or three-box programmable mode.
2): Sensor inspection control of air outlet and inlet.
3): Server Valve dynamic automatic load control.
4): 150ºC(60)ºC~(10)-65ºC test range.
5): Wind direction switch time within 10 sec.
6): Cold and hot shock temperature recovery within 5 min.
7): 50% energy saving and automatic server.
8): IPC( PC base) industrial computer controller.
9): LCD Chinese/English switchable liquid crystal display screen with dust prevention touch keyboard.
10): CM remote monitoring management system.
11): RAMP isothermal accelerating make the machine has long-term using life.
12): LK8900 color microcomputer control system.
13) 0.01ºC accurate temperature controllable analytical ability.
14): 1000H/STEP the time can be controlled for each step.
15): Fully automatic accurate control and safe guard coordination system.
16): 12 bit D/A temperature converter. 17): LIMIT precooling and preheating overtemperature protective device.
9. high competitive factory price with high quality and power after-sales service. Specifications and technical parameters | Model LTS-XX | 271916 | 100A | 150A | 252A | 31.5B | 100B | 150B | 252B | 31.5C | 100C | 150C | 252C |
| Structure | precooling box, preheating box, test box; two-box or three box selectable |
| Valve device | Forced air valve device |
| Inside material | SUS304 stainless steel |
| Outside material | SUS304 stainless steel or cold rolled steel with power spraying. |
| Test plate | Stainless steel plate |
| Refrigerating system | Semi-hermetic double-stage compressor |
| Cooling way | Water-cooled/Air Cooled |
| Environmental temp. | 0ºC~+30ºC |
| Preheating temp. | +60ºC~+180ºC | +60ºC~+180ºC | +60ºC~+180ºC |
| Precooling temp. | -10ºC~-55ºC | -10ºC~-65ºC | -10ºC~-80ºC |
| High temp. shock | +60ºC~+150ºC | +60ºC~+150ºC | +60ºC~+150ºC |
| low temp. shock | -10ºC~-40ºC | -10ºC~-50ºC | -10ºC~-60ºC |
| Temp. deviation | +2ºC |
| Simulation load(kg) | 10 | 10 | 15 | 20 | 5 | 10 | 15 | 20 | 5 | 10 | 15 | 20 |
| High temp.shock speed(3-box) | RTºC~+150ºC/5min | RTºC~+150ºC/5min | RTºC~+150ºC/5min |
| low temp.shock speed(3-box) | RTºC~-40ºC/5min | RTºC~-50ºC/5min | RTºC~-60ºC/5min |
| High temp.shock speed(2-box) | -40ºC~+150ºC/5min | -50ºC~+150ºC/5min | -60ºC~+150ºC/5min |
| Low temp.shock speed(2-box) | +150ºC~40ºC/5min | +150ºC~55ºC/5min | +150ºC~65ºC/5min |
| Preheating time(min) | 25 | 30 | 40 | 45 | 25 | 30 | 40 | 45 | 25 | 30 | 40 | 45 |
| Precooling time(min) | 60 | 75 | 100 | 110 | 70 | 85 | 100 | 110 | 70 | 85 | 100 | 110 |
| Temperature sensor | PT100 |
| Controller | Program-controlled liquid crystal touch screen |
| Setting range | -100ºC~200ºC/TI, E: OH OOM ~999H 59M/ CYCLE: 0 CYCLE~10000 CYCLE |
| Resolution ratio | Temperature: 0.01ºC/time:1min |
| Output method | PID+PWM+SSR control mode |
| Additional feature | Air outlet and inlet perception inspection control/ RS-232 remote monitoring management system |
| Safety device | 1.With no-fuse protection switch. |
| 2.Control system with phase sequence protection and low voltage electrical protection. |
| 3. Over load protection device for refrigeration compressor |
| 4.Refrigeration compressor high and low voltage protection switch. |
| 5.With over-heat protection switch. |
| 6.Refrigeration compressor over oil pressure protection. |
| 7.Overload protection for circulation fan motor |
| Customized service | Welcome to Non-standard,Specail requirements,OEM/ODM orders. |
| Details of model: | | | | | | | | | | | | |
| Model | Inside Dimension (W*D*H mm) | Power supply | Power/kw | Water tower | Water pipe diameter
(the entry pressure of
water) must not be less than 2kg |
| 271916 | 500*1550*500 | 380V, 3-phase, 43A | 35kw | 15 tons | 2 inches |
| 31.5B | 350*350*300 | 380V, 3-phase, 55A | 36.3kw | 10 tons | 2 inches |
| 31.5C | 350*350*300 | 380V, 3-phase, 62A | 40.9kw | 10 tons | 2 inches |
| 100A | 500*400*500 | 380V, 3-phase, 50A | 33kw | 10 tons | 2 inches |
| 100B | 500*400*500 | 380V, 3-phase, 55A | 36.3kw | 10 tons | 2 inches |
| 100C | 500*400*500 | 380V, 3-phase, 70A | 46.2kw | 20 tons | 2 1/2 inches |
| 150A | 600*500*500 | 380V, 3-phase, 55A | 36.3kw | 15 tons | 2 inches |
| 150B | 600*500*500 | 380V, 3-phase, 62A | 40.9kw | 15 tons | 2 inches |
| 150C | 600*500*500 | 380V, 3-phase, 74A | 48.8kw | 25 tons | 2 inches |
| 252A | 700*600*600 | 380V, 3-phase, 65A | 42.9kw | 15 tons | 2 inches |
| 252B | 700*600*600 | 380V, 3-phase, 73A | 48.2kw | 25 tons | 2 1/2 inches |
Corresponding test standards:| GJB 150.5A-2009 : test method of military equipment laboratory environment, temperature shock test |
| GJB150.5-86 temperature shock test. |
| GJB 360A-96 test method of electronic and electrical components 107 temperature shock test . |
| GB/T31485-2015 security requirement and test method of power battery designed for electromobile. |
| GB/T11158-2008 Technical conditions of high temperature test box. |
| GB/T10589-2008 Technical conditions of low temperature test box. |
| GB/T2423.1-2001 Test method of high temperature test box. |
| GB/T2423.2-2001 Test method of low temperature test box. |
| GB/T2423.22-2002 Temperature change test. |

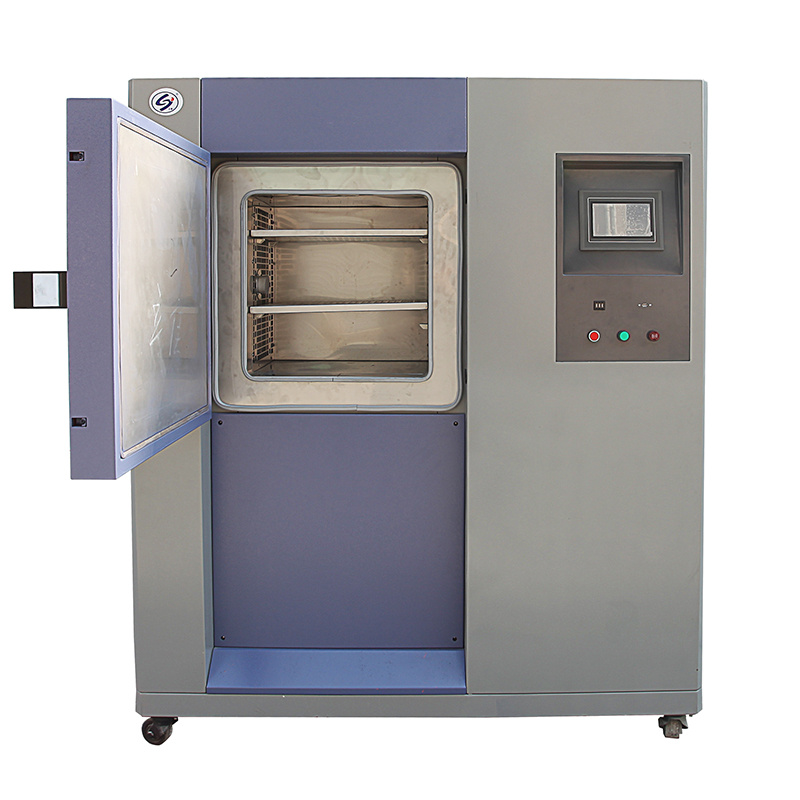

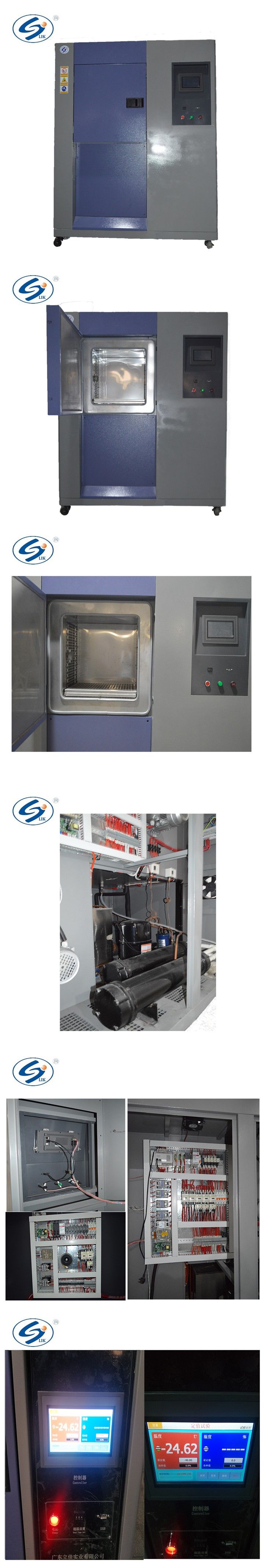

Products image(Simulation Climate Environment Cold Thermal Shock Test Equipment)

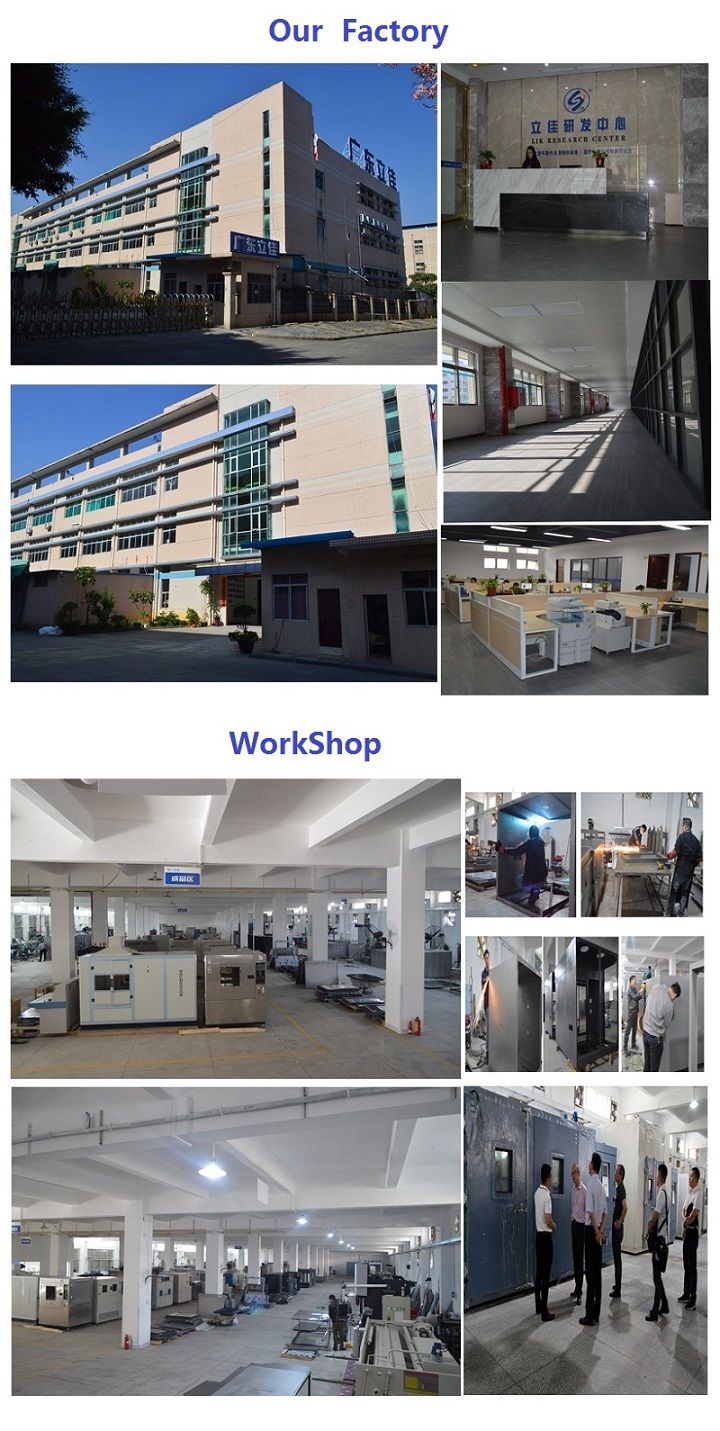

Our FactoryShort introduction about LIK factory:
We are a long history testing equipment manufacturer, in the past 10 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine and battery test equipment. In the research and development of the non-standard dynamic environment chamber, LIK is in the leading position in the industry and we have got more than 30pcs patents.
LIK main test equipments:
Environmental test chambers, temperature (humidity) chamber,Thermal shock chamber, High low temperature test chamber, Salt spray test chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in constant temperature and humidity test chamber,Vacuum oven, Drying Cabinet, electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber, Powe battery crush and puncture test machine, Battery shock impact test machine, Battery Squeeze test machine, battery short circuit tester, Battery burning jet test equiopment, Battery needling test machine, etc
Our ServiceIf you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. We accept on-site service If customers require.1. Pre-service24 Hours online service for your consult.
Help choose right model, and a series of service, person, advise. Main web site: http://en.lik.net.cn/
1) More than 10 years manufacturer experience in test equipments and with strong research and development team.
2) Acceptable customization for all kinds of specical specification products.
3) We value the inquiry sent to us timely, ensure quick and competitive offer.
4) We put your order into our tight production schedule,ensure your punctual delivery time.
5) We are a sales team, with more than 10 years experience, more professional and reliable
6) Our professional team could provide the best suggestion as long as you tell us what kind of test you need to do and the required specification.
7) Welcome to view our factory at any moment .2. After sale service1) We deal with your complains within 24 hours and solution provide within 3 working days.
2) Trainning how to instal the machine, training how to use the machine. We would offer operation video and English operation muanual. We can provide video-con.
3) 1 year warranty service and all life maintenancee; our engineers could go to your place for better service necessarily.
4) All staffs in our company with philosophy of " integrity, dedication, truth-seeking, enterprise", would be dedicated to provide high quality service and products for you.3. Commitment: We will sign a letter of commitment while we sign the contract, which will improve your confidence to us. 5. Good Packaging: Good Packaging: All goods are covered with film and air bubble film before put them into the strong wooden case.
