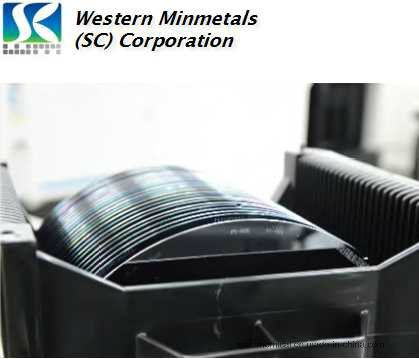

Silicon Bonded Wafer 6'' 8'' at Western Minmetals (SC) Corporation
| Price: |
Negotiablepcs |
| Min Order: |
500pcs |
| Pay Type: |
L/C,T/T,D/P |
Product Specifications
| Prod Model: |
6'' 8'' |
| Crystal Orientation: |
<100> <111> <110> |
| Conductivity Type: |
N Type or P Type |
| Device Layer Resistivity: |
0.001 Ohm.Cm; 10, 000 Ohm.Cm, or as Required |
| Handle Substrate Layer Resistivity: |
0.001 Ohm.Cm; 10, 000 Ohm.Cm, or as Required |
| Device Layer Thickness: |
1.5+/-0.5um Min, 5-300+/-0.8um |
| Handle Substrate Layer Thickness: |
200-1, 000+/-5um, 500-725+/-5um |
| Handle Substrate Layer Backside Finish: |
Lapped/Etched/Polished |
| Packing: |
in Form Box or Cassette, Carton Box Ou |
| Application: |
Photo Detectors, X-ray Detectors, IR Sensors, etc |
| Material: |
Single Crystal Silicon |
| Brand: |
Wmc |
| Package: |
in Foam Box or Cassette, Carton Box Outside |
| Type: |
N/P Type Semiconductor |
| Manufacturing Technology: |
CZ Mcz Fz |
Product Description
Silicon Bonded Wafer allows a cost effective alternative to replace thick epitaxial layers and inverse epi that have traditionally been used for applications such as High Voltage PIN Diodes, RF Attenuators, Photo Detectors, X-Ray Detectors, IR Sensors, HV Power Devices, etc. 6'' and 8'' are available. | No. | Item | Standard Specification |
| 1 | Size | | 6'' | 8'' |
| 2 | Diameter | mm | 150 | 200 |
| Device Layer |
| 3 | Growth Method | | CZ MCZ FZ |
| 4 | Dopant | | Boron / Phosphorus |
| 5 | Conductivity Type | | P / N |
| 6 | Crystal Orientation | | <100> <110> <111> |
| 7 | Standard Thickness | μm | ≥1.5±0.5 | 5-300±0.8 |
| 8 | Resistivity | Ω.cm | ≤ 0.001, ≥ 10,000, or as required |
| 9 | Buried Layer Implant | | N type or P type |
| Handle Substrate |
| 10 | Growth Method | | CZ MCZ FZ |
| 11 | Dopant | | Boron / Phosphorus |
| 12 | Conductivity Type | | P / N |
| 13 | Crystal Orientation | | <100> <110> <111> |
| 14 | Standard Thickness | μm | 200-1,000±5 | 500-725±5 |
| 15 | Stack Thickness | μm | ≥280, ≤1,250 |
| 16 | Resistivity | Ω.cm | ≤ 0.001, ≥ 10,000, or as required |
| 17 | Backside Finish | | Lapped/ Etched / Polished |
| | | | |
| 18 | Packing | | 25pcs in foam box or cassette, carton box outside,
or as required |
