Sf6 Density Meter

Sf6 Density Meter
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

Product Specifications


Prod Model: GLMD-2000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sf6 Analyzer: Sf6 Analyzer
Gas: Sf6
Type: Sf6

Product Description

I.Brief

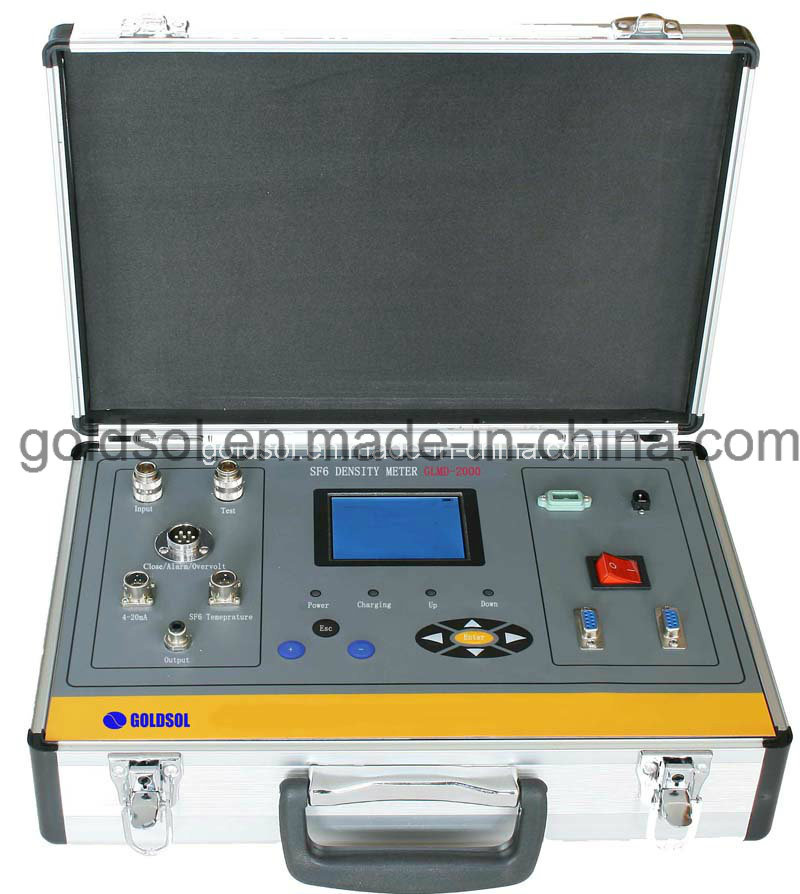

GLMD-2000 SF6 density meter, this is a kind of intelligent & automatic checking instrument of SF6
density. The instrument adopts the single cycle instruction of microcomputer technology, which the
operating speed is 10 times ordinary singlechip. It can be calibrated at field to check SF6 density
circuit breaker of pointer contact output and intelligent current output, it uses interrupt mode to
capture circuit breaker density at realtime. The instrument has the characters of SF6 standard
conversion under any ressure environment,portable,auto calibration of SF6 density and pressure.

In a closed container, SF6 gas pressure under certain temperature can represent SF6 gas density.
it is usually used as SF6 gas pressure standard value at 20ºC. Under different environment temperature, measured pressure values are to be converted into its corresponding to value at 20ºC, it can be used to
judge the performance of SF6 density circuit breaker.

The meter's measurement is automatically finished, so it is convenient and simple.





II.Advantage

1.The meter adops analog digital mixed single cycle high speed microcontroller technology,
it has rich and powerful resources,strong data processing ability,  it has the characters of simple
outer-ring circuits,good stability and accuracy because it built in A/D, D/A, reference voltage,
analog amplifier integrated.

2. The instrument can automatically check pointer type and electronic type density circuit breaker.

3.Density relay 1 ~ 3 group contacts of the initial state is arbitrary form (closed or open always), it can simultaneously measure response value and recovery value of 1 ~ 3 group contacts , so the instrument can auto measure all kinds of circuit breaker.

4.320*240 large screen liquid crystal display, simple and convenient to use.

5.It shows the current pressure, corresponding pressure and environment temperature at 20ºC, to solve
the problem of SF6 density relay on-site check.

6. Auto test process, to aviod operation by mistake.

7. 100 groups measured datas storage, every measurement can be traced.

8. RS-232 interface data upload PC , automatic generation test data form.

9.Normal temeprature pressure and density under any environment temperature can be calibrated.

10.Advantage quick joints, convenient connection and small leakage.

11.Built in clock, which can be corrected at any time.

12.Self checking function. Calibration can be corrected after using, to ensure calibration precision.

13.High precision pressure sensor and advanced magnetic fluid technology.

14.Built-in high capacity battery, LCD display quantity of electricity , convenient on-site check.



III.Main Technical parameter

1. Measuring accuracy: 0.25 class
2. Display: LCD
3. Measuring range: 0 ~ 1.6Mpa
4. Pressure display resolution: 0.001 Mpa
5. Operation temeperature: -30ºC to 85ºC
6. Storage data: 100 groups
7. Communication interface: RS-232
8. Printer (optional)
9. Power supply: AC220V + 10% 50Hz,built-in power:DC8.5V
10.Weight: 3kg (host)
11.Size: 360*240 *110 mm(host), 430*310*160mm (accessaries)

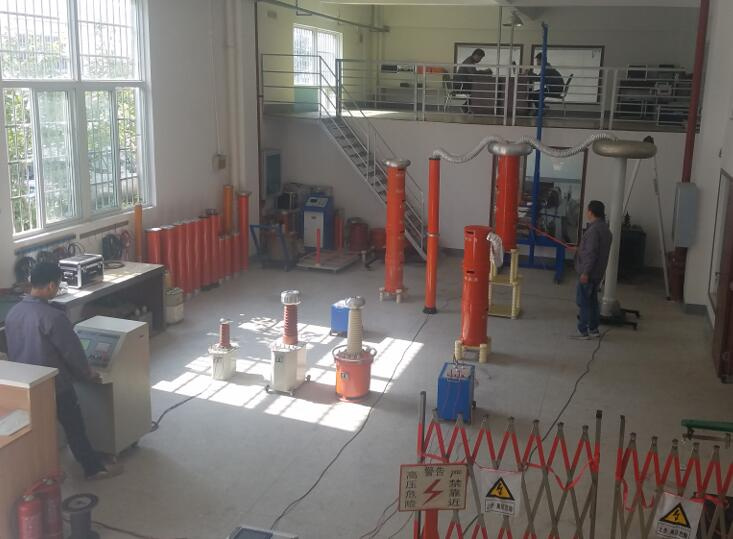

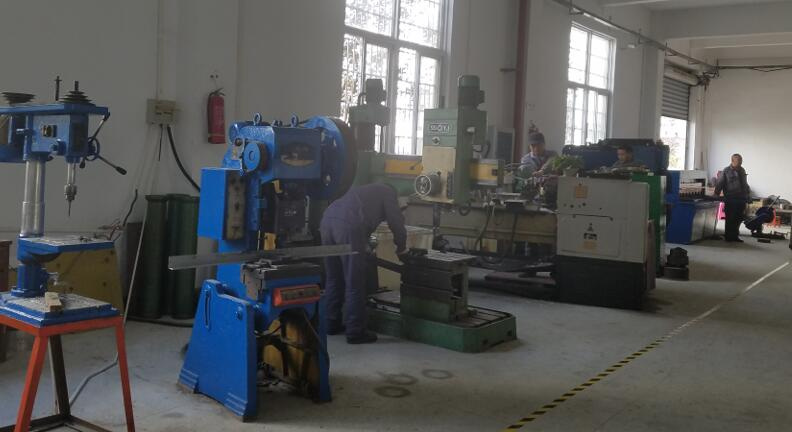

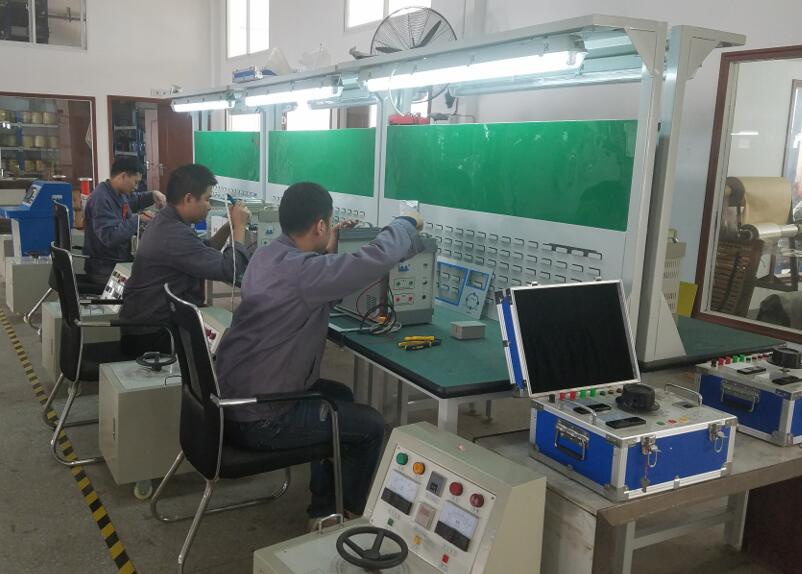

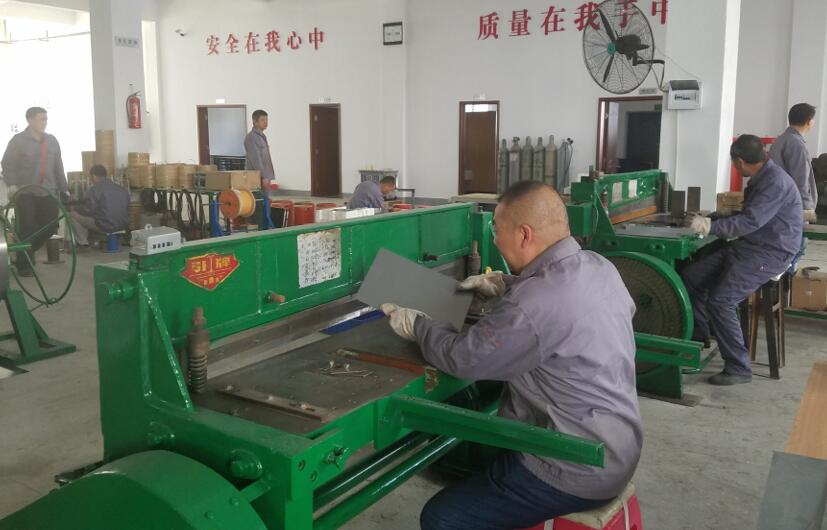

Wuhan Goldsol Co., Ltd is a manufacturer and trade company with 78 employees; It was established in 2001, located in No. 39 Hongyi Industrial Park, Hanshi Road, Wuhan China. The factory occupy an area of 1763 square meters.

GOLDSOL have obtained CE certificates for VLF Hipot Tester, AC/DC Hipot Tester, Primary & seconday current Injection, CT/PT Tester, Oil Tester, Tan Delta Tester, Circuit Breaker Analyzer, Micro-ohmmeter, High voltage divider, Transformer Ratio Tester, Insulation Resistance Tester.

Wuhan Goldsol Co., Ltd has successfully foreign trading experience in Europe, Southeast, Mideast, Africa, South America and Oceania.

The factory was backed by fine credit, technological advantages, excellent products and complete after-sales services.

The VLF (Very Low Frequency) Hipot Tester is the new development product, the production has got the State Patent of Invention (SN No. 200710152385-Ultra low frequency high-pressure generator).

The factory has been audited by the SGS & BV Group, You're welcomed to contact us for more information!
