| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | JQ1060/JQ1390 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: | Laser Engraving Machine |
| Control: | Automatic |
| Current: | AC |
| Laser Type: | CO2 |
| Usage: | Stone Ect. |
| Color: | Red&Black Blue & White etc. |
| Laser Power: | 60W, 80W |
| Resetting Positioning Accuracy: | 0.01mm |
| Min. Shaping Character: | English 1.0X 1.0mm |
| Software Supported: | Coreldraw, Photoshop, Autocad, Tiandaotajima |

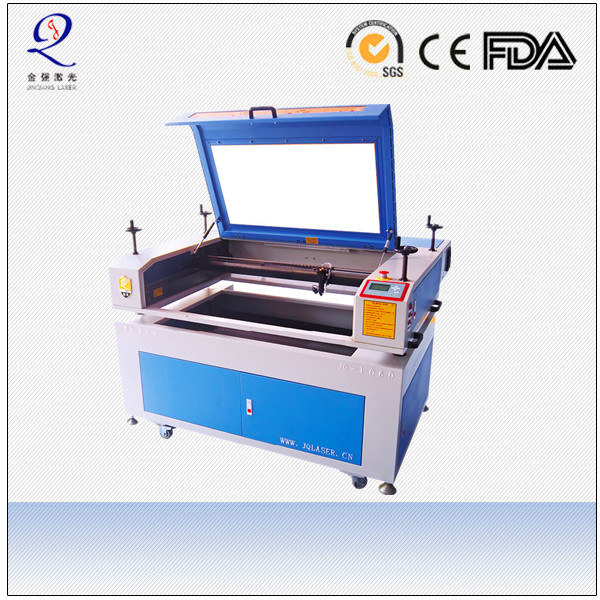

separate stone laser engraving machine
Performance Features
1). The upper part and the under part of the machine are separated. The upper part can put on large and thick marbles/stones/granites ,etc.directly.
2). The machine is with double up-down worktables. The upper part and the under part can move up and down automatically, which are very convenient for thick material.
3). Very useful for small house doors.
Applicable Industries
Model Industry(construction models,aviation and navigetion models and wooden toys),advertisement,decoration,art crafts,electronics,and electric appliances,etc.
Applicable Materials
Non-metal materials such as acrylic , crystal , plastic , metal coating , painted metal , organic glass , wood planks(light planks) , marble , carton , glass , fabric , leather , bamboo ware , double-color boards , paper , shells , coconut shells , ox-horns , resin animal grease , ABS boards , lamp shade , ect.

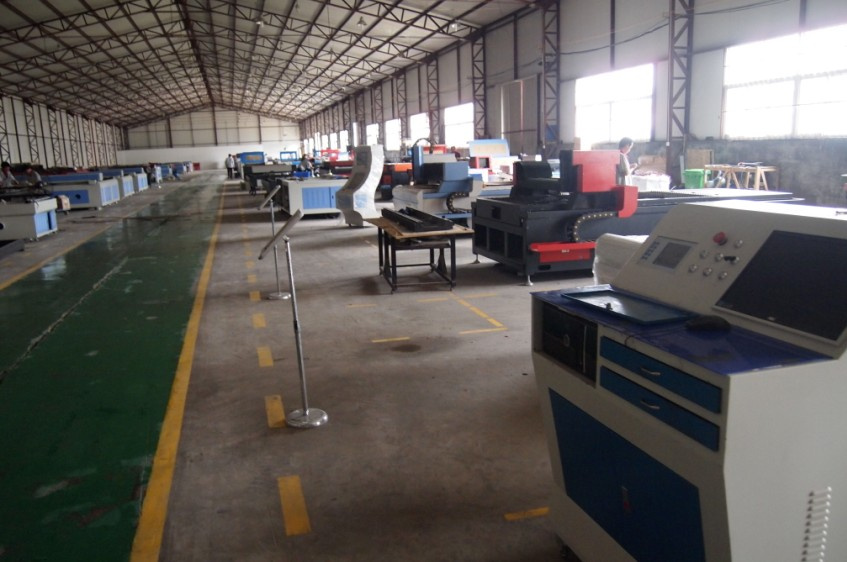

Workshop & Showroom:
Samples:
All these products are designed and developed by ourselves. We assure that we can provide goods with competitive price, high quality and best service. Looking forward to building a good relation in the future.
| Model | JQ1060 |
| cutting area | 1000x600mm/1390 |
| Laser power | 60w,80W |
| Laser type | CO2 Laser tube |
| Cutting speed | 0-50000mm/min |
| Engraving speed | 0-60000mm/min |
| Resetting positioning accuracy | 0.01mm |
| Power supply | 220V/50HZ 110V/60HZ |
| Operating temperature | 0 - 45°C |
| Operating humidity | 5-95% |
| Min. shaping character | English 1.0x 1.0mm |
| Graphic format supported | PLT,AI,DXF,BMP,DST |
| Software supported | CorelDraw, PhotoShop, AutoCAD, TiandaoTajima |
| Driving system | 2 phases stepper motor |
| Cooling mode | Water-cooling and protection system |
| Equipment Dimensions | 1650*950*1070mm |
| Net Weight: | 250KG |
| Shipping Dimensions | 1760*1050*1170mm |
| Recommended Spare Parts | Laser Tube and Lens |
