| Price: | US $ 90-100/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |
| Prod Model: | HZK-160 |
|---|---|
| Material: | SS304 |
| State: | Water Liquid |
| Warranty: | 1 Year Free Warranty |
| Nozzles: | 6 Pieces |
| Capacity: | 10-30 Bottles Per Minute |
| Type: | Count Filling Machine |
| Automatic Grade: | Semi-Automatic |
| Material Type: | Liquid |
| Filling Valve Head: | Single-Head |
| Feed Cylinder Structure: | Single-Room Feeding |
| Dosing Device: | Capacity Cup |
| Filling Principle: | Pressure |
| Packaging Container Lifting Structure: | Pneumatic Lifting |
| Structure: | Rotary |
| Packaging Type: | Bottle |
| Packaging Material: | Plastic |
| Model | HZK-160 |
| Voltage | 220V/50HZ(110V NEED TO ORDER ) |
| Power | 30W |
| Filling range | 5-3500ml |
| Maximum suction | 2m |
| Max filling range | 3.2L/min |
| Filling accuracy | <0.5% |
| Weight | 5.5kg |
| Filling mouth diameter | outside diameter9mminside diameter8mm |
| Note:Equipment with a material leak-proof function, memory function in case of power-down. | |
The pump body with a variety of corrosion-resistant imported materials synthesis, pump and motor separation, the pump body without mechanical metal parts, no wear. With oil, heat, acid, alkali, corrosion resistance, chemical resistance and other properties. This pump combines the advantages of self-priming pump and chemical pump, with self-priming function, thermal protection, smooth operation, long-time continuous idling, continuous long-term load operation.

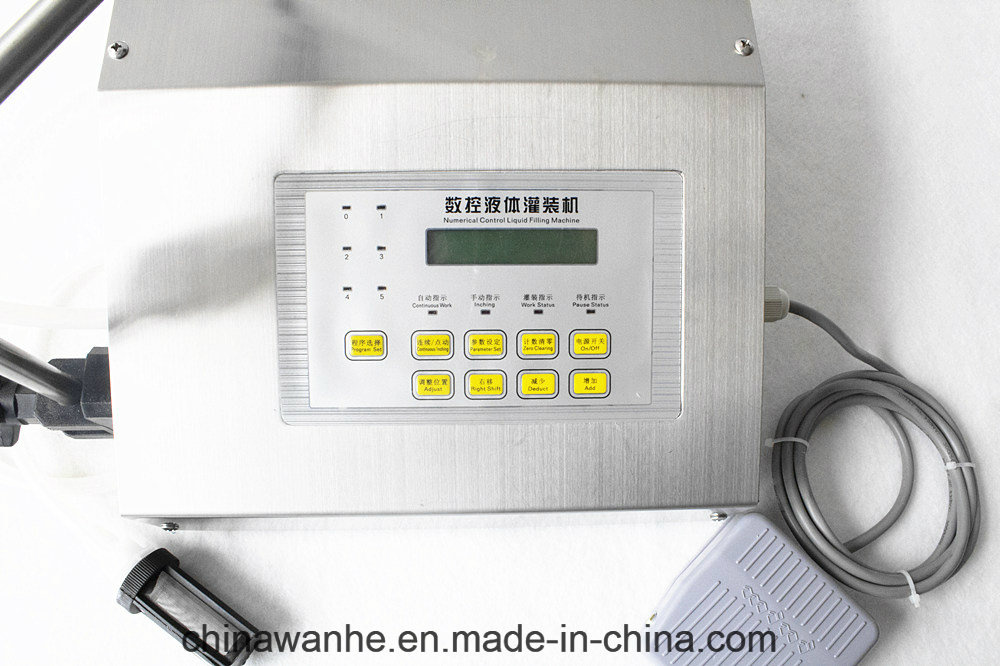

Imported SCM control, stainless steel shell, meeting GMP requirements. LCD liquid crystal display, touch panel operation more convenient and simple. Outlet nozzle anti-drip design, filling accuracy, measurement accuracy. Automatic counting function, effective control of the number of filling.
