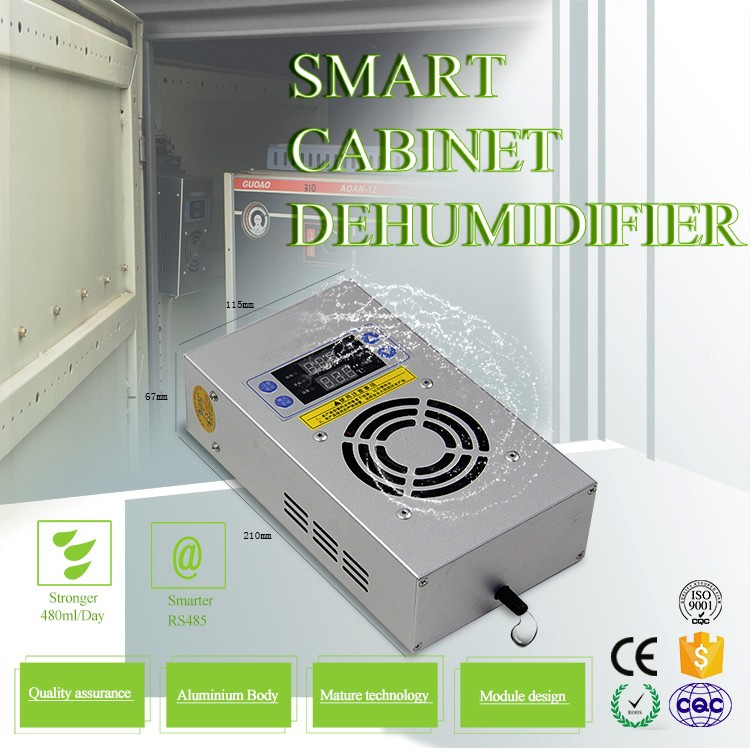

Sdcs-E30 Digital Portable Dehumidifying Device
| Price: |
US $ 113.39-126.99/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
SDCS-E30 |
| Power Supply: |
AC220V |
| Heating Power: |
50~500W |
| Dehumidifying Temperature: |
5-45 Degree Celsius |
| Humidity Measuring Range: |
20%Rh-98%Rh |
| Shell Material: |
Aluminium Alloy |
| Dehumidify Start Value: |
45%Rh-98%Rh(Factory Setting 65%Rh) |
| Display Method: |
Two Lines Three Digital Display |
| Dehumidifying Range(Cbm): |
1-2.5 |
| Weight: |
1.8kg |
Product Description
Brief intruduction
Sanda intelligent dehumidifier device adopts the dehumidification method of semiconductor refrigeration ,making the moist air of airtight space to be inhaled to air-duct by the fan,the moisture of the air is condensed into water through semiconductor refrigeration parts, and then discharged by an aqueduct.By reducing the water content in the air,the relative humidity and absolute humidity. By reducing the moisture content of the air, the relative humidity and absolute humidity decreases at the same time while the temperature is almost no increase, thus there is no negative affect caused by the temperature difference and speed up the aging of the cabinet device due to high temperature ,thereby radically eliminated and reduced the accidents .Intelligent dehumidifier device changed the passive prevent condensation mode to an active guidance condensation mode, it effectively prevent the aging of the cabinet equipment, reducing the dielectric strength, the second terminal breakdown, material mildew ,steel structure corrosion and other security risk,guaranteeing the safe operation of equipment .
Application
1.GIS control cabinet, high and low voltage control cabinet, low voltage switch cabinet, ring main unit, outdoor terminal box, machanical control cabinet, box-type substation, dry-type substation electrical equipment;
2.Integrated circuits, silicon crystal, liquid crystal devices, ceramic devices, resistive and capacitive components, active components, connectors, SMD devices, CPU, computer boards moisture storage;
3.Physical and chemical instruments, laboratory materials and insulation materials' moisture-proof management , chemicals, pharmaceuticals, food, fiber and biological agents' moisture-proof storage.
Feature
1. Temperature and humidity monitoring and display functions, dehumidification / low temperature threshold can be set;
2. Quickly reduce the switching cabinet humidity, water is discharged directly outside the cabinet;
3. Low output contacts: one passive contact output;
4. Dehumidification control mode: manual / automatic;
5. The communication function and dehumidify failure alarm function;
Techinical data
| Data Name | Technical Data | Data Name | Technical Data |
| Working power | AC220 | Dehumidifying
efficiency | 450ml/day(60W35ºC
RH=80%working conditions ) |
| Heating power | 50-500W | Dehumidifying
temperature | 5ºC~45ºC |
| Watt | 30W,40W,60W | Working
temperature | -25ºC~85ºC |
Humidity
testing range | 20%RH~98%RH | Temperature
measuring range | -25ºC~125ºC |
Dehumidify
start value | 45%RH~98%RH(Default
setting65%RH) | Temperature
testing range | 1ºC~55ºC(Default setting8ºC) |
Humidity
measuring accuracy | ±3%RH | Temperature
measuring accuracy | ±0.5ºC |
| Display method | Double 3-digit display | Display Resolution | 0.1 |
| Shell material | Aluminum Alloy | Dimensions | 115*67*210mm
(Width * depth *height) |
| Net Weight | 1.8kg | Aqueduct | Silica gel
D10mm ,L1.5m |

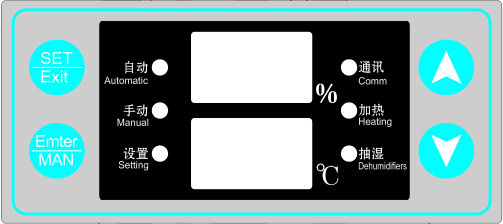

Panel descriptionWhen power on, the dehumidifier device entered the self-test condition,after the self-test is completed, the upper row digital tube display software version number, the lower row digital tube display communication address

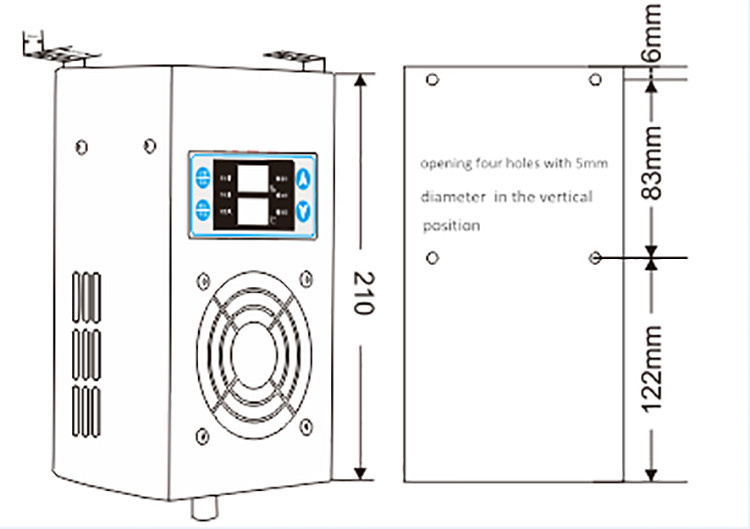

Installation diagram
Frame Size:115X67X210mm Wall-mounted installation hole diagram
