SD-18 Laboratory Large Particle Spray Dryer, Mini Spray Dryer

Product Specifications

Product Description

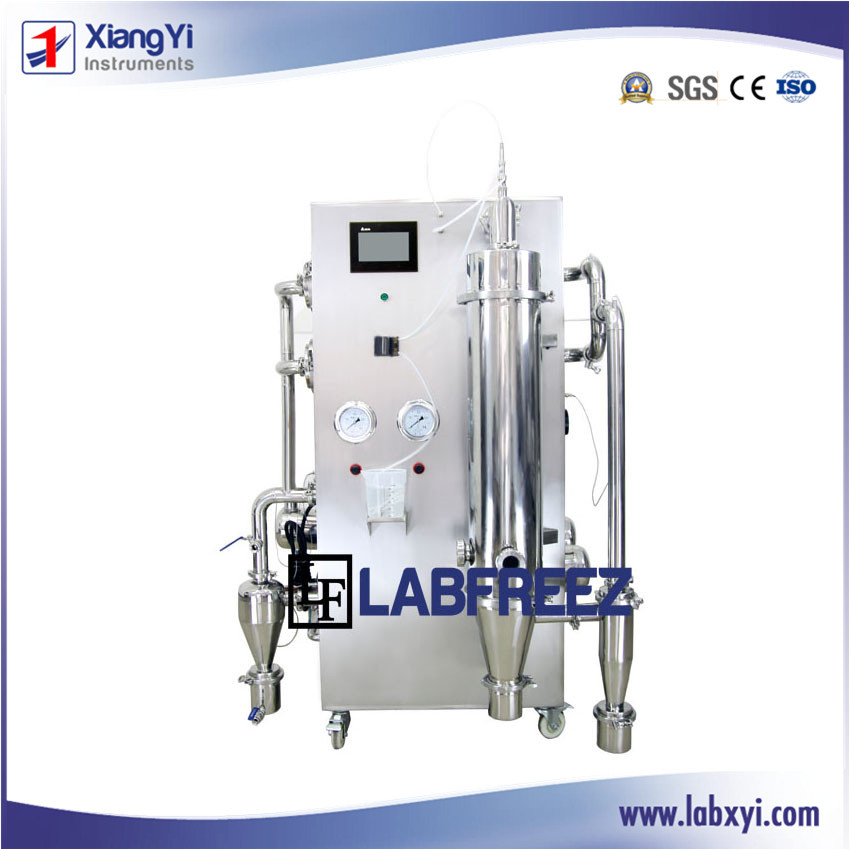

SD-18 Laboratory large particle spray dryer, Mini Spray Dryer



SD-18 mini spray dryer  is self contained and supplied complete and ready for immediate operation. All major components are housed within a stainless steel cabinet and the unit can be used on a bench top or with an optional stainless steel stand. The system was designed to be stand by a keyboard, conducted by a colorful crystal screen of touch guidance mode , and allowed two modes of run: Automatic-mode, and Eye-monitored mode for the purpose of easily controlling experimental process .

SD-18 MINI SPRAY APPLICATIONS
SD-18 mini spray dryer can be used in a wide range of applications where the production of a free-flowing powder sample(10-120μm) is required. This technique has successfully processed materials in the following areas:
Beverages • Flavours and Colourings • Milk and Egg Products • Plant and Vegetable Extracts • Pharmaceuticals • Heat Sensitive Materials • Plastics •  Polymers and Resins • Perfumes • Ceramics and Advanced Materials •
Soaps and Detergents • Blood • Dyestuffs • Foodstuffs • Adhesives • Oxides • Textiles • Bones, Teeth and Tooth Amalgam and many others. Most solutions and suspensions can be spray dried providing that the resulting product has the characteristics of a solid material.

SD-18 MINI SPRAY DRYER TECHNIQUE

1. A menu driven microprocessor controller allows the selection of inlet temperature, airflow, automatic de-blocker frequency and pump speed. The controller features an USB output for connection to a PC or datalogger and software allows the control and monitoring of all functions and printing of results(optional).
2. The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber. At the same time an integral compressor pumps air into the outer tube of the jet which causes the liquid to emerge as a fine atomised spray into the drying chamber.
3. Heated air is blown through the main chamber evaporating the liquid content of the atomised spray. The solid particles of the material, which are normally in a free flowing state, are then separated from the exhaust air flow by a cyclone and collected in the sample collection bottle. The exhaust airflow is directed through a flexible 60 mm diameter hose direct to atmosphere or to an existing extraction system.

1. Two modes of run: Automatic-mode, and Eye-monitored mode for the purpose of easily controlling experimental process . PLC controller, LCD touch panel control fascia with flow path of system.
2. air oilless compressor , the sound is low than 60db
3. Made of SUS-316 Stainless steel. Easy operating.
4. To assure accurate temperature control and easy parameter adjusting, YC-015 applies PID.
5. The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber to avoid secondary pollution.. To make sure the process conducted steady and smoothly, magnetic agitator is optional to make the solution well mixed.
6. Narrow size distribution of particles.(10-100um)
7. Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled

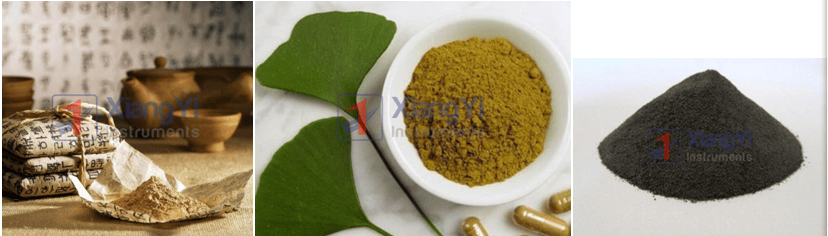

Spray dried samples

How to find the model?
SD-15 Suitable for water-based material, glass type.
SD-15A lab spray dryer can be used for organic & water solvents, with nitrogen circulation system and online recovery system
SD-500 Bench-top type, stainless steel type, equipped with outlet filter, external air compressor
SD-501 Upgrade model of SD-500, Mini Spray Dryer for processing organic solutions, built in nitrogen circulation system, low temperature cooling cycle pump
SD-1800F lab low temperature spray dryer can be used for thermo-sensitive materials and high carbohydrate compositions materials.
SD-18 Laboratory large particle spray dryer, glass type
SD-18A Suitable for water-based material, Upgrade new model
SD-1000 laboratory spray granulator (fluidized bed granulation) can be used for granulation and coating.)
SD-1800F Suitable for water-based material, Low temperature compare to SD-15/SD-15A
SD-2000 lab vacuum spray dryer can be used for probiotics, enzyme and other thermo-sensitive materials.
SD-3000F Lab spray freeze dryer is a new freeze dryer method which is faster than traditional freeze dryer.

Why choose us ?

XIANGYI® Lab Spray Dryer have been applied by over 1,500 domestic customers of top universities,
enterprises and research institutes including AMSS Institute of Systems Science, Tsinghua University, Shanghai
Jiao Tong University, South China University of Technology, Wuhan University, Tongrentang, Xiehe
Pharmaceutical, Bright Dairy, Hong Kong Polytechnic University, Harbin Pharmaceutical Group, Strong Group,
General Electric (GE) Shanghai R&D Center, Jiangnan University, China Agricultural University, Zhejiang
University, Tongji University and Huazhong University of Science and Technology. With firm grasp of domestic
market advantage, XIANGYI® also vigorously expands overseas markets with equipment exported to the
United States, Italy, South Korea, Singapore, Canada, Malaysia, Chile and Russia, receiving extensive praise in
view of product quality.

Plywood Packing

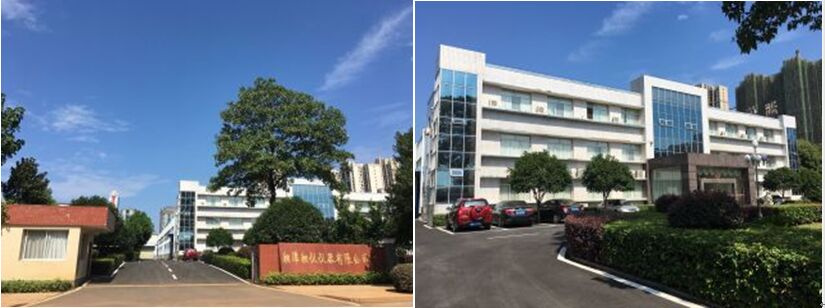

Our factory
