| Price: | US $ 3000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | DW960 |
|---|---|
| Laser Power: | 60W/80W/100W/130W/150W for Your Reference |
| Machine Application: | Non Metal, Such as Wood, Acrylic, MDF, Leather etc |
| Machine Warranty: | 24 Months |
| Cutting Thickness: | 0-30mm |
| Graphic Format Supported: | Ai, BMP, Dst, Dwg, Dxf |
| Control Configuration: | Redcam |
| Format: | Ai, BMP, Dst, Dwg, Dxf |

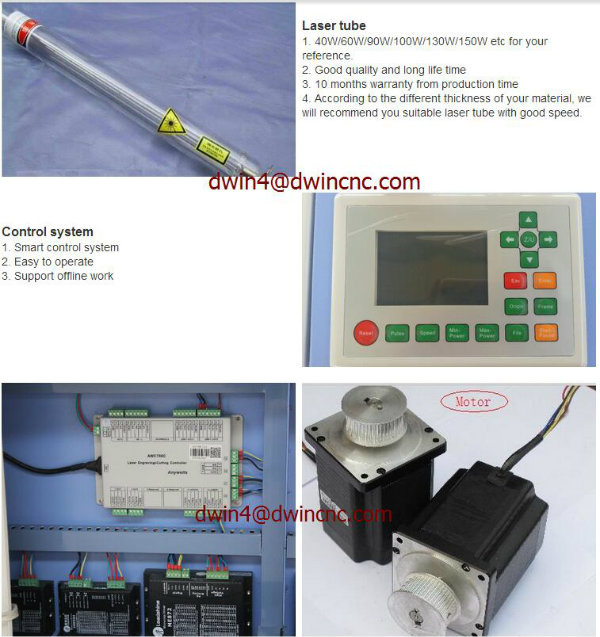

| Laser Tube: | Reci/Yongli/Efr etc |
| Motor: | Servo or Stepper Motor |
| Machine Package: | Veneer Case |
Product Overview:
Applicable materials:
Non-metal materials such as double color board, acrylic glass, bamboo and wood, rubber, marble, granite and tiles, leather etc
Applicable industry:
billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry etc
Machine Parameter

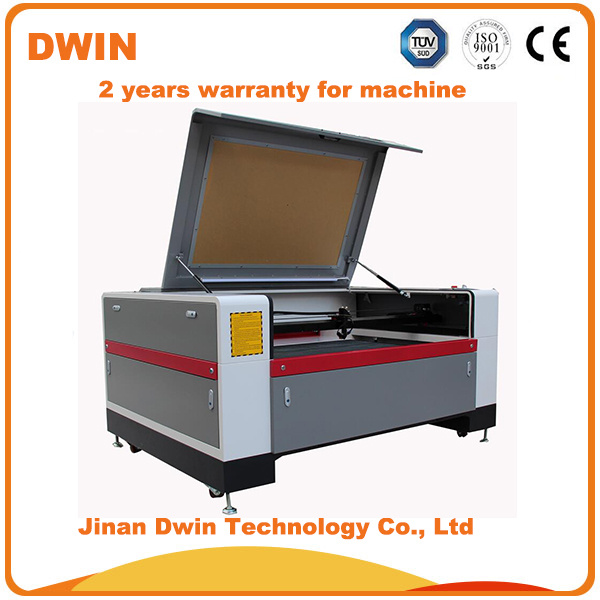

| 1 | Model | DW960 laser engraving machine used |
| 2 | Working area | 90cm*60cm / 35in*24in (L*W) |
| 3 | Laser power | 40W/60W/80W |
4 | Laser type | CO2 sealed laser tube,water-cooled |
| 5 | Engraving speed | 0-60000mm/min |
| 6 | Cutting speed | 0-10000mm/min |
| 7 | Power supply | 220V±10% /50HZ , 110V±10%//60HZ |
| 8 | Min. shaping character | Letter 1.0 x 1.0mm |
| 9 | Graphic format supported | BMP, PLT, DST, DXF, AI,CDR |
| 10 | Software supported | CorelDraw, PhotoShop, AutoCAD |
| 11 | Laser Output Control | 1-100% software setting |
| 12 | Highest Scanning Precision | 2500DPI |
| 13 | Resolution ratio | < 0.01mm |
| 14 | Location precision | <0.01mm |
| 15 | Working temperature | 5°C-40°C |
| 16 | Operating humidity | 5%-95%(without condensed water) |
| 17 | Equipment Dimension | 1420mm*1100mm*1070mm/57in*43in*42in (L*W*H) |
| 18 | Net Weight | 300kg |
| 19 | Optional parts | Up-down worktable, Red light pointer, Auto focus, Rotary device |
1. 18 months quality guarantee for the main parts of the machine, excluding consuming parts, and the main parts shall be changed free of charge during the warranty time
2. Lifelong maintenance for the machine, and lifelong technical support from sophisticated English-speaking engineer team.
3. Free training course at our plant
4. We will provide the machine consuming parts with factory price when you need replacement.
5. 24 hours online service each day, free technical support.
