Rubber Conveyor Belt with Tear-Resistant for Bulk Material Pipe Conveyor Belt Rubber
| Price: |
US $ 3-30/Meter |
| Min Order: |
100/Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
St3150 |
| Color: |
Black |
| Certification: |
ISO.SGS.Iaf.CNAS. |
| Width: |
400 mm ~ 2000 mm |
| Elongation At Break: |
350% ~ 400% |
| Thickness Of Bottom Rubber: |
1.5 mm ~ 4.0 mm |
| Warranty: |
6 Months |
| Thickness Of Top Rubber: |
3.0 mm ~ 8.0 mm |
Product Description

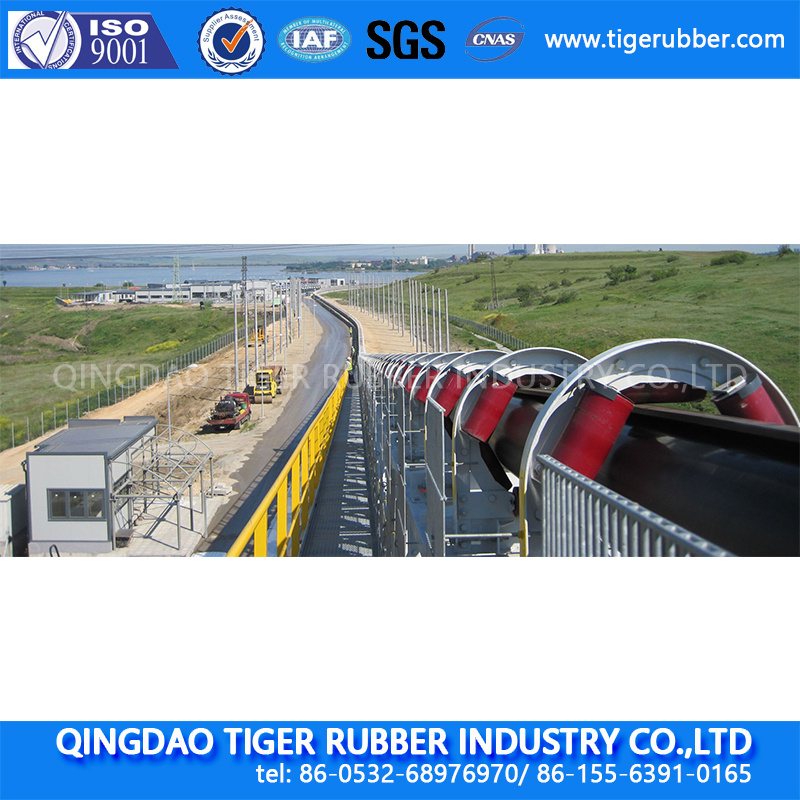

special features :-special features of each grade -- closed transportation in order to prevent materials from overflowing, drop-down, scattering and mixing with foreign materials from outside.-- this exwill pipe conveyor belt is economical for curve (45°~90°) and incline(up to 30°) transportation due to easy design of conveyor line and limited spacefeatures:-(1) pipe belt itself has appropriate transverse rigidness, which can ensure good retention and seal of tubular shape.(2) the belt body has good elasticity and longitudinal flexibility, making the belt able to tolerate repeated and long-time violent bending and shrinkage;(3) the belt has excellent physical and mechanical properties.it is required that the outer cover rubber has higher resistance to weather, ozone, ultraviolet rays, cracking etc., while inner cover rubber should have excellent abrasion resistance.(4) because of the special structure of tubular belt, it conveys powdery material in tubular closed condition during the conveying, thus it can effectively prevent dust fly and spill.(5) by adopting tubular conveyor belt for conveying, the material is wrapped in the rubber belt, this increases the area of contact between material and rubber belt and internal friction angle of material, thus can increase the inclination angle of material conveying of the conveyor.(6) with tubular belt adopted for conveying, after the belt presents tubular shape, it can run horizontally, vertically, the conveying line can be arranged according to space within a certain range without setting intermediate transfer station, therefore, construction investment can be saved.(7) tubular belt conveying avoids bias with reliable running improved conveying efficiency and better economic benefit and lower running cost.(8) with a tubular belt for conveying material, the return run after discharge can also convey material, i.e.two-way conveying.this cannot be achieved with an ordinary conveyor belt.Technical parameters of steel cord conveyor belt :-| Item | St
1000 | St
1250 | St
1600 | St
2000 | St
2500 | St
3150 | St
3500 | St
4000 | St
4500 | St
5000 | St
5400 |
Longitudinal tensile
strength (N/mm) | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 3500 | 4000 | 4500 | 5000 | 5400 |
| Max. nominal diameter of steel cable (mm) | 4.1 | 4.9 | 5.6 | 5.6 | 7.2 | 8.1 | 8.6 | 8.9 | 9.7 | 10.9 | 11.3 |
| Space between steel cables 1.5m | 12 | 14 | 15 | 12 | 15 | 15 | 15 | 15 | 16 | 17 | 17 |
| Thickness of rubber cover (mm) | 4 | 4 | 4 | 4 | 5 | 5.5 | 6.5 | 7 | 7.5 | 8 | |
| Width specification (mm) | Number of steel cables |
| 500 | 39 | 34 | | | | | | | | | |
| 650 | 51 | 44 | | | | | | | | | |
| 800 | 64 | 55 | 50 | 64 | | | | | | | |
| 1000 | 81 | 69 | 64 | 81 | 64 | 64 | 64 | 64 | 59 | 55 | 55 |
| 1200 | 97 | 84 | 77 | 97 | 77 | 77 | 77 | 77 | 71 | 66 | 66 |
| 1400 | 114 | 98 | 90 | 114 | 90 | 90 | 90 | 90 | 84 | 78 | 78 |
| 1600 | 131 | 112 | 104 | 131 | 104 | 104 | 104 | 104 | 96 | 90 | 90 |
| 1800 | 147 | 127 | 117 | 147 | 117 | 117 | 117 | 117 | 109 | 102 | 102 |
| 2000 | 164 | 141 | 130 | 164 | 130 | 130 | 130 | 130 | 121 | 113 | 113 |
| 2200 | 181 | 155 | 144 | 181 | 144 | 144 | 144 | 144 | 134 | 125 | 125 |
| 2400 | 197 | 169 | 157 | 197 | 157 | 157 | 157 | 157 | 146 | 137 | 137 |
| 2600 | 214 | 184 | 170 | 214 | 170 | 170 | 170 | 170 | 159 | 149 | 149 |
Performance parameters and applicable standards| Grade code | Tensile strength
MPa ≥ | Elongation at break% ≥ | Abrasion loss
mm3≤ |
| Performance grade | Tensile strength
MPa≥ | Elongation at break %≥ | Abrasion loss
mm3≤ |
| D | 18 | 400 | 90 | | W | 18 | 400 | 90 |
| H | 25 | 450 | 120 | | X | 25 | 450 | 120 |
| L | 20 | 400 | 150 | | Y | 20 | 400 | 150 |
| P | 14 | 350 | 200 | | K* | 20 | 400 | 200 |
