Product Specifications
| Prod Model: |
HQT04/05/06 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
102(W)*43(L)*16(H)Mm |
| Color: |
Black or White |
| Output: |
Weigand26/34 RS232 RS485 |
| Card Type: |
Em or Mifare, or Em and Mifare |
| Waterproof: |
Yes |
| Warranty: |
1year |
| Package: |
Carton |
| Lead Time: |
3-5days |
| Installation: |
External |
| Card Slots: |
All in 1 & Multi in 1 |
| Interface: |
USB |
| Type: |
TF Card |
| Capacity: |
≤128MB |
Product Description

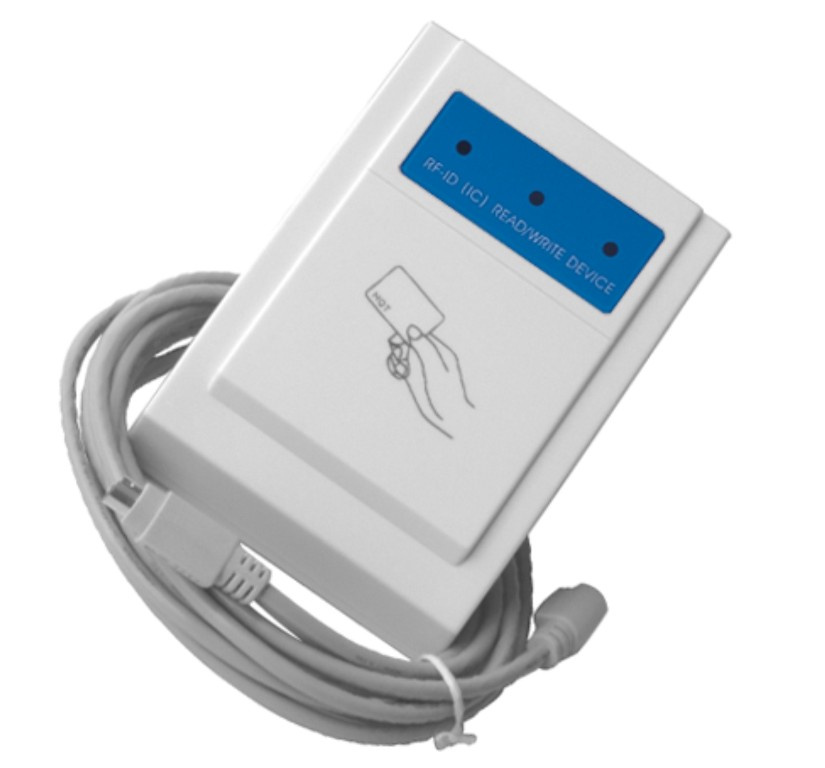

RS232 or USB RFID Reader/Writer Series with software(HQT04/05/06)
Main features.
Connect PC via PS/2, RS232 or USB interface, EM-ID 125kHz, Mifare 13.56MHz techonlog card issuing device, mifare or temic reader or writer
Specifications:
Decimal or Hex code number selectable
Digits of the code number selectable
Audible beeper to show reading status.
Support EM-ID, TM-e5551, Mifare
More than 50mm Reading Range
Inside Antenna, 5 V Operating voltages, Black or Grey Color
Wire Connection Instruction
Plug One 9 PIN port to Computer Main Frame Keyboard Port, Wire Crystal port to Reader, the other 9 PIN port to Computer Keyboard Port
HOT05 Reader/Writer Device
Reader and writer (RS232 port) Format of Output
Read/Write TM or Mifare Card
RF Distance: 2 cm
Optional Visual Basic Software
Wire Connection Instruction
Plug One 9 PIN port to Computer Main Frame Keyboard Port, Wire Crystal port to Reader, the other 9 PIN port to Computer Keyboard Port, Wire Serial Port to computer Serial Port.
HQT06 RS232 Card Reader
Computer Setting
Wind 98-Opening Menu-Program-Annex-Communication-Super end. (First Choice: COM Port. )
Baud Rate: 9600, 4800, 2400 or customaries requirements
Data Bit: 8.
Stop Bit: 1.
