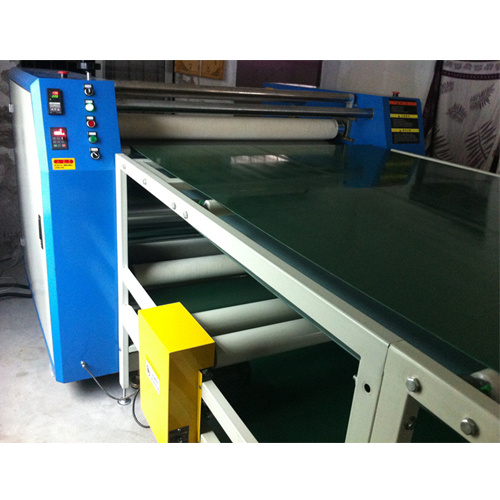

Roll Mult-Function Sublimation Transfer Machine

Product Specifications

Prod Model:	FY-03
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Printing Plate:	Heat Transfer Printing
Temp Range:	0-399
Power:	15-42kw
Weight:	1000-2600kg
Diameter Of Drum:	420/600/800mm
Length Of Drum:	900/1200/1700/2000mm
Length Of Working Table:	2.5m/4m
Blanket:	DuPont Material
Thermal Oil:	Mobil
Certificate:	CE
Type:	Ink Jet
Structure:	Platen Press
Color & Page:	Multi-Colour Printing Press
Plate:	Sublimation Transfer Machine
Printing Speed:	3-8m/Min

Product Description

Mult-Function Sublimation Transfer Machine

SPECIFICATION:

Description:
1)3D vacuum transfer machines Can be transferred in the plane and fully solve printing processing of all kinds of shaped, curved, three-dimensional surface.

2)3D vacuum transfer press  machines Can be widely used in building decoration, wedding photo studio, advertising, logo signs, gifts and other industries.

3)Special items like: curved iPhone plastic case, glass, plate, stone and little curved items.
Traditional items like flat tile, mouse pad, glass, crystal etc.

Model No	FY-001
Voltage	110V/60Hz & 220V/50Hz
Power	1800W, 2200W, 2500W
Working Size	40*40CM/16" *16"               40*50CM/16" *20"   40*60CM/16" *24"               50*65CM Special size upon order
Time range	0-99sec, adjustable
Temperature range	0-399° C
Packing	Double carton with form inside
Packing Size	72*46*52CM, 82*47.5*54CM, 95*48*58CM
G. W.	33KG, 45KG, 60KG

PACKAGE:
 This heat press machine is widely applied in heat transfer printing industry. It  can printing any photo and design pictures onto the materials such as T-shirts, jackets, mouse pads and more fabrics .It's the best choice for  personalized  pyrograph of retail shops and factory mass-production.   in  a word ,it is economical and practical.

Product Name	3D mult-function sublimation heat press machine
Model	FY-03
Voltage	110V /220V (50HZ-60HZ)
G.W	25kg
Power	2800W
UP Heating	1300W
Down Heating	1300W
Printing Size	300*420*20mm
Packing Size	690*620*380mm
Vacuum Pump	150W
Max vacuum	-640mmHg
Vacuum Flow	33L/min
Supply color	Red,Black,Silver

FEATURES:

1. Digital time and temperature control,and signal indicator after process complete.simply operation

2.The heated thread and heated board in whole, safe, durable ,thermostat distribute uniformity;

3. Based on kinesiology design,  equality  pressure,The pressure can be adjusted freely according to you need.very convenient.

4. Adopt TEFLON & high temperature fabric as anti-adhesive  clad layer for heating plate,prevent the clothes burned yellow, easy to clean,can be replaced,without loss can work permanently.

5.Fix high temperature resistant froth silica pad on the work table ,it can bear maximum 350ºC without any distortion,more smooth,good heat transfer effect.
6. Energy saving machine, It is economical and practical.

READ BEFORE OPERATING:

1.Be sure to operate with safe ground wire!!!

2.Check the voltage before using it.Then turn on the machine and turn on the power supply!

3.When you use it,avoid heating the machine without operating it for long time.You should switch off the power supply when you don't use it.don't heating nothing.

4.Avoid touch the heat press plate when you operating in case be injured.

5.When you press the handle,if you feel the pressure is too much and it is hard to press it, or the pressure is not enough and it is too easy press it,please adjust the pressure adjusting knob,decrease increase  the shrink of the spring . the intensity of the machine will be injured if the pressure is too much.

6.Keep children away from the machine even when the machine is left unused!!!


OPERATION PROCEDURES

please note:Users should operate the machine with ground wire connected for safety!

1.Check the voltage before using it.Then turn on the power supply!

2.Plug in,turn on the power switch of machine,the power indicator lightened.

3.Set the thermostat to the temperature needed (Normally 120-200ºC),set  the timer to the       needed.(Normally 5~20Second).

4.Place the clothes to the main plate,cover the printing paper(please note the right surface of the paper).Press the handle down until reach terminal.

5.When the time come down to over,the buzzer alarms,pull the handle back.

6.If it is cold-ripping of the transfer paper,please use blackboard wiper to rub against the whole transfer paper,wait for 5-10 seconds,then rip off the transfer paper.If it is the hot-ripping of the transfer paper,you can rip off immediately after printing.

Please note : successful print requires right time,temperature and pressure,the thickness of  the clothes material,even the type of printing paper,all will affect the performance of printing.Any kind of sublimation paper need test before mass production.



WARRANTY:

You  can rest assured ,we offer good after-sale service:
1. The machine enjoy one year warranty,
2. life-long maintenance service and Life-long on-line technical support ,
3. provide free parts when problems occur within one year not including shipping cost.
4. All the machine of our factory have been approved by CE.

PAYMENT TERM:

L/C,D/A,D/P,T/T,Western
Union,MoneyGram,Paypal.
30%deposit,70% the balance will be paid before shipping.


DELIVERY:
7 days after you confirming order.


PACKAGING:

The packing will be made according to your requirements. Here we have 2 usual kinds of safe packing method as below:

1.This Heat press machine will have foam inside,hard carton outside.

2.This Heat press machine will have PVC bag and foam inside, wooden case outside. These two methods above are very safe shipping packing methods.

Please refer this heat press machine's CBM as below: Packing size: 74*48*44cm CBM 0.18 ,CBM 20'Container 163PCS 40'Container 326PCS ,  Weight 33kg/pcs.


SHIPPING:

If you order little quantities(below 100KG),you could use DHL,TNT,UPS or other air express company to delivery your goods, delivery time usually 3-4working days, they will send the products your ordered to your address.

If you order large quantities, you'd better choose sea delivery.
1,If you have your own shipping agent, then we will contact with them and make sure the shipping details for you .

2, In case of you don't have your own shipping agent, don't worry, we will ask our shipping agent to do all the things for you.

3, After we ship the machine, we will give you the documents right now.

4. you need to go to your nearest seaport to take your goods, delivery time usually 30-40days. For more details, please contact with us.

MAINTENANCE:

1.Pressure:If the pressure is not enough or too large,please adjustable pressure nut,(+)direction of increasing pressure;(-)direction of a reduction of stress.

2.Time:When the time is over,the buzzer does not work or out of order,check the contact of the sensitive switch at the tail of the machine.If it is not proper,adjust it to proper position.

3.Temperature:If the machine has been started for several minutes,there is no heating from heating plate,check the circuit.

4.The machine adopt eccentric bearing,the pressure is not allowed to be adjusted too large,in case cause damage to bearing.

5.If any quality problem please contact our company.
