Ribbon Mixer for Animal Feed
| Price: |
US $ 5000-48900/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Product Specifications
| Prod Model: |
LHY |
| Configuration: |
Mixer Can Equiped According The Clients' Requireme |
| Certification: |
SGS |
| Type: |
Mixer Machine |
| Finished Dosage Form: |
Powder |
Product Description

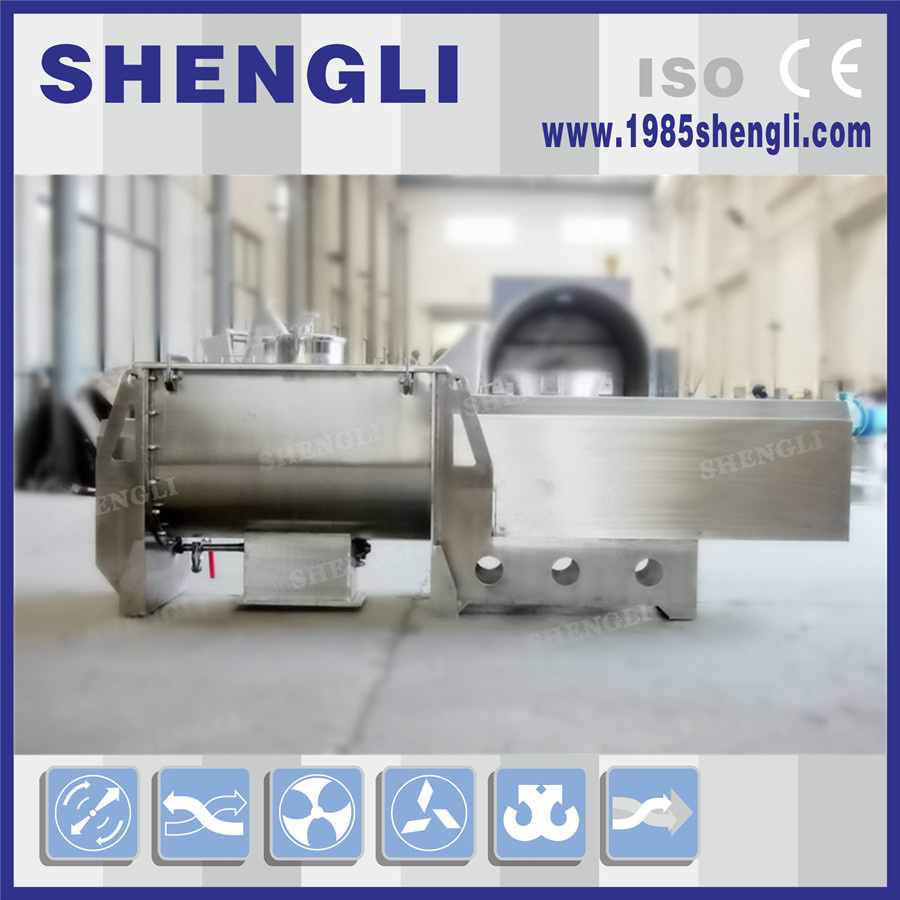

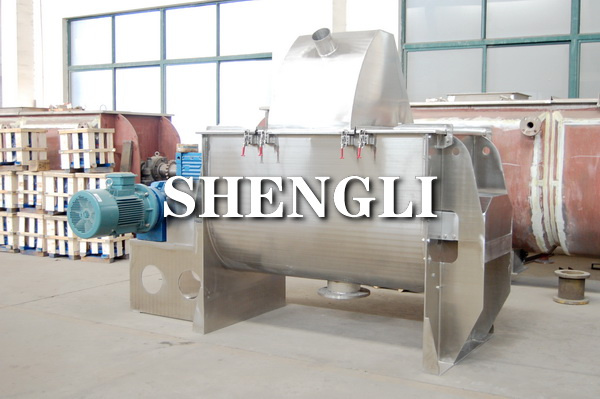

Ribbon blenders:
1, Scope of Application:
In the U-shaped container, there are positive and negative ribbons. Special proportion of the two ribbons can be rectified with the kind of material, quantity and the proportion of body. This mixer has good effect on mixing viscosity or cohesion powder.
2, Characteristic
A, Fast mixing speed can satisfy the rigorous demand of mixing the materials with different physical property
B, The rotation is under critical speed, which will reduce the effect of fragmentation to the material(e. G. Crystal particle)
C, Lower height of the container is convenient for installation
D, The positive and negative ribbons are set up at he same level, forming a mixing environment of low power but high efficiency.
3, Working Principle:
A, The horizontal axes make the materials move up and down.
B, The outer ribbon gathering the material from sides to center and the inner ribbon pushing the material from center to sides
C, Every screw makes the materials do axial and radial movement, the materials do relative cyclical movement so to gain the intensive mixings ends.
We can design and make the machinery according to client's requirement.
| specification | working capacity(L) | working capacity(KG) | revolution/rotation | power | weight |
| LHY-0.3 | 0.18 | 200 | 62 | 5.5 | 600 |
| LHY-0.5 | 0.3 | 300 | 62 | 7.5 | 900 |
| LHY-1 | 0.6 | 600 | 49 | 11 | 1200 |
| LHY-2 | 1.2 | 1200 | 33 | 15 | 2000 |
| LHY-3 | 1.8 | 1800 | 33 | 18.5 | 2500 |
| LHY-4 | 2.4 | 2500 | 27 | 22 | 3500 |
| LHY-5 | 3 | 3000 | 27 | 30 | 4000 |
| LHY-6 | 3.6 | 3600 | 27 | 37 | 4500 |
| LHY-8 | 4.8 | 4800 | 22 | 45 | 5000 |
| LHY-10 | 6 | 6000 | 22 | 55 | 6000 |
| LHY-15 | 9 | 9000 | 14 | 75 | 7500 |
| LHY-20 | 12 | 12000 | 14 | 90 | 10500 |
| LHY-30 | 18 | 15000 | 12 | 110 | 13000 |
Shanghai Shengli machinery manufacture Co., Ltd (Shanghai shengli mixer factory) is specialized in designing\developing\ producing mixing equipment for powder or liquid.
Our product are widely used in chemistry\agriculture\fertilizer\medicine\dye\pigment\ rubber\plastic\food\feeding stuff\China\fireproof material\building material\magnetic material and so on.
Shengli company is professional on producing mixing equipment and developing of new products. More than 20 years technique experience; Well quality control system and best after-sale service provided make the company become the best enterprise brand in the country, the product is quite popular in more than 30 provinces and cities of China and also exported to other enterprises in Singapore, Korea, Japan and Taiwan, which creates rich benefits for worldwide customers.
