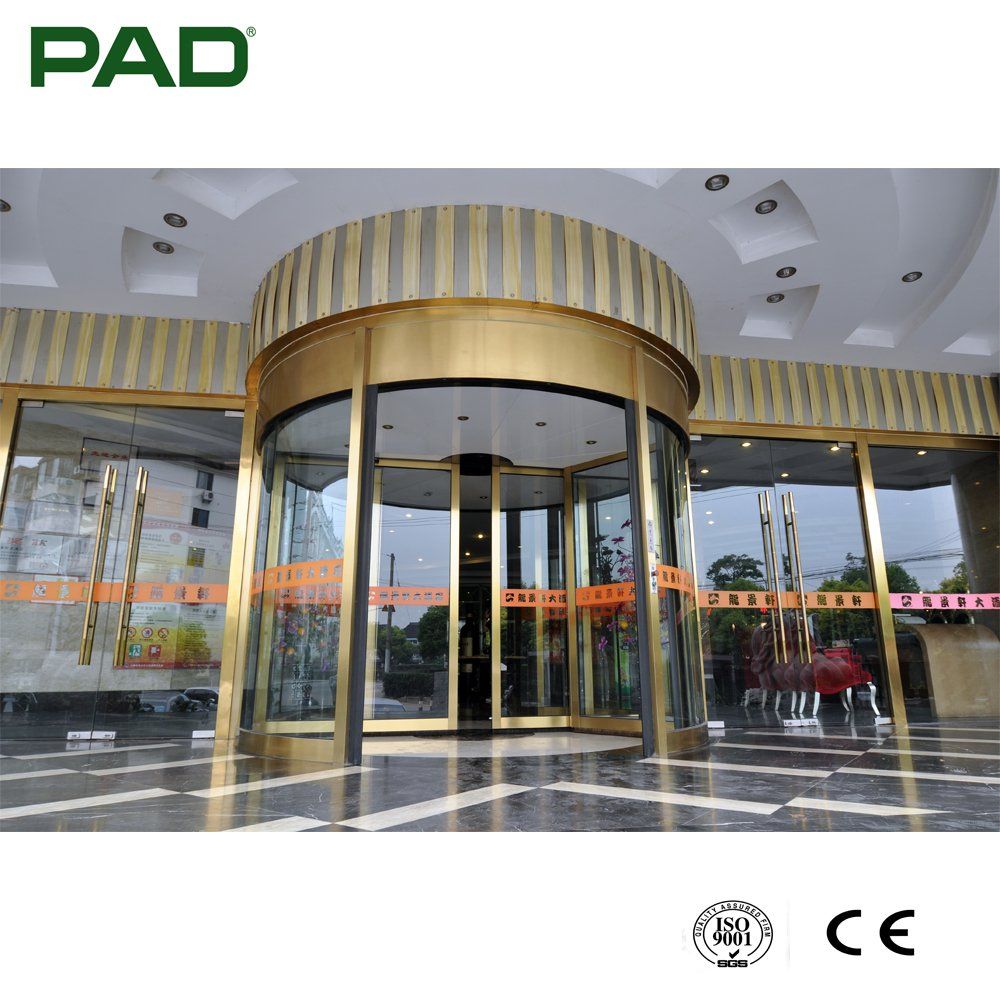

Revolving Door Automation System with Sliding Mode Inside
| Price: |
US $ 8800/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
Product Specifications
| Prod Model: |
TF2000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inner Diameter: |
3600mm,4200mm,4800mm |
| Material: |
Stainless Steel |
| Type: |
Revolving |
| Open Style: |
Revolving |
| Opening Type: |
With Remote Control |
| Special Function: |
Security |
| Color: |
Bronze |
| Certification: |
CE |
| Position: |
Commercial |
| Surface Finishing: |
Finished |
Product Description
2 wing revolvng door | Technical data |
|
|
|
|
| Voltage rating | Current rating | Power rating | Motor power | Sliding door power | Light power |
| AC220V/50HZ | 6A | 1200W | 250W*2 | 100W | 400W |
| Size |
|
|
|
|
|
| Inner diameter | Outer diameter | Entrance/exit width | Sliding door clear width | Cornice height | Passage height |
| 3000 | 3220 | 1380 | 1330 | 340 | 2200 |
| 3200 | 3420 | 1480 | 1430 | 340 | 2200 |
| 3600 | 3820 | 1680 | 1630 | 340 | 2200 |
| 4200 | 4420 | 1980 | 1930 | 340 | 2200 |
| 4800 | 5020 | 2280 | 2230 | 340 | 2200 |
| Unit: mm |
|
|
|
|
|
Features:
Elegand and noble outlook
Super auspcious passage
Low energy consumption
Entrance environment clearance
Durable material
Reliable performances
Fire warning system application (optional)
Remote diagonostic system (optional)
Note
2-wing revolving door with display case, the inner diameter is available between 3600-4800mm.
2-wing revolving door without display case, the inner diameter is available between 300-3600mm.
Revolving doors with special sizes can be booked in advance.
Operation modes
Slant ( idle mode in Spring and Autunm)
Close(idle in winter, lock at night)
Mid-pending(idle in summer)
Low-speed rotation
Automatic sliding
Sliding door hold-open
Safety&protection:
Anti-clip: The infrared anti-clip sensors mounted on the entrance/exit and the rotor wings can ensure the safe passage.
Anti-bump: There are pressure sensors mounted at the entrance/exit columns and the rotor wings. Once the passenger is bumped by the rotor wings or against the columns, the door will stop immediately. When the passenger leaves, the door resumes working.
Anti-collide: On the top-front of each display case, theres a wide-rang infrared sensor. If the rotor wing appoximates the passenger, the door speed will decelerbrate or stop. When the passenger moves forward, the door will resume normal speed again. In case theres a fire-warning signal putting in, the door will rotate to the emergent position and open the sliding door. The swift exit of the persons inside can be ensured.
Immergency: In cse of emergency, the red button can be pressed down and the door will stop immediately. Once the immergency released, the button can be turned clockwise to return the door to mornam status.
Disabled: If the disabled button is used, the door will keep running for one cycle at low speed to ensure the safe passage of diaabled persons.
Facade Options:
Carbon fluorine painting: Durable and easy to clean. Various colors are optional for unique architectural style.
Stainless steel: Our advanced manufacturing and first-rate digital facilities can make sure the surface decoration to meet customers requirement idealy.
Copper: The top level of surface processing on the copper plate can make different patterns. Such decorations give noble visual effect.
Shanghai PAD Automatic Doors Technology Co., Ltd. is a company (manufacturer) established in 2003, located near the Hongqiao airport, Shanghai, China.
With CE and ISO9001: 2000 certificates, the company integrates Italian automatic technology and Chinese manufacturing advantages, which enables our products to have reliable quality and competitive prices.
Today PAD products are widely adopted in 89 countries or regions around the world, and more and more customers are joining us. For someof them we provide OEM service, and for some more we deliver the goods with PAD as our common brand.
Our main products include:
A. Automatic sliding door operator
B. Automatic revolving door systems.
C. Automatic roller motors.
D. Accesories for autoamtic door industry.
Our products are mainly used in restaurants, hotels, clubs, government buildings, offices, factories, shops, residential areas, military zones, etc.
As the society develops, our products are also progressing with the times. Sincerely hope we can provide our services for more cusotmers around the world.
Welcome you to have a visit to our factory!
