Product Specifications
| Prod Model: |
KRD-80MZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Krd-80mz |
| Working Pressure: |
6-10 Bar |
| Capacity: |
85nm/Min |
| Max. Inlet Temp.: |
45 ºC |
| Power: |
380V/50Hz |
| Ambient Temp: |
5 - 45 ºC |
| Weight: |
4330 Kg |
| Dimensions: |
2460 mm (L) X 3100 mm (W) X 2695 mm (H) |
| Air Connections: |
Dn125 |
| Outlet Air Pressure Dew Point: |
-40~ -70ºC |
Product Description

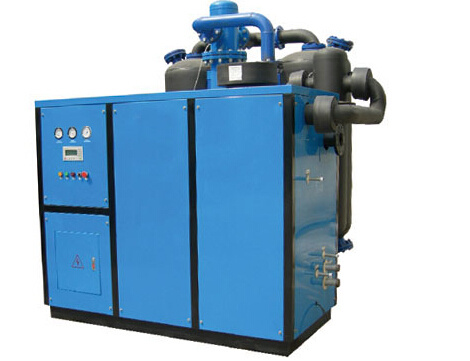

Regenerative Externally Combination Refrigerated Desiccant Air Dryer (KRD-80MZ)
In order to meet with the very demanding air dryness requirement, ADEKOM has developed a series of refrigerated / desiccant combination air dryer, the benefits of purge air loss and low power consumption from refrigerated air dryer and the benefit of low pressure dew point desiccant dryer are combined to achieve super dry air with minimum energy consumption.
We are specialized in providing Regenerative Desiccant Air Dryer and Low Dew Point Air Dryer solution to our customers all over the world. Our JV manufacturing facility is in Southern China and that our financial & logistics headquarter is in Hong Kong. Our procuct range includes Standard screw air compressor(3kW-315kW), Low and Hight pressure rotary screw air compressor, Oil free screw/scroll compressors, VSD inverter controlled screw compressors, Railway application compressors, Underground application compressors, Biogas/Landfill gas compressor, CNG / LPG application compressors, Externally Heated Dryer, Combination Air Dryer and Inline air filters/water separator.
Technical Parameters:
| Model | Discharge capacity (Nm3/min) | Discharge pipe connections | Circulated
Cooling water
(m³/h) | Weight (kg) | Dimensions(mm) |
| L | W | H |
| KRD-1MZ | 1.2 | R1" | - | 102 | 625 | 560 | 1173 |
| KRD-2MZ | 2.4 | R1" | - | 145 | 625 | 56 | 1688 |
| KRD-3MZ | 3.6 | R1" | - | 180 | 750 | 560 | 1568 |
| KRD-6MZ | 6.5 | R1-1/2" | - | 322 | 973 | 600 | 1813 |
| KRD-10MZ | 10.7 | R2" | - | 580 | 1162 | 900 | 2090 |
| KRD-12MZ | 13 | - | 590 | 1162 | 900 | 1880 |
| KRD-15(W)MZ | 17 | DN80 | 3 | 820 | 1374 | 1000 | 1908 |
| KRD-20(W)MZ | 23 | 3.7 | 1000 | 1374 | 1000 | 2208 |
| KRD-25(W)MZ | 27 | 4.5 | 1140 | 1418 | 1000 | 2207 |
| KRD-30(W)MZ | 32 | 6 | 1220 | 1616 | 1100 | 2208 |
| KRD-40(W)MZ | 45 | DN100 | 7.5 | 1550 | 1666 | 1100 | 2393 |
| KRD-50(W)MZ | 55 | DN125 | 9 | 1900 | 2016 | 1200 | 2673 |
| KRD-60(W)MZ | 65 | 11.2 | 2200 | 2218 | 1300 | 2693 |
| KRD-80(W)MZ | 85 | 12.5 | 2360 | 2218 | 1300 | 2693 |
| KRD-100(W)MZ | 100 | DN150 | 14.5 | 5100 | 2540 | 1350 | 2693 |
For any other requests please contact Adekom.
