Product Specifications
| Prod Model: |
DEK-1390J |
| Cutting Area: |
1300*900mm |
| Cutting Thickness: |
0-30mm |
| Cutting Speed: |
0-40000mm/Min |
| Graphic Format Supported: |
Ai, BMP, Dst, Dwg, Dxf |
| Certification: |
Ce, FDA |
| Laser Power: |
60W/80W/100W/150W |
| Driving System: |
Stepper Motor and Drivers |
| Control Configuration: |
Ruida Control System |
| Belt: |
Fulong Belt |
| Rail: |
Hiwin Guide Rails |
Product Description

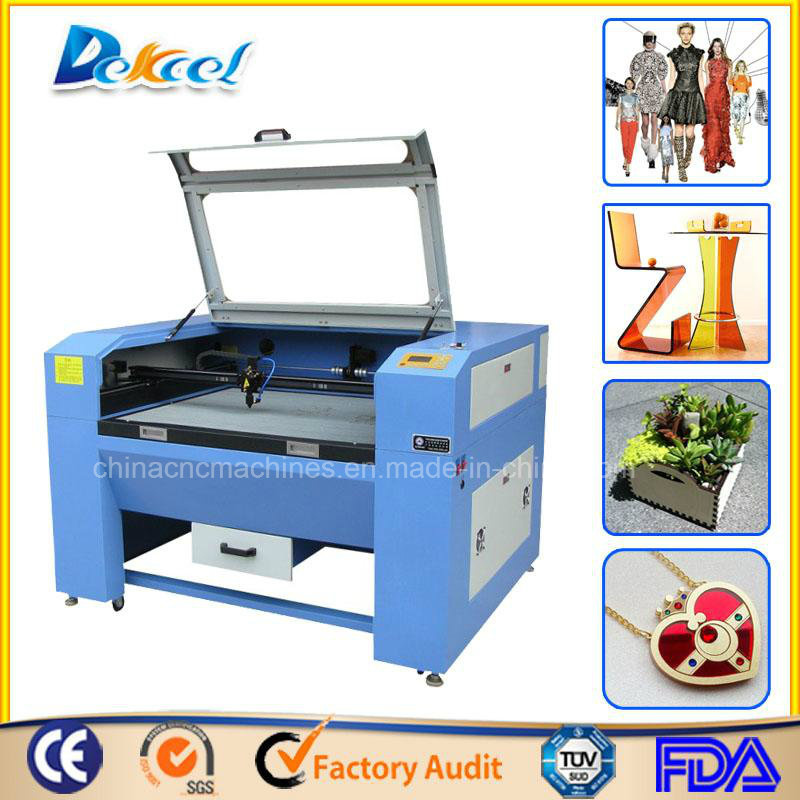

Reci 80w Double/Two Head Laser Cutting Machine with Honey Comb Work Table

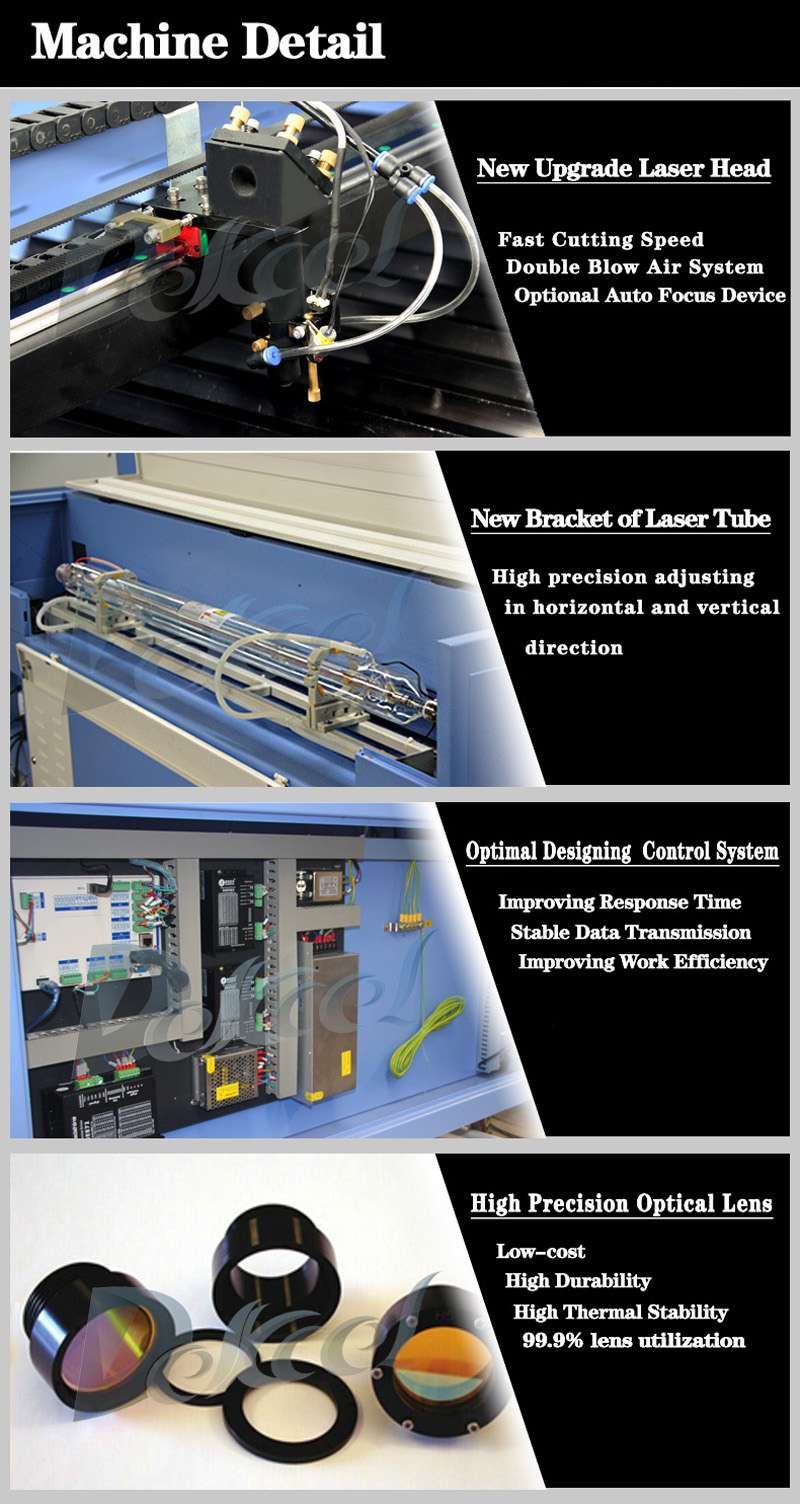

Double Head Laser cutting machine features
Rdcam color touchable screen control system in English--operate easily
Leedshine driving system--stable
Hiwin guide rail from Taiwan -- high precision
Singapore lens and mirror--reflection and focusing, long working life.
Red light position system --position precision
Automatic protection system--safe
All the feature of our laser engraving machine make sure its high quality and good work performance.
Technical Detailes for Double Head Laser cutting machineType | DEK-1390 |
Engraving Area | 1300 x 900mm |
Laser Power | 80W/100W/130w/150W |
Laser Type | CO2 Laser Tube |
Engraving speed | 0~1000mm/s |
Cutting speed | 0~600mm/s |
Resetting positioning accuracy | 0.01mm |
Cutting depth | depend on materials |
Minimum Shaping Character | 1.5×1.5mm |
Power supply | 220V±10% 50HZ or 110V±10% 60HZ |
Gross power | 1200W |
Software supported | ArtCut, CorelDraw, PhotoShop, AutoCAD |
Graphic format supported | PLT,DXF,BMP,JPG,GIF,PGN,TIF |
Engraver for Curve surfaces (Yes/No) | No (rotary attachment can be added for cylinders) |
Water Cooling: (Yes / No) | Yes |
Maximum Height of Materials to Engrave (mm) | 280mm(Up and down by motor) |
Laser Tube (life hours) | 10000 hours |
Assistant Equipment | Water pump | Exhaust Fan | Aluminum alloy worktable |
Optional Spare Parts | RF Tube | Rotary System | Cooling water system | Red Dot Pointer |
Recommended Spare Parts / Consumables | Laser Tube and Lens |
Applicable Materials of Double Head Laser cutting machine
Wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic,glass and other nonmetal materials.
Applicable industries of this laser cutting machine
Advertisement, arts and crafts, leather, toys, garments, model, building upholstery,
computerized embroidery and clipping, packaging and paper industry.

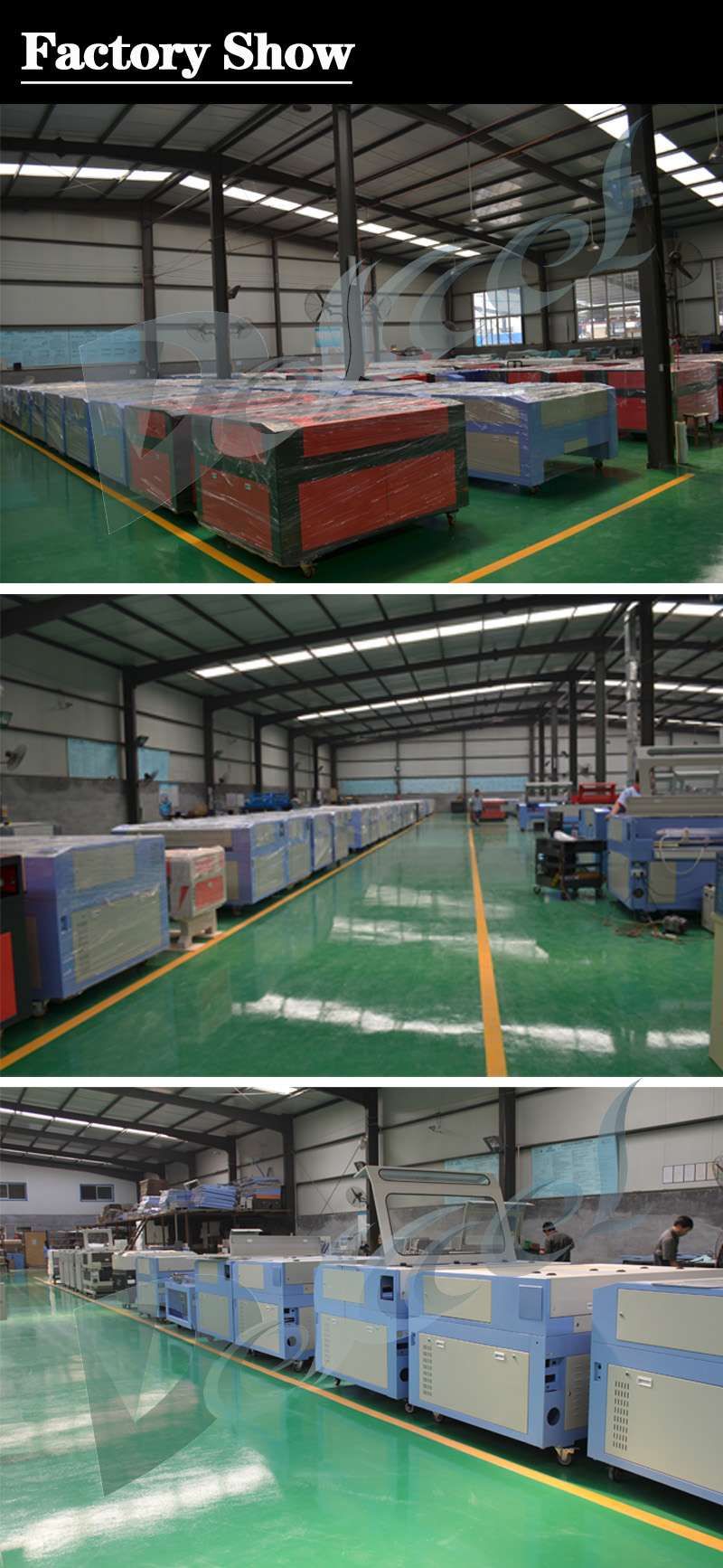

Dekcel cnc laser cutting machine factory
Dekcel cnc laser cutting machine Certificates
FAQ
1) This is the first time I use this kind of laser cutting machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
we will give you 24hours service from phone and skype or go to your home for after-sale service
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port or your factory directly, please tell
us your port name or your detailed address. There will be best shipping freight and machine price send to you
After sales service:
1.1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free. Or charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
If you are not sure which machine is suitable, please tell me the following questions:
i will recommend the most suitable machine to you.
1)what materials do you want to engrave or cut?
2)what's the max size of the materials?
Looking for agents for all over the world
Thanks for your time!
Welcome to DEKCEL CNC, where our friendly and knowledgeable staffs are happy to assist you with your CNC needs. DEKCEL do not just sell CNC machines. We offer CNC solutions to Customers. Provision of a CNC machine is more than just the provision of a machine tool. Jinan DEKCEL provide a range of CNC Router, CNC laser, plasma cutting machine, laser marking machine etc. Having manufactured, sold, installed and supported over 7000 CNC machines. The professional CNC router, laser, plasma cutter we offer have exceptional long term stability, high cutting performance potential in a variety of applications and the machine systems are built to last. Listening to customers'needs and building high quality CNC Routers, laser, Plasma Cutters etc to fulfill their requirements is the way we do business in the CNC marketplace. If you are looking to get into the CNC world, have a CNC application in mind, have a new business idea or looking to further your production, have a look at what DEKCEL have to offer you!
