Price: | US $ 20000-50000/Piece |
---|---|
Min Order: | 1/Piece |
Pay Type: | L/C,T/T |
Prod Model: | QH2020 |
---|---|
Delivery Time: | Fast Delivery Time |
OEM: | Yes |
Warranty: | One Year After Installation |
After-Sales Service: | Overseas Services Center Available |
Cleaning Process: | Steel Shot |
Cleaning Type: | Manual |
Control Type: | Manual or Auto |
Industry Used: | Foundry, Forging, Steel Structure, Steel Plate |
Application: | Burnishing, Container / Bottle Cleaning, Deflashin |
Certification: | GS |
Product application
Scope of application of shot blasting machine,machine,shot blasting machine
Pretreatment processing:
Pretreatment of plating, spray paint,teflon,PU,rubber plastic coating,metal spray weld, titanizing,and enhance the surface adherence
Surface decorating processing:
All types metal products decorating processing; extinction, lambency and atomization treatment of plating products;and nonmetal products,such as the atomization treatment of acryl,poly,glass and crystal glass.
Surface clearing processing:
Remove the metal oxidation dust or remove the metal black skin,surface stoma after heat treatment,remove metal or nonmetal surface stain and rust,remove the black spot on porcelain surface or coloring up for regenesis,remove the oxidation dust,offal or mold-release of rubber mold and gravity die-casting mold;
Burr removal processing:
Burr removal of plastic products,bakelite products,Zn-Al casting products,and the surface finishing of electronic parts or other or other parts;
Electronic parts processing:
Remove the surface dust after silicon CMOS chips pervasion,etching processing after silicon CMOS ships sandblast the little round grain,remove the glue overflow burr of encapsulating electronic printing characters on the surface of electronic parts,clearing the porcelain electrical-heat materials
Etching processing:
The surface etching of precious metal ornaments,gem,glass,stone materials, stone seal, porcelain,wooden materials,etc.
Workpiece stress removal processing:
Clearing and stress removal of spaceflight parts,refitting,extinction and removing rust and paint of the national defense arms;
Shot peening:
The shot peening process is the use of high-speed movement of abrasive flow on the surface of metal impact and make the table surface of the cyclic plastic strain layer, resulting in the microstructure of the layer of the favorable change and make The surface compressive residual stresses introduced field,microstructure and compressive stress field is to improve the metal parts.Fatigue fracture and stress corrosion cracking (containing hydrogen embrittlement)two strengthening factors of fracture resistance,the result The reliability and durability of parts was greatly improved, is also used to improve the fatigue strength and resistance to stress corrosion resistance.

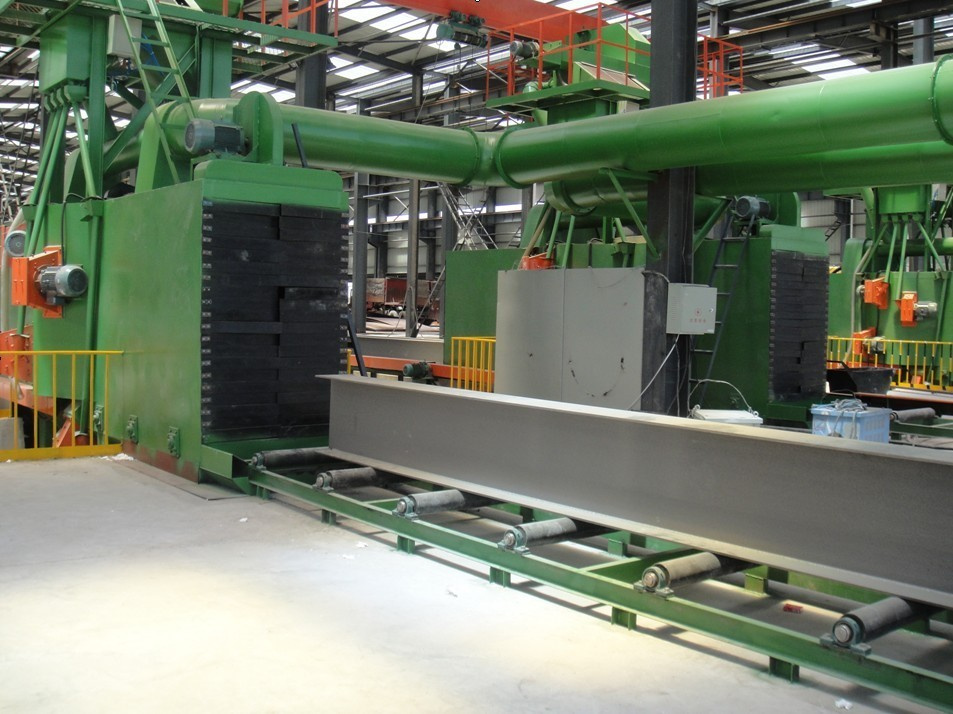

This machine is primarily for h beam to remove the rusty spot, rusty layer and scale cinder on h beams to obtain a uniform,smooth and glossy metal surface allowing improved coating quality
and higher anti-corrosion performance.
This unit is applicable for operating under PLC mode. All the electric elements employed are of leading brand. Manual operation is also allowed for inspection and servicing purpose: the operator either starts various functional parts in regular succession, or starts a single functional part (e.g. elevator) to check relevant part for running performance. to ensure safety, the unit is equipped with an alarming device which will send out alarm message and stop the whole line in case of trouble occurring to any part .
Purpose:
Steel section steel sheet h-beam shot blasting machine , it is mainly used in architecture, bridge industry etc, to relieve stress and clean the surface of large shaped steel,H-beam and other large steel structure.
Model | QH126 | QH128 | QH158 | QH168 | QH1810 | QH2020 | ||
Workpiece | W*H(mm) | 600*1200 | 800*1200 | 800*1500 | 800*1600 | 1000*1800 | 2000*2000 | |
Length(mm) | ≤12000 | |||||||
Blasting turbine | Capacity(kg/min) | 6*200 | 6*200 | 8*200 | 8*200 | 10*200 | 12*250 | |
Power(kw) | 6*11 | 6*11 | 8*11 8*11 | 10*11 | 12*15 | |||
Lifting Elevator | Capacity t/h | 72 | 96 | 120 | 180 | |||
Power (kw) | 5.5 | 7.5 | 7.5 | 11 | ||||
Work speed | M/min | 0.5~5 | ||||||
Air value | M³/h | 12000 | 15000 | 40000 | ||||
Power | Kw | ~98 | ~120 | ~150 | ~240 |
