| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | LH- |
|---|---|
| Product: | Stainless Steel PVD Coating Machine |
| Business Type: | China Manufacturer/Supplier |
| Structure 1: | Vertical, Single Door |
| Structure 2: | Horizontal, Single Door |
| Technology: | Plasma/Ion Coating |
| Coating Color: | Gold, Rosegold, Silver, Black, Blue Ect |
| Control System: | Manual Automatic All-in-One |
| Operating System: | PLC Touching Screen |
| Dimension: | 2245 1872, 2035, 2718, 3038.2335 |
| Coating Film: | Tin, Tic, Ticn, Tialn, Crn, Cu, Au etc. |
| Type: | Coating Production Line |
| Coating: | Vacuum Coating |
| Substrate: | Steel, Glass, Mosaic, Metal, Crystal Ect |
Stainless Steel sheet pvd gold plating machine is designed for stainless steel sheet to get a decorative coating by ion plating technique, the ion plating layer has a real metal texture, which is much different from chemical coating.It is an ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate , great ionization rate, big ion energy,easy operation, low cost, large productive capacity, etc.
Characteristic: The principle of the electric arc is integrating cold cathode arc discharge self-sustained light unite pulse technique and magnetron sputtering technology, thinning the particles to improve the properties of the film. It can coat on the surface of the metal as well as nonmetal.
Applied industry: It can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper , and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film, and in a very short time to complete all the machining process, it is a highly efficient multi-functional ion coating equipment.This machine is extensively used in the fields of ultra-hard coating about the tools and mould, decorative coating about stainless steel plate,car wheels, ceramics, golf, watches making, hotel product, sanitary ware, luminaires, optical frame, hardware, etc .
The chamber diameter of this series is 1800-3300mm, and height is 3000-7000mm,it can coat three sheets that size is 1500X4000mm;with three sets of large power vacuum pumping systems, high pumping speed,short cycle time, with 21-56 pieces of roud arc target, they are installed reasonable, at the same time,equipment is equipped with pulsed bias system, which make the adhesion of coating strong,color of coating uniform.Touch screen+PLC control achieved full automatic of equipment, manual and auto can be switched any time, this make machine reliable and easy operation.The colors of this equipment can do are gold,silver,brown,black,rose gold,coffee,raibow and blue etc decorative coatings, and it's widely used in metals,furniture,lights,hardware,car parts and aircrafts etc, all performances of equipment have reached international advanced level and have exported to European and American countries.
This is our machine:

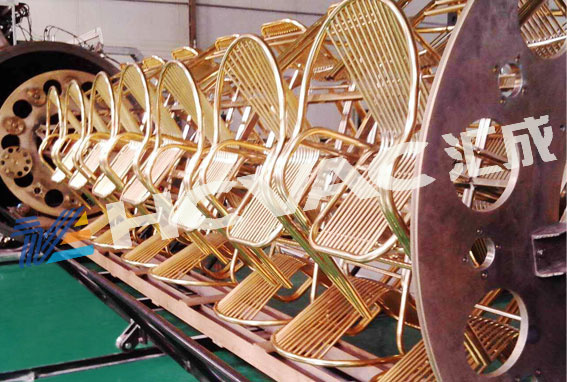

Samples coated by the machine:
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.
More information about our vacuum coating machine,pls do not hesitate to contact:
Contact person:Mandy Liu
Phone No.+8613825755941
