PVC Steel Wire Reinforced Spiral Suction Hose with Transparent Flexible

PVC Steel Wire Reinforced Spiral Suction Hose with Transparent Flexible
Price: US $ 0.1-50/Meter
Min Order: 100/Meter
Pay Type: L/C,T/T,D/P,Western Union,Paypal

Product Specifications


Prod Model: PVC hose 10
Length: 10m/20m/30m/40m/50m/100m
Thickness: 2.5mm-12mm Customized Size
Working Pressure: 3bar-10bar
Working Temperature: -5ºC to +150ºC
Features: Transparency, Chemical Resistant, Weather Resistan
Transporting Medium: Liquids, Powder, Granules
Quality Grade: Food Grade, No Toxic Grade
Bursting Pressure: 9bar-30bar
Color: Transparent, Color
Application: Manufacturing, Industry and Agriculture
Material: PVC

Product Description

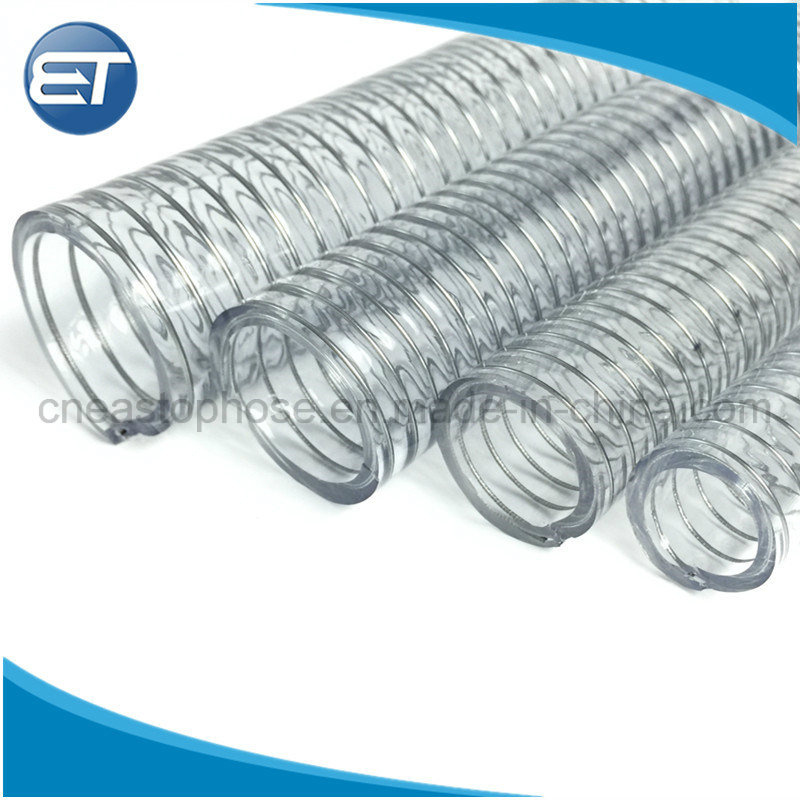

PVC Steel Wire Reinforced Spiral Suction Hose with Transparent Flexible


Non-Toxic PVC Steel Wire Reinforced Hose is also called PVC Suction Hose, PVC Wire Hose, PVC Spiral Hose, Wire Spiral Hose, Wire Reinforced Hose, PVC Delivery Hose, Vacuum Hose and so on, which is ideal hose to draw and convey water, oil, power, granules in applications where require good kinking resistance.
Application:

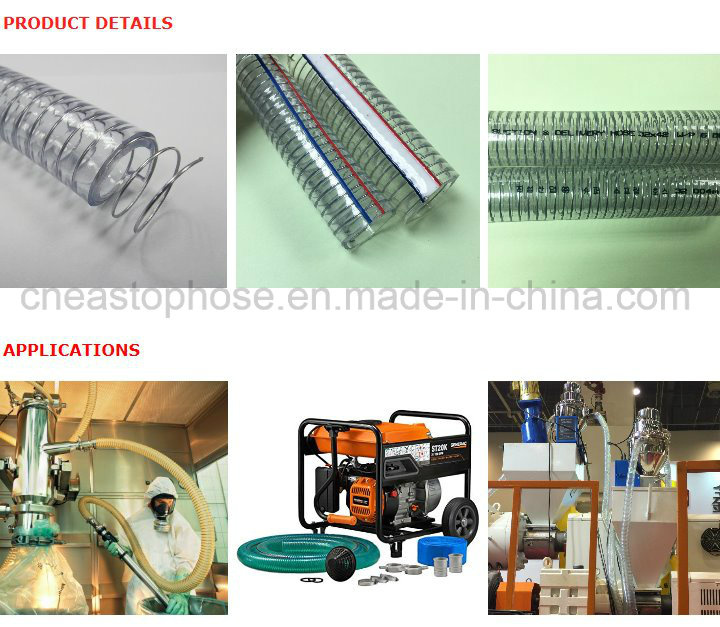

The PVC spiral wire reinforced suction hose is widely used for suction and transfer of water, oil, powder, granules and light chemicals in full vacuum lines, industry pump lines, coolant lines, air conditioning systems, air and water supply lines, washing equipment, and other areas where require tight turns and sharp bends.
Features:

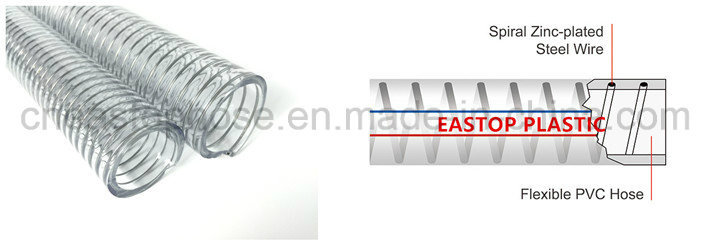

The PVC spiral wire reinforced suction hose is light weight but robust and abrasion resistant, the tube is crystal clear for easy flow monitoring, high strength steel wire inserted the wall of tube to prevent kinking or collapsing, smooth inner to reduce friction loss, non toxic, silicone free, light chemical resistant, UV and weather resistant, various lengths available, can also be supplied with different type couplings, like camlock quick couplings, pin lug, bauer couplings.
Specification:
Inner DiameterOuter DiameterWeightW.P.(at 23ºC)Std Length
inchmminchmmkg/mbarpsimft
1/460.433110.1210145100300
5/1680.551140.1510145100300
3/8100.629160.210145100300
1/2120.708180.228120100300
5/8150.866220.318120100300
3/4190.984250.36812050150
1251.299330.54812050150
1-1/4321.614410.78710040120
1-1/2381.889481.0569040120
1-3/4452.204561.369040120
1-7/8482.322591.469040120
2502.441621.657540120
2-1/4582.7557025753090
2-1/2633.149802.85753090
3753.582913.54603090
3-1/2904.2511084.54602060
41004.6451184.83452060
51275.62914363452060
61526.69217093451030
82008.818224123451030
1025010.866276232301030





Welcome to Eastop!

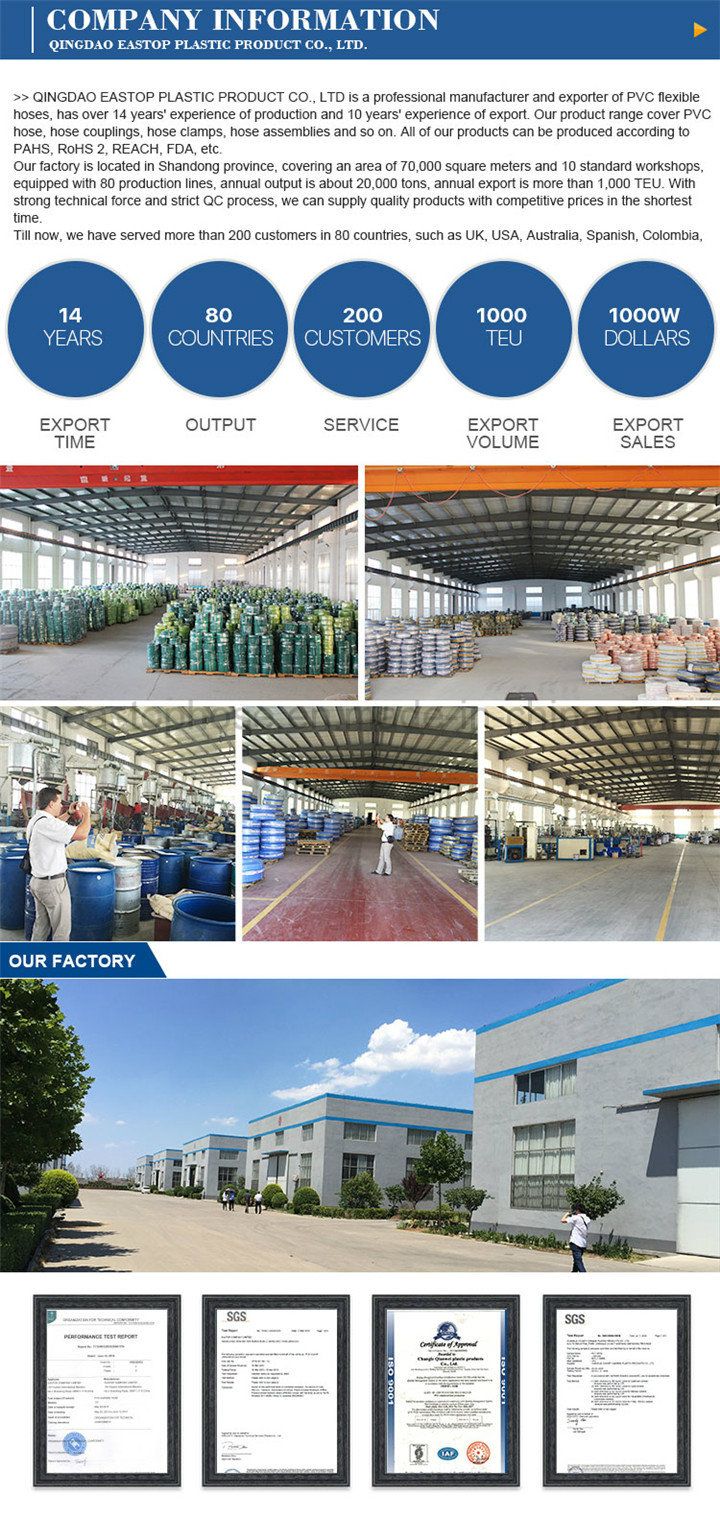

QINGDAO EASTOP PLASTIC PRODUCT Co., Ltd is a professional manufacturer and exporter of PVC flexible hoses, has over 14 years' experience of production and 10 years' experience of export. Our product range cover PVC layflat hose, PVC fiber reinforced hose, PVC steel wire reinforced hose, PVC helix suction hose, PVC garden hose, hose couplings, hose clamps, hose assemblies and so on, widely used in industry, agriculture and home, suitable for many uses such as Air, Water, Oil, Gas, Chemical, Powder, Granule and many more. All of our products can be produced according to PAHs, RoHS 2, REACH, FDA, etc.

Our factory is located in Shandong province, covering an area of 70, 000 square meters and 10 standard workshops, equipped with 80 production lines, annual output is about 20, 000 tons, annual export is more than 1, 000 TEU. With strong technical force and strict QC process, we can supply quality products with competitive prices in the shortest time.

Till now, we have served more than 200 customers in 80 countries, such as UK, USA, Australia, Spanish, Colombia, Chile, Peru, Nigeria, South Africa, Vietnam and Burma etc. What we supplied to our customers is not only our products, we supplied a complete process, including products, after sales, technology support, finance solutions and so on. And we are constantly trying to search for new raw materials and manufacturing processes for our products to meet the updated satisfaction and expectations of our customers.

Please contact us if you are looking for a trustworthy source. Each of your inquiries will be taken into account and get our response within 24 hours. We will endeavor ourselves to deliver first-class products and tip-top services every time.
