PVC PA PE Pellete Horizontal Water Ring Screw Extrusion Machine Line

Name: PVC PA PE Pellete Horizontal Water Ring Screw Extrusion Machine Line
Brand: china-crystals.com
SKU: 788139305
Availability: InStock
Rating: 4.3 (136 reviews)

Price:	US $ 38000/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	TSE series
Name:	PVC PA PE Pellete Horizontal Water Ring Screw Extr
Gearing Arrangement:	Cycloidal
Screw Speed N(R/Min):	400-600
Screw Diameter(mm):	32-64
Output(Kg/H):	65-150
Rated Power(Kw):	22-30
Color:	Customized
Brand Name:	Nanjing Haisi
Place Of Origin:	Place of Origin
Pack:	Wooden Cases
Plastic Type:	PVC
Screw:	Double-Screw
Automation:	Automation
Computerized:	Computerized
Certification:	CE
Material Processed:	Plastic Pellet

Product Description

PVC PA PE Pellete Horizontal Water Ring Screw Extrusion Machine Line

1.The Technical Data

Mode	Diameter	L/D	Screw Speed	Screw Torque	Motor Power	Capacity	Weight
TSE-20	22mm	32-44	600r/min	43N.m	5.5kw	0.5-10kg/h	1000kg
TSE-30A	31mm	32-48	500r/min	105N.m	11kw	5-30kg/h	1500kg
TSE-30B	31mm		600r/min	119N.m	15kw	5-40kg/h	1500kg
TSE-35A/B	35.6mm	32-52	600r/min	119N.m	15-22kw	20-60kg/h	1500kg
TSE-40A	41mm	32-64	400r/min	263N.m	22kw	65-110kg/h	3000kg
TSE-40B	41mm	32-52	600r/min	239N.m	30kw	90-150kg/h	3000kg
TSE-50A/B	50.5mm	32-52	500r/min	430N.m	45-55kw	135-270kg/h	3000kg
TSE-65A	62.4mm	32-52	400r/min	895N.m	75kw	180-250kg/h	4000kg
TSE-65A	62.4mm	32-52	500r/min	716N.m	75kw	180-270kg/h	4000kg
TSE-65B	62.4mm	32-64	600r/min	716N.m	90kw	200-300kg/h	4000kg
TSE-65C	62.4mm	32-64	600r/min	875N.m	110kw	220-350kg/h	4000kg
TSE-75A	71mm	32-56	400r/min	1074N.m	90kw	250-350kg/h	4000kg
TSE-75A	71mm		500r/min	1050N.m	110kw	300-420kg/h	4000kg
TSE-75B	71mm	32-64	600r/min	1050N.m	132kw	350-550kg/h	4000kg
TSE-75C	62.4mm	32-64	600r/min	1273N.m	160kw	400-600kg/h	4000kg
TSE-75D	71mm	32-64	600r/min	1990N.m	200-250kw	500-1000kg/h	4000kg
TSE-95A	93mm	32-64	500r/min	2387N.m	250kw	600-1000kg/h	4000kg
TSE-95B	93mm	32-64	600r/min	2506N.m	315kw	800-1200kg/h	4000kg
TSE-135A	93mm	32-64	500r/min	7162N.m	750kw	1500-2250kg/h	4000kg

2. Representative Material
Mixing nature-changing:
PE, PP, PS+SBS, PA+EPDM, PP+NBR, EVA+silicon rubber;
PE, PA, PC, CEP+ABS(alloy), PBT+PET, PP+PE
Filling nature-changing:
PE, PP, EVA, Calcium carbonate, talcum powder, titanic powder;
ABS, PC, PS, Aluminum hydroxide, magnesium hydroxide, antimony oxide;
PP, PA, ABS+ferrous powder, sulphuric powder, ceramic powder
Functional machine pellets:
PP, PA, ABS, PBT+anti-burning agent and other auxiliary agents: combustion-supporting machine pellets;
Colored machine pellets:
PE, PP, ABS, AS, PA, EVA, PET+pigment and auxiliary
Intensified glass fibres and carboon fibres:
PP, PBT, ABS, AS, PA, PC, POM, PPS, PET+long fires, small fibres, crystals
Various cables:
HDPE, LDPE, LLDPE, MDPE, EVA, PVC, PP, Lnsulating cables;
PE peroxide silicon

3.Characteristics

1.The gearbox:
New-style project of parallel three-axises driving makes the convey axis,convey chain,decelerate and the torque assignment get together,which keeo it compact,and the key bearings are imported.
The select material of drive components is dainty. Including super intension alloy cementiteing steel,cementiting and quenching ,gear grinding technics ,strengthening of tooth face.So they can ensure high torque,high precision and low noise.
Soakage and coerce lubrication integrate smoothly.When the hydraulic circuit is over pressed, it alarms.

2.Mixing and Feeding system
It is used in mixing, stiring, drying, colouring and other processing of all kinds of materials in plastics, rubber, daily chemical and other industries.
The technology of sealing mainshaft is given the state patent.
The technology of two layers of sealing is adopted in its pot cover.
It has self-friction heating and electric heating modes.
The discharging mode shave the temperature-automatic control and the manual conrol.
Its blades are made of stainless steel.
They passed the test of dnamic balance and static equilibrium.
Its electric control section adopts famous control components and temperature-control meters.

3.The Screw Barrel

Euro-style rectangle barrel,reflux refrigeration is optimized and disposed,which makes temperature difference in C areas smaller
According to the material and special techinics demands,the material of cylinder can use high quality nitrided steel,corrosion proof or antifriction with corresponding process.

4.Pelletizing
1.Scientific design,stabie operation,low noise
2.Convenien cleaning and maintenance
3.High-endurance knife and roller,good for continuous work
4.Safe and reliadle operation,equipped with safety control switch
5.High accuracy,smooth and even pellet cutting
6.High Accuracy,can cut soft materials

4.Certificate:

5.Shippment:
Wooded cases or customized

6.Service Stystem
Before-sale:
*Introduce products in detail
*Recommend suitable solution
*Offer test

During Manufacturing:
*Provide layout and engineering conditions
*Offer screw plan and related documents
*Inform the project processing status
*Insure the product designed in accordance with technical document

After-sale:
*Provide installation, commissioning and training
*Offer spare parts
*Provide necessary techinical support and update infoamation

If you have any questions,please don't hesitate to contact me or send an enquiry to me!

FAQ
1. Q: How about Haisi?

R: Nanjing Haisi Extrusion Extrusion Equipment Co., Ltd. is a High-Tech company. Our firm is composed of a strong team which has substantial experience in R&D, manufacture, technique and service, and has specialized in extruder industry for ten years, leading screw barrel manufacturer in China.

2. Q: What's Haisi capacity?

R: Our company is in strict accordance with CE and ISO9001 quality certification system. there are over 200 models of extruders and spare parts.

3. Q: What's the delivery time?

R: For regular size, we have finished stock and semi-finished stock, 2 weeks max are enough for customized, normally 3~4 weeks.

4. Q: Where is Haisi factory and how to reach there?

R: At Lishui, Nanjing, Jiangsu Province. If you want to visit us, we can pick you up in the airpor or train station.

5. Q: How to contact with us?

R: Plz reply to me directly if you have any question.

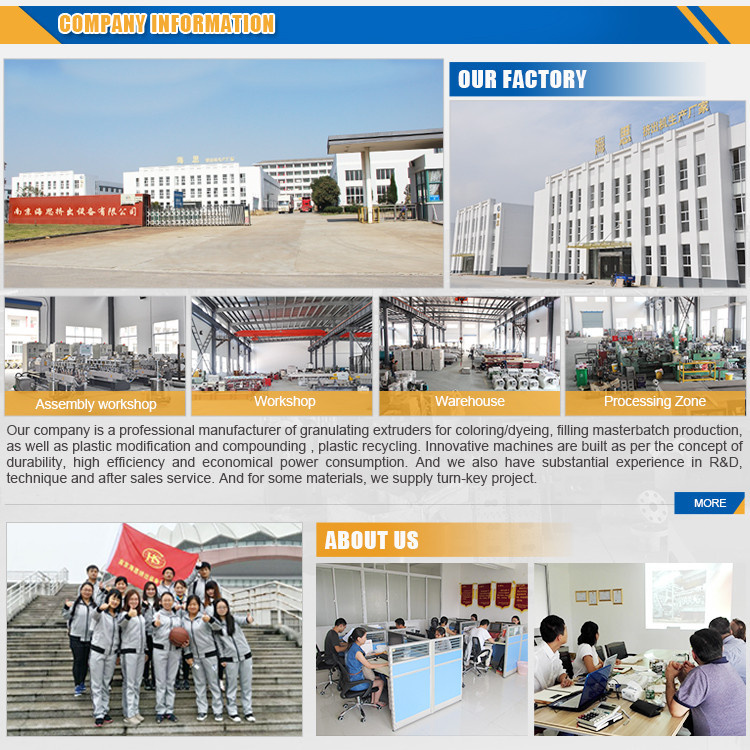

Introduction and history:

Nanjing Haisi Extrusion Equipment Co., Ltd is a high-tech manufacturing and trading company in China. "Family" is our benchmark. We work efficiently and help each other whenever anyone is in need due to the same target, that is, to make best quality of extruders in China.

Our company is a professional manufacturer of granulating extruders for coloring/dyeing, filling masterbatch production, as well as plastic modification and compounding, plastic recycling. Innovative machines are built as per the concept of durability, high efficiency and economical power consumption. And we also have substantial experience in R&D, technique and after sales service. And for some materials, we supply turn-key project.

Company is in strict accordance with CE and ISO9001 quality certification system for production management. There are over 200 models of extruders and spare parts. Factory has CNC center, grinding machines, cutter, puncher, etc. To meet customers' requirements on extruders and spare parts.

Business scope and achievements:

All kinds of plastic extruder.

Our machines are widely used in China mainland, and have been exported to 20 countries and places over the world. Our annual production capacity is 240 sets plastic extruder in domestic countries and abroad! OEM service offered in granulating plastic extruder industry in consistence with specific requirement from both national and international customers.

Prospects:

Surely you will also get professional machines and characteristic services here. Let's create more together!

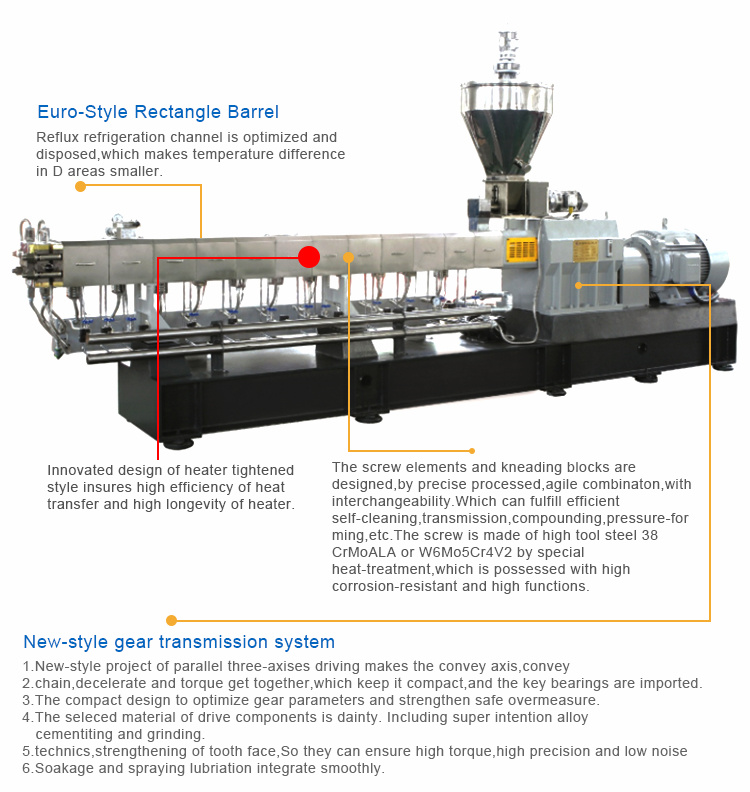

Characteristics of our machine:

Euro-style rectangle barrel, reflux refrigeration channel is optimized and disposed, which makes temperature difference in D areas smaller.

Innovated design of heater tightened style insures high efficiency of heat transfer and high longevity of heater.

According to the material and special technics demands, the material of cyliner can use high quality nitrided steel, corrosion proof or antifriction with corresponding process.

Various modes of pelletizing, such as water-cooling strand, air-cooling pelletizing, water-ring pelletizing, under water pelletizing, etc.

The screw elements and kneading blocks are designed, by precise processed, agile combination, with interchangeability, which can fulfill efficient self-cleaning, transmission, compounding, pressure-forming, etc. The screw is made of high tool steel 38 CrMoAlA or W6Mo5Cr4V2 by special heat-treatment, which is possessed with high corrosion-resistand and high functions.

The machines are designed by using the "toy bricks" principle, the screw configuration, barrel setup, L/D or mode of feeding and venting, screen changing, way of granulating, and the control mode can be optimally adjusted according to different material properties and requirements in consideration of the versatility in each general applications.

Metering feeders are equipped with single screw, twin screw, hollow screw, forced-feeding, side-feeding system, etc. To meet different requirements of feeding, such as powder, pellet, pump and liquid material.

New-style gear transmission system:

New-style project of parallel three-axises driving makes the convey axis, convey chain, decelerate and torque get together, which keep it compact, and the key bearings are imported.

The computer designs to potimize gear parameters and strenghthen safe overmeasure.

The selected material of drive components is dainty. Including super intention alloy cementiteing steel, cementiting and grinding technics, strengthening of tooth face. So they can ensure high torque, high precision and low noise.

Soakage and spraying lubriation integrate smoothly.
