PV Panel Combiner Solar Combiner Boxes
Price: |
US $ 100-1000/Piece |
Min Order: |
1/Piece |
Pay Type: |
T/T,Western Union,Paypal |
Product Specifications
Prod Model: |
pv panel combiner, combiner boxes |
Shell: |
Iron or Stainless Steel or Plastic |
Output And Input Connector: |
Mc4 or Cable Gland Waterproof |
Apply For: |
Solar Panels System |
DC Voltage: |
200VDC/400VDC/600VDC/1000VDC Optional |
Protection Level: |
IP65 |
Application: |
Solar PV System |
Specification: |
Normal |
Product Description

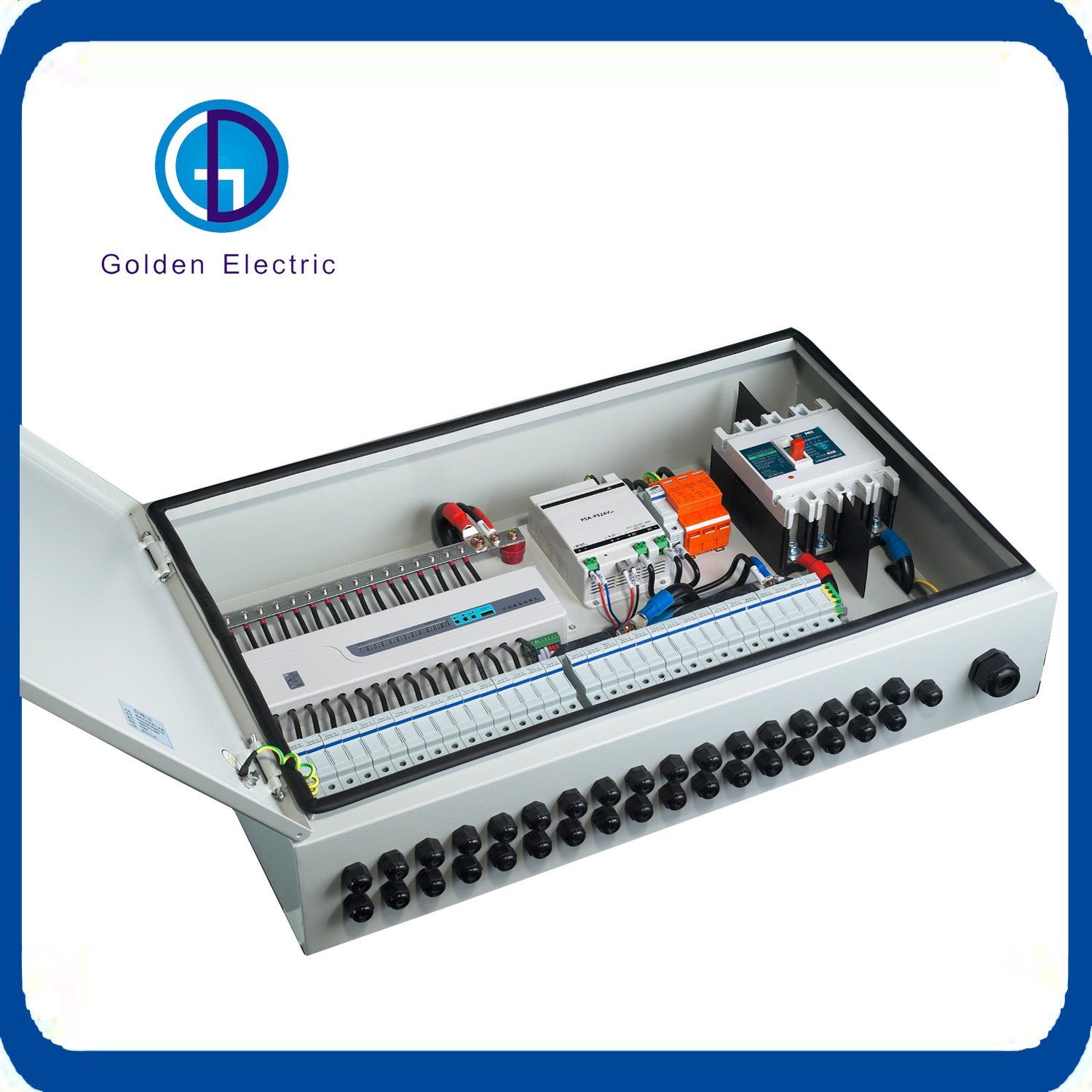

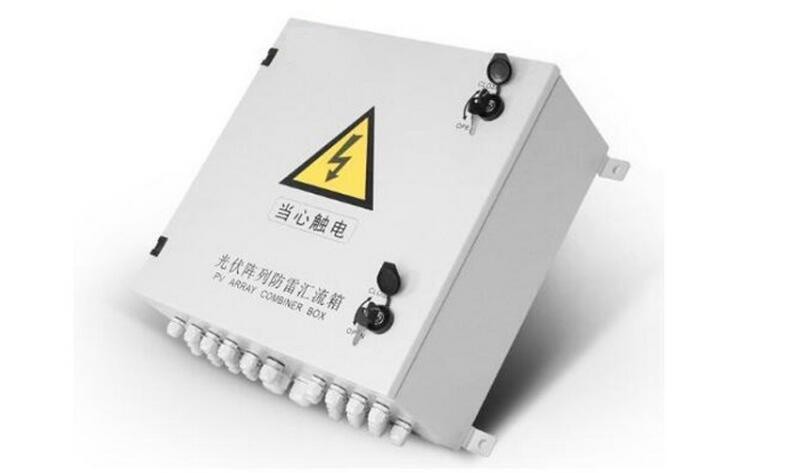

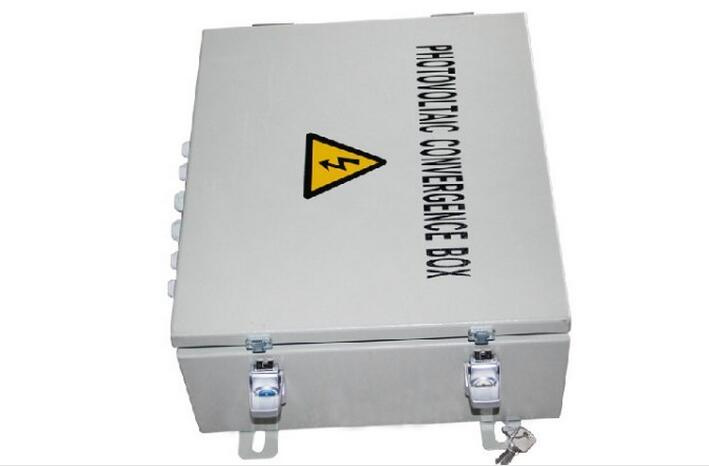

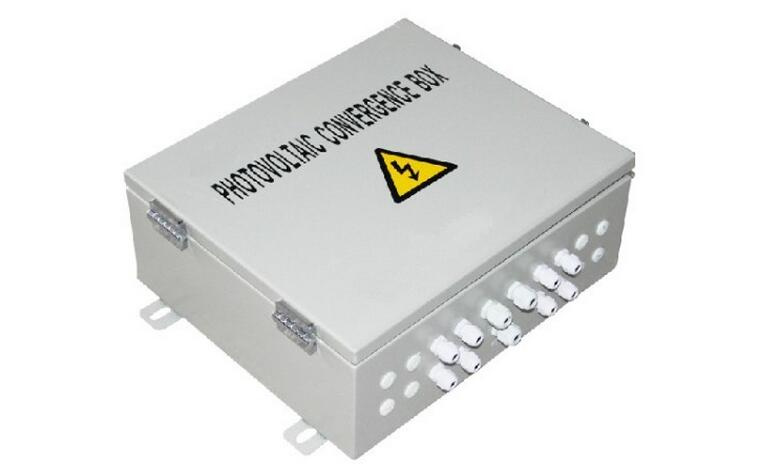

1000V Solar Distribution Box 12 String DC Combiner Box12 String DC Combiner Box
High reliability:
With DC fuse
With DC surge protection Device
With DC circuit breaker or DC load isolation switch.
Strong adaptability:
Ip65 design,waterproof,anti dust and anti ultraviolet.
Strict test for high and low temperature,used widely.
The simple installation,the simplified system wiring,the convenient wiring.
The box body is made of cold rolled steel and other metal materials.
Flexible configuration:
Used for single crystal silicon solar modules,polycrystalline silicon solar modules,thin film solar modules.
current rating of the photovoltaic fuse,circuit breaker,load isolation switch is modified. Technical Specification of PV Combiner Box
Name | PV Combiner box |
Electric parameter |
system Max DC Volt | 1000V |
Max input amp for each string | 15A |
Max input strings | 16 |
Max output switch amp | 200A |
Number of inverter MPPT | 1 |
Number of output strings | 1 |
Lighting protection |
category of test | II grade protection |
Nominal discharge amp | 20KA |
Max discharge amp | 40KA |
Volt protection level | 3.8KV |
Max continuous operation volt Uc | 1050V |
Poles | 3P |
structure characteristic | plug push module |
system |
Protection grade | IP65 |
Output switch | DC circuit breaker/DC isolation switch(optional) |
MC4 connector | standard |
PV DC fuse | standard |
PV surge protector | standard |
Monitoring module | Optional |
preventing diode | Optional |
Box material | metal |
Installation method | wall mounting type |
Operating temperature | -25ºC- +55ºC |
Elevation of temperature | 2KM |
Permissible relative humidity | 0-95% No condensation |
Environment Humidity | 0~99% |
Installation: indoors/outdoors (IP65 electronics) | Yes |

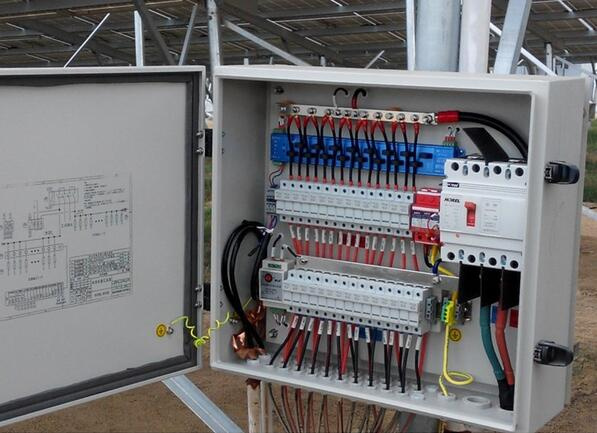

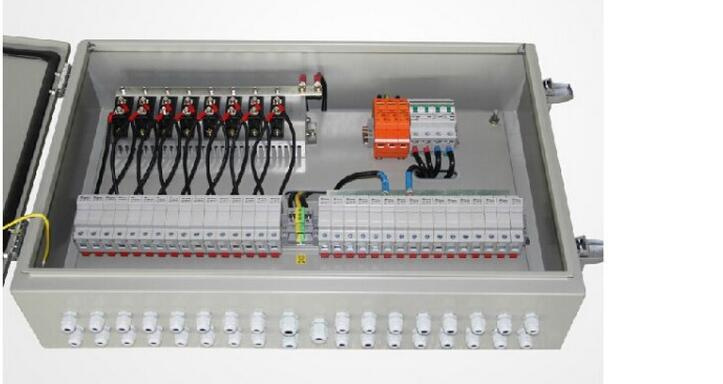

DC combiner box bus synthetic DC input of 16 PV components to 1 output. Each channel is with a fuse.Output side is equipped with lighting protection and circuit breaker.It greatly simplify input wiring of DC power distribution cabinet and inverter.Realize lighting protection,short circuit protection and grounding protection.PV combiner box divided into two type:intelligent box and Non intelligent lighting protection status,detect circuit breaker status and summarize output voltage and so on. Design and configuration strictly accordance with the "Technical specification for photovoltaic junction equipment"CGC/GF 037:2014. Provide users with a safe,brief,beautiful and applicable photovoltaic system products. The product adopts outdoor wall mounted type,which adapt to the harsh environment.In addition to the core components,the other can be customized by user requirements.




ABOUT US
Guangzhou Golden Electric Co. Ltd started manufacturing of Automatic transfer switch, Circuit breaker Distribution box, in the year 2006 with a strong team of Automatic transfer switch, Circuit breaker and Distribution box background.

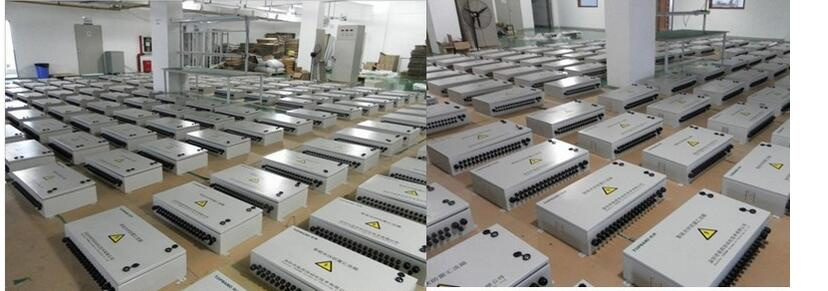

Guangzhou Golden Electric Co. Ltd offer customers complete low voltage system is one its key item on which the company has achieved a mile-stone on quality. Due to this the company has earned a good faith from more than thousands of Private entreprenour and Government policy maker. Eventualy the company started manufacturing of Solar DC product and keeping good example in China and become the first one of company to making solar new energy product. Now we have 2 big factory for manufacturing PV System and Low-voltage Electrical Product, Circuit Breaker, Contactor, Isolator Switch, Combiner Box, Automatic Transfer Switch. The factory is one of the largest independent manufacturing unit for manufacturing of high-quality, custom solutions for power systems for big or small Industrial units, Commercial complexes and Government ultilities.
