| Price: | US $ 2500-3000/Ton |
|---|---|
| Min Order: | 3/Ton |
| Pay Type: | L/C,T/T |
| Prod Model: | 1000-8000 series alloy |
|---|---|
| Delivery Time: | 15-20 Days |
| MOQ: | 3 Ton |
| Surface Finish: | Matte-Matte, Gloss-Matte, Gloss-Emboss, Matte-Embo |
PRODUCT NAME | ALLOYS NUMBER | TEMPER | THICKNESS (MM) | WIDTH (MM) | LENGTH (MM) | APPLICATION |

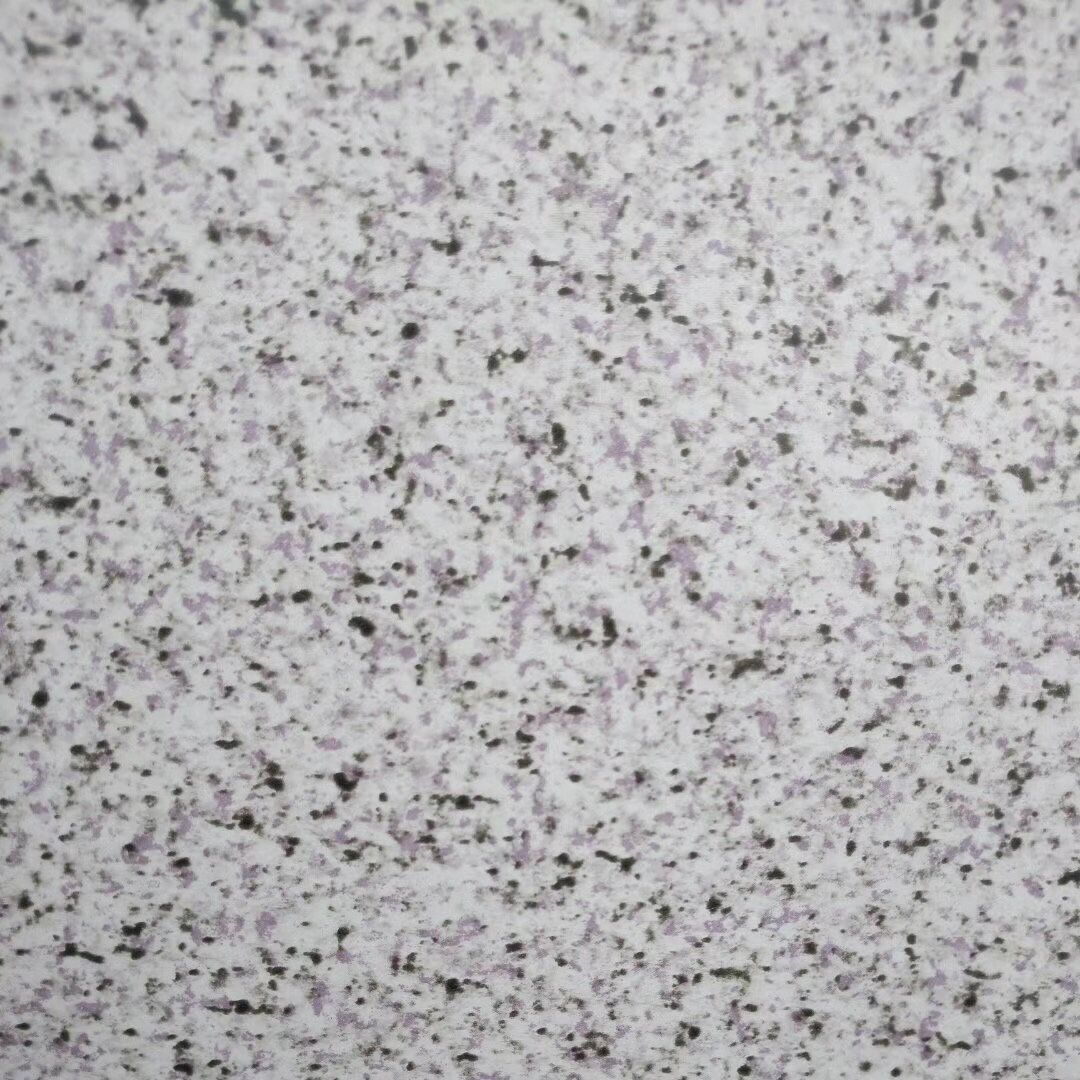

Marble Pattern Aluminum sheet/plate
| 1100, 1050, 1060, 3003, 3004, 3005, 3104, 3105, 5005, 5052, 5754,8011 | O,H12,H14,H16 H18,H19,H22,H24,H26, H28,H32,H34H36,H38, H42 H44 | 0.01-4.0 | 100-1800 | 60-6000 | ACP, aluminum, ceilings, aluminum sheets, roofing, ldecoration, ect. |
Thickness: 0.01-4.0 mm
Width: 100-1800 mm
Length: Under 6000mm normally or customized
Weight: Less than 5 tons per pallet or customized
Temper: O--H44
Color: Marble Pattern Coated
Surface treatment: PE PVDF color coated
Color Coating thickness: Topside of coil :25um (PVDF), 16-25um (PE) Backside of coil:8-10um(PE)
Product Properties
Marble Pattern Aluminum sheet/Plate :
Xinyu PVDF color coated Marble Pattern Aluminum sheet/Plate
Performance:
The performance of PE color coated coil
1) Thickness≤0.5mm
| Item | Test Item | Standard | National standard | Test Result |
| 1 | Color Difference | ECCA T3 | ΔE≤2.0 | ΔE≤1.5 |
| 2 | Gloss Difference | ECCA T2 | ≤10 | ≤5 |
| 3 | Coating Thickness | ECCA T1 | Min 14µm | ≥16µm |
| 4 | Pencil Hardness | ASTM D3363 | ≥HB | HB |
| 5 | T-bend | ASTM D4145 | ≤3T | ≤2T |
| 6 | Adhesion | ASTM D3359 | Grade 0 | Grade 0 |
| 7 | Impact | ASTM D2794 | ≥20kg.cm | ≥20kg.cm |
| 8 | Boiling water Resistance | GB/T17748 | 2h no change | 2h no change |
| 9 | Solvent Resistance | ASTM D2248 | 200 times paint remaining | 200 times paint remaining |
| 10 | Salt Resistance | ASTM B117 | 720 hrs≤grade 1 | 720hrs≤grade 1 |
| 11 | Dirt Resistance | GB/T9780 | ≤5% | <5% |
| 12 | Color retaining | GB/T16259 | 600hrs △E≤2.0 | △E≤2.0 |
| 13 | Gloss weaken Level | 600hrs ≤ grade 2 | 600hrs ≤ grade 2 | |
| 14 | Chalking | 600hrs No Change | No Change |
2) The performance of PVDF color coated coil
| Item | Test Item | Standard | National standard | Test Result |
| 1 | Color Difference | ECCA T3 | ΔE≤2.0 | ΔE≤1.5 |
| 2 | Gloss Difference | ECCA T2 | ≤10 | ≤5 |
| 3 | Coating Thickness | ECCA T1 | Two layers Min 23μm | ≥25μm |
| Three layers Min 30μm | ≥34μm | |||
| 4 | Pencil Hardness | ASTM D3363 | ≥HB | HB |
| 5 | T-bend | ASTM D4145 | ≤2T | ≤2T |
| 6 | Adhesion | ASTM D3359 | Grade 0 | Grade 0 |
| 7 | Impact | ASTM D2794 | ≥50kg.cm | ≥50kg.cm |
| 8 | Boiling water Resistance | GB/T17748 | 2h No change | 4h No change |
| 9 | Solvent Resistance | ASTM D2248 | 200 times paints remaining | 500 times no break |
| 10 | Acidity Resistance | ASTM D1308 | 5%HCL 24hrs No change | No change |
| 11 | Alkali Resistance | ASTM D1308 | 5%NaOH 24hrs No change color △E≤2.0 | No change |
| 12 | Nitric acid Resistance | AAMA620 | △E≤5.0 | △E≤5.0 |
| 13 | Oil Resistance | ASTM D1308 | 20#oil 24hrs No change | No change |
| 14 | Salt Spray Resistance | ASTM B117 | 4000hrs ≤Grade 1 | No change |
| 15 | Abrasion resistance | ASTM D968 | ≥5L/μm | ≥5L/μm |
| 16 | Dirt Resistance | GB/T9780 | ≤5% | <5% |
| 17 | Color retaining | GB/T16259 | 4000 hrs△E≤4.0 | 4000 hrs △E≤3.0 |
| 18 | Gloss weaken Level | 4000 hrs ≤ Grade 2 | 4000 hrs ≤ Grade 2 | |
| 19 | Chalking | 4000 hrs No change | 4000 hrs No change |
Plate/coil is placed to the iron or wooden pallet ,wrapped by water-proof craft paper perfectly , then fixed by iron narrow belt well .
1)Packaging Detail: Package
2)Port: Qingdao port or other main port in China
3)Container: 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) , loading 18~25 tons .
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) , loading 20~28 tons.

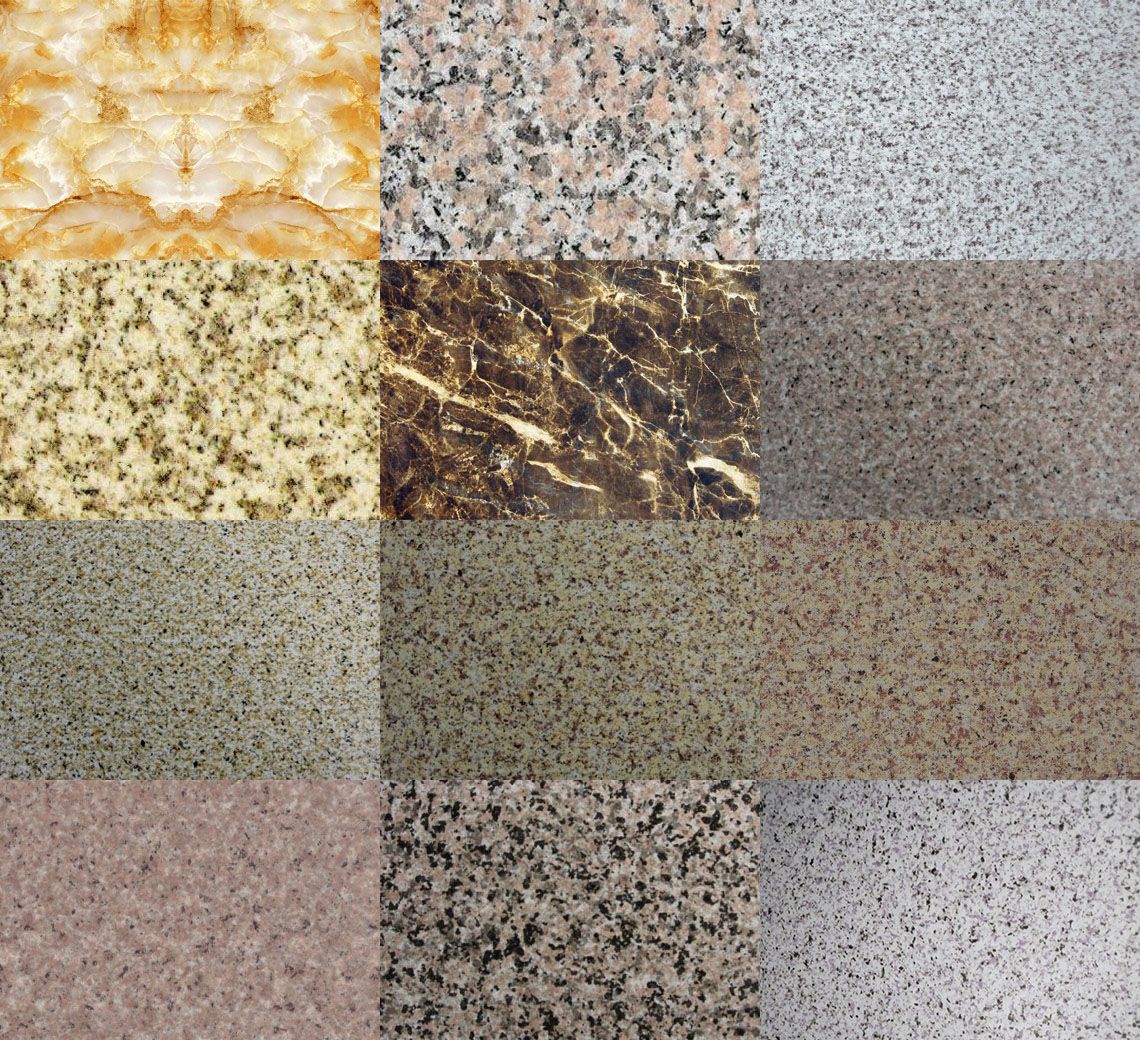

Color Range
Pattern
FAQ
A: We are factory and we can provide competitive price
A: Generally it is 10-15 days if the goods are in stock. Or it is 15-25 days if the goods are not in stock, it is according to quantity and standard.
A:We have strict quality control system .We can Visit Our factory is the best way to know each other more. And we also will attach some relevant photos via email to show our office and products for you.
A:Generally speaking, the MOQ is 3 metric ton per size, if your quantity is small , we can supply you from our stock .
A: Yes, we could offer the sample for free charge but the cost of freight is by receiver ,normally
A:T/T ,D/D,L/C at sight,Acceptance L/C,Deferred Payment L/C and so on
