| Price: | US $ 38000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | TSE-65 |
|---|---|

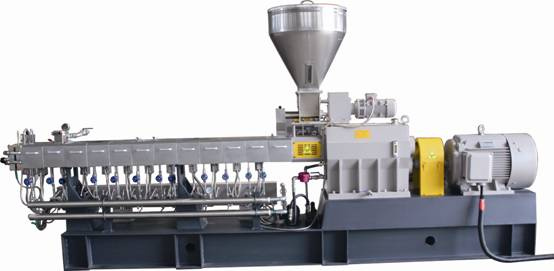

| Name: | PP PS Color Masterbatches Twin Screw Extruder Mach |
| Gearing Arrangement: | Cycloidal |
| Screw Speed N(R/Min): | 400-600 |
| Screw Diameter(mm): | 62.4 |
| Output(Kg/H): | 180-350 |
| Rated Power(Kw): | 75-110 |
| Color: | Customized |
| Brand Name: | Nanjing Haisi |
| Place Of Origin: | Place of Origin |
| Pack: | Wooden Cases |
| Plastic Type: | PET |
| Screw: | Double-Screw |
| Automation: | Automation |
| Computerized: | Computerized |
| Certification: | CE |
| Material Processed: | Plastic Pellet |
| Mode | Screw Diameter(mm) | Screw Diameter | Screwspee N(r/min) | Main motor power(kw) | Torque ratingT/N^3 | Output(kg/h) |
| TSE-65A | 62.4 | 32-52 | 400-500 | 75 | 6.3/5.1 | 180-270 |
| TSE-65B | 62.4 | 32-64 | 600 | 90 | 5.1 | 200-300 |
| TSE-65C | 62.4 | 32-56 | 600 | 110 | 6.2 | 220-350 |

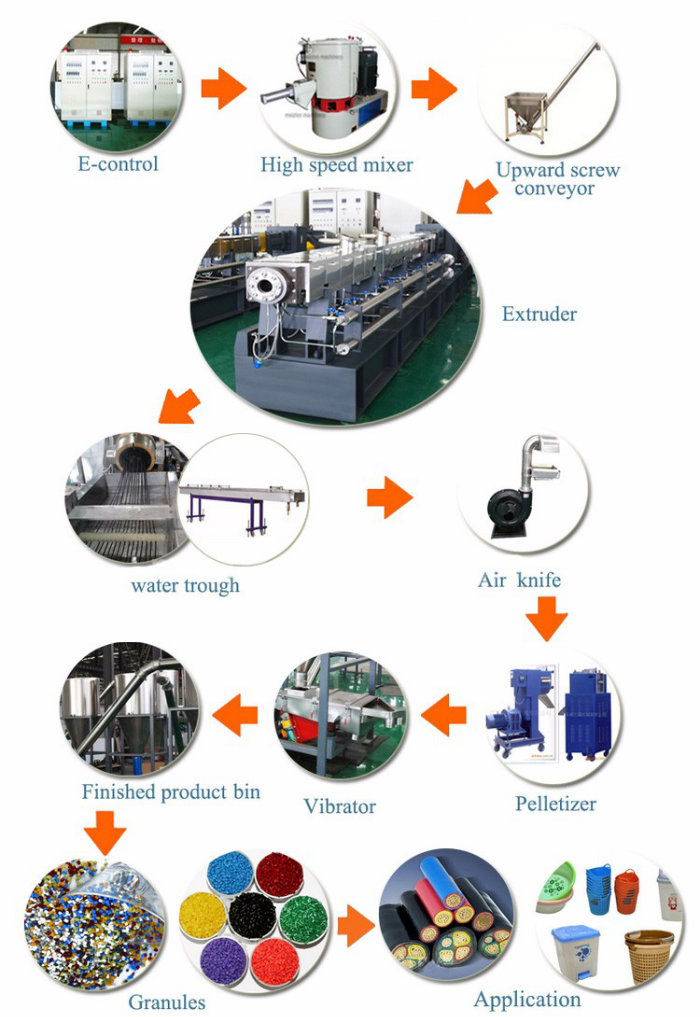

| No. | Machine |
| 1.0 | Mixer |
| 2.0 | Feeder system |
| 3.0 | Twin Screw extruder |
| 3.1 | Main extruder |
| 3.2 | Vacuum system |
| 3.3 | Hydraulic screen changer die head |
| 3.4 | Hydraulic screen changer |
| 4.0 | Air cooling pelletizing line |
| 4.1 | Granulator |
| 4.2 | Cyclone separator |
| 4.3 | Conveyance blowers |
| 4.4 | Vibrating screen with cooling |
| 4.5 | Silo and conveyor system |
| 5.0 | Electric control system |
Characteristics and spare parts of the extrusion machine
1. the gearbox
· New-style project of parallel three-axises driving makes the convey axis, convey chain, decelerate and the torque assignment get together,
which keep it compact, and the key bearings are imported.
· The select material of drive components is dainty, including super intension alloy cementiteing steel, cementiting and quenching, gear grinding technics,
strengthening of tooth face. So they can ensure high torque, high precision and low noise.
· Soakage and coerce lubrication integrate smoothly. When the hydraulic circuit is over pressed, it alarms.
2. the feeding system
· Metering feeders are equipped with single screw, twin screw, hollow screw, forced-feeding, side feeding, liquid-adding system, etc.
3. screw
· The screw elements and then kneading blocks are designed accurately, by precise processed, agile combination, with interchangeability,
which can fulfill efficient self-cleaning, transmission, compounding, pressure-forming.
· The screw material is made of high tool steel 38CrMoALA or W6Mo5Cr4V2 by special heat-treament.
4. the barrel
· Euro-style rectangle barrel, reflux refrigeration is optimized and disposed, which makes temperature difference in C areas smaller.
· According to the material and special technics demands, the material of cylinder can use high quality nitrided steel, corrosion proof or antifriction with corresponding process.
5. the heater
· Innovated design of heater tightened style insures high efficiency of heat transfer and high longervity of heater.
6. pelletizing
· Various modes of pelletizing, such as water-cooling strand, air-cooling pelletizing, water-ring pelletizing, under water pelletizing, etc.
The process
