Polyethylene Plastic Pelletizer Extrusion with Air Cooling Line Price
| Price: |
US $ 38000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Paypal |
Product Specifications
| Prod Model: |
TSE-65 |
| Name: |
Polyethylene Plastic Pelletizer Extrusion with Air |
| Gearing Arrangement: |
Cycloidal |
| Screw Speed N(R/Min): |
400-600 |
| Screw Diameter(mm): |
62.4 |
| Output(Kg/H): |
180-350 |
| Rated Power(Kw): |
75-110 |
| Color: |
Customized |
| Brand Name: |
Nanjing Haisi |
| Place Of Origin: |
Place of Origin |
| Pack: |
Wooden Cases |
| Plastic Type: |
PET |
| Screw: |
Double-Screw |
| Automation: |
Automation |
| Computerized: |
Computerized |
| Certification: |
CE |
| Material Processed: |
Plastic Pellet |
Product Description

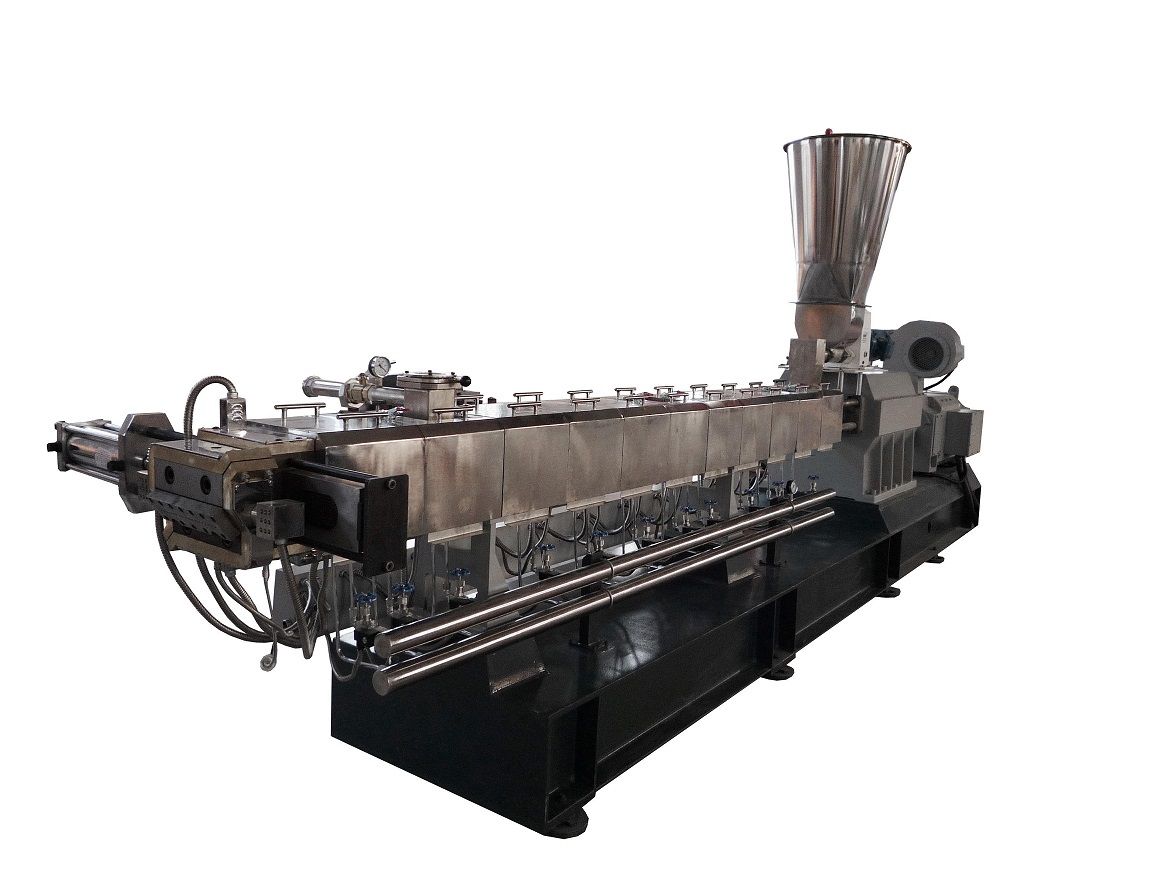

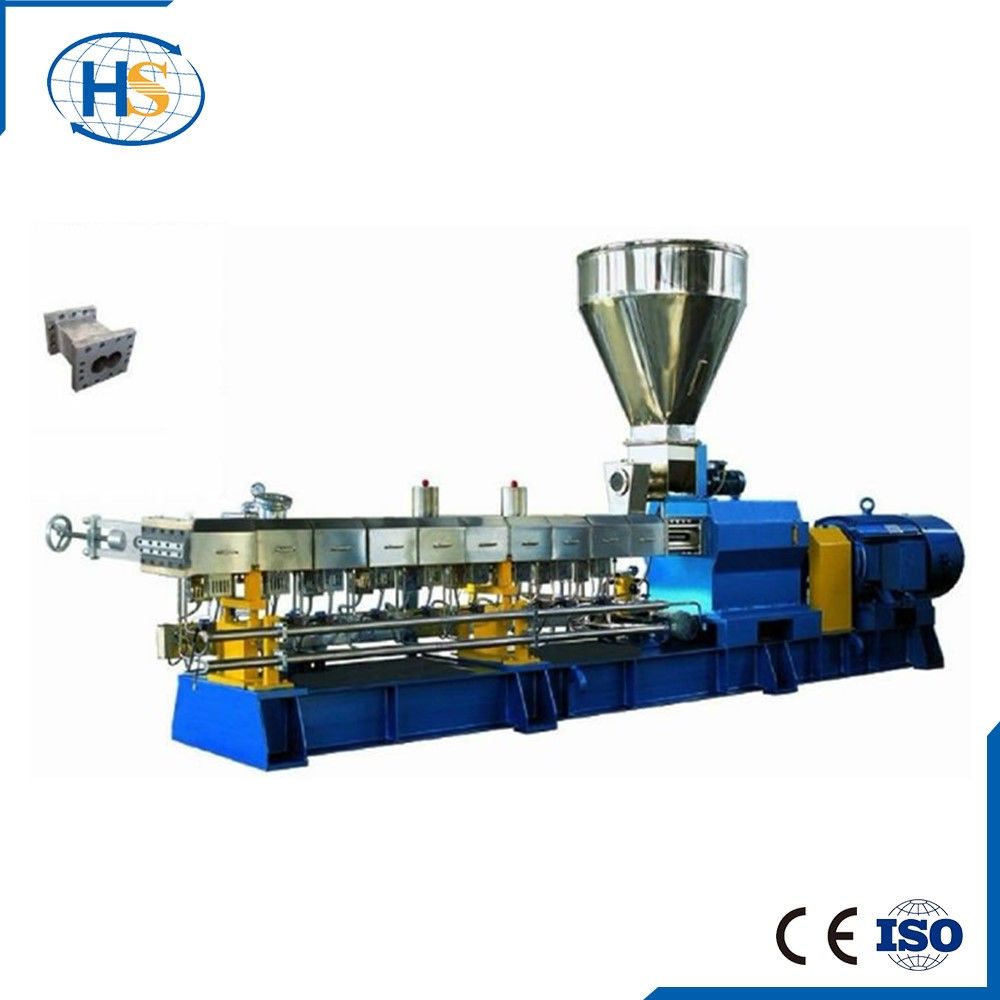

Polyethylene Plastic Pelletizer Extrusion With Air Cooling Line
Product Description1.The Technical Data of TSE 65 :
Mode |
Screw Diameter(mm) | Screw Length/Diameter |
Screwspee
N(r/min) |
Main motor
power(kw) |
Torque
ratingT/N^3 |
Output(kg/h) |
TSE-65A |
62.4 | 32-52 | 400-500 | 75 | 6.3/5.1 | 180-270 |
| TSE-65B | 62.4 | 32-64 | 600 | 90 | 5.1 | 200-300 |
| TSE-65C | 62.4 | 32-56 | 600 | 110 | 6.2 | 220-350 |
2.Application of compound extruder
TSE-65 PET reclamation pelletizing machinery is best applicable for:
Mixing nature-changing: PE,PP,PS+SBS;PA+EPDM;PP+NBR;EVA+Silicon rubber,etc
PE,PA,PC,CEP+ABS(alloy);PBT+PET;PP+PE,etc.
Filling nature-changing: PE,PP,EVA etc+aluminum hydroxide,magnesium hydroxide,antimony oxide.
PP,PA,ABS+ferrous powder, sulphuric powder, ceramic powder
Colored machine pellets: PE,PP,ABS,AS,PA,EVA,PET etc+long fires,small fibres, carbon fibres, crystals and so on, etc.
3.Features of plastic extruder
| No. | Machine |
| 1.0 | Mixer |
| 2.0 | Feeder system |
| 3.0 | Twin Screw extruder |
| 3.1 | Main extruder |
| 3.2 | Vacuum system |
| 3.3 | Hydraulic screen changer die head |
| 3.4 | Hydraulic screen changer |
| 4.0 | Air cooling pelletizing line |
| 4.1 | Granulator |
| 4.2 | Cyclone separator |
| 4.3 | Conveyance blowers |
| 4.4 | Vibrating screen with cooling |
| 4.5 | Silo and conveyor system |
| 5.0 | Electric control system |
Our company information
Our company is a professional manufacturer of granulating extruders for coloring/dyeing, filling masterbatch production, as well as plastic modification and compounding ,
plastic recycling. Innovative machines are built as per the concept of durability, high efficiency and economical power consumption. And we also have substantial experience in R&D,
technique and after sales service. And for some materials, we supply turn-key project.
Our machines are widely used in China mainland, and have been exported to 20 countries and places over the world. Our annual production capacity is 240 sets plastic extruder
in domestic countries and abroad! OEM service offered in granulating plastic extruder industry in consistence with specific requirement from both national and international customers.
Cetifications
Haisi-GROUP is in strict accordance with CE and ISO9001 quality certification system for production management.
Videos
1.Water strand pelletizing line www.youtu.be/GyXkQ88lWhs
2.Water ring pelletizing line www.youtu.be/OZS2iZPEB1U
3.Air cooling pelletizing line www.youtu.be/mC2u12trpHs
4.Pet extrusion line www.youtu.be/Em4m7kCtDZc
5.Electromagnetic heating extrusion www.youtu.be/94aMDuwvZVk
6.Haisi company introduction www.youtu.be/TfncnM4TNRg
FAQ 1. Q:Are you A factory or A trading company?
A:Both
2. Q: What makes you different for other suppliers?
A: 1)firstly,our factory is very professional in twin screw extruder for many years. and our machine's quality is best in our field and our price is also competitive from other suppliers.
2)second, our service is very excellent. and our engineers is avaliable to service the machine overseas and if you have any questions you can contact us at any time, we will reply you in 24hours.
3.Q:What is the payment?
A: 1) T/T payment; 2) LC;
4.Where is your factory located? How can I visit there?
A: Our factory is located in Nanjing, Jiangsu Province, China,
1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;
2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.
All our clients, from domestic or abroad, are warmly welcome to visit us! welcome to contact us
Introduction and history:
Nanjing Haisi Extrusion Equipment Co., Ltd is a high-tech manufacturing and trading company in China. "Family" is our benchmark. We work efficiently and help each other whenever anyone is in need due to the same target, that is, to make best quality of extruders in China.
Our company is a professional manufacturer of granulating extruders for coloring/dyeing, filling masterbatch production, as well as plastic modification and compounding, plastic recycling. Innovative machines are built as per the concept of durability, high efficiency and economical power consumption. And we also have substantial experience in R&D, technique and after sales service. And for some materials, we supply turn-key project.

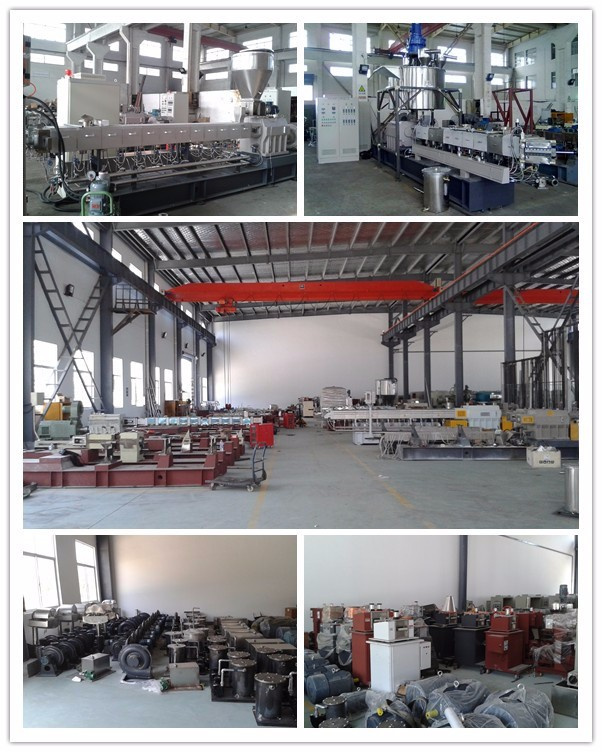

Company is in strict accordance with CE and ISO9001 quality certification system for production management. There are over 200 models of extruders and spare parts. Factory has CNC center, grinding machines, cutter, puncher, etc. To meet customers' requirements on extruders and spare parts.
Business scope and achievements:
All kinds of plastic extruder.
Our machines are widely used in China mainland, and have been exported to 20 countries and places over the world. Our annual production capacity is 240 sets plastic extruder in domestic countries and abroad! OEM service offered in granulating plastic extruder industry in consistence with specific requirement from both national and international customers.
Prospects:
Surely you will also get professional machines and characteristic services here. Let's create more together!
Characteristics of our machine:
Euro-style rectangle barrel, reflux refrigeration channel is optimized and disposed, which makes temperature difference in D areas smaller.
Innovated design of heater tightened style insures high efficiency of heat transfer and high longevity of heater.
According to the material and special technics demands, the material of cyliner can use high quality nitrided steel, corrosion proof or antifriction with corresponding process.
Various modes of pelletizing, such as water-cooling strand, air-cooling pelletizing, water-ring pelletizing, under water pelletizing, etc.
The screw elements and kneading blocks are designed, by precise processed, agile combination, with interchangeability, which can fulfill efficient self-cleaning, transmission, compounding, pressure-forming, etc. The screw is made of high tool steel 38 CrMoAlA or W6Mo5Cr4V2 by special heat-treatment, which is possessed with high corrosion-resistand and high functions.
The machines are designed by using the "toy bricks" principle, the screw configuration, barrel setup, L/D or mode of feeding and venting, screen changing, way of granulating, and the control mode can be optimally adjusted according to different material properties and requirements in consideration of the versatility in each general applications.
Metering feeders are equipped with single screw, twin screw, hollow screw, forced-feeding, side-feeding system, etc. To meet different requirements of feeding, such as powder, pellet, pump and liquid material.
New-style gear transmission system:
New-style project of parallel three-axises driving makes the convey axis, convey chain, decelerate and torque get together, which keep it compact, and the key bearings are imported.
The computer designs to potimize gear parameters and strenghthen safe overmeasure.
The selected material of drive components is dainty. Including super intention alloy cementiteing steel, cementiting and grinding technics, strengthening of tooth face. So they can ensure high torque, high precision and low noise.
Soakage and spraying lubriation integrate smoothly.
