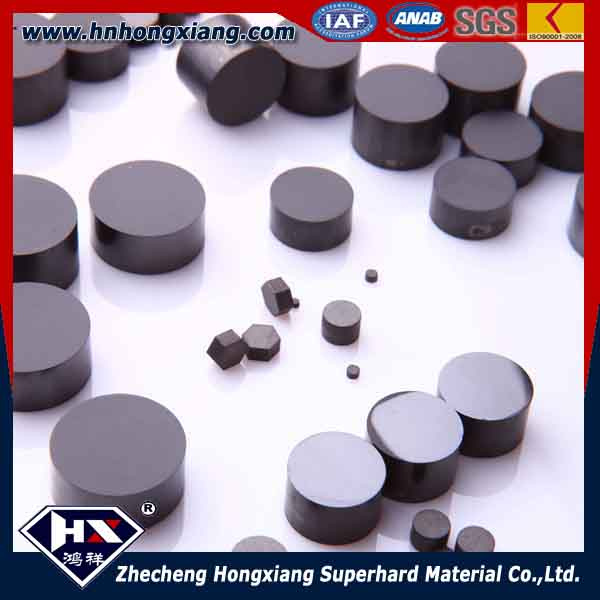

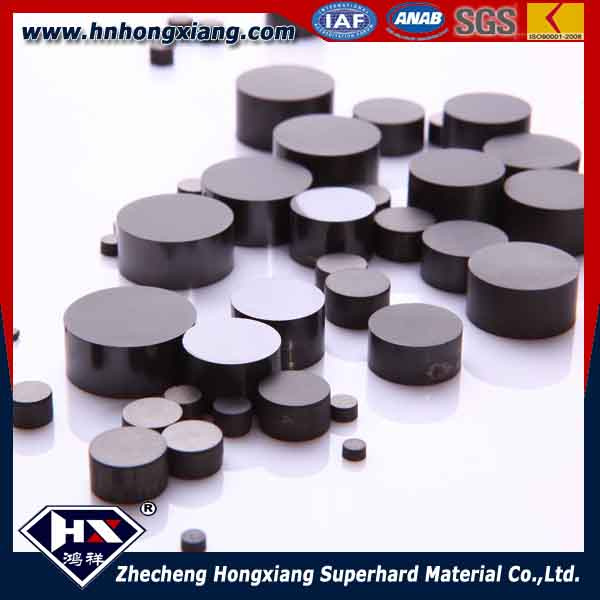

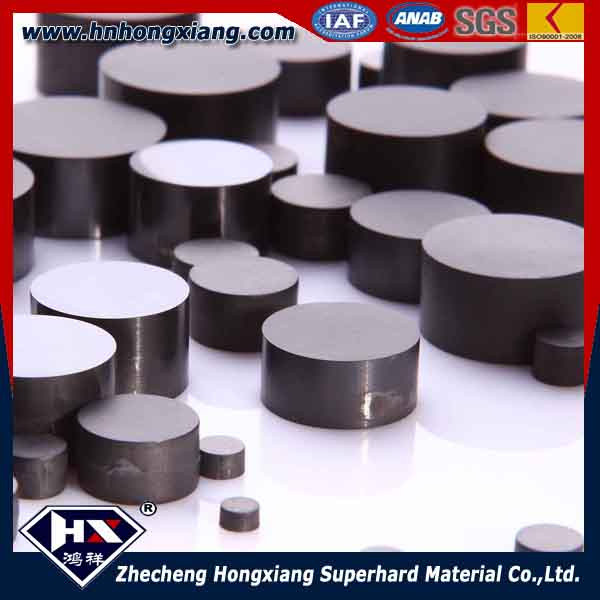

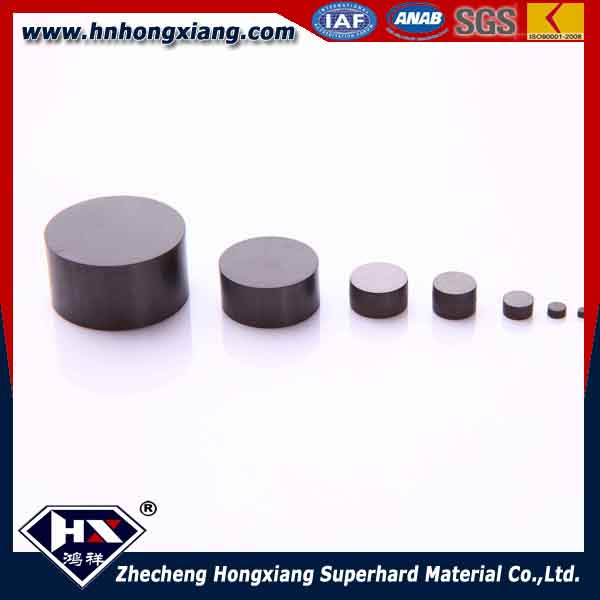

Polycrystalline Diamond Wire Drawing PCD Blanks for Wire Drawing Die

Product Specifications

Prod Model:	HX456
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Any Size

Product Description

PCD Diamond Drill Tips / Blanks are commonly used in many industries like automotive and woodworking to printing. PCD are synthetic diamond products that are used in non-ferrous applications.

We manufacture and supply PCD polycrystalline Die-blank & Cutting that consist of a layer of manmade diamond crystals bonded to each other and to a cemented carbide substance. These are made from fine quality material, exact dimensions and sturdy construction.

We fabricate supply and trade PCD Diamond Drill Tips / Blanks for rock cutters according to the specifications stated by our clients. These products that we offer are known for longer functional life, and are highly efficient. These blanks possess the properties of abrasion resistance, impact resistance and self-sharpening ability and can be availed in round, rectangle, triangle and other sizes.


Hardness: 5000-8000HV
Overall sintered
Laser beam cutting
Cobalt-based material
1. Diamond polymer
2. With the high temperature and the ultrahigh pressure sintering
3. Made of Diamond and bonding agent
4. High heat resistance and high thermal stability

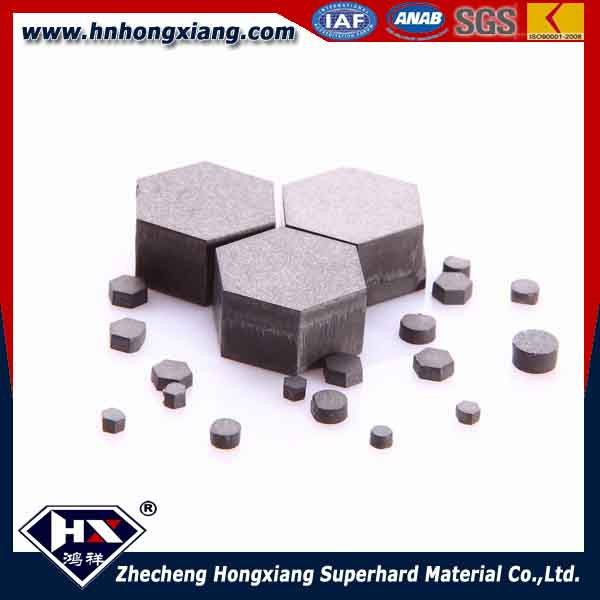

Shape: Triangle, square, rectangle, six prismatic, cylindrical,
Circular arc form at both ends


1. PCD for natural diamond: Size 10*0.75mm, 10*1mm
2. PCD for making wire drawing dies: Size D6, D12, D15, D18, D21, D24, D27, D30, D31, D33, etc,
We also can making the size as customer need.
3. Polycrystalline diamond compact PDC: Size 1308, 1313, 1613, 1913, etc.
4. PCD cutting tools: Diameter25mm, 30mm, etc

All of our business is carried out in full compliance with the ISO9001 Certification.
Please contact us if you would like any further information.

ADDMA  Code	Product NO.	Product Dimensions			Average Grain Size(um)						Max.Die4  Recommended (mm)
		Φd	ΦD	T	1	2	5	10	25	50
D6	WKH2510	2.5±0.2		1.0+0.2	√	√	√		√	-	0.4
D12	WKH3215	3.2±0.2		1.5+0.2	√	√	√	√	√	-	1.0
D15	WKH5225	5.2±0.2		2.5+0.2	-	√	√	√	√	√	1.5
D18	WKH5235	5.2±0.2		3.5+0.2	-	√	√	√	√	√	2.0
D6	WKR2510	2.5±0.2		1.0+0.2	√	√	√	√	√	-	0.4
D6	WKR3110	3.1±0.2		1.0+0.2	√	√	√	√	√	-	0.5
D12	WKR3115	3.1±0.2		1.5+0.2	√	√	√	√	√	-	1.0
D15	WKR5225	5.2±0.2		2.5+0.2	-	√	√	√	√	√	1.5
D18	WKR5235	5.2±0.2		3.5+0.2	-	√	√	√	√	√	2.0
D21	WKR7040	7.0±0.2		4.0+0.2	-	√	√	√	√	√	3.0
D24	WKR9853	9.8±0.2		5.3+2	-	√	√	√	√	√	4.0
