Polycarbonate Transparent Commercial Roller Door Shutter

Name: Polycarbonate Transparent Commercial Roller Door Shutter
Brand: china-crystals.com
SKU: 835427465
Availability: InStock
Rating: 4.3 (148 reviews)

Price:	US $ 1100-1200/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	polycarbonate transparent roller door
Safety Device:	Photocell Sensor(Korea Autonics)
Command System:	1.German Sew 2.China Sej / Snma
Installation Base:	Concrete,Panel, Brick,Steel Structure.
Wind Strength:	Photocell Sensor(Korea Autonics)
Opening And Close Speed:	0.6-1.8m/S
Perspective Window:	1.2mm PVC Transparent
Motor Choice:	1.German Sew 2.China Sej / Snma
Control Panel:	Japan Mitsubishi
Normal Working:	-35 to 65 Celsius Degree
Standard Motor Position:	Left or Right
Style:	European
Open Style:	Automatic
Sound Insulation:	40
Screen Netting Material:	Fiberglass
Position:	Interior
Security Rating:	C
Function:	Security
Material:	PVC-Fiber
Veneer Wood:	Transparent Exterior Rolling up Shutters
Surface Finishing:	Crystal Door Automatic

Product Description

Specifications

1) Quickly open&lclose
2) High quality, best price
3) Material: transparent PC
4) waterproof, UV protection,noise insulation

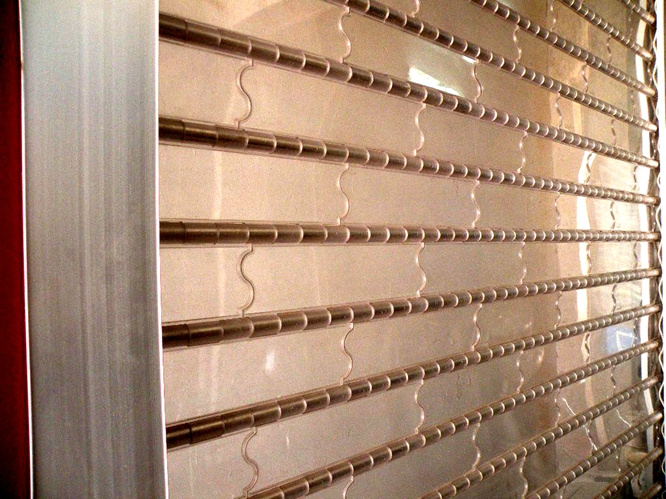

Motorized transparent PC commercial rolling door

Shuotian company specialized in high speed door, industrial door, commercial roller door &crystal rolling door, roller shutter door, shop roller door. Crsytall roller door could widely use for commercial shop & shopping center.

Features: (Crystal roller door & Shop rollerr door)
--Almost transparent - display can be seen when shop is closed
--High security - near steel strength
--Virtually indestructible - Fabricated from extruded aluminum, robust weather and rust proof with polycarbonate glazing making the shutter almost indestructible.
--Ideal for shopping malls and high profile shops
--Custom made - to fit every opening perfectly
--Electrically operated for fast easy roll up and roll down operation.

Curtain specification:
-- import high viscosity polycaronate material
-- Impact strength: 1400J/m2
-- Elongation at break: 250%
-- Transparency: 88%
-- Bending strength: 78 Mpa
-- Rockwell hardness(HRR): 60

Motor data:
--Rated voltage220VAC
--Power: 180W
--Rated current: 1.5A
--Rotated speed4.8r/min
--Max lifting height: 6m

Technical parameter

Characteristic	Unit	Typical value(rolling shutter pads
Impact strength	J/m	850
Luminous transmittance	%	88
Specific weight	g/cm3	1.2
Resistance to heat	°C	-40~120
Heat transfer coefficient	W/m2 °C	2.3 ~ 3.9
Anti-pull strength	N/mm2	>60
Crooked strength	N/mm2	100
Temperature of deflection under load	°C	140
Soundproofing effect	10mm	Weaken 20db

Crystall roller door & Shop roller door, Transaprent Rolling Shutter Door, SHUOTIAN will provide prefect roller door to all customer.

What service you can get from us ?
1) OEM service for you and your clients .
2) Arrange the shipment for you to everywhere .
3) CE / ISO-9001 / SGS Certification
4) Installation video or instruction for you.
5) Available suggestion about the correct doors.
6) Professional service supporting with different language , email or phone calling .
7) Operating guidance and instruction after installation .
8) Professional / Tirelessly after-sales service .
9) 12 Months warranty for all doors and accessories.

Shenzhen Hongze Automatic Door Co., Ltd. is a high-tech company that engages in the development of world-class advanced automatic doors. Our main products include quick rolling door, industrial accumulation door, industrial rolling door, PVC rolling door, rapid rolling door, fire-resisting rolling door, industrial lift door, automatic induction door, automatic vertical hinged door, medical automatic door, stainless steel automatic door, electric folding gate, crystal rolling door, electric roller shutter of various materials, and parking lot series.

Our company introduces and absorbs the state-of-the-art technologies of the automatic door industry of the world whilst accumulating rich experience in design, production and engineering installation. The overall appearance, quality, performance and service life of our products are comparable to world-famous brands, whereas our prices are much lower than those of similar imports. All these are aimed at offering our customers excellent, low-priced products in the real sense.

Hongze has been persistently offering users all-round, diversified service of wide level. Meanwhile, we have been elaborately bringing about a rich corporate culture to serve as a faithful, honest and harmonious tie among enterprise, customers and employees.

Adhering to the principle of "proceeding from details and trivial matters", we try to embody our meticulous effort in all the links and shall spare no effort in bringing about the best products and perfect service.

Over the years, we have been guided by the principle and concept of "guarantee by brand, breakthrough by technology, supported by service". In the future, we shall do our utmost to provide our customers with related engineering consultation, scheme design, technical guidance, installation and debugging, after-sales repair and other service.
