Cixi Airmax Pneumatic Components Co., Ltd. >> Plm-C Bulkhead Union L Compact One-Touch Fitting

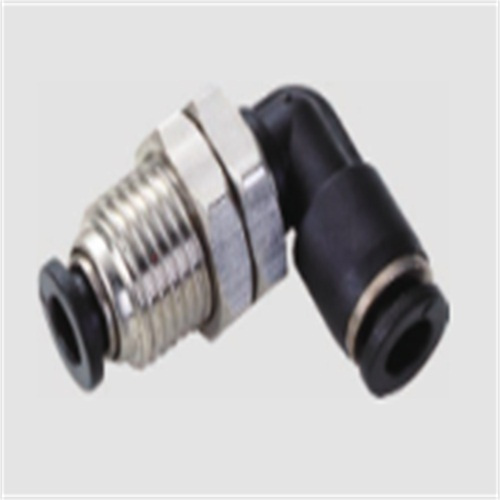

Plm-C Bulkhead Union L Compact One-Touch Fitting

Plm-C Bulkhead Union L Compact One-Touch Fitting
Price: US $ 0.1-1/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union

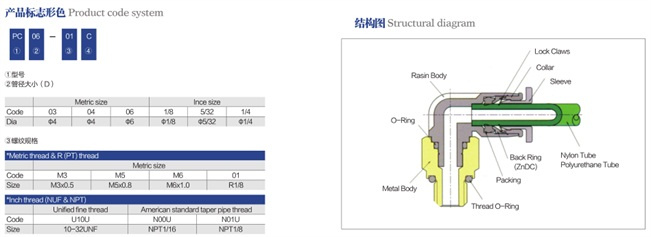

Product Specifications


Prod Model: PLM03C
Connection: Push-in
Model Series: Plm-C
OEM: Yes

Product Description

 1.  QUICK installation, simple and flexible,space-saving

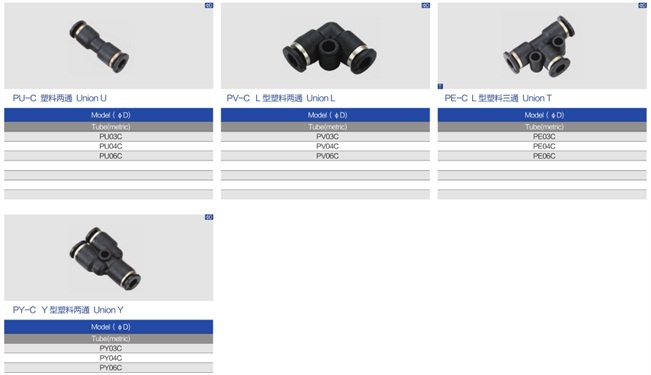

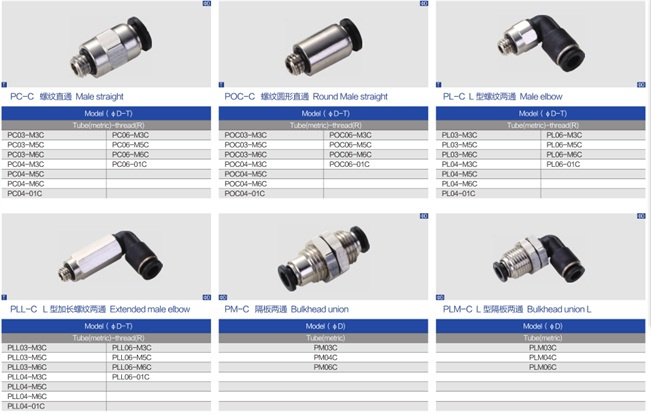

 2.The tube fitting comes in a wide variety of models to meet all your needs in pneumatic piping
 3.Even after installation,the direction of tubing can be changed freely
 4.The release ring adopts the ellipse design to make it more convenient and labor saving for disconnection
 5.All taper pipe threads are pre-coated with Teflon with fine seal performance.
 6.All fitting are equipped with the internal hexagonal holes.It is easy for them to be mounted in the narrow places

Fluid Type

Air

Operating Pressure0-150PSI
Operating Temperature Range-10°C ~60°C
Tube materialNylon and Polyurethane

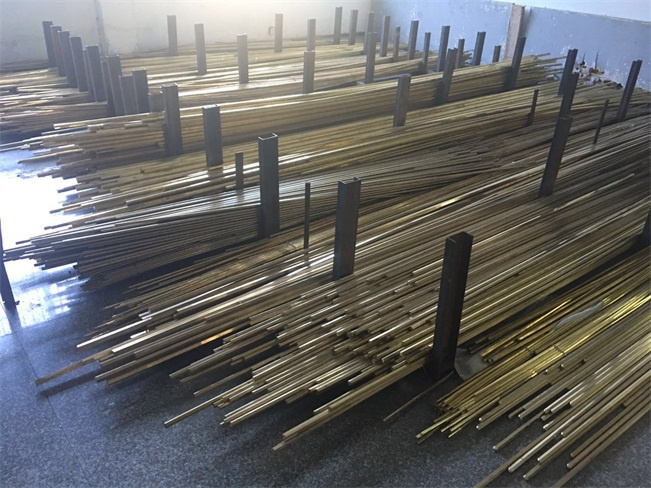

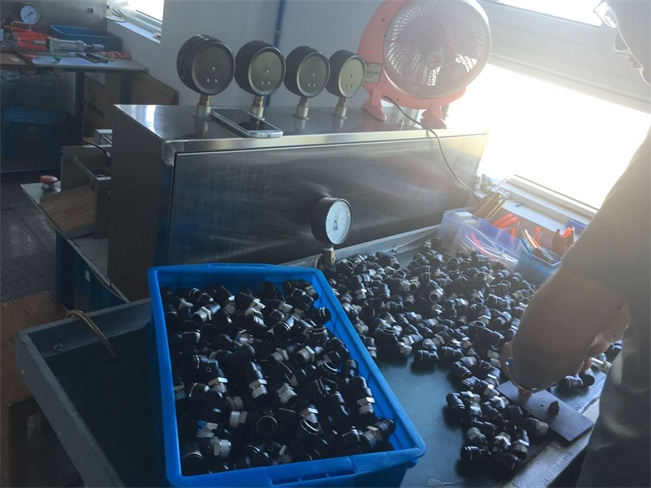

Factory view
