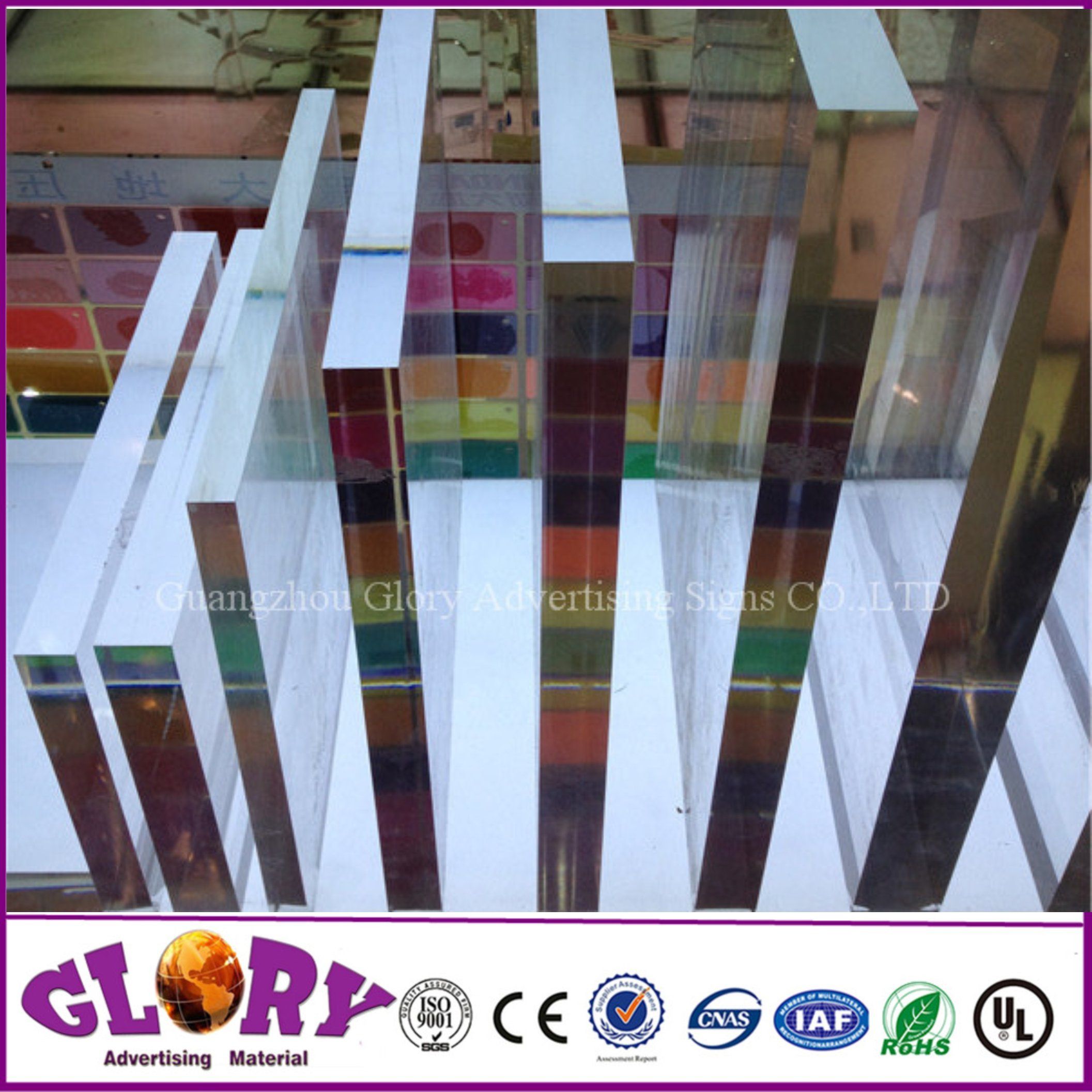

Plastic and Plexiglass Transparent Cast Acrylic Sheet
| Price: |
US $ 3200-3500/Ton |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Ton |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Product Specifications
| Prod Model: |
Gl-K8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Density: |
1.2g/cm3 |
| Color: |
Clear/Transparent/Crystal |
| Size: |
1220*2440, 1220*1830, 2050*3050mm |
| Application: |
Advertising and Decoration |
| Thickness: |
1mm to 50mm |
| Place Of Origin: |
Guangdong China (Mainland) |
| Surface: |
High Surface Hardness & Glossy |
| Raw Material: |
100% Virgin PMMA Material |
| Light Transmission: |
High Light Transmission(92%) |
| Packing Detail: |
Export Standard Wooden Packing |
| Material: |
Acrylic |
Product Description
Product Features:
1. Clear, Transparency rate can go to over 95%.
2. Various color available, long-time lasting.
3. Highly glossy, easy clean
4. Easy to mould. No-toxic acrylic sheet
5. Bright, insulated, chemical en durability, anti-bump, easily processed, a virulence, anti-wallop, recycled.
6. Good at anti-UV. Color fades less than 30 & in 3 years outdoor may show color difference for different batch.
7. Density of acrylic sheet: 1, 200kg/cbm
8. Can be used for vacuuming, engraving, silk-screen printing, polishing, processing, etc.
Specification of Acrylic Sheet
Specification: 1000X2000mm,1220 X 1830mm, 1220 X 2440mm, and 2050 X 3050mm
1000 X 2000mm 1270 X 2490mm, 1270 X 1880mm, 1250 X 2470mm
Can be made as your customized
Thickness: From 1mm to 50mm

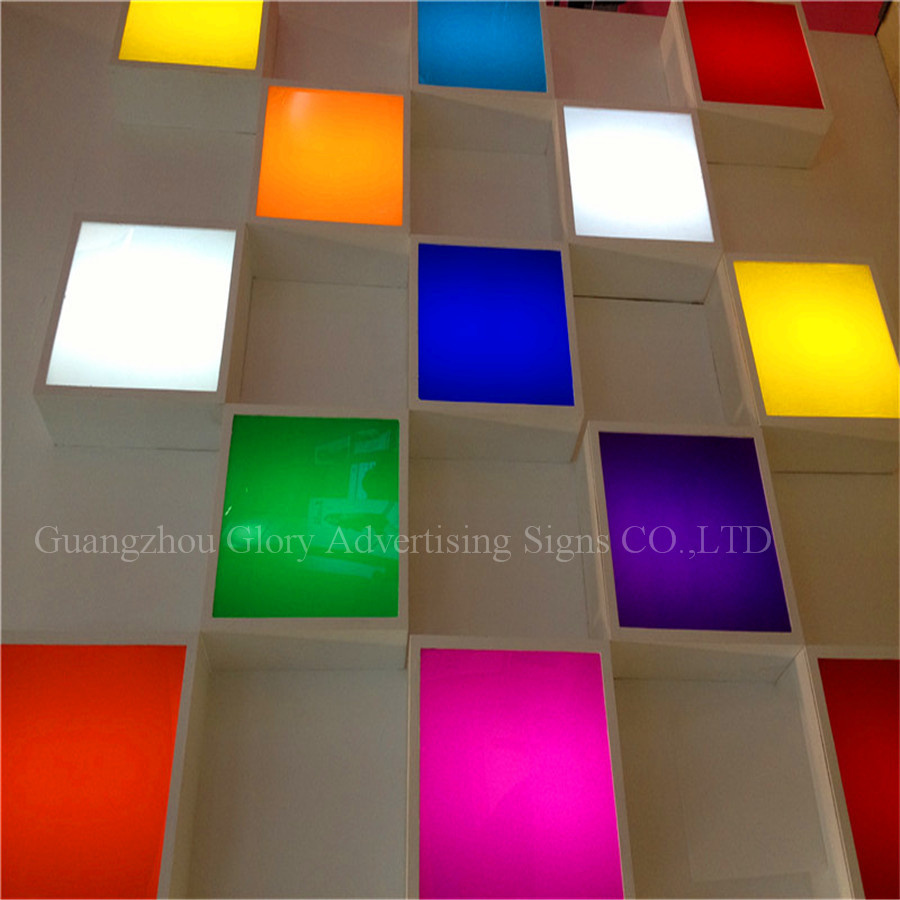

Colors: Clear, opal, red, blue, yellow, green, brown. More customized color is welcome!
Production Packing & Inspecting.:
Raw material: 100% virgin material of LUCITE or Mitsubishi for acrylic sheet.
The acrylic sheet was made from the MMA monomer, which was manufactured by worldwide famous factories, after thermal treatment in high temperature drying room for 5-6 hours. It is an excellent product which complies with SGS.
The penetration rate of visible light is 92%. It is well processed and has stable quality.
Our acrylic sheet conforms to the environmental protection standard, already though SGS authentication and CE. With quality inspecting before packing, If these are more than 3 spots, it will be canceled.

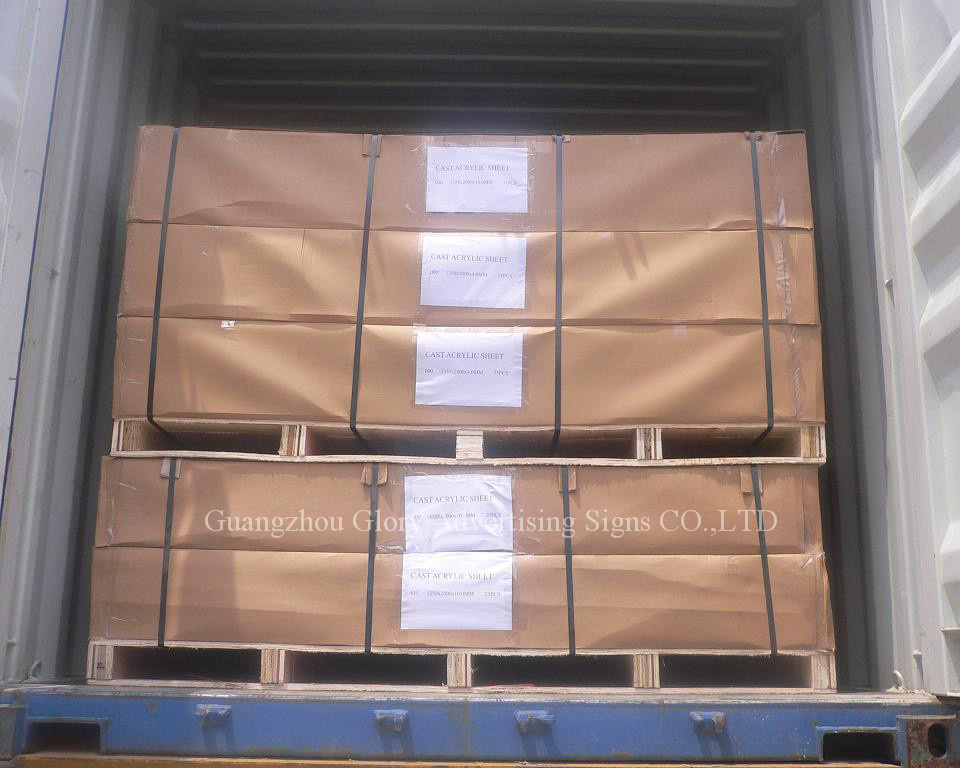

Packing of Cast Acrylic Sheet
Both sides covered with kraft or PET film, several sheets per pallet
Bulk cargo packing
2 tons per tray, use wooden pallets on bottom, with packaging film packages all around ensure transportation security.
Full container load packing: 18-20 tons of a 20 foot container with 10 tray.
Product Application:
1.Advertisement: Light Box,Signboard,Signs,Display Rack;
2.Lighting: Daylight Lamp,Ceiling Lamp,Lampshade;
3.Civilian Goods: Bath Room, Art Work, Cosmetics, Bracket,Aquarium;
4.Construction:Show Window,Noise Barriers,Daylighting Shade, Telephone Booth;
5.Vehicle: Door and Window of Car and Train;
6.Medical: Infant Incubator, Many Kinds of Medical Apparatus;
7.Industrial: Instrument Surface Panels & Protecting Covers.
| Mold Size | Art. No. | Product Size with glue tape | Product Size without glue tape |
| 1270*2470 | T | 1220*2420 | 1220*2440and 1220*1830(Standard size)
Cut-to-size services also are available which is according to the demand of customers. |
| 1300*1900 | Q | 1250*1850 |
| 1070*2070 | Q1 | 1020*2020 |
| 1300*2500 | L | 1250*2450 |
| 1330*2550 | L1 | 1280*2500 |
| 1330*2550 | LM | 1280*2500 |
| 1330*2550 | LM2 | 1280*2500 |
| 1370*2610 | L2 | 1320*2560 |
| 1370*1770 | S | 1320*1720 |
| 1710*2710 | R | 1660*2660 |
| 2050*3050 | W | 2000*3000 |
| 1600*3100 | Y | 1550*3050 |
| 2100*3100 | M | 2050*3050 |
| 2110*3110 | M1 | 2060*3060 | |
Our Acrylic Average Physical Properties:
Specific gravity | 1.19-1.20 |
Hardness | M-100 |
Absorptivity of water (24h) | 0.30% |
Tension | |
Coefficient of Rupture | 700kg/cm2 |
Coefficient of Elasticity | 28000kg/cm2 |
Bending | |
Coefficient of Rupture | 1.5kg/cm2 |
Coefficient of Elasticity | 28000kg/cm2 |
Transmittance (parallel rays) | 92% |
Full rays | 93% |
Heat Distortion Temperature | 100oc |
Coefficient of Linear Expansion | |
Ultimate Temperature of Continuous operation | 80oc |
Thermoforming Ranges | 140-180oc |
Insulation Strength | 20V/mm |
The specification of products
Part size, thickness and weight |
Thickness Size(m) | 2mm | 3mm | 4mm | 5mm | 8mm | 10mm | 20mm | 30mm |
1.25*2.45 122 244 | 7.35kg 7.14 | 11.0kg 10.7 | 14.7kg | 18.0kg 17.8 | 28.2kg | 35.0kg | 73.0kg | 110kg |
1.25*1.85 | 5.6kg | 8.6kg | 11.4kg | 13.8kg | 21.6kg | 26.7kg | 55.6kg | 86kg |
1.50*2.10 | 7.6kg | 11.2kg | 14.7kg | 18.2kg | 29.2kg | 36.0kg | 70.5kg | 112kg |
1.60*2.20 | 8.5kg | 12.8kg | 17.0kg | 21.0kg | 32.2kg | 40.2kg | 84.5kg | 128kg |
1.60*2.60 | 10.0kg | 15.0kg | 20.0kg | 35.0kg | 40.0kg | 50.0kg | 100.0kg | 150.0kg |
2.05*2.30 | 11.4kg | 17kg | 22.9kg | 28.5kg | 45.6kg | 57kg | 107.5kg | 170kg |
2.05*3.05 | 15kg | 22.8kg | 29.8kg | 37.0kg | 56.5kg | 68.5kg | 150kg | 228kg |
Why you choose us:
1. We are professional manufacturer with many years of experiences.
2. We have advanced facilities for production, most of the products are
welded by automatic machine.
3. We have SGS and ASTM certificates which can assure the quality of our products.
4. We have many years of export experiences, our friendly and professional sales
team can off er favorable services.
5. We have strong engineering team that can give best solution for your projects .
Guangzhou Glory AD Signs Limited, specialized in producing advertising products and advertising materials, such as Acrylic Shet, Cast Acrylic Sheet, Extruded Acrylic Sheet, Plastic material, LED slim light box, crystal light box, LED luminous letter, mould sucking signage, signboard, acrylic display and etc...

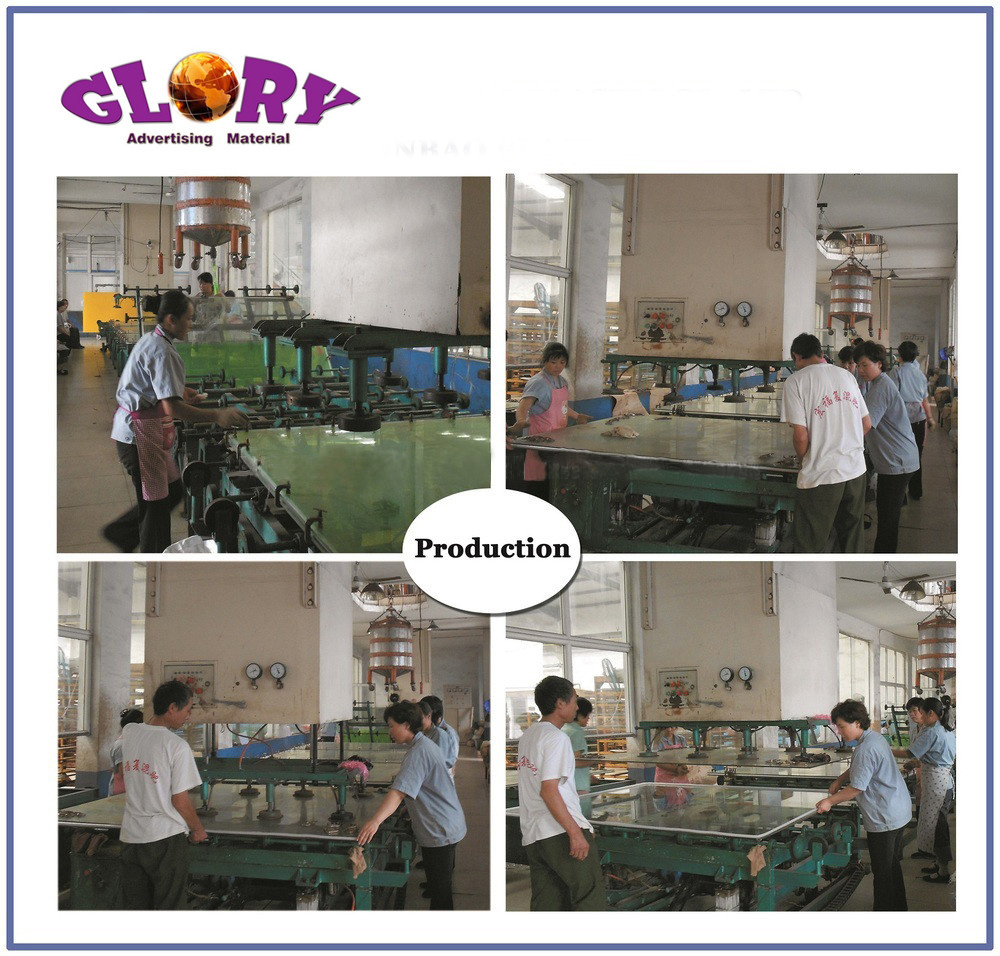

Our factory has owned three international advanced production line of Cast Acrylic sheet, two domestic advanced production line of Extruded Acrylic sheet and two advanced production line of Plastic Material. There is one extruded acrylic sheet new production line which imported from German last year is unique of the highest degree of automation production equipment at home.
We also have owned advanced thermoforming, silk-screen print, metal plate, wooden processing and assemble production line. We are have all kinds of advance machine, Digital printing, Laser engraving, Drilling, Vertical shaft type Trapping, Lathe work, Carving, Special type, Miling machine and complete sets of equipment. As one of production based on advertising products and Display products.
We have given undivided attention to professional Technological Innovation and strict quality control, our factory was the first to passed the ISO9001: 2008 quality control system attestation. The whole process from business negotiation to design scheme, material purchase, mould developing, accessories productions and assemble, up to install, product testing are following with the ISO9001 strictly monitored.
Our products are widely used in financial systems, shopping mall, hotel, metro station, airport, chain-shops, restaurants.
Guangzhou Glory AD Signs Limited, always adhere to the business philosophy of "quality first, customer-oriented, efficiency as the core".
"Making innovation unceasingly, integrative management and mutual benefit" is our principle. Now our products have exported to USA, Canada, Europe, MID-east, Oceania, Southeast Asia, etc in batches.
We sincerely hope to cooperate with you and will make every effort to supply top level products to serve our customers from domestic and overseas.
