| Price: | US $ 1899-1999/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | Sapphire Jet |
|---|---|
| Product Name: | Phone Printer Ceramic Tile Machine A4 Printer |
| Print Head: | Epson L800 Print Head |
| Ink Type: | Pigment Ink/ Eco Solvent Ink /Edible Ink Printer |
| Color Model: | Cmyk+LC+Lm/Cmyk Orange Red Glo/Cmyk+Ww |
| Rip Software: | Focus Rip 8.2.6 |
| Printing Platform: | 21*30cm |
| Control Method: | PLC Controller DTG Printer |
| Max. Printing Resolution: | 3600dpi |
| Max. Printing Height: | 8cm |
| Cooling System: | Water/Air Circulation Cooling System |
| Color & Page: | Multi-Colour Printing Press |
| Print Interface: | USB2.0 |
| Structure: | Flatbed Printing |
| Style: | Digital Printing |
| Usage: | UV Printing |
| System Supported: | Windows XP/2000/2007/2008/2010 |
phone printer ceramic tile machine a4 portable printer pen printing can print on metal, glass, crystal, tile ceramic, acrylic, phone case, PVC, PU, Leather, Silicome, wooden... ...No matter what material printed on, it will dry
immediately. The speed for printing 1 iphone 5s case about 1-2min. Please check the clear explaination as following:
Specification
| phone printer ceramic tile machine a4 portable printer pen printing | |
| Printing size | 210mm*290mm |
| Printhead | Piezo Inkjet Epson L800 |
| Print Color | 6 Color: C,M,Y.K.Orange.Red.Gloss.Matte Black. |
| /White ink model: C,M,Y,K+W,W | |
| Printing Direction | Bi-Direction / Unidirection |
| Printing Speed | 1440DPI model: A4 size/64s |
| Control pannel | Touch pannel / LCD |
| Max. height of object | 8CM |
| Max. Printing resolution | 2880DPI*1440DPI |

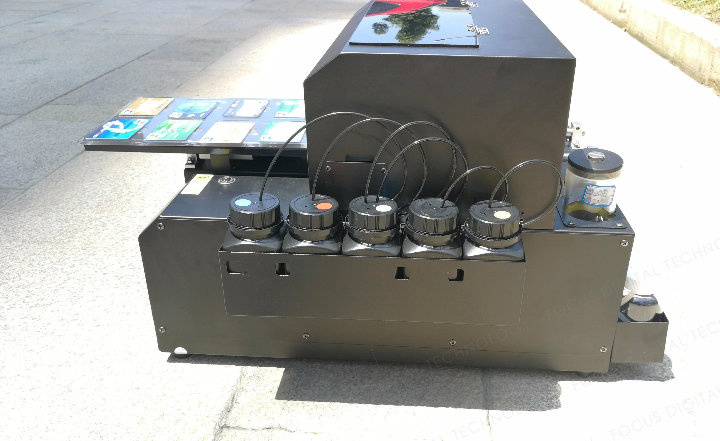

| Ink Tank Volume | 150ML |
| Ink | Eco solvent ink / UV ink/ CTS ink/ ink / Edible ink / Discharge ink |
| Height Adjust | Automatic/Manual Adjust |
| Printing Object Height Examine | Automatic Detecting |
| Printhead Protection | Intelligent Self Protect System |
| Power | 110-220V 50-60HZ 75W |
| Printing Interface | USB2.0/LTP |
| Operation System | Windows95,98,NT,2000,XP,MAC |
| Working Environment | 10-35 C,20-80 RH |
| Max.printing weight | 50KG |
| Printer Size | 57*48*37cm |
| Shipping Size | 65*58*47cm |
| Printer N.Weight/G.Weight | 38KG/45KG |
Technical Feathers
1. phone printer ceramic tile machine a4 portable printer pen printing for Glass Wood Plastic Phone Cases Printing has space saving design to let customer can lay machine on a small room. Outlook of the flatbed printer with dust free design. The new design reduces the environmental impact on equipment.
2. Fast printing speed by print on Multi function phone printer ceramic tile machine a4 portable printer pen printing for Phone Case, Business Card, Acrylic, Metal, Glass etc. only need 64 seconds.
3. Super table size of uv flatbed printer ensure you can print on any media with max. 21*30cm printing area.
4. Thicken aluminium profile of uv printer made as the keel of the machine to ensure the machine stable working.
5. Support max. material thickness 8cm. expand more printing area for customer.
6. Modularized design of the flatbed of to ensure the fast Focus-Pallet-Add-onfamily exchanging procedure for get a mass production.
7. Intelligent Anti-Scratch-Protectionsystem of uv led printer can detect the media by both red ray sensors to prevent the print head from scratching. And ball screw design
can make printing resolution much higher and printing more stable.

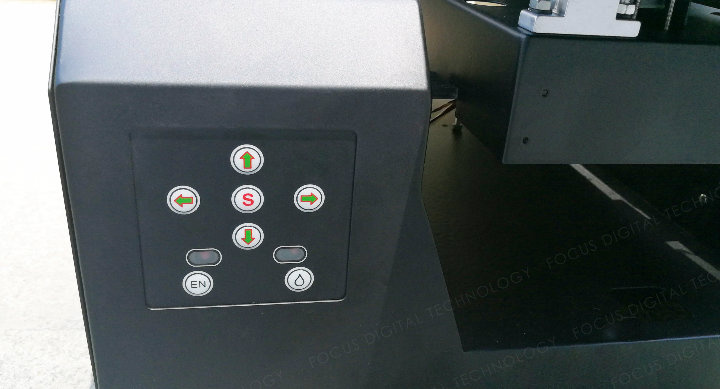

8. Easy operation panel can control the flatbed for Backward, Foward, Up, Down, Pause/Stop, Online/Offline and ink changing, to let you operate Multi function A4 Size 6 Color Flatbed UV led desktop printer more convinence
9. Patented Focus APCDS system can automatic detect the X(carriage), Y(flatbed) motion pulse and send back the real motion data to mainboard for Interpolating, combine with
the closed-loop structure circuit design to enhance the stability of the system and ensure the flatbed printing with one pass printing precision and repeat printing precision.
10. Ball screw and raster make printing resolution better

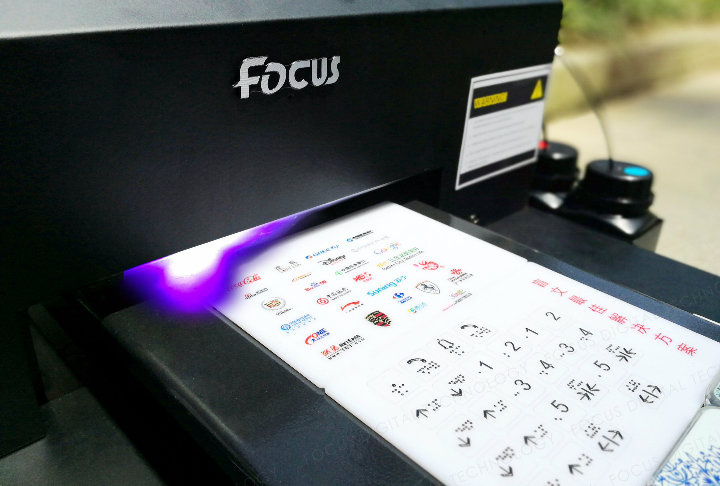

11. High quality LED UV curing system with 48pieces LED UV lamps, can get to the working power during 100W~200W immediately without waiting, also the LED light cost less power and harmless for human health. Combine with the high effective water circulation cooling system to ensure the stable printing.
12. phone printer ceramic tile machine a4 portable printer pen printing for Glass Wood Plastic Phone Cases Printing can get a high density brilliant printing results both on dark and light media with White ink and color ink printing.
13. Unique 3D texture output option of Multi function A4 Size 6 Color Flatbed UV led desktop printer is available.
New Design A4 Size Desktop UV LED Flatbed Printer for Glass Wood Plastic Phone Cases Printing, it can support variable data printing, high quality victor processing, custom setting ink channel, 1bit/2bit/3bit/ 1.5-15PL ink dot control printing to get a good white ink density and vivid color result.
Application field:
<1>. Sign making shop
<2>. Photo studio or film development shop
<3>. Screen printing.
<4>. Garment, Textile and fabric, such as the T-shirt, flag, handkerchief, neckerchief...
<5>. Leather, shoes, clothes, crystal and other crafts & gifts industries
<6>. All kind of factories of art items with image.
phone printer ceramic tile machine a4 portable printer pen printing for Glass Wood Plastic Phone Cases Printing, is compliment to screen printing production and heat-transfer industries as it can do some jobs which are very expensive or not possible with the traditional printing.
Warranty
1. We provide 13month guarantee since the shipping date.
2. We provide professional user manual, installation video to guide you the installation and daily maintenance.
3. We provide 2 days free online training.
4. Engineer fly to your site for final repair if needed.
Printing Sample
