Product Specifications
| Prod Model: |
PGX4 |
| Application: |
Voice |
| Signal Transmission: |
Wireless |
| Directivity: |
Uni-direction |
| Sound Channel: |
Mono |
| Transducer Principle: |
Electrodynamic Microphone |
| Sound Field Force: |
Pressure Differential Type |
| Connector(',s): |
XLR 3 Pin |
| Wireless Technology: |
UHF |
| Output Impedance: |
1000-20000Ω |
| Style: |
Receiver |
Product Description
Specification:| Frequency Range:790-820MHz |
| Oscillation Mode: PLL synthesized |
| Channels for Selection: 1x100 channels |
| Frequency Response: 40~20kHz |
| Frequency Precision: ± 5ppm < 10kHz |
| Frequency Steadiness: ± 0.005% |
| Total Harmonic Distortion: < 0.5% (at 1kHz) |
| False Image Interfere Rate: ≥ 60dB |
| S/N Ratio: >90dB |
| RF Output: 10mW |
| Modulation Mode: FM |

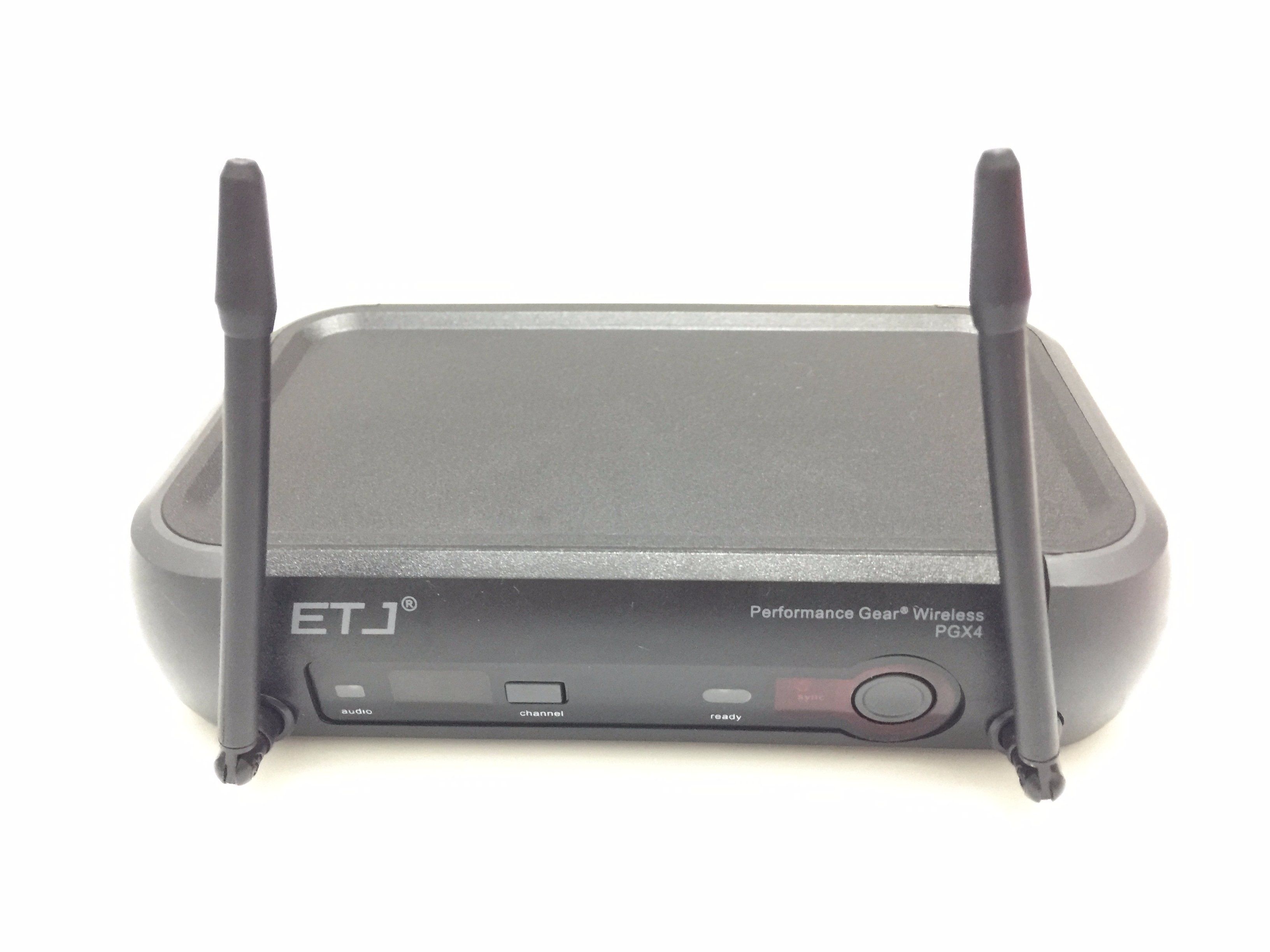

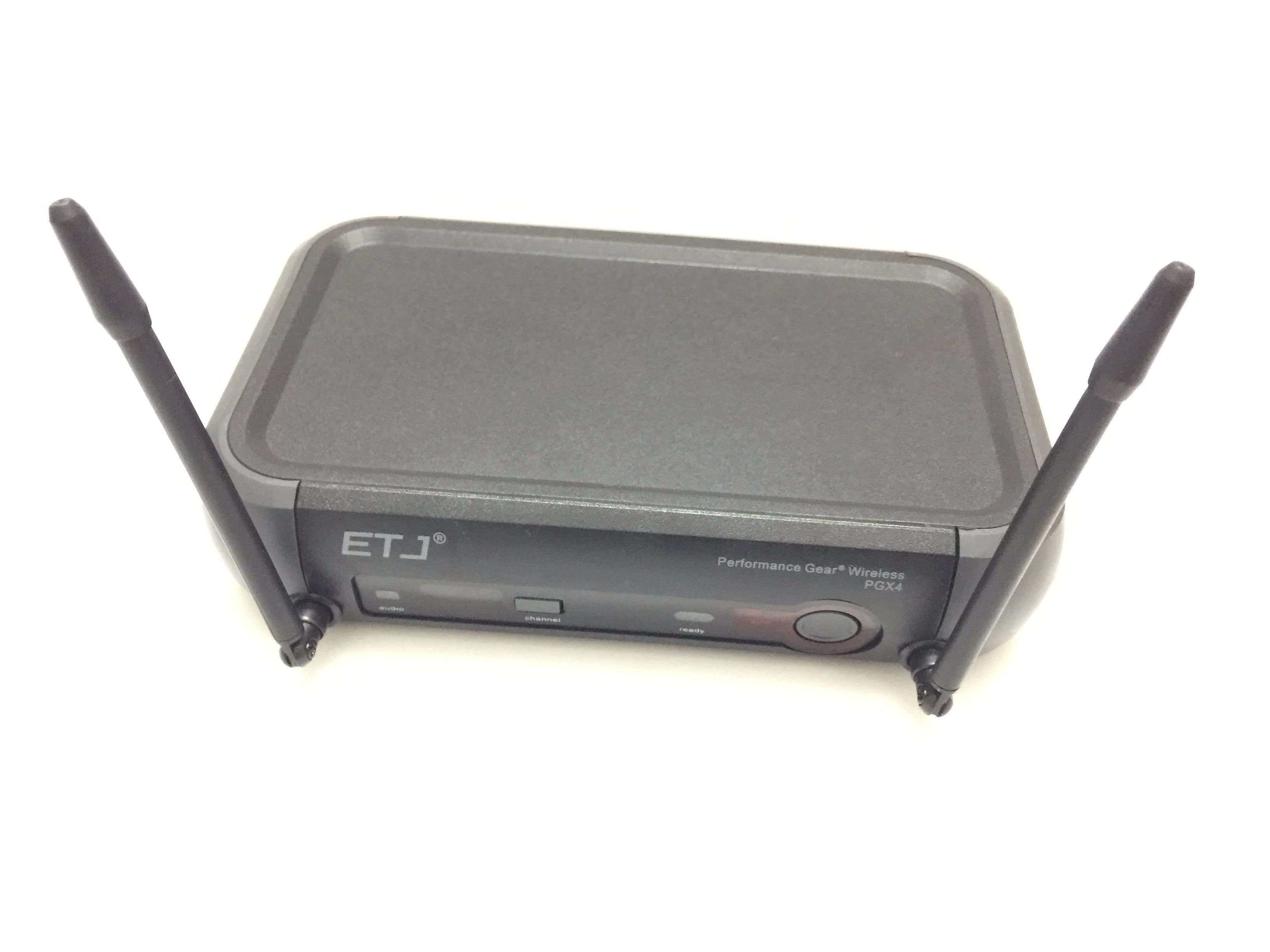

Description:The PGX24/Beta 58 Handheld Wireless System delivers unmatched performance and ease of use to anyone looking to step up to wireless. The PGX4 receiver has features like Automatic Frequency Selection and Automatic Transmitter Setup that get you up and running, hassle-free. This patented Audio Reference Companding delivers crystal-clear sound beyond the limits of conventional wireless technology.
Features:
Receiver:Automatic Transmitter Setup
Automatic Frequency Selection
90 selectable frequencies across 18MHz bandwidth
1/4 wave antennas
Microprocessor-controlled diversity
Channel display LED

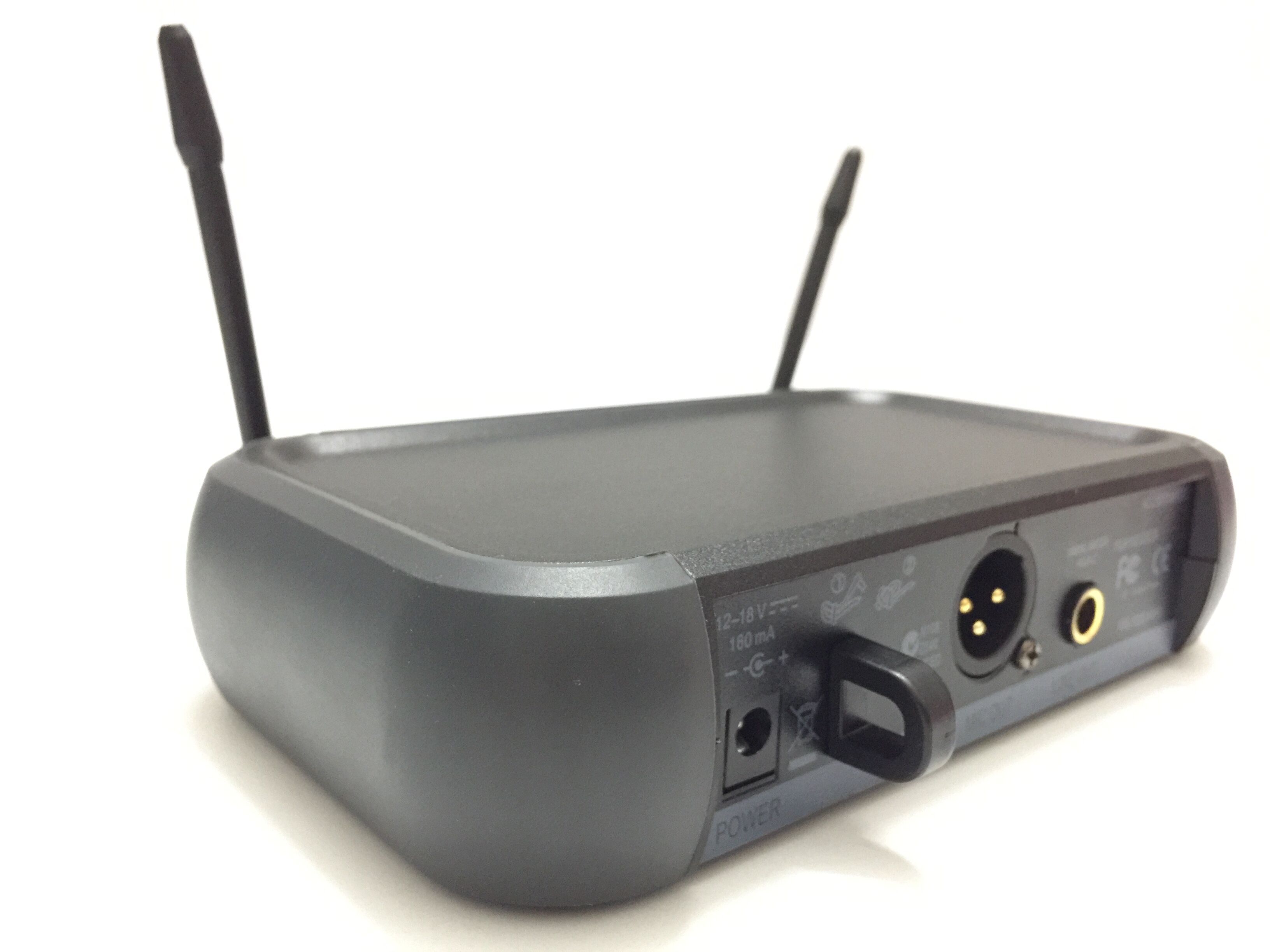

XLR and 1/4" outputs
Transmitter:Automatic Transmitter Setup
Multifunction LED indicator (power, lockout, mute, low battery)
-10dB pad
8 hours of continuous use with 2 AA batteries
18MHz operating rang
Power suply: AC 220V / AC 110V
| Contact information |
| Mobile Number | 0086 13922304090 |
| | |
| Trade terms |
| MOQ | 1 Pcs |
| Price term | FOB / EXW / CIF |
| Payment terms | T/T , Western union , Money Gram, Cash |
| Package | Carton box / Flight case |
| Delivery time | For sample order: about 2-5 working days after payment |
| For big order : about 20-30 working days after payment |
| Shipping | By air , By sea ; By express : DHL / UPS / Fedex / EMS |
| OEM | We accept OEM order |
| After sells service | If there is the problem with the product, firstly you need send the picture or the video to us, then let us make sure what's problem about the product, we will try our best to help you .if the problem can use the part to solve ,we will offer you the replacement for free Within 2 years. |
|
|

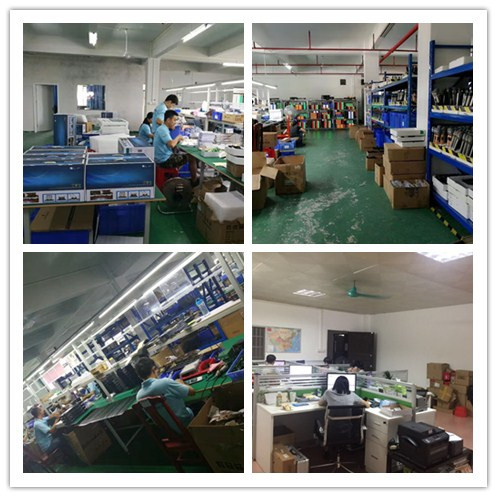

Enping lehesheng audio equipment factory is located in the microphone production base - Enping city, Guangdong province. Our factory focus on research and development, production and sales, the main production of wired microphone, wireless microphone, professional power amplifier and accessories of the microphone. Our strong technical force, advanced automated production equipment and testing instruments, continuous innovation and scientific production management to win the customer high praise and trust.
