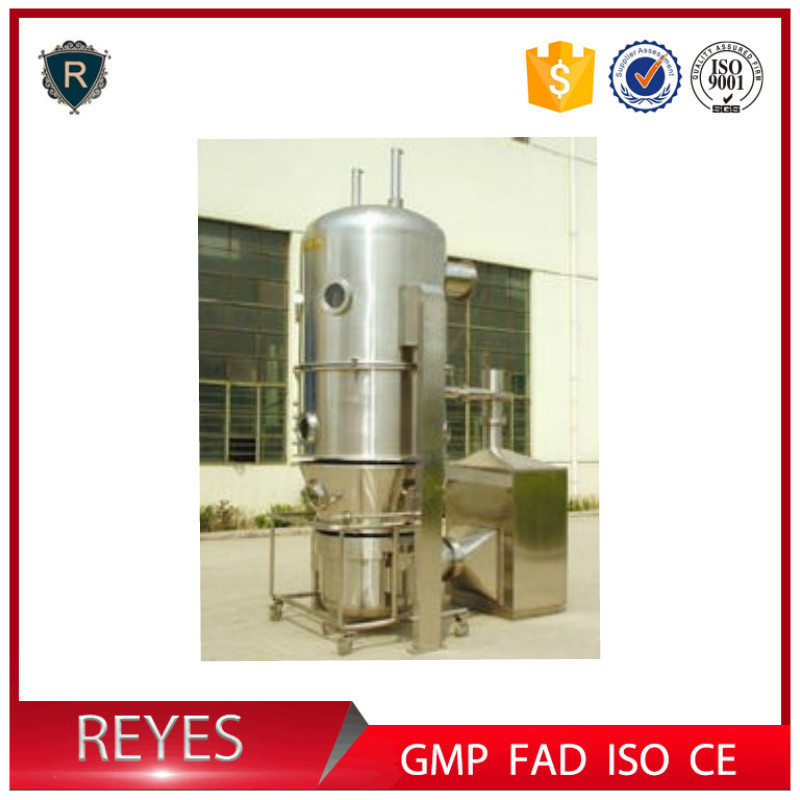

Pgl Spray Drying Granulator Machine

Product Specifications

Prod Model:	PGL
Type:	Spray Drying Equipment
Condition:	New
Vacuum Drying Equipment Type:	Spray Drying Machine

Product Description

PGL Spray drying granulator

Application:
1. Medicine: extractum liquidum, vitamin, animal glue, plant glue, yeast, prolease, lipase, amylase, etc.
2. Food: Food & plant juice, such as Milk & egg products, cream, Fat-rich milk, milk replacer, egg white(yolk), etc. Chicken extract, coffee, instant tea, Fish/meat protein, potato, soybean, Peanut protein, etc.
3. Sugar series: Corn, cornstarch, glucose, pectin, maltose, potassium sorbate, etc.
4. Detergent: Emulsifier, brightener, dispersant, soda ash, soap powder, Phosphate agent, Superior detergent, Ordinary washing powder, etc.
5. Chemistry: dyes, paints, resins, silica, ceramics, etc.

Working principle:
To keep a certain powder materials at the fludizied bed as crystal seed. To pump the liquid materials to sprayer. First to remove most of the water by instant contacting with the high-temperature air, and the residual moisture will be low-temperature dried at the fludizied bed, and at the same time to be grain.

Technical parameter:

Type Item		PGL-3B	PGL-5B	PGL-10B	PGL-20B	PGL-30B	PGL-80B	PGL-120B
Fliuidextractum	Min.        kg/h	2	4	5	10	20	60	100
	Max.               kg/h	4	6	15	30	40	100	140
Boiling capacity	Min.              kg/batch	2	6	10	30	60	100	150
	Max.              kg/batch	6	15	30	80	160	250	450
Liquid specific gravity                          Kg/L		≤1.30
Container volume of raw materials (L)		26	50	220	420	620	980	1600
Diameter of container          mm		400	550	770	1000	1200	1400	1600
Power of suction fan        kw		3.0	5.5	7.5	11	15	18.5	30
Power of auxiliary fan                   kw		0.35	0.75	0.75	1.20	2.20	2.20	4
Steam	Consumption               kg/h	40	70	99	210	300	366	465
	Pressure               MPa	0.4~0.6
Power of electric heating                              kw		9	15	21	25.5	51.5	60	75
Compressed air	Consumption            m³/min	0.5	0.8	0.8	0.9	1.1	1.3	1.8
	Pressure               Mpa	0.6
Host size	Φ                 mm	400	550	770	1000	1200	1400	1600
	H1                        mm	940	1050	1070	1220	1570	1590	1690
	H2                        mm	1900	2360	2680	3150	3630	4120	5050
	H3                    mm	2050	2590	3020	3600	4180	4770	5800
	B                      mm	740	890	1110	1420	1620	1820	2100

Example: points for each batch quantity of liquid extract I=120kg (solid content for m=30%), seed amount II=60kg, finished product can be obtained from I,II theory I+IIm=m=120kgx30%+60kg=96kg, working time T=120 kg/30 kg/h = 4 h, the technical parameters of column for the standard load can be found in the boiling range, so each class to complete the two batches, selects the PGL-30 type b is more suitable.
