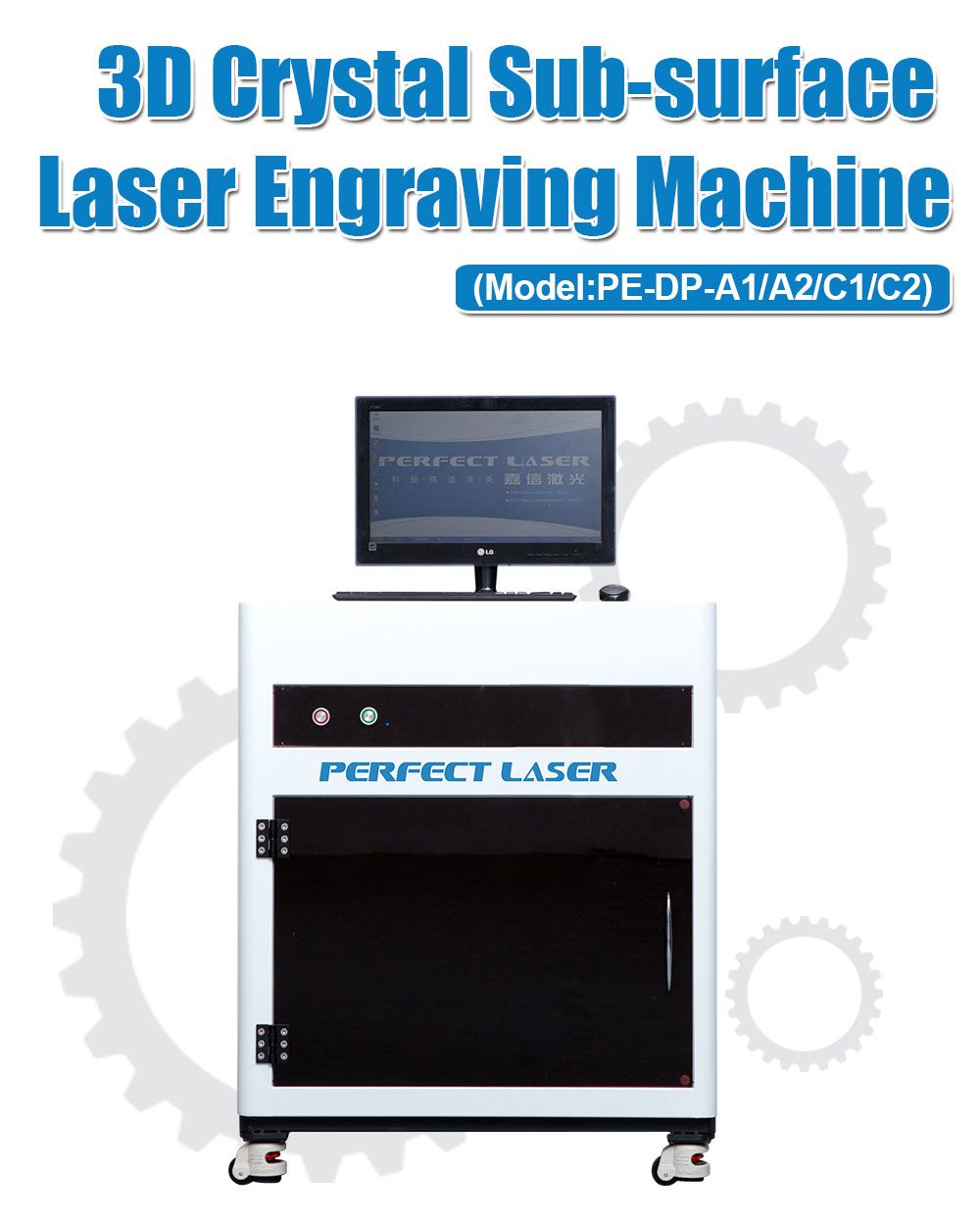

PE-Dp Series 3D Crystal Laser Engraving Machine Price for Photo
| Price: |
US $ 25000-35000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
PE-DP-A1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
Laser Engraving Machine |
| Power: |
High Power |
| Drive Type: |
Stepper Drive |
| Certification: |
SGS, Ce, ISO 9001 |
| Laser Type: |
Diode |
| Control: |
CNC |
| Current: |
AC |
| Condition: |
New |
Product Description
PE-DP Series 3D crystal laser engraving machine Price for PhotoModel: PE-DP-A1
Contact:Lily
Description of 3D crystal laser engraving machinePerfect Laser 3D crystal engraving machine mainly process inside of crystal and glass material.
By adding a 3D camera to take the 3D portraits on the human body, and through the laser inner carving technology make beam dots inside of crystal, 3D crystal engraving machine can create many dots to form a 3D human images.
This type of 3D crystal engraving machine use the imported air cooling laser system, so 3D crystal engraving machine not only greatly increased the speed of engraving, but also with small light point, carving out digital images of high profile distinctive characteristic, good stability and easy maintain, Suitable for large shopping malls, tourist resort and the place of big population like that make the personalized portrait production.
Due to 3D crystal engraving machine's various features and application, it also can be called crystal engraving machine.
Product Features of 3D crystal laser engraving machine
1) High speed, only 2-3 minutes for one 3d portrait engraving, suitable to tourist resorts
2) Good engrave quality, high solution. The pattern of engraving is exquisite, crystal-clear and strong tri-dimensional sense.
3) Use the imported air cooling laser system, stable, easy maintenance
4) Non-touch style process ensures that the surface of the crystalline lens keeps its.
Technical Data of 3D crystal laser engraving machineModel
| PE-DP-A1
| PE-DP-A2
| PE-DP-C1
| PE-DP-C2
|
LASER
| YAG Diode Pump
|
AVERAGE LIFE LD
| >20000 Hours
| >12000 hours
| >20000 Hours
|
MAX FREQUENCY
| 5000HZ
| 3000HZ
| 5000HZ
|
MAX RANGE SUPPORT SPLIT
| 400mm x 320mmx150mm
| 400mm x 300mmx120mm
| 100mm x 100mm x 100mm
| 120mm x 120mm
x 100mm
|
FOCAL LENGTH
| 120mm
| 100mm
| 120mm
| 165mm
|
ACCURACY
| 20μm~40μm
| 20μm~40μm
| 40μm~80μm
|
MAX SPEED
| 5000 PIONTS / Second
|
REPEAT OFFSITE
| 10~20μm
| 10μm
|
POWER
| <350W 220v/50Hz
| <350W 110v/60Hz
| <400W 100V-120V /50Hz ;
200v - 240V /60Hz
|
WEIGHT
| 85 kgs
| 75 kgs
|
COOLING
| Air cooling
|
ENVIRONMENT
| Less dust and shock, Temperature 10-35°C, humidity < 85%
|
FILE FORMAT
| BMP JPG DXF OBJ WRL 3DS STL
|
APPLICABLE MATE
| All transparent material, Glass,Crystal, PMMA, etc.
|
PACKAGE SIZE
| 1070mm x 970mm x 1450m
| 1080mm x 780mm x 1310mm
|
MACHINE SIZE
| 800mm x 900mm x 980mm
| 550mm x 650mm x 850mm |
Samples Show:
