Product Specifications
| Prod Model: |
KBF-UV3H/ KBF-UV3G |
| Marking Area: |
110X110mm(Customized) |
| Marking Speed: |
0-7000mm/S |
| Warranty: |
1 Years |
| Marking Material: |
Crystal |
| Laser Source: |
Huari/ GB |
Product Description

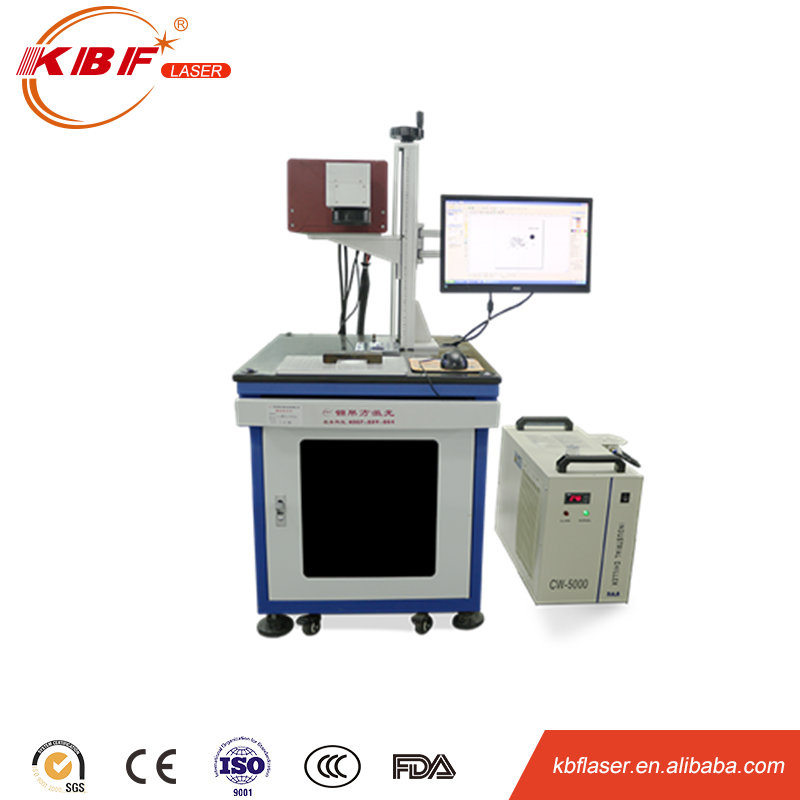

PCB Traceability System Water Cooling 355nm 3W wire UV Laser Marking Machine for All Materials Plastic Laser Marking
Different type laser marking machine
Fiber laser marking machine: Low cost and Widely used for lot kinds of metal or nonmetal materials;
Pump laser marking machine: Less used and only for some special materials or deep marking or wire stripping;
CO2 laser marking machine: Mainly used for non-metallic (wood, Akley, paper, leather,etc.);
Green laser marking machine: Very fine marks, mainly used for high-end metal, plastic and other low demand products;
UV laser marking machine: Most fine marks, Mainly for high-end products, such as IC and precision work pieces.
Production Introduction
1.Using the imported laser source, output 355nm wavelength, high electro-optical conversion efficiency.
2.UV laser is a cold light source, heat-affected zone is small,excellent beam quality to create ultra fine marking results.
3.Imported scanning, fast marking, suitable for both micro-cutting and drilling.
4.High and ultra-high peak power characteristics with minimal thermal effect,very suitable for alumina,zirconia ceramic drill cutting.
5.Laser maintenance free, no supplies, use of low cost,energy saving
6.The software can receive DXF,PLT,BMF,AI,JPG and other formats,and can automatically generate serial number and production date,barcode,qr code.
Application Materials
Consumer electronics, mobile phone parts,LCD screen,qr code and trademarks sculpture,ceramics,sapphire piece, FPC flexible circuit board micro drilling,cutting biomedical glass engraved lines,capacitive touch screen ITO etching.
Features:
1. High electro-optic conversion efficiency;
2. Low power consumption, stable laser output;
3. High quality beam, consumable free,small machine dimension ;
4. Smaller output laser beam , finer marking line.suitable high precision marking;
Advantages:
Our laser marking machine advantage is high efficiency, low maintenance, easy operate, environmental protection. Machines have export to South Asia, Middle East, Europe and America, Africa and more than 60 countries.
Main Advantage as Following:
1. High efficiency:
KRUZ laser has benefited from the advantages of technological innovation, and continuously improve the efficiency of the laser marking system.
2. Low maintenance:
Using high quality components in laser industry, simple using& maintenance, 24hours no fault operation.
3. Easy operation:
Our laser Equipments can working automatically with the control of computer.After a simple training, everyone can operation it freely.
4. Environmental protection:
Laser marking is processed in non mechanical "knife", does not have the corrosion to the work surface, no "tool" wear, no poison, no pollution.
5. Complete technology supporting:
We can according to customer requirements, order whole marking systems mark in any rules or irregular surface, any material on the workpiece. And the workpiece does not produce the internal stress, and maintain the original accuracy and physical characteristics.
Samples Show

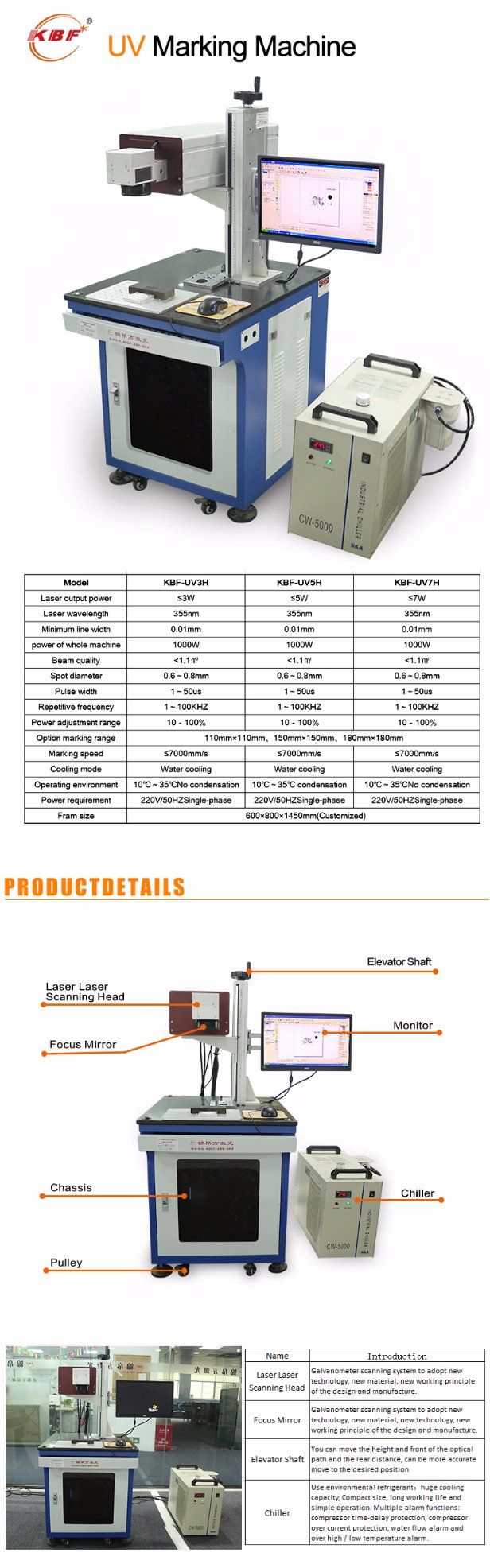

Technical parameter
| Model | KBF-UV3/5/7 |
| Output power | 3W/5W/7W |
| Laser source | JPT/ HR/ OE |
| Galvanometer | OY/Ralase |
| Wavelength | 355nm |
| Minimum line width | 0.01mm |
| Total power | 1000W |
| Beam quality | <1.1 |
| Spot diameter | 0.6~0.8mm |
| Pulse width | 1~50us |
| Repeat frequency adjustment range | 1~100KHZ |
| Power adjustment range | 10-100% |
| Optional marking range | 110mm×110mm,160mm×160mm( Optional) |
| Marking speed | ≤7000mm/s |
| Cooling method | Water cooling system |
| Operating environment | 10ºC~35ºC No condensation |
| Electricity demand | 220V/50HZ |
| Equipment size | 805×600×745mm( Customized ) |
Our Service
Package & Company Information
FAQ
Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Q: How can I know your machine works well?
A: Before delivery, we do test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: How can I pay my order?
A: We accept T/T, Western Union paying methods. For those orders less than 1000USD, we accept PayPal to pay.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
Your satisfication is our Honor.
