Palmtop New Model Equipment for Animals Veterinary Ultrasound Scanner
| Price: |
US $ 1000-1900/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
YSD3005-Vet |
| Type.: |
Veterinary |
| Export Markets: |
The Whole World |
| •tdigital Scanning Conversion: |
512×512×8 Bits |
| •timage Gray-Scale: |
256 Levels |
| •tscanning Line Number: |
512 Lines/Frame |
| •tcineloop: |
512 |
| •tworking Frequency: |
2.0MHz~10MHz |
| •tamplification Factor: |
1.0, 1.2, 1.5,2.0 |
| Warranty: |
2 Years |
| Delivery Time: |
5~7 Working Days After Receiving Full Payment |
| Classification: |
Imaging Diagnostic Equipment |
| Type: |
Ultrasound Scanner |
| Certification: |
FDA |
| Group: |
All Kinds of Vet |
Product Description

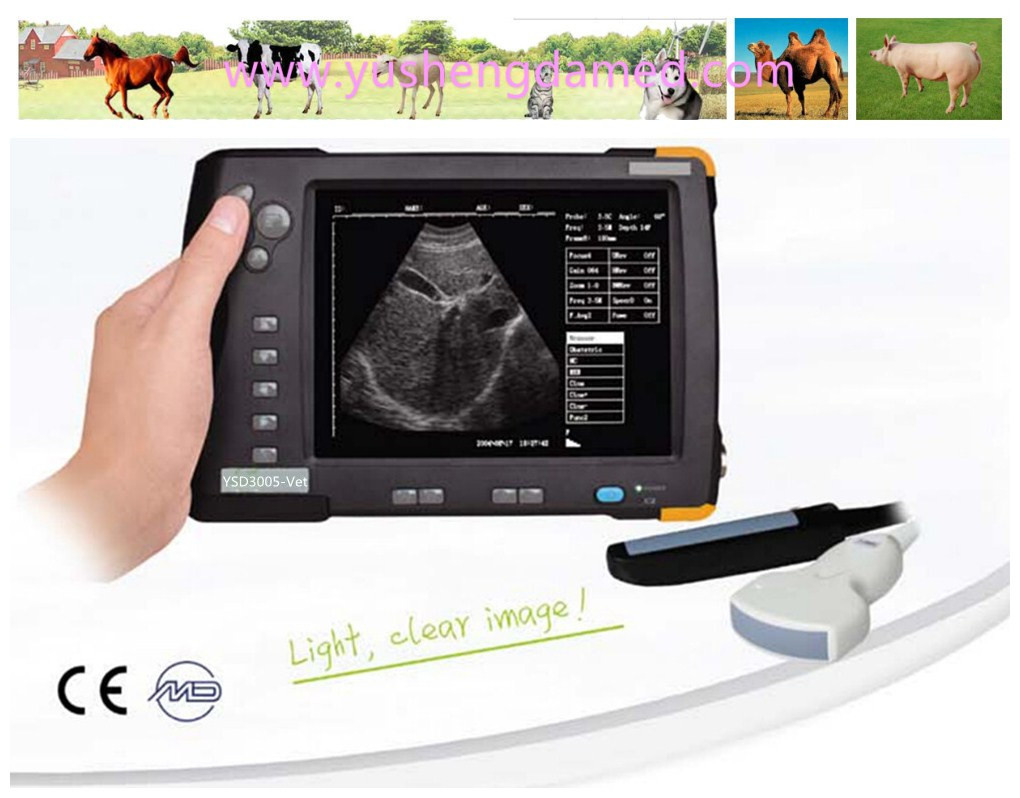

YSD3005-Vet Veterinary Ultrasound MachineProduct Description YSD3005-Vet can perform all veterinary applications more easily. It outstands for featuring premim image quality, considerate design for comfortable, quick and reliable pregnancy detection, even under difficult field conditions on a daily basis.
Features- Smart Design, 950g
- -7 inch LCD screen
- -Pretty and very light
- -Full digital imaging technology, crystal-clear Image
- -Multi-frequency with Convex,Linear,Backfat probe
- -Low power consumption
- -More than 2G Large volume storage image
- -Built-in battery
- -Solid shell and structure
- The whole machine Waterproof function(Optional)
- -High Cost-effective
- Comprehensive Clinic Application
- Abundant diagnostic software packages, satisfying different clinical requirement
- 3-5 Hours for continuous operation with battery
- Various display modes realizes comparative observation from multiple angles and direction
Specifications | Imaging Mode | B,B+B,B+M,M,4B |
| Probe Type | Abdominal convex/
micro convex/
High frequency Linear/
Rectal convex/
Rectal linear probes available |
| Probe Frequency | Muti-frequency Depends
on probe type |
| Penetration Depth | Adjustable from 12cm to 22cm |
External Connection
Support | USB 2.0/Video glass/Mouse |
| Display | 7 inches High-resolution Screen |
| Scanner Weight | 800g |
| Battery | Li-ion battery,11.2V, 2600mAh |
| Operating Time | Up to 5 continuous workinghours |
| Charging time | More than 3 hs |
| Cine-loop | 1024 frames |
| Size (LxWxH) | 25x12x4 cm |
| Standard Configuration | 1*V5 machine;
1*Abdominal Convex probe;
1*Li-ion high-power-capacity battery;
1*Battery charger (AC110V~250V,50/60Hz);
1*Neck strap and hand strap;
1*Aluminum alloy carry case;
1*User guide; |
| Options | Abdominal convex/micro convex/ High-frequency Linear/
Rectal convex/ Rectal linear probes;
I.F.R Introducer;
Li-ion high-power capacity battery;
Car Charger;
Video glass;
Leather protector; |
| Used on | Bovine/equine/ovine/swine/dog/cat/llama/
camel&small ruminants |
| Used for | Pregnancy /Fetal sex detection /
ovarian examination/
post pactum diagnosis/Musculoskeletal scan |
Professional software
| Equine(GA) | Bi-Parietal Diameter(BPD),Gastation Sac(GS) |
| Bovine(GA) | Bi-Parietal Diameter(BPD),Crown-Rump Length(CRL) |
| Ovine(GA) | Bi-Parietal Diameter(BPD),Crown-Rump Length(CRL) |
| Feline(GA) | Head Diameter(HD),Binary-top Diameter (BD) |
| Ganine(GA) | Crown-Rump Length(CRL),Binary-top Diameter (BD) |

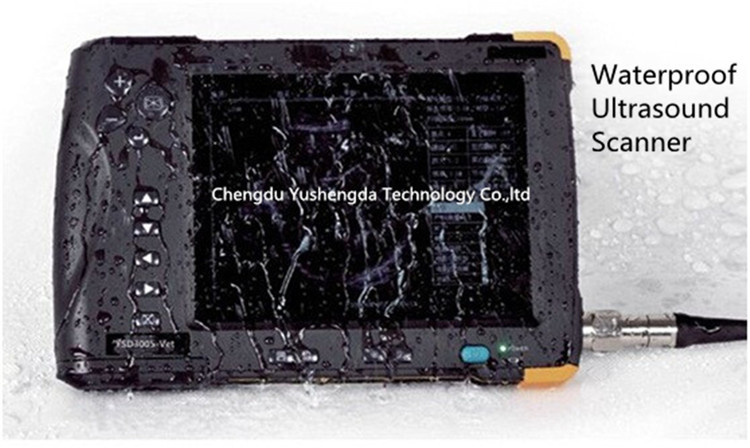

Whole Machine Waterproof Function (Optional)

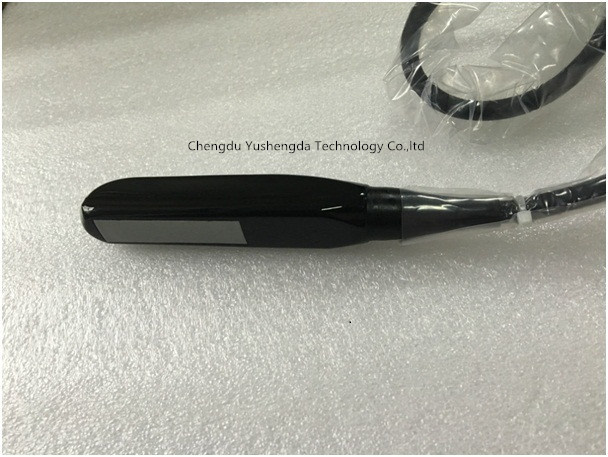

Probes

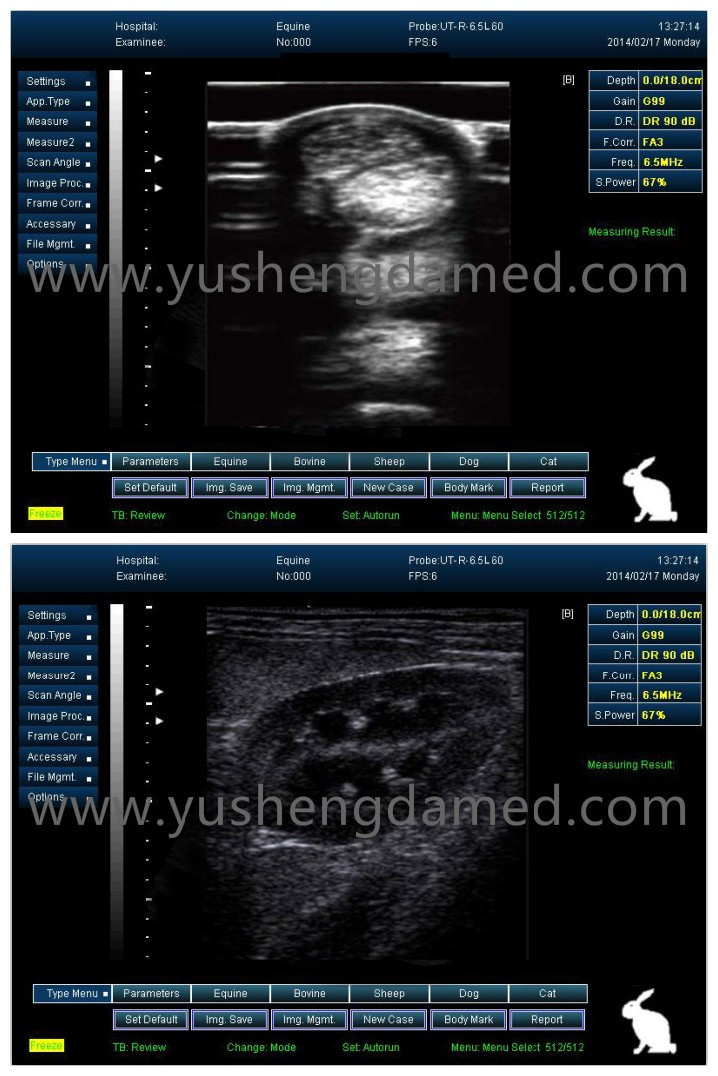

Images
Our PackingInner nice suitcase ,outter carton box packing
Why choose us:We got production and business certification from Chengdu food and Drug Administration
We got business license from Chengdu City Administration of industry and commerce
We got products certificate of registration and have checked in the website of SFDA
We have accepted the onsite check from SFDA every quarter
We finished the training of laws and regulations in medical equipments field
We have well-established system about material purchasing, employee training,store management,after-sales service process.etc
We adheres the beliefs of "Support Healthy Life", and our company spirits are quality, service,trust,thanksgiving;
Chengdu Yushengda Technology Co., Ltd. Is a hi-tech limited company engaged in developing, producing and selling medical ultrasonic diagnosis apparatus. The company has high-qualified professional stuffs in researching, producing, marketing and management. There's a brand-new manufacturing plant and advanced suit of equipment for producing and inspecting the products. It Can produce 5, 000 sets of ultrasound scamner and more than 10000 hospital bed per year.
The YSD series of B-mode ultrasonic diagnosis devices adopt super-scale integrated electro circuit and new SMT technic. The quality of products is stable and credible. It has passed the medical ultrasonic quality monitor and inspection center. The technical and safe standards are all conformed to the GB10152-1997. Since 2003, it was awarded "high-quality, keeping regulation, good faith" honored enterprise of Sichuan.
The spirit of the company is"unity, sincerity, factualness, innovation". We all try our best for"true feelings to customer, diligent permanently for innovation, improving continuously for quality, creating brand by sureness", which makes more satisfaction to customers. The company has been carried out the quality managing system of YY/T0287-2003, won the certificate of medical device quality managing system. The products are sold to domestic markets and overseas markets, such as Europe, Africa. The products are becoming more and more popular.
We'll stick to our policy and work harder all the time in order that we can provide more and better products, and making contributions to the development of national medical devices and people's health!
