Product Specifications
| Prod Model: |
GLE-P10-RGB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
160mmx160mm |
| Brightness: |
7000 Nits |
| Max. Power Consumption: |
1000 Watts / M2 |
| Pantallas LED: |
Venta De Pantallas LED |
| LED O Escarapelas Digitales: |
Outdoor P10 a Todo Color De Pantalla LED |
| Exclusivamente Por LEDs: |
Autronie Pantallas LED Gigantes |
| Paneles Electronicos: |
Pantalla Gigante Video |
| Letrero Electronico: |
Paneles PARA Estadios |
| Letrero Electronico Programable LED: |
Notice Programmable LED |
| Notice Programmable LED: |
Letrero LED LED Pantalla Gigante Concierto |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
350W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Certification: |
CE |
Product Description

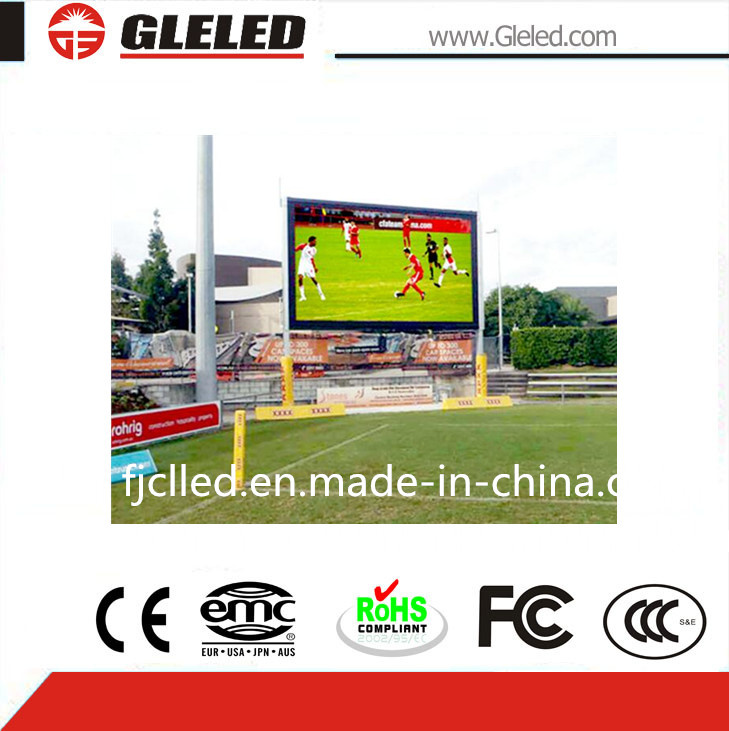

Quality LED Display, LED Video Wall. High Resolution, High Brightness, Stable Quality and Energy-saving. CE, RoHS, FCC Certificate
High Quality LED Display, LED Video Wall. High Resolution, High Brightness, Stable Quality and Energy-saving. CE, RoHS, FCC Certificate
GLELED Co.,LIMITED
GLELED Co.,LIMITED is one of professional high-tech enterprises which specialized in LED display . After ten years' efforts, we have become one of professional global LED product suppliers, which can provide the best LED solutions for customers. At present, we have one skilled R&D team and a production line of highest automatic degree; . Our LED products have achieved ISO9001-2008, 3C, CE Certificate, etc.
Our company always implements our development target and insists on the tenet of " Services and Demand is the First ". Our company has a perfect after-sales service system, truly realizing that customers are the centers of the market marketing model.
Through our efforts, our products have been sold well in Europe, North America, Australia, the Middle East and Southeast Asia. Our company has set up stable sales agents in the corresponding areas. Our company sincerely hope to cooperate with LED display system talents and dealers for common development and for the development of LED display systems
Our products cover indoor and outdoor full color LED screen, cabinet module, panel
Our LED products have the below advantages:
1. LED chip: the chip brand is Epistar and make big size LED chip , compared with other manufacturers, the lifetime is much more longer and more stable performance. Great Reduce the dead LED rate.
2. Mask: Unique design with patent makes it more orderly and better visual effect as well as better waterproof effects. The screw is longer than others, which can prevent the mask falling off.
3. The PCB board is thicker , which can postpone corrosion. Also, cement conduct can be waterproof.
4. All the Key material is import from Taiwan or Japan, to ensure all component performance is stable and long lifetime.
5. Focus Our Brand, Try our best to build an trustable brand to our Customers.
6. Provide Customerized solution to meet different using- eviroment.
| Hot sale P10 SMD Fullcolor LED display LED Video Wall |
| Pixel | Physical pixel pitch: 10 mm |
| Module | Module resolution: 32 x 16 pixel |
| Module size: 320mm x 160mm |
| Cabinet | Cabinet size: 960mm x 960mm x 90mm; |
| Material: Steel |
| Power supply: 1pcs 5V-60A; |
| Main Technical Parameter | Brightness ( White Balance): > 6000 nits |
| Brightness adjusted: 256 grade by software, or by Auto-optic induced |
| Color temperature(k): 2500 - 4500 (adjustable) |
| Physical density: 10000 pixels/m2 |
| Whole display flatness: ≤ 0.5mm juncture |
| Best view distance: 4-50m |
| Best view angle: Horizontal ± 120° , Vertical ± 120° |
| Storage temperature: -35° C ~ +85° C Working temperature: -30° C ~ +60° C |
| Driving method: 1/4 Scan |
| Refresh frequency: ≥ 3000Hz ; Frame rate: ≥ 60Hz |
| Humidity(RH): 10 ~ 95% |
| Working Voltage: AC 110v/220v± 10% ; 47~64Hz |
| Short circuit protection: Yes |
| Max power consumption: 1000 w/m2; Avg power consumption: 300 w/m2 |
| Screen lifetime: 100, 000 hours; MTBF: 10, 000 hours |
| Control System | Operating system | WIN2000/NT/XP/Vista/WIN7/WIN8 |
| Control method | Synchronization |
| Signal interface: RF, S-Video, RGB, RGBHV, YUV, YC, SDI, HD-SDI, DVI, UXGA, etc. |
| Communication distance: Internet cable: ≤ 100m/ Fiber cable: 1000m |
GLELED Co., Limited is one of Professional LED Display manufacturer in China. We have 10 PCS SMD Display production Lines and R&D team have more than 5 years experience in LED display industry, which support our new products developing or customized products.
We Mainly Produce varioustype of LED Display and LED Display Panel. It' s avaliable supply all the components for assembling LED Display. Besides, we focus on offering whole proposal for LED Display Projects and Solutions. Not only for regular type, but also developed several customerized screens.
In order to design and develop higher quality products, our R&D team always try best to meet the USA & Euro standards for LED Display products, as well as to fulfill the special requirements from customers. Our products have been approved the TUV- EMC Certification, Euro EN12966 Certification, and ISO9001: 2000, CCC, CE, RoHS Certifications.
With perfect designed products, integrated solution including both hardware and software, and superior product and service guarantee, GLELED has been highly praised by domestic and overseas customers. We have been shipping qualified products and services to more than 50 countries and regions all over the world, such as in the USA, Russia, Sweden, Turkey, Poland, France, Israel, Argentina, Spain, Italy, etc.
We expect of cooperative team work, we take "Quality & Honesty" as our belief, and "Being the Best Supplier of LED display Solution" as our Work Standard.
Looking forward to work with you!
