Product Specifications
| Prod Model: |
SW-K142M |
| Item Name: |
42 LED Motion Sensor Solar Light |
| Battery Capacity: |
18650 Battery 3.7V/2200mAh |
| Solar Panel: |
162*94mm/6V 2.5W |
| Power Supply: |
Solar Panel |
| LED Light Source: |
SMD2835*42PCS 0.2W/60mA 28lm |
| Brightness: |
650lm |
| Light Source: |
LED Lamp |
| Lamp Body Material: |
Plastic |
| Light Type: |
Solar |
| Color Temperature: |
Pure Wihte |
| Power: |
≤5W |
| Technics: |
Painted Matte |
| Illumination Time: |
6h |
| Charging Time (',H): |
8 |
| Usage: |
Outdoor |
| IP Rating: |
IP65 |
| Certification: |
IP65 |
| Voltage: |
3-6V |
| With Light Source: |
With Light Source |
| Cell Type: |
Li-Battery |
Product Description
Product parameters:
Solar panel: 6V 2.5W, High efficiency Single crystal, 15 to 25 years of life
LED bulbs:super bright 2835smd *42pcs
brightness: about 650LM
Battery: 3.7 V, 2200mah Lithium polymer battery ( Include )
3 working mode: light control/ motion sensor+dim light/motion sensor

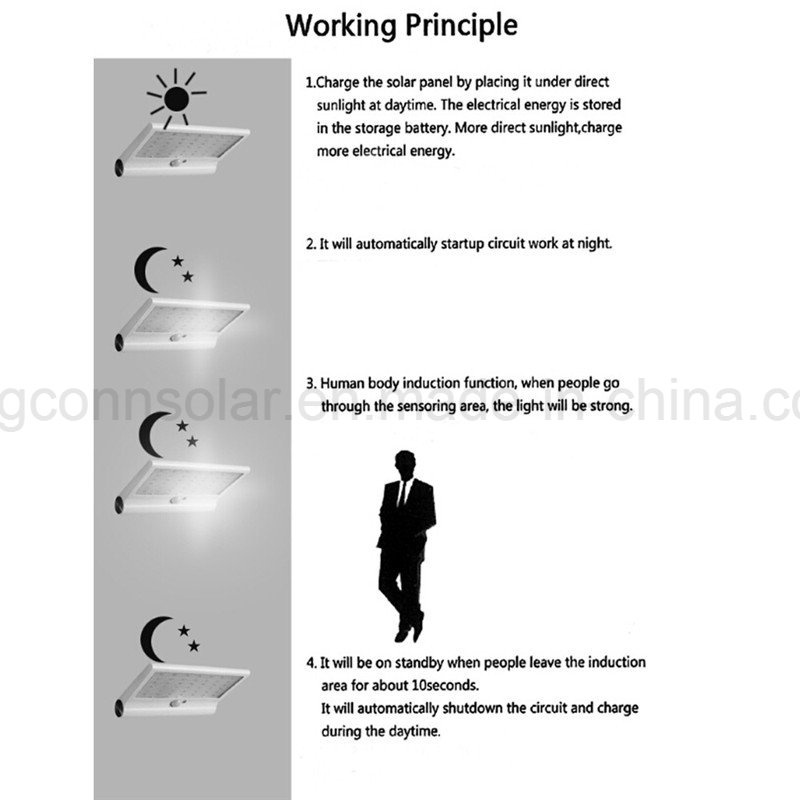

How it works?
-1.Charge The solar panel by placing it under direct sunlight at daytime. The electrical energy is stored in the internal battery.More sunlight, charge more power.
-2. It will startup the circuit work at night autommatically.
-3.Human Body induction function, when people walk through the sensoring area, the light will be much stronger.
-4.With The standby mode when people leave the sensoring area for about 5 secs.With the mode that it will turn off the lights automatically when daytime.
Specifications:
-a.Solar panel specifications: 6v 2.5w.17% conversaion of energy efficiency, Laminated panels 15 years lifetime.
-b.Lithium battery 3.7V 2200mah;
-c.LED: 4w 2835 super bright LED × 42pcs, single LED luminous flux: 28 lumens, lamp luminous flux approx 650 lumens.
-d. Function switch
-1. Press 3 secs off or open,
-2.Human Body induction + power saving mode (dim light) function, when people go through the light sensing area, the light will be stronger, and the light will turn to dim after people walk out from the induction area.
-3.Human Body induction function.when people go through the sensing area, the light will be strong, and the light will turn off after people leave the induction area.
-4.The Solar light will turn on automatically at night.The light brightness will just be half as induction function;
The light can be extended for 5 seconds after inducted.Apply with repeated trigger induction function, start timing with the last induction.
-e.Using charge and discharge protection circuit.Optical circuit.
-f waterproof level:. IP65
g.Charging time:> 6 hrs (1000W / D lighting standard)
Application: Yard, corridor, piazza, veranda, etc.
Packing List:
1 Piece 42 LED Waterproof Solar Lamp
1 Piece User Manual (English)

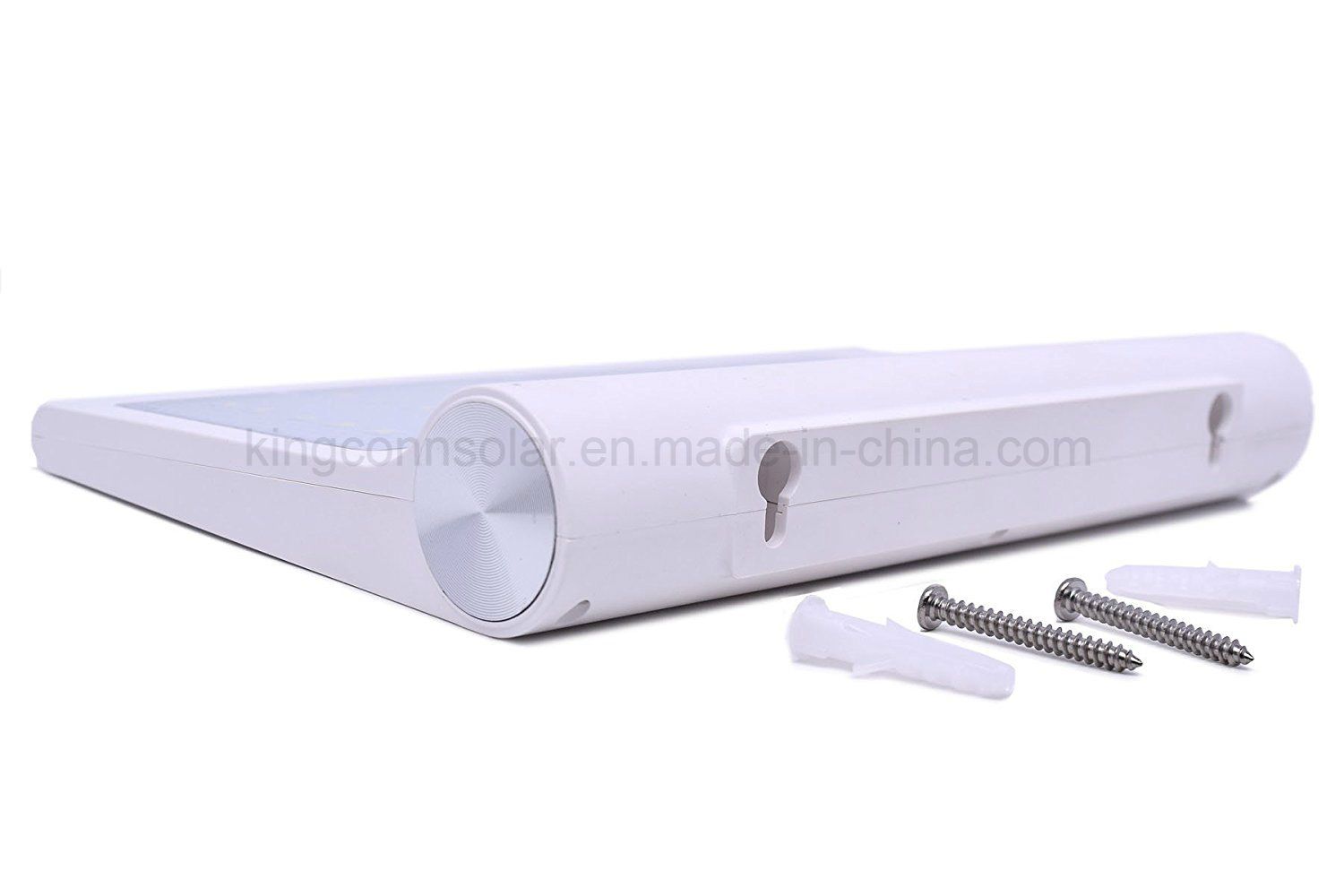

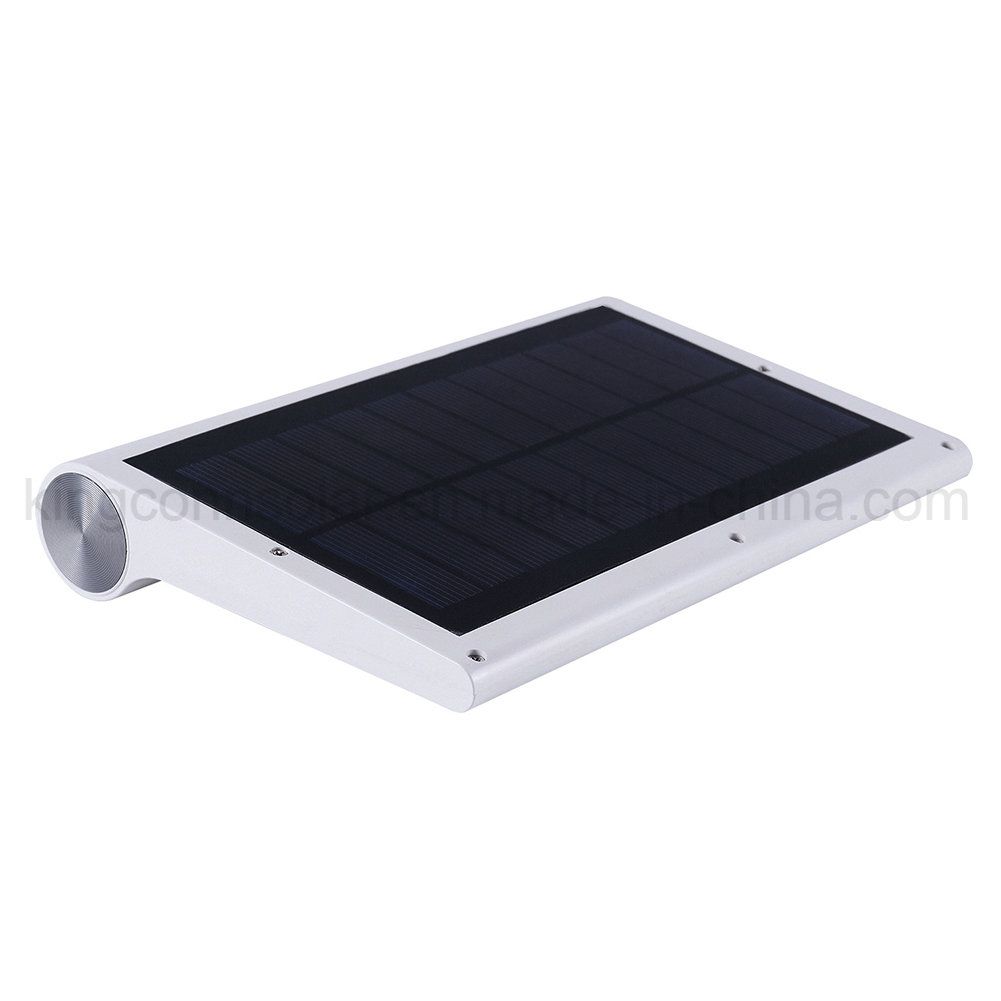

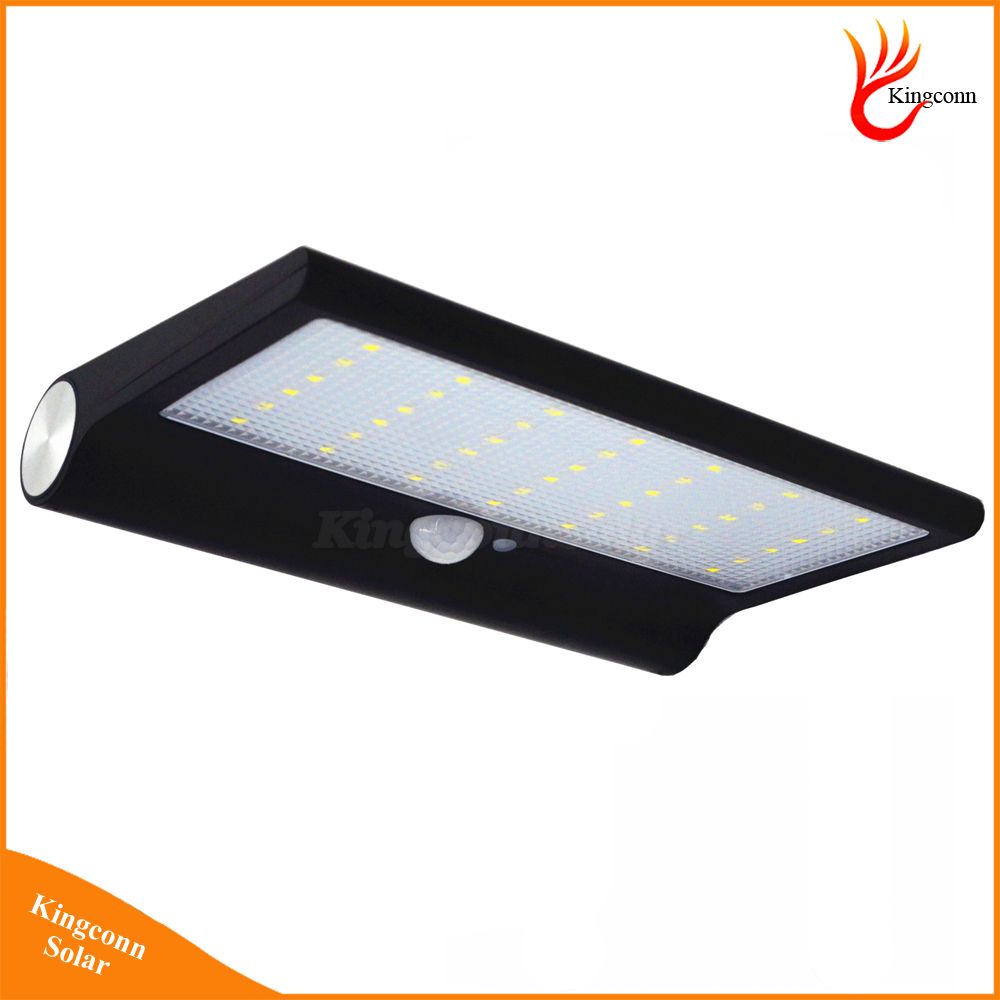

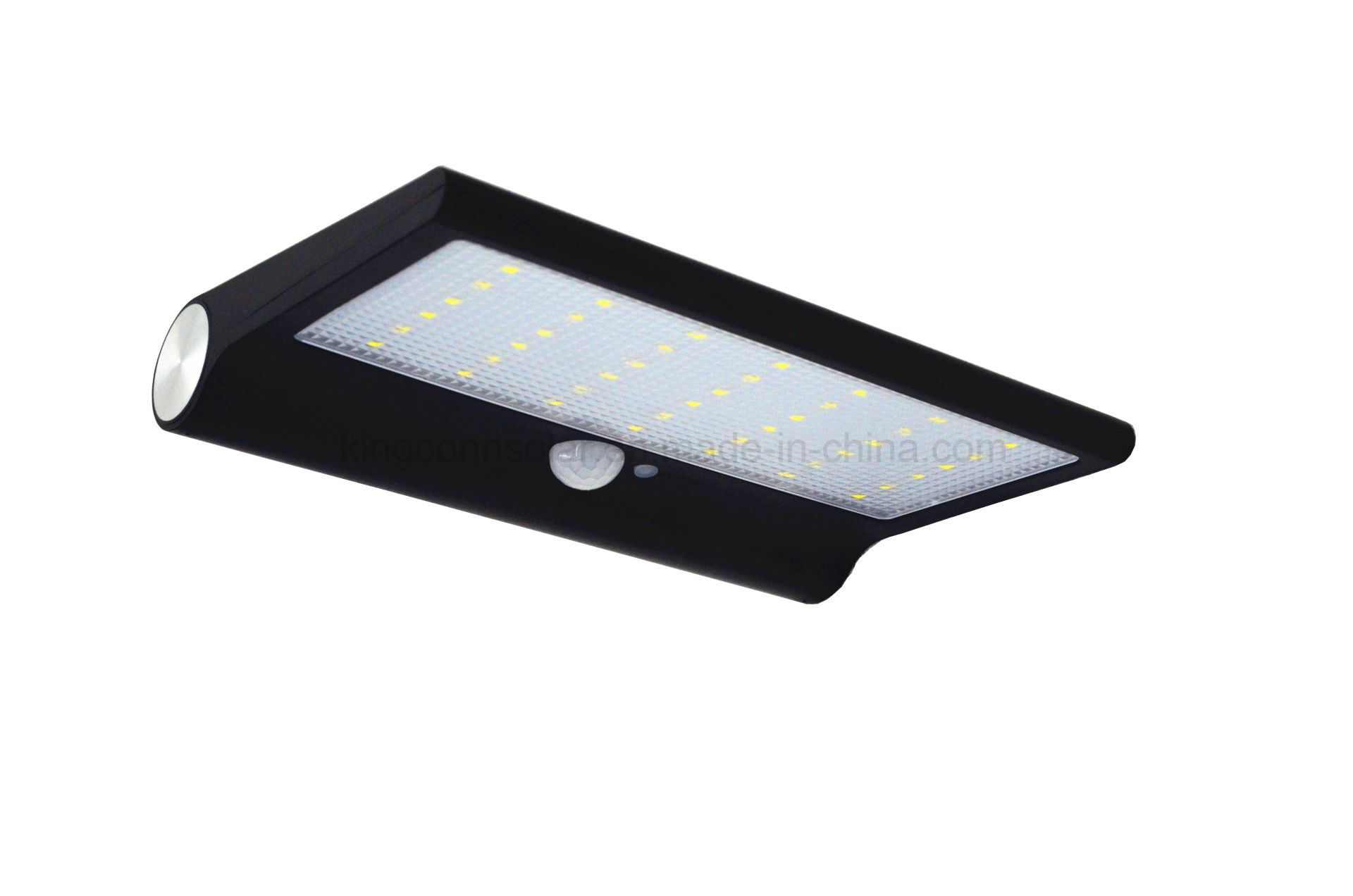

Photo details of the solar light:
