Product Specifications
| Prod Model: |
S55L20 |
| Highest Brightness: |
2000 Nits |
| Application: |
Big-Screen Project |
| Aspect Ratio: |
16:9 |
| Feature: |
Support TV Function |
| Optimum Resolution: |
1920x1080 |
| Type: |
TFT |
| Widescreen: |
Widescreen |
| Response Time: |
8ms |
| 3D: |
Not 3D |
| Interface Type: |
HDMI |
| Screen Size: |
55" |
Product Description
Product Description

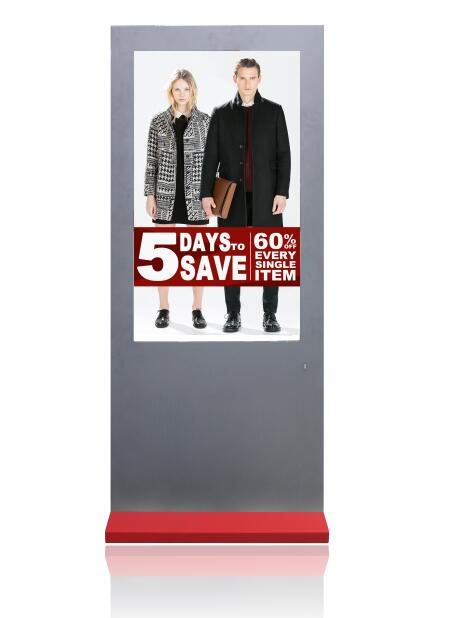

IP65 Floor Stand 42/55/65 inch digital signage FHD outdoor lcd displayer
Features:
1. Available size: 43",55",65", floor stand or wall mounted
2. Outdoor waterproof level IP65 sunlight readable
3. Super brightness up to 2000nits
4. Quality AR 6mm tempered glass for protection
5. Anti-moisture, Anti-lightning, Safety lock
6. Support to load interactive software applications
7. Intelligent temperature control system to keep its internal thermostat dry environment, prevent fogging, condensate phenomenon
8. Support 10 groups timed period back light control, convenient and easy to operate
9. Provide detection for internal voltage. It'll self-closing for protection once it deviates from the standard value range
10. The front use of imported anti-glare AR laminated glass, can effectively increase the internal light is projected to reduce the reflection of external light
11. Galvanized steel shell, via a dedicated outdoor powder paint, waterproof sunscreen, anti-corrosion, explosion-proof professional surface treatment; can be used outdoors for 10 years without fading.
12. Full galvanize steel cabinet, the outer surface of imported metal paint, anti-magnetic, anti-static, waterproof material imports
13. The liquid crystal screen display image colors more vivid and bright
Optional:
1.Available Size:43,55,65,floor stand / 32,43,55wall mounted
2.Windows System: support to customized Windows 8.1/10 OS
3.Optional: 3G/4G module, Camera, WIFI probe.
4.Touch Screen: support to customized IR touch(6 points)/Capacitive touch(10 points)
Application:
Bank,school,park,square,parking lot,train/bus/metro/railway station,airport, shopping mall, cinema, library, stadium, etc semi outdoor & outdoor environment.
Parameters:
| Brand | Kontech/OEM |
| Model Name | SW55L20 |
| Price | USD3730(Samples increased by 30%) |
| MOQ | 5pcs |
| Region | Global market |
| LCD Panel | Display size | 55inch FHD |
| Brightness(Typical) | 2000cd/m2 |
| Contrast(Typical) | 3000:1 |
| Resolution (H x V) | 1920x1080 |
| Aspect Ratio | 16:9 |
| Response Time(Typical) | 5ms |
| View Angles LR,UD(CR>10) | 178°/178° |
| Panel Surface | black, white, sliver grey, iphone-design optional |
| Display Colors | 8bit, 16.7M |
| Protection glass | YES |
| Backlight rated hours | ≥60000hours |
| Metal Frame | Material | Metal |
| Color | black |
| Configuration | OS | android |
| CPU | inter @Atom X5 Z8300Z8300 |
| GPU | Integrated HD graphic |
| RAM | 1&2G DDR |
| ROM | 8&64GB FLASH |
| Memory card | 64G TF CARD |
| LAN | 10/100M |
| WIFI | WiFi802.11b/g/n |
| Connector | Input 1 | USB 2.0 |
| Input 2 | DC12V |
| Input 3 | RJ45 |
| Input 4 | USB3.0 |
| output1 | HDMI |
| Support | Video | WMV MPEG1,MPEG2,MPEG4,H.264,WMV,MKV,TS,flv |
| music | MP3 |
| photo | JPG,JPEG,BMP,PNG,GIF |
| touch | 20 points capacitive touch |
| Power | Consumption(Typical) | <480W |
| AC Power Range | 110-240V |
Power Mode
Indicator Light | RED and Green |
Operating
Condition | Temperature | -30ºC - +50ºC |
| Features | IP rating | IP65,waterproof and dust free |
| Intelligent temperature control system | Intelligent temperature control function, auto-adjusting fan control system according to the internal temperature |
| Tempered glass | Tempered anti-glare glass offers perfect image performance while protecting display from violence |
| Audio output | 2×8W |
| Accessory | Power Cable | YES |
| Remote control | NO |
| Battery | NO |
| Warranty card | TBD |
| User Manual | TBD |
| Dimention | 900*1300*200mm |
| Net Weight | 175KG |
| Gross Weight | 235KG |
| Remark: |
| 1. All quotation based on EXW shenzhen and MOQ. |
| 2. Payment terms: 50% deposit and balnce before shipment.(Sample deposit 100%) |
| 3. Lead time:3weeks for sample,5weeks for MP after receiving deposit. |
Payment terms:
L/C, 30% in advance payment, the balance by L/C
20% T/T in advance payment, the balance before shipment.
50% in advance payment, the balance by copies of B/L
Packaging & Shipping:
Honeycomb carton/ wooden case By air or by sea
Our service:
All products have proceeded aging test before shipment and we guarantee to use our products safety
Support imprint your logo on products and let your logo shine anywhere
OEM orders are warmly welcome
Quality feedback from the marketing department is rapidly and efficiently delivered to the QC and technical departments
FAQ:
1. Q: Are you a factory or trading company?
A:We are a direct factory/manufacturer.
2. Q: When will you make the delivery?
A: within 7-15 working days(sample) after receiving Deposit.
3. Q: What kind of inspection you can provide?
A: we have strict tests from mpurchasing to assembling , to guarantee all signage s are in perfect condition before delivery.
4. Q: How about your guarantee?
A: we provide one year quality guarantee from the purchase date, except the man-made damage.
Besides, we support remote assistance in technical/software/installation, etc. and lifelong maintenance service.
Be part of our growing list of partners, contact us today.
