Product Specifications
| Prod Model: |
LS-B305-GB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| CRI: |
90ra |
| Size: |
35*H146mm/35*H117mm |
| Cct: |
1800k-6500k |
| Lumens: |
300lm-360lm |
| Warranty: |
2years |
| Dimmable: |
Available |
| Capacitor: |
Rubycon Capacitor |
| Material: |
Die-Casting Aluminium |
| Driver: |
Match Main Brand of Transformer-Siemens/Philip |
| Beam Angle: |
330degree |
| Power: |
5W |
| Base Material: |
Aluminum Alloy |
| Shell Type: |
Transparent |
| Certification: |
TUV, ERP |
| Applicable Scope: |
Indoor Light |
| Emitting Color: |
Warm White/Natural White/ Cold White |
| Shape: |
Round/Tailed |
| Diffuser: |
Aluminous |
| Lamp Holder/Base: |
E14/B15 |
| Body Color: |
Gold/Silver |
| IP Rating: |
IP20 |
Product Description

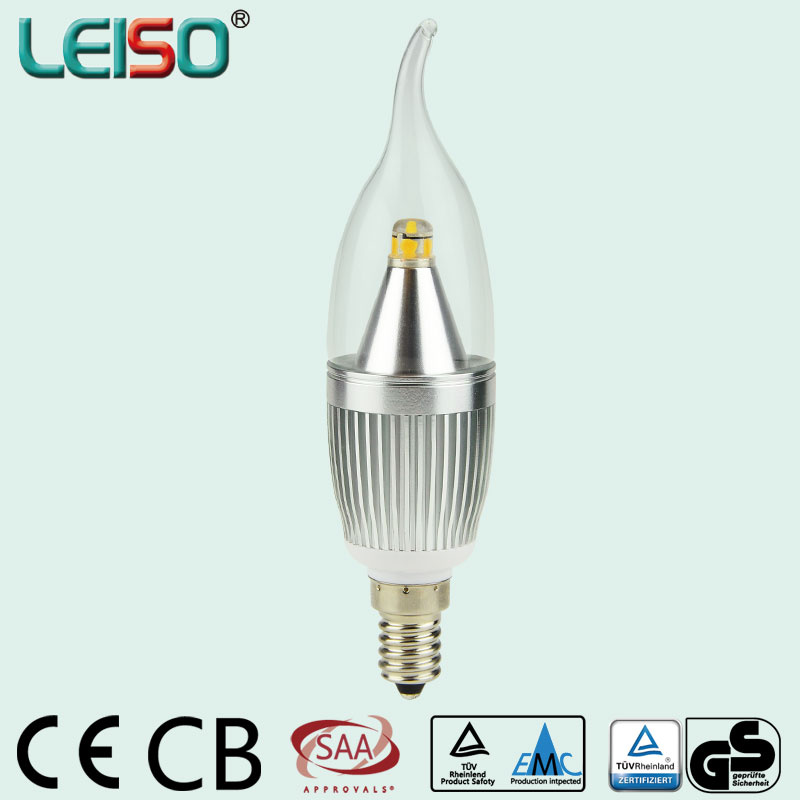

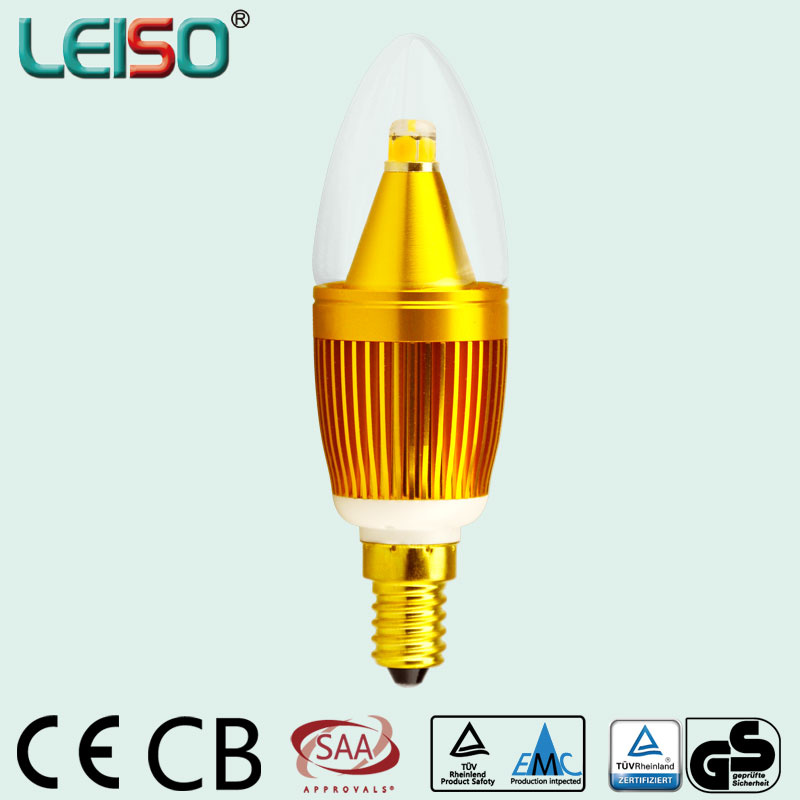

Osram replacement 5W LED Candle Light for replace 35W halogen (LS-B305-GB)
Same Color bin for each order of SCOB products
Customized CCT:1800-6500K, EG: 1800K/2300K/2500K
Customized CRI: 95Ra and 98Ra.Standard CRI 80Ra/ 90Ra available,
Features:
1. Adopt patented SCOB light source (stereoscopic chip on board).
2. Unique design makes it different from existing LED Bulbs of public mould.
3. Wide viewing angle up to 330 degree above. It can replace 35W traditional incandescent bulb directly, saving at least 80% energy.
4. Long lifetime upto 35000Hrs(Calculated as 8 hours per day, average lifespan 10 years above).
5. No IR & UV radiation.
6. TUV's GS, CE, CB, SAA, EMC, ERP and RoHS approved. Why long lifespan up to 45000hrs?
SCOB our patent technology makes the products lifespan longer than the comment lamps. Because we package the chip by only one medium,compare with the comment led be packaged by more or less 5 mediums,our heat can dissipates directly and the effect is much better. The temperature between the lamp outsite and insite is nearly the same.
Notice
1. Make sure the power supplier adapted to the right voltage before using;
2. Please insure that the switch is off before connecting the power supplier;
3. Please don't touch the metal body and watch light source directly;
4. Indoor lighting using only.
Application:

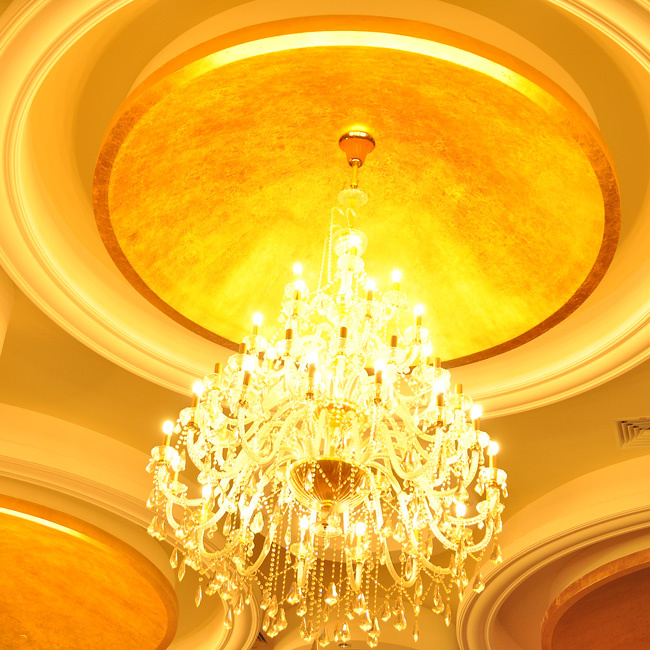

Commerical lighting,widely used for accent lighting and decoration field such as super markets, hotels, taverns, meeting rooms, exhibition halls, show windows, karaoke singing-halls, trains, house decoration and so on.
| Item No. | Data sheet | Power | Lumens (CCT) | Product Dimension | Voltage | Dimmable |
|
| LS-B305-GA/SB-A-CWW/CW | * SCOB G45
* E27 base
* Cree Chip
* Beam angle : 330°
* Power factor : >0.90 | 5W | CRI >80, 360 lm (2700K)
CRI >80, 380 lm (3000K)
CRI >80, 400 lm (4000K) CRI >80, 420 lm (5500K) | Φ45*H95mm | 100V~240V AC | NOT |
| LS-B305-GA/SB-A-CWWD/CWD | 220-240V AC | YES |
| LS-B305-GB/SB-CWW/CW | CRI >90, 300 lm (2700K)
CRI >90, 320 lm (3000K)
CRI >90, 340 lm (4000K) CRI >90, 360 lm (5500K) | 100V~240V AC | NOT |
| LS-B305-GB/SB-CWWD/CWD | 220-240V AC | YES |
