Nss Acss Combined Temperature Humidity Salt Spray Chamber for Use in Environmental Test Euipment Industry
| Price: |
US $ 8990-29811/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
Product Specifications
| Prod Model: |
THS-900B |
| Analytic Accuraty: |
0.1degree |
| Control Accuracy: |
0.5degree |
| Distribution Uniformity: |
2degree |
| Salt Spray Test: |
Nss,Acss |
| Laboratory: |
50 Deg C |
| Air Pressure: |
1 Kg/Cm2 |
| Timmer: |
0~9990hr |
Product Description
NSS ACSS Combined Temperature Humidity Salt Spray Chamber for Use In Environmental test Euipment Industry

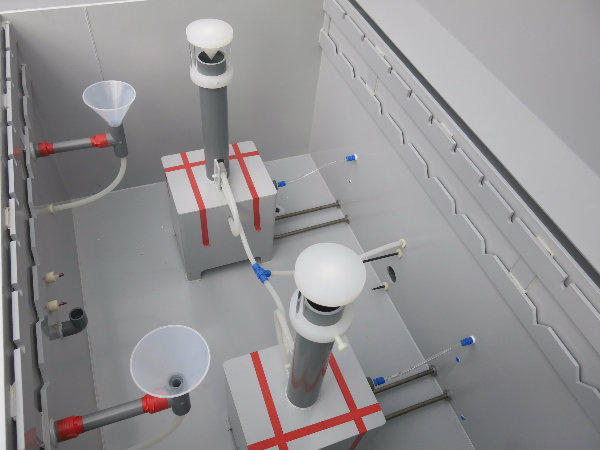

Spray Method
1. Absorb brine to atomization, uniform atomization degree, to ensure
continuous testing standard
2. Precise Glass Spray Nozzle: made of special glass,able to adjust spray volume
and spray angle, ensure without salt crystal blocking working withing 5000
hours and fog uniformly
3. Fog Spray quantity: adjustable type 1-2ml(ml/80cm2/h) (average quantity
of 16 hours)
Mechanical Structure
1. The internal chamber & testing made of CPVC sheet ;
2. Salt water adding barrel with hidden water level observation gauge, easy to
clean, and not easy broken. 3. Saturated air bucket with SUS#304 stainless steel, pressure resistant barrel to
ensure good heat preservation effect. 4. Testing room sample shelf adopts plane graduated rack, free adjustment to the
angle, fog and mist completely consistent of the four corners, more quantity of
test pieces placed.
Standard Parameters
Model THSH-2000-B
Internal Dimension 2000×1000×1000(W×D×H) mm
External Dimension 3000×1500×1950(W×D×H)mm
Cabinet capacity 2000L
Controlled parameters: Temperature , relative humidity, Salt fog
Drying temp. rang: Ambient to +75 deg
Humidity temp. rang: Ambient to +60 deg
Humidity range (with dehumidify device): 15% to 95% R.H adjustable(Temp.60deg C ~ 75deg C)
60% to 95% R.H adjustable(Temp.30deg C ~ 75deg C)
Salt fog fallout rate: rates adjustable from 0.5 to 2.5ml per 80cm2 per hour
Chamber material: P.V.C rigid plastic boar
Spraying method: Continuous and Programmable spray type
Temperature Rising/Falling Speed Rate:
From R.T.( 25 Deg C) ~ 75 Deg C, needs about 30 mins, ( approx. 2.0 Deg C /min)
From 70 Deg C ~ 30 Deg C, needs about 40 mins, ( approx. 1.0
Deg C /min)
Accuracy: Temperature 0.1 Deg C ; Humidity 0.1 %
Control Accuracy: Temperature ±0.5 Deg C; Humidity ± 2.5%R.H.
Uniformity: Temperature: ± 3.5 Deg C Humidity ±3.0% R.H(when humidity is 75%~98%); ±4.0% R.H(when the humidity is 30%~75%);
Multiple Safety Protection Devices: Current discharge protection, over pressure protection, over
temperature protection, over load fuse protection
Air Circulating System
1.Adopt multi-blades centrifugal cooling fan and sealing type motor, avoid oil loss
and beam centroid
2. Vertical diffusion,horizontal exchange,arc type air circulating
3. Adjustable side outlet and net recovery port, special adjustable blinds air
circulation system
Operating and Installation Environment Requirements :
The equipment operating environment under room temperature 30 ºC and
with good ventilation condition; It is strongly recommended to install air
conditioner and ventilation devices in the laboratory for constant temperature , ventilation, air circulation purposes. More than 70cm distance between wall and machine on left ,right and back
sides, more than 150cm on the front side
1. Are your company a trading one or a factory?
Factory ,28 years focusing on test instruments field,4 years exporting experience.
2. After an order is placed, when to deliver?
Generally about 20 workdays, If we have finished products, we can arrange shipment within 3 workdays.
Please be aware that our production lead times depend on specific items and item quantities.
3. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
4. What about the services and product' quality?
Service: OEM service,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
5. How to install and training?
If the products is easy to install and training, customers can learn the operation and maintenance manual to installation and use.
If the products is hard to use, customers can come ASLi factory to learn how to installation and use. And our engineers have a passport, we can go to overseas.
6.What's your main products?
Environmental chambers, temperature (humidity) chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,Altitude chamber,vibration test system, mechanical shock tester,environmental combined vibration chamber,etc.
Welcome our new and regular customers visit our factory, and any inquiries please feel free to contact us !
