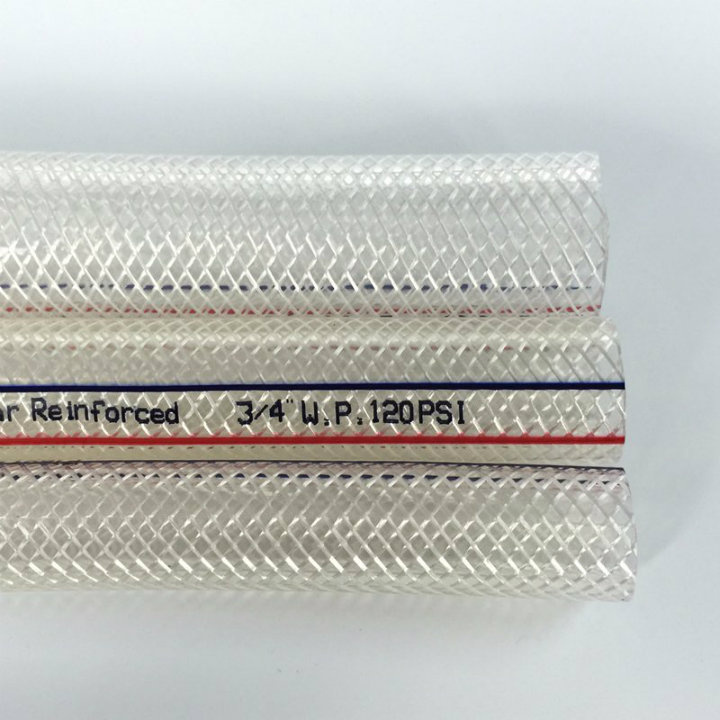

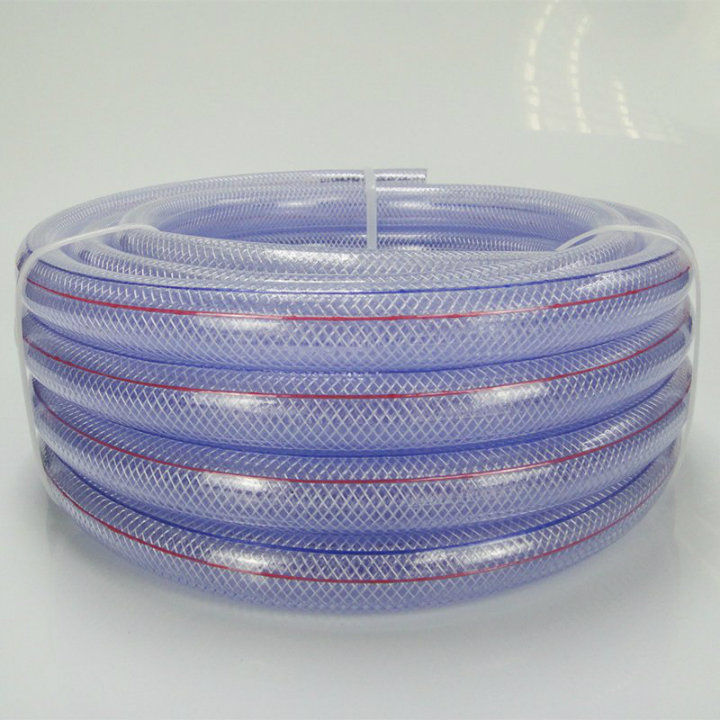

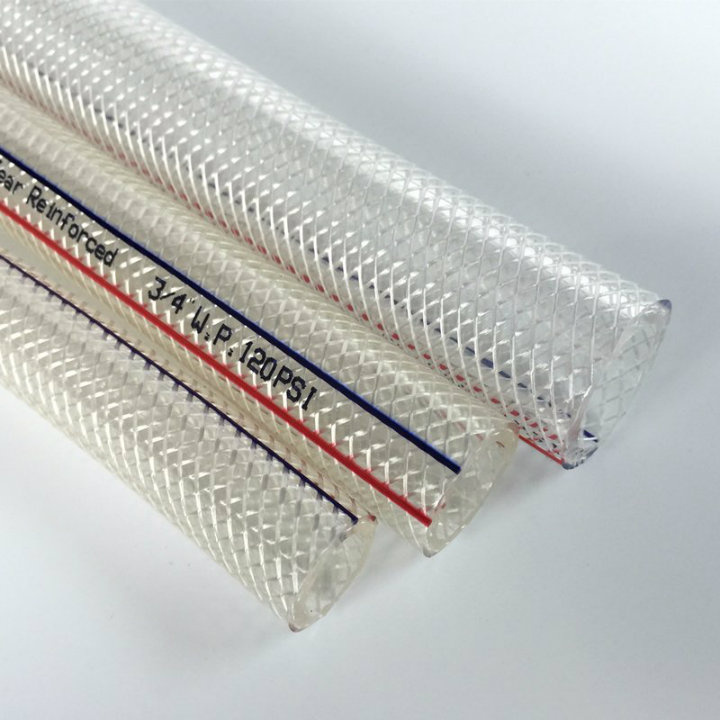

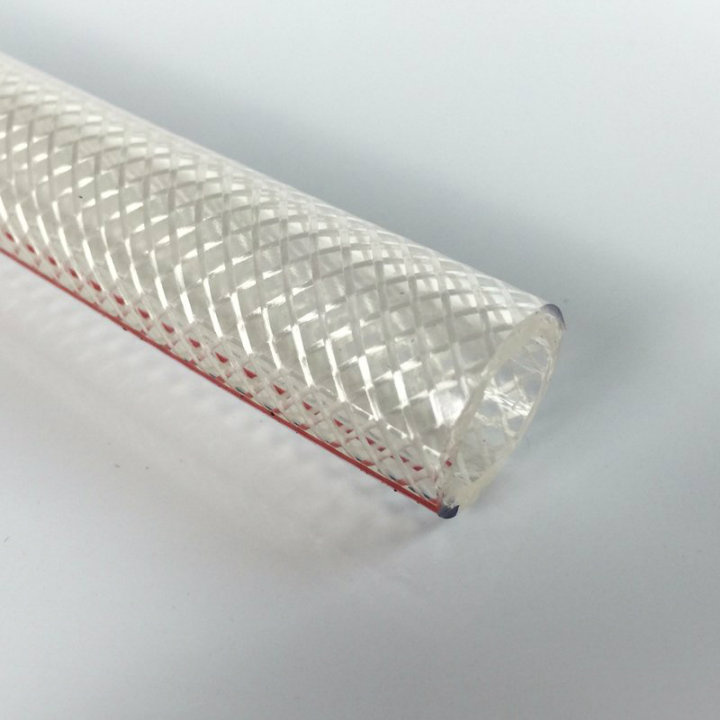

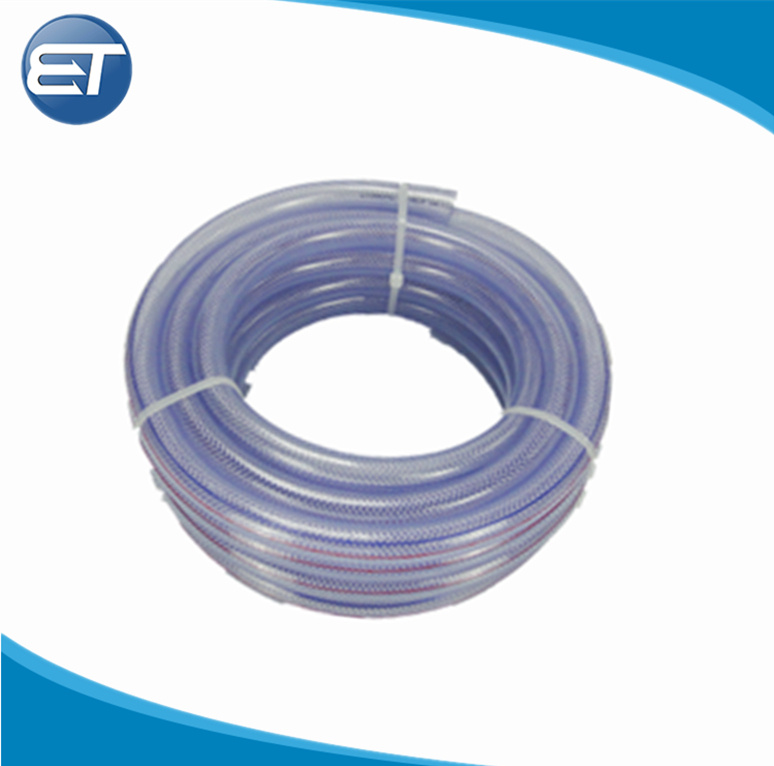

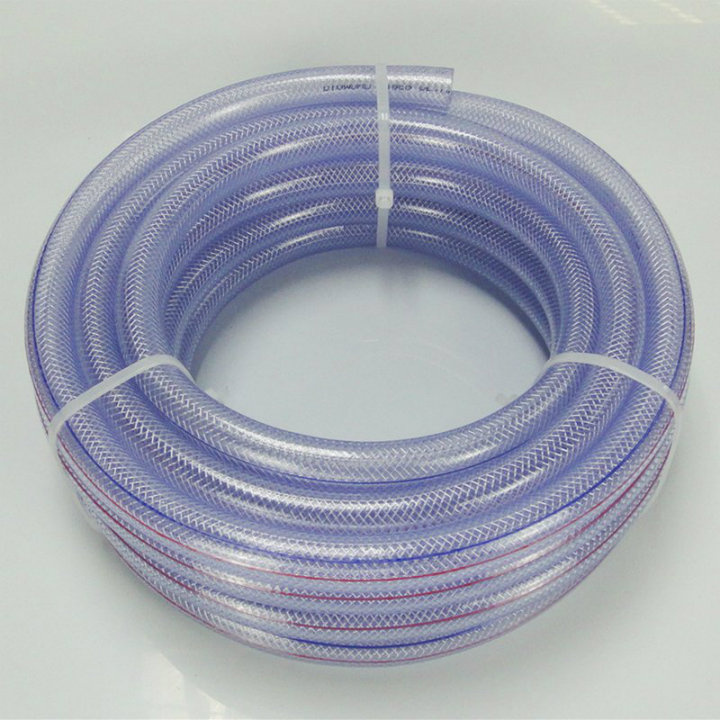

No Toxic Transparent Fiber Reinforced Hose Flexible Tubing Pipe Crystal with RoHS Certification
| Price: |
US $ 0.126/Meter |
| Min Order: |
100/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
4 |
| Odor: |
No Odor |
| Transparency: |
Crystal |
| Pressure: |
High Pressure |
| Fiber: |
Dacron High Strength Dacron Fiber |
| Certification: |
RoHS |
| Length: |
1m to 100m |
| Hardness: |
73A 72A 70A 67A 65A 90A |
| Thickness: |
1.5mm to 8mm |
| Bore Size: |
2mm to 75mm |
| Package: |
Film Entangled, Box, etc |
| Material: |
PVC |
Product Description
NO toxic transparent fiber reinforced hose flexible tubing pipe crystal with ROSH certification
NO toxic transparent fiber reinforced hose flexible tubing pipe crystal with ROSH certification is also called PVC fiber hose, clear braided hose, PVC braided hose, fiber hose, PVC fiber reinforced hose etc. Which is an ideal hose designed for transfer in any industrial application.Application:To be used for high pressure transfer ofvarious Fluids and Powder, such as air, water, oxygen, fuel, gas, cement and gasoline to chemicals, in plant equipment, mining industry, sanitation lines, bilge drain lines and many other industry applications.Features:Good flexibility, non toxic, excellent transparency, good abrasion resistance, high resistance to alkalis/acids, good weather resistance, non-inflated under high pressure, silicone free, UV resistant, light weight, easy to handle and short length available. Temperature Range:-5°C-65°CSpecification:| Inner Diameter | Wall Thickness | Weight | W.P.(at 23ºC) | Std Length |
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 5/32 | 4 | 0.078 | 2 | 0.051 | 12 | 175 | 100 | 300 |
| 3/16 | 5 | 0.098 | 2.5 | 0.076 | 12 | 175 | 100 | 300 |
| 1/4 | 6 | 0.098 | 2.5 | 0.087 | 12 | 175 | 100 | 300 |
| 5/16 | 8 | 0.098 | 2.5 | 0.105 | 10 | 145 | 100 | 300 |
| 3/8 | 10 | 0.098 | 2.5 | 0.13 | 10 | 145 | 100 | 300 |
| 1/2 | 12 | 0.118 | 3 | 0.185 | 9 | 130 | 100 | 300 |
| 5/8 | 16 | 0.118 | 3 | 0.23 | 8 | 116 | 100 | 300 |
| 3/4 | 19 | 0.118 | 3 | 0.27 | 6 | 87 | 100 | 300 |
| 7/8 | 22 | 0.118 | 3 | 0.305 | 5 | 73 | 100 | 300 |
| 1 | 25 | 0.118 | 3 | 0.34 | 4 | 60 | 100 | 300 |
| 1 1/4 | 32 | 0.157 | 4 | 0.59 | 4 | 60 | 100 | 300 |
| 1 1/2 | 38 | 0.157 | 4 | 0.69 | 4 | 60 | 50 | 150 |
| 1 13/16 | 45 | 0.217 | 5.5 | 1.14 | 4 | 60 | 50 | 150 |
| 2 | 50 | 0.236 | 6 | 1.38 | 4 | 60 | 50 | 150 |
| 2 1/2 | 64 | 0.276 | 7 | 2.03 | 4 | 60 | 50 | 150 |
| 3 | 76 | 0.63 | 16 | 2.75 | 4 | 60 | 50 | 150 |
it is also called PVC braided tubing , netting hose , thread enhanced flexible pipe , this kind hose is widely used , such as water convey hose in constuction area , water delivery hose in agriculture green house , high pressure spray hose for pestcide spr it has 1/8'' 5/32'' 3/16'' 1/4'' 5/16'' 3/8'' 1/2'' 5/8'' 7/8'' 1'' 1.25'' 1.5'' 2'' 2.5'' 3'' with bore size such as 2mm 3mm 4mm 5mm 6mm 7mm 8mm 10mm 12mm 13mm 16mm 15mm 22mm 25mm 32mm 38mm 63mm 50mm 75mm ,etc we can make the length per roll into meters , yards , foot ,etc
The hose can be used as gas hose , spray hose , water hose , garden hose , construction water convey hose , air hose , food graded hose tubing , horse washing water discharge hose , window cleaning water fed pole hose , high pressure pneumatic hose , road shower hose , building materials reinforced water level hose , etc
Welcome to Eastop!
QINGDAO EASTOP PLASTIC PRODUCT Co., Ltd is a professional manufacturer and exporter of PVC flexible hoses, has over 14 years' experience of production and 10 years' experience of export. Our product range cover PVC layflat hose, PVC fiber reinforced hose, PVC steel wire reinforced hose, PVC helix suction hose, PVC garden hose, hose couplings, hose clamps, hose assemblies and so on, widely used in industry, agriculture and home, suitable for many uses such as Air, Water, Oil, Gas, Chemical, Powder, Granule and many more. All of our products can be produced according to PAHs, RoHS 2, REACH, FDA, etc.
Our factory is located in Shandong province, covering an area of 70, 000 square meters and 10 standard workshops, equipped with 80 production lines, annual output is about 20, 000 tons, annual export is more than 1, 000 TEU. With strong technical force and strict QC process, we can supply quality products with competitive prices in the shortest time.
Till now, we have served more than 200 customers in 80 countries, such as UK, USA, Australia, Spanish, Colombia, Chile, Peru, Nigeria, South Africa, Vietnam and Burma etc. What we supplied to our customers is not only our products, we supplied a complete process, including products, after sales, technology support, finance solutions and so on. And we are constantly trying to search for new raw materials and manufacturing processes for our products to meet the updated satisfaction and expectations of our customers.
Please contact us if you are looking for a trustworthy source. Each of your inquiries will be taken into account and get our response within 24 hours. We will endeavor ourselves to deliver first-class products and tip-top services every time.
