| Price: | US $ 32000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | JK06RD |
|---|---|
| Items: | O-Pollution Food Dehydrator Machine |
| Heating Capacity: | 21.0kw |
| Cooling Capacity: | 18.0kw |
| Dehumidify: | 25.0L/H |
| Max. Temperature: | 8-75 Degree |
| Working Condition: | 0-43 Degree |
| Noise: | 75dB(a) |
| Drying Capacity: | 600-1500kg/Batch |
| Material: | SUS304 Stainless Steel/Steel |
| Function: | Heating/Cooling/Dehumidify |
| Type: | Dehydrator |
| Voltage: | 380V |
| Customized: | Non-Customized |
| Power: | 8.5kw |
Do you want to take advantage of heat in the air to dry food with free ?
Do you want to have an automatic controlling dryer machine?
Do you want to have an uniform drying?

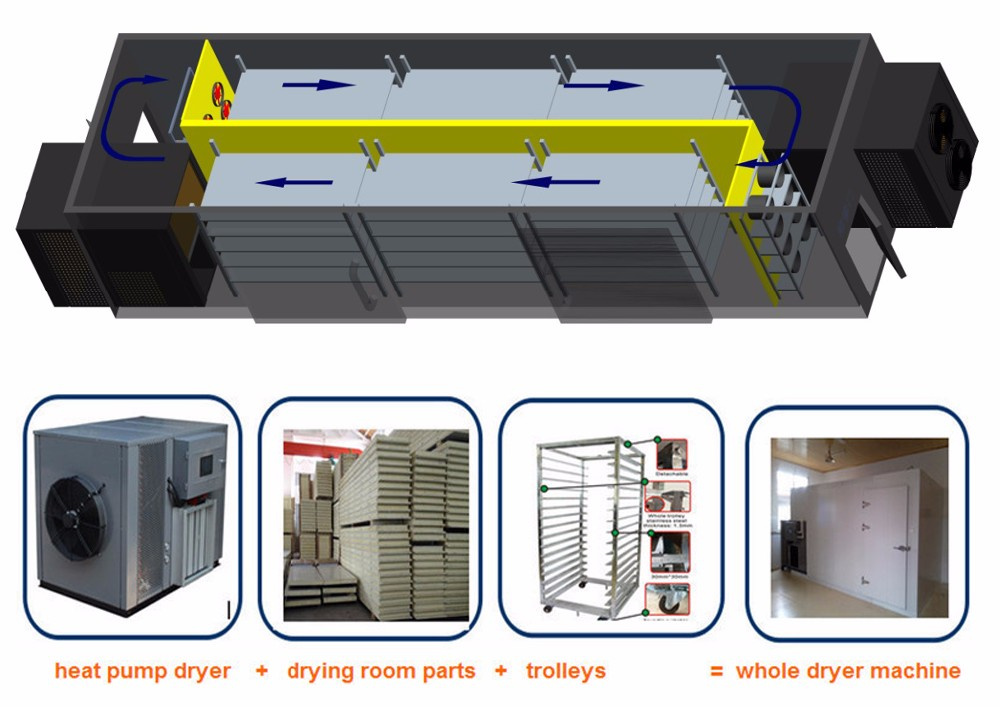

KINKAI Energy Saving Dehydrator Meat Drying Machine consists of a trolley, drying tray, heat exchanger, blower fan, LCD controller cabinet and drying chamber. The entire machine is made of insulation material and stainless stell, fully satisfying food hygiene requirement.
Model: JK03RD, JK06RD, JK12RD
Power Supply: 220V,1PH,50/60HZ or 380V,3PH,50/60HZ
Energy Saving: 75%
Temperature: 8-75ºC Ajustable
Working Temp: -10~45ºC
Functions: Heating / Cooling / Dehumidify
Dryer Type: Batch Type
Advantage Of KINKAI Fruit Dehydrator
1. Energy saving&Environmental protection.
Adopt close dehumidify+circulating drying type,saving operating cost;Without waste gas and waste heat pollution,low noise.
2. Running Stable,operating easily.
PLC+Touch Screen,running stable,operating easily;Adopt PLC control,can setting different drying curve, Suitable for drying different materials.
3. Second waste heat recovery technology(patent).
Adopt air to air heat exchanger dehumidify and recovery waste heat at the same time, saving energy more than 40%.
4. Exact control temperature and humidity.
According to different material setting different drying curve, the heat pump dryer can control the drying chamber temperature between 20-80ºC.
5. Recovery volatilized component.
Some kinds of material contain volatilized component,In drying processing,hot and wet air will become condenser water then drain,collect the condenser water so that collect volatilized component.
View more click here: https://youtu.be/K6WMogw0GDs
Parameters of KINKAI drying machine:
| Single dryer + drying chamber | ||||
| Model | Unit | JK03RD | JK06RD | JK12RD |
| power input | KW | 4.8 | 8.5 | 15.0 |
| power supply | V/PH/HZ | 380V/3PH,50/60HZ | 380V/3PH,50/60HZ | |
| 220V/1PH,50/60HZ | ||||
| Rated current | A | 9.6A(380V),22A(220V) | 17.0 | 30.0 |
| Heating capacity | KW | 10.5 | 21.0 | 42.0 |
| Cooling capacity | KW | 7.8 | 18.0 | 50.0 |
| Dehumidify | L/H | 12.0 | 25.0 | 50.0 |
| Max. temperature | ºC | ≤75 | ≤75 | ≤75 |
| Working condition | ºC | 0-43 | 0-43 | 0-43 |
| Max.exhause pressure | MPa | 3.0 | 3.0 | 3.0 |
| Noise | dB(A) | 75 | 75 | 75 |
| Power consumption/H | KWH | 4.8 | 8.5 | 15.0 |
| Electric heater | KW | 3.0 | 6.0 | 12.0 |
| Blowing type | / | HORIZONTAL BLOWING 360° | ||
| Dimension of dryer | MM | 1675×860×1280 | 1760×1060×1280 | 2120×1360×1590 |
| Weight | KG | 180 | 285 | 480 |
Recommend Drying Machine+Drying Chamber Sizes:
| Item | Description | Product Capacity | Drying Chamber size |
| 1 | One unit JK03RD dryer + drying chamber | 300Kg / batch | 4000*2000*2200mm |
| 2 | One unit JK06RD dryer + drying chamber | 600Kg / batch | 6000*2800*2200mm |
| 3 | One unit JK12RD dryer + drying chamber | 1300Kg / batch | 6000*3000*2200mm |
| 4 | Two units JK03RD dryers + drying chamber | 1200Kg / batch | 7000*2200*2200mm |
| 5 | Two units JK06RD dryers + drying chamber | 1500Kg / batch | 10000*2800*2200mm |
| 6 | Two units JK12RD dryers + drying chamber | 3500Kg / batch | 10000*3000*2200mm |
Warm prompt: We have different drying chamber sizes for your reference.
KINKAI Food Dehydrator Use for
Dry vegetables like Radish, lettuce, pumpkin, carrots, spinach, cassava etc
Dry fruits like Apple, lemon, mango slices, dried longan, dried longan etc
Dry meat: fish, Sausage, jery beef, duck, ham ect
Others it can dry noodle, wooden, stick incense, herbs, flowers ect.
Packaging & Shipping:
1. For heat pump dryer parts---with plywood
2. For drying chamber +trolleys
If shipped with 20ft container or 40ft container, no packing
If shipped with LCL( less than container load), packed in plywood.
Company information:
Certification:
If you are interested in our product please feel free to contact us for more information, such as catalog or video etc.
Crystal, Lin
Phone: +86 17666509881
Add: Huadu District, Guangzhou City, Guangdong Province, P.R. China
Our service:
A. Technical service
1, We calculate the capacity and recommend the best models.
2, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3, We supply the spare parts and technical support in & after the warranty time.
4, We supply the training course to your workers at our factory if you need.
B. After-sales service
1, Technical support for your installation, operation and maintenance.
2, One year's warranty, and you can pay for extended warranty.
3, Spare parts and technical support at most economic prices after the warranty.
