New Design Wholesale Crane Industrial 2 Button Remote Control

Product Specifications

Prod Model:	F21-2S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	Vehicle Remote Controller
Control Disatance:	up to 100m
Control Motions:	2
Frequency Generation:	Crystal
Structure:	Glass-Fiber
Operation Frequency:	310-330MHz & 433MHz
Certificates:	Ce, FCC, ISO9001:2008
Unique Code:	Over 4.3 Billon Unique ID Codes
Working Temperature:	-35°c___+80°c
Output Capacity:	Full Sealed Relay Output with 5 Amperes
Application:	Industrial Machinery
Signal Transmission:	Radio Waves
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	>100m
Voltage:	3V
Material:	Plastic
Battery Type:	AA Battery

Product Description

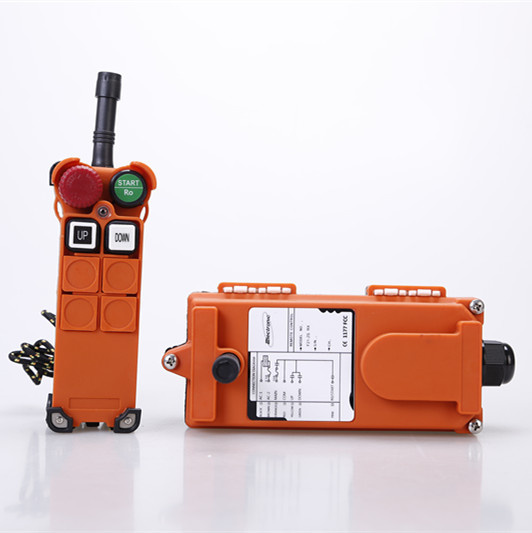

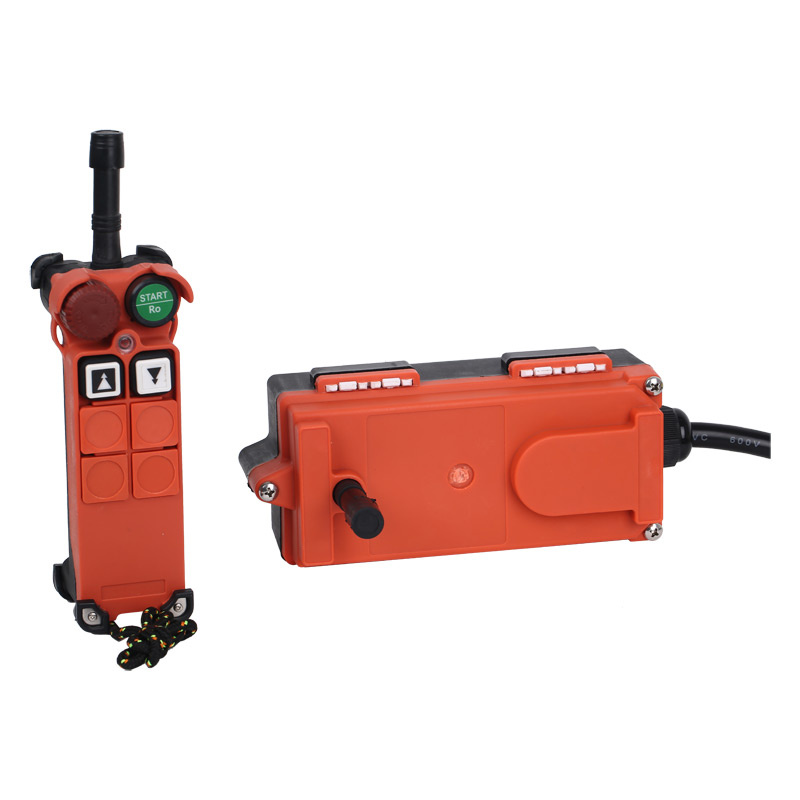

New design wholesale crane industrial 2 button remote control

Brife introduction :

1.With more than 10 years experience on this crane remote radio control business area .

2.  Our main products is :F21 Series radio remote controls  ,F23 series radio remote controls ,F24 series remote control ,F24-60 Dual Joystick radio remote control and explosion-proof remote controls .all these remote controls are easy to operate to keep workers safety and productivity.All our products are CE & FCC Certificate .

3. Each process are operate according to ISO9001:2008 & international quality control system to guarantee the products quality

4. One year warranty.

5. competitive price with excellent quality and good after-sales service

6. OEM acceptable.


Specification of Wireless Remote control:


Product name	wireless remote control
Application	Overhead cranes, hoist ,chain hoist, other industrial machine
Frequency	310.0325~331.165Mhz
Frequency generation:	Crystal (plug in)
Channel	80
Channel Spacing	0.2675MHz
Control motions	4
Control distance	Up to 100m
Certificates	CE, FCC, ISO
Number of push button	4 Single speed push button +1 start+1 stop
Unique code	Over 4.3billon unique ID codes .
Working temperature	-35°C ~ +80°C
Enclosure protection class	IP65
Transmitter power	AA-size batteries
Receiver power	AC 380v/220V/110v/48v/ 36v/24v/12v or DC12V
Output capacity	Full sealed relay output with 5 amperes
Model	can be set normal,toggle,interlock or non-interlock
Material	glass fiber

Application of Wireless Remote control:
MD double speed electric hoist or double speed electric chain hoist with  hook,monorails ,double hook /single speed hoist crane, and used for the industrial remote control which are under 4 connection.


Standard configuration:
                          One transmitter ;
                          One receiver;
                          One 1m cable connect with receiver
                          One operation and maintain manual .

Features of Wireless Remote control:
* 10 Dual speed push button.
* control points are upto 16.
*With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
*with the Rotate key switch to guarantee the safety.
*set the internal functions by computer interface.
*up/down ,east/west , south/ north push button can be set mutual inhibition or not .
*power button can be set start,speed up,jump strokes, ordinary etc.
*spare 1-2 ,3-4 key can be set ordinary, interlock,jump strokes,switch etc.




If you are interested in our products, pls feel free to send inquiry to us
