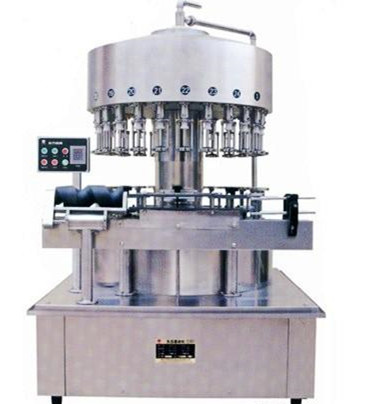

Negative Pressure Level Low Vacuum Automatic Filling Machine
| Price: |
US $ 3000-20000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
SNDT-ZD24 |
| Power: |
0.75kw/0.18kw |
| Filling Capacity: |
100-1500ml |
| Producing Capacity: |
10000-5000bottles/H |
| Applicable Industry: |
Chemical |
| Material Type: |
Liquid |
| Packaging Type: |
Bottles |
| Automatic Grade: |
Automatic |
| Application: |
Alcoholic Beverages |
| Working Principle: |
Negative Pressure |
| Driven Type: |
Pneumatic |
| Model: |
Sndt-Zd24 |
Product Description
| Model | SNDT-ZD24 |
| heads | 12,18,24 |
| power | 0.75KW/0.18KW |
| filling capacity | 100-1500ml |
| producing capacity | 10000-5000bottles/h |
| Accuracy | liquid level control |
| Machine dimension | 1350x1200x2200mm |
Automatic Negative pressure liquid filling machine
Introduction
Using low vacuum principle, easy to frothing liquid gas free liquid, such as a variety of wines, wine, fruit juice, vinegar, soy sauce bottles, filling, filling the bottle wall stickers, can not afford to foam, to ensure that after filling liquid consistent surface, especially for relatively high tank level more accurate filling, no broken bottle, no leakage, easy operation and maintenance, 304 stainless steel, no corrosion, and with overload protection and a liquid crystal display device. Because it is in a fully enclosed filling, it is possible to eliminate the proliferation of pollution and hazardous materials.
Features
1: The negative pressure level automatic filling machines vacuum chamber with separate bins placed inside the bin at atmospheric pressure, only the bottle was evacuated by the feed liquid pressure difference between the two vessel flow into the bottle;
2: Filling range, filling volume can be adjusted in a 100ml-1500ml;
3: Suitable bottle height wide range, can be adjusted between 180mm-380mm mm (out of range can be customized);
4: The primary seal automatic filling machine, the main components manufactured by the food hygiene standard 304 stainless steel manufactured by imported silica gel;
5: High efficiency: frequency stepless speed regulation, the fastest production capacity of up to 200 to 300 bottles / hour / valve;
6: Associate Level: The level of negative pressure using a special automatic filling machine filling valve, filling level does not vary with changes in the capacity of the bottle, fill level consistency;
7: Do not drip: red wine, wine, fruit juice, vinegar, soy sauce bottle when liquid filling sealed bottle of fluid along the sidewall obscene, effective control of the foam impact caused when the liquid filling, to prevent the spill;
8: Do not break the bottle: The machine frequency control, fast filling with overload protection device, card bottle down, turn soft start, elastic propping means, reduce the damage of the bottle;
working principle
Conduct research and design based on the level of principle, under the control of the filling valve, filling level constant. When the filling valve into the bottle, the bottle filling valve to open up top, so that the filling valve water suction hole is exposed, seals and bottle card close to win the title, began to sob, and the establishment of negative atmospheric pressure. After this time, the negative pressure level of the upper portion of the liquid automatic filling machine liquid cylinder under the action of pressure, began to flow into the bottle, when the level exceeds the filling valve injection pipe vacuum holes, the pressure disappears, stop pumping In this case the filling end.
Sinoder Group is a joint-stock machinery developing enterprise group, integrating industrial scientific research, production, marketing, installation, commissioning and training service.
Sinoder group company obtained outstanding member of Chinese Cereals and Oils Association and of Chemical Association, approved by the State Quality and Technical Supervision of "Pressure Vessel Manufacturing License" "Pressure Vessel Design License" "Pressure Piping Installation License" "Pressure Piping Design License", with many years of grain and oil machinery, chemical equipment and the advanced mechanical design, manufacture, installation history.
Sinoder Group establish a long-term technical cooperation relations with School of Food Science and Technology, Engineering Research Center of Henan University of Technology, Xi'an Oil Grease Institute, Zhengzhou Machinery Research Institute and our customers, ensure the technical content of product and process innovation.
We have 368 staffs including more than 42 professional technical personnel. Company organizations are: Engineering technology department, marketing services dept., integrated management dept., financial management dept., machinery manufacturing center and the research and development center and other departments. We have 25 engineering design staff. All design are by computer operations, and passed the ISO9001-2000 quality management system certification forming a set of scientific research, production and development together.
Scientific and technological innovation, excellent quality, customer satisfaction is our consistent business principle, service is company's long-term commitment.
In recent years, the company has completed hundreds of projects involving the exploitation of oil pretreatment, extraction, oil refining, animal oil refining processing, small varieties of oil deep-processing, bio-diesel and other technologies, the projects cover more than 20 domestic provinces and cities, autonomous regions and export to South Africa, Ethiopia, South Asia, Pakistan, Russia, Peru, Argentina and other dozens of countries, especially in Uzbekistan, the Sinoder Group finished 18 sets of edible oil projects. Our proudct well received by customers at home and abroad.
