| Price: | US $ 1000000/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |
| Prod Model: | LVJOE |
|---|---|
| Markets: | South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Annual Production: | 2-50million M2 |
| Delivery Detail: | 60 Days |
| Packaging Details: | Wooden Box or in Container |
Hebei Lvjoe Machinery Manufacturing Co., Ltd. is professional in designing and
manufacturing all kinds of industrial equipment. Our company has 300 workers,
more than 80 sets of processing machines, including 2 sets of planer machines
, one set of milling machine, 2 sets of boring machines, 50 sets of lathes and 3
sets of PLC processing centers.
In the last few years we have successfully developed many kinds of industrial
Equipment including automatic paper faced gypsum board production line,
Gypsum board lamination machine, gypsum powder production line, gypsum
Block production line, mineral wool board production line.Our machines are very Popular in China.They are also very popular in Southeast Asia, Africa,
the Middle East, East
2.The work principle:
The main body of boiling furnace is mainly composed of intensive small diameter radiator coil tubes.Replenish heat conductive oil into the coil tube, and by heat transfer to release heat into the furnace body.Install roots blower at the bottom of the boiling furnace, blow the cold air into the furnace body with air distributor, and blow powder materials inside of the furnace body to make it reach the boiling state.At a certain temperature, the powder materials drained of crystal water after drying become lighter and automatically flow to the discharging entrance.
3.The running speed of forming system
Annual capacity ( Million /M2)(take 9.5mm as calculation) | Linear Speed ( M/ Min ) |
| 2 | 4.0 |
| 3 | 6.0 |
| 5 | 10.0 |
| 8 | 16.0 |
| 10 | 20.0 |
| 20 | 40.0 |
| 30 | 60.0 |
| 50 | 100.0 |
4.Main systems include:
Paper supply system--Gypsum powder supply system--water supply and mixing system--Foaming system--Forming system--conveying system--Drying system--Heating system--Edge cutting and sealing system--Dust removal system--control system

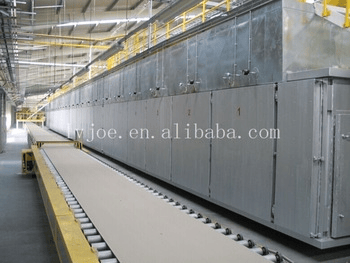

picture of drying system
