Natural Gas Dehydration 4A Molecular Sieve
| Price: |
US $ 1250-1300/Ton |
| Min Order: |
1/Ton |
| Pay Type: |
L/C,T/T,D/P,Western Union |
Product Specifications
| Prod Model: |
4A |
| Size: |
1.7-2.5mm, 3-5mm |
| Certificate: |
ISO9001: 2000 |
| Type: |
4A |
| Shape: |
Beads |
| Sorbent: |
Molecular Sieves |
| Desiccant: |
Chemical Desiccant |
| Kind: |
Molecular Sieve Desiccant |
Product Description
Molecular Sieve 4A is an alkali alumino silicate; It is the sodium form of the Type A crystal structure. 4A molecular sieve has an effective pore opening of about 4 angstroms (0.4nm). Our type 4A molecular sieve will adsorb most molecules with a kinetic diameter of less than 4 angstroms and exclude those larger. Such adsorbable molecules include simple gas molecules such as oxygen, nitrogen, carbon dioxyde and straight chain hydrocarbons. Branched chain hydrocarbons and aromatics are excluded.
Typical Chemical Formula
Na2O. Al2O3.2SiO2.4.5 H2O
SiO2: Al2O3 ≈ 2
Application
1) Drying and removing of CO2 from natural gas, LPG, air, inert and athmospheric gases, etc.
2) Removal of hydrocarbons, ammonia and methanol from gas streams
(ammonia syn gas treating)
3) Special types are used in the air break units of buses, trucks and locomotives.
4) Packed in small bags, it may be used simply as a packaging desiccant.
Regeneration
JINCHENG molecular sieve Type 4A can be regenerated by either heating in the case of thermal swing processes; Or by lowering the pressure in the case of pressure swing processes.
To remove moisture from a 4A molecular sieve, a temperature of 250-280° C is required. A properly regenerated molecular sieve can give moisture dew points below -100° C.
The outlet concentrations on a pressure swing process will depend on the gas present, and on the conditions of the process
Size

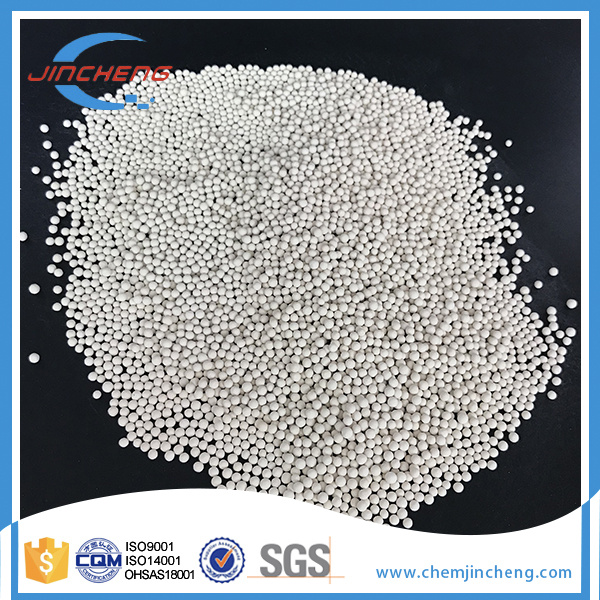

4A - Zeolites are available in beads of 1-2 mm, (10x18 mesh) 2-3 mm, (8x12 mesh), 2.5-5 mm, (4x8 mesh) and as powder, and in pellet 1.6, 3.2.
Attention
To avoid damp and pre-adsorption of organic before running, or must to be reactivated.| Item | Unit | Technical data |
Shape |
| Pellet | Sphere |
Diameter |
mm |
1.5-1.7 |
3.0-3.3 |
1.7-2.5 |
3.0-5.0 |
Size ratio up to grade |
% |
≥98 |
≥98 |
≥96 |
≥96 |
Bulk density |
g/ml |
≥0.68 |
≥0.68 |
≥0.68 |
≥0.68 |
Wear ratio |
% |
≤0.20 |
≤0.40 |
≤0.20 |
≤0.20 |
Crushing strength |
N |
≥30/cm |
≥45/cm |
≥30/piece |
≥70/piece |
Static water adsorption |
% |
≥20.5 |
≥20.5 |
≥21 |
≥21 |
Static methanol adsorption |
% |
≥15 |
≥15 |
≥15 |
≥15 |
Water content, as shipped |
% |
≤1.5 |
≤1.5 |
≤1.5 |
≤1.5 |
Shenzhen Jincheng Chemical Packing Co., Limited was established in 1989, which has rich technical force and advanced equipments. Products including: Insulating Glass Desiccant, Activated Alumina, Ceramic Balls, Molecular Sieve, Silica Gel, Activated Carbon, Alumina Balls, all kinds of chemical packings with material of ceramic, plastic and metal. Porducts are tested and certificated by the public authority of quality testing & inspection. We have implemented a quality assurance program based on the formalized requirements of ISO9001, and our customers are not only from domestic market, but also from worldwide such as South America, Asia, Europe, Africa and Middle East.
Our company has fully developed the spirit of "Teamwork, Dedication, Honesty, Practical, Innovation and Initiative", created an atmosphere of "Embarking on people" and "Respecting the talent, knowledge and characteristics of staff", and implemented the quality principle of "Accurate Design, Meticulous Production & Excellent Service". Keep pace with the times, build up long-term relationships with the partners, make every effort to attract first class staff from home and abroad, strive for the prosperous future of Jiangxi Jincheng.
If you are interested please feel free to send your inquiry for more detailes.
