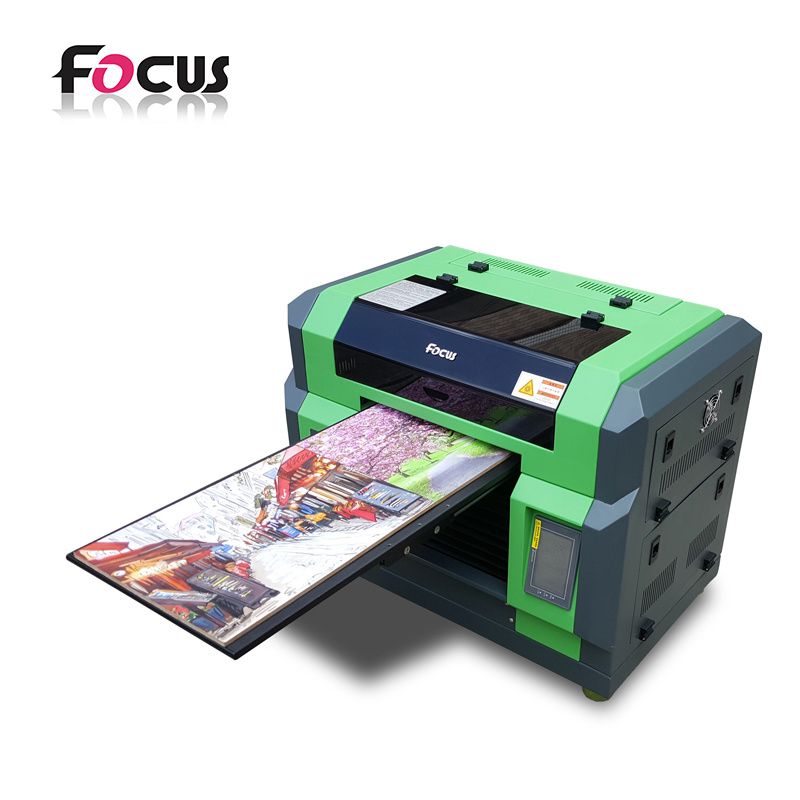

Murphy-Jet A3 UV Flatbed Mug Printing Machine

Murphy-Jet A3 UV Flatbed Mug Printing Machine
Price: US $ 5169-5689/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Money Gram

Product Specifications


Prod Model: Murphy-Jet
Model: Focus A3 UV Flatbed Mug Printing Machine
Ink Type: UV Curing Ink
Printing Media: Mugs, Pen, Business Card, Phone Cases, Printer
Max Resolution: 5760dpi
Print Head: Epson Dx5
Max Media Height: 17cm
Ink Channel: 8colors Cmyk+Wwww
Cooling System: Water Cooling System
Software: Focus 8.7.0 One Pass Printing Software
UV Power: 100W
Plate: Relief Printing
Structure: Flat-Bed Cylinder Press
Color & Page: Multi-Colour Printing Press
Printing Interface: USB3.0
System Supported: Win7/Win8/Win10/XP
Printing Speed: 64s/A4
Usage: A3 UV Flatbed Mug Printing Machine

Product Description

Murphy-Jet A3 uv flatbed mug printing machine




General Explaination:
Murphy-Jet A3 uv flatbed mug printing machine with Focus rip software UV flatbed printing machine was specical designed for customer who want to get a industrial printing speed and commercial printing result, special for customer who want to get a vivid color result and high density of white ink printing. Also this ceramic tile printing machine was built with industrial level configuration as Linear rail for both X carriage and Y flatbed motion. Dual Servo motor go with the Ball screw to let the motion with high precision. Also the one pass printing model (Print white ink and color ink in one time) and high carriage printing frequency up to 18000K can save the time and improve the printing speed for customers with this stable printing effect.

Murphy-Jet A3 uv flatbed mug printing machine can print on metal, glass, crystal, tile ceramic, acrylic, phone case, PVC, PU, Leather, Silicome, wooden... ...No matter what material printed on, it will dry immediately. The speed for printing 1 iphone 5s case about 1-2min. Please check the clear explaination as following:


Specification
Model

A3 size Murphy-Jet A3 UV flatbed mug printing machine
Print MethodEightcolor On-demand inkjet (micro piezo print technology, intelligence drops transformation technology)
Print headR2000 with DX5 MicroPiezo print head
Printer resolution5760*1440dpi
Print speed (Two heads)80seconds / Full 27*55cm size
Max. media thickness170mm
Print directionUnidirection / Bidirection
Ink cartridge typeSplit type
Minimum ink drop size<1.5PL
Ink cosume15-20ml/squre meter
Ink supply systemCISS
Ink configuration scheme8 color: CMYK+WWWW
Max printable areaA3 270 *550mm
Max adjustable height170mm
Max object thickness160mm
Printing gap1mm-5mm
Height adjustelectric
Printing resolution720*360dpi /    720*540dpi/    720*720dpi/    720*1080dpi                  720*1440dpi /    720*2160dpi/    720*2880dopi
Speed400 Mbp
Support Ink typeLED-UV Curing ink /soft uv ink/ flexible ink
Color managementICC Curve &Default ICM
Rip softwareFocusRIP-8.2.6 / Photoprint servo
Printhead ProtectionIntelligent Self Protect System
Power100-120V/200-240V 50-60HZ (Special requirements can be customized)
Printing InterfaceUSB2.0/3.0/LTP
Operation SystemWindowsXP/32bit, WIN7/32bit
WindowsXP/64bit, WIN7/64bit
Working Environment50%humidity,  21-29Degree, Clean room, low dust, less sun light, good
Printer SizeL900mm*W750mm*H600mm
Shipping SizeL1080mm*W950mm*H850mm
Printer N.Weight/G.Weight80KG/140KG

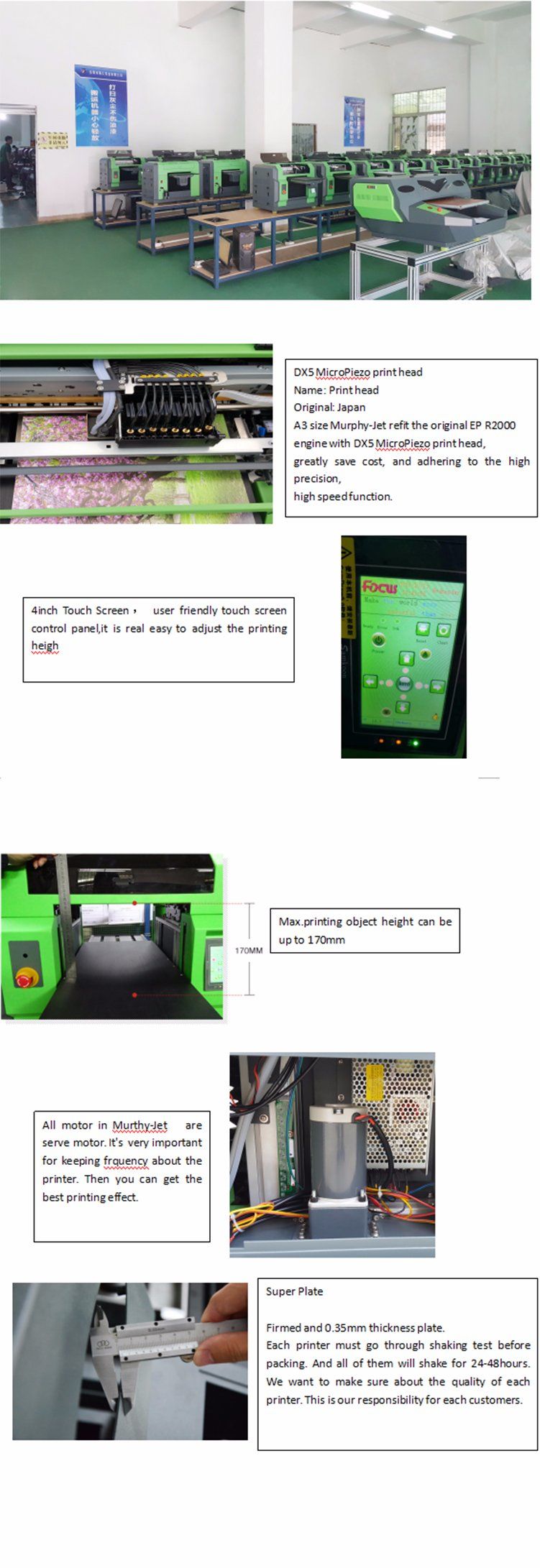

Details


Packing & Delivery



Packaging
SizeL1080mm*W950mm*H850mm
Weight140KG




Packaging Details
1. The normal package is wooden box.
2.The wooden box will be fumigated. If container is too tighter, we will use pet film for packing or pack it according to customers special request.

Customer Visit

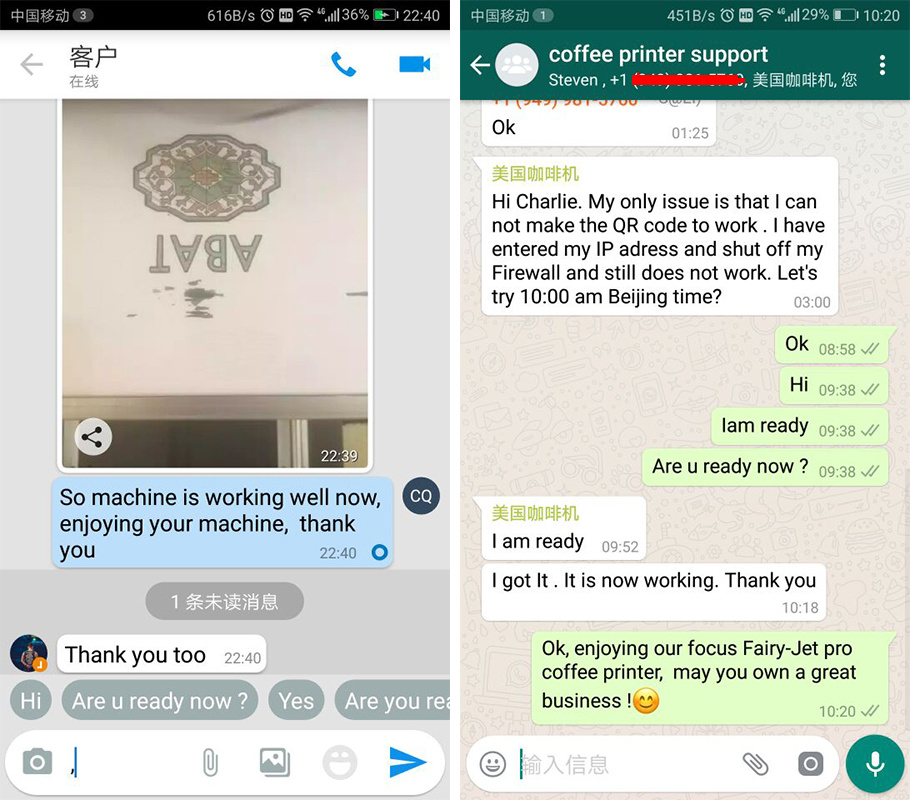

Customer Feedback




Warranty
 1.We provide 13month warranty since the shippin date.
 2.We have completely english instruction video and manual for you.
 3.We provide 2 days free online training.
 4. Engineer fly to your site for final repair if needed.




How to Contact us
Mr.Steven Zheng

Tel: +86 21 67765258
Mobile: +86 17765195739



Website: www.focus-printer.com www.focusdigi.com www.focusgroup.en.alibaba.com

Don't hesitated to contact us, this is the machine you need. Please click " http://www.focusdigi.com/new-generation-automatic-sapphire-jet-a-uv-inkjet-printer-75.html " immidiately!


Focus digital technology Co., Ltd (Online register checking). Was set up in Shanghai, China. Which is the manufacturer to create and produce the best and potential DTG direct to garment printer, digital LED-UV flatbed printer, CTS computer to screen imaging system, signs &adverting products for the customers. We had focus in this digital printing field for 17 years. We supply all products by the reasonable price and real-time support lean upon our own production line, professional experience, strict parts purchase channel and altitudinal responsible action, we focus on the market to provide the latest major news and create the profitable products, our experiential support team gather all the technique and receive the newest training timely to provide the best support.

All the merchants may face these problems: Good quality but high price, Reasonable price but bad service, Good support but bad quality, inconsequential charge, cannot got the fully training, cannot got the real-time support, Response be delayed as the complex examination and application. Focus digital is a company to solve out this kind of problem for you maximal

How we do?

------- Rigorous "FOUR CHAIN" quality control; Real-time "LONG-DISTANCE-LOG-ON -DIAGNOSIS" Support; "ONE STOP" service

We refers to the rigorous " Four Chain (Material department control-Assemble line control-QC department control-Logistic department control ") quality control system to make sure all the products are intact before delivery, But no products are 100% perfect,

The real-time and effective support are the most important, customer can got the real-time effective support by our ONLINE SUPPORT and LONG-DISTANCE-DIAGNOSE SUPPORT to insure that all the problems and questions can be solved out quickly. Also we gather all the problems together to form as the solution documentations, so the customer can download from our FTP expediently.

For save customer's time and energy, we provide the "ONE STOP" service that includes Call center register, Question require, Problem handling, Online diagnosis, Spare parts shipping and return forwarding.

Our managing philosophy:

Mutual benefit, Innovation and Humanization

Our collectivity goal:

Satisfy the demands of the market; Provide the best solution for the customer, all we do, all for you.

Our service tenet:

Overstep your desire, to be an Increment Service company.

Our trustworthiness and integrity:

Trust and personal responsibility in all relationships
