Murphy-Jet 3D Metal Printer for Sale A3+

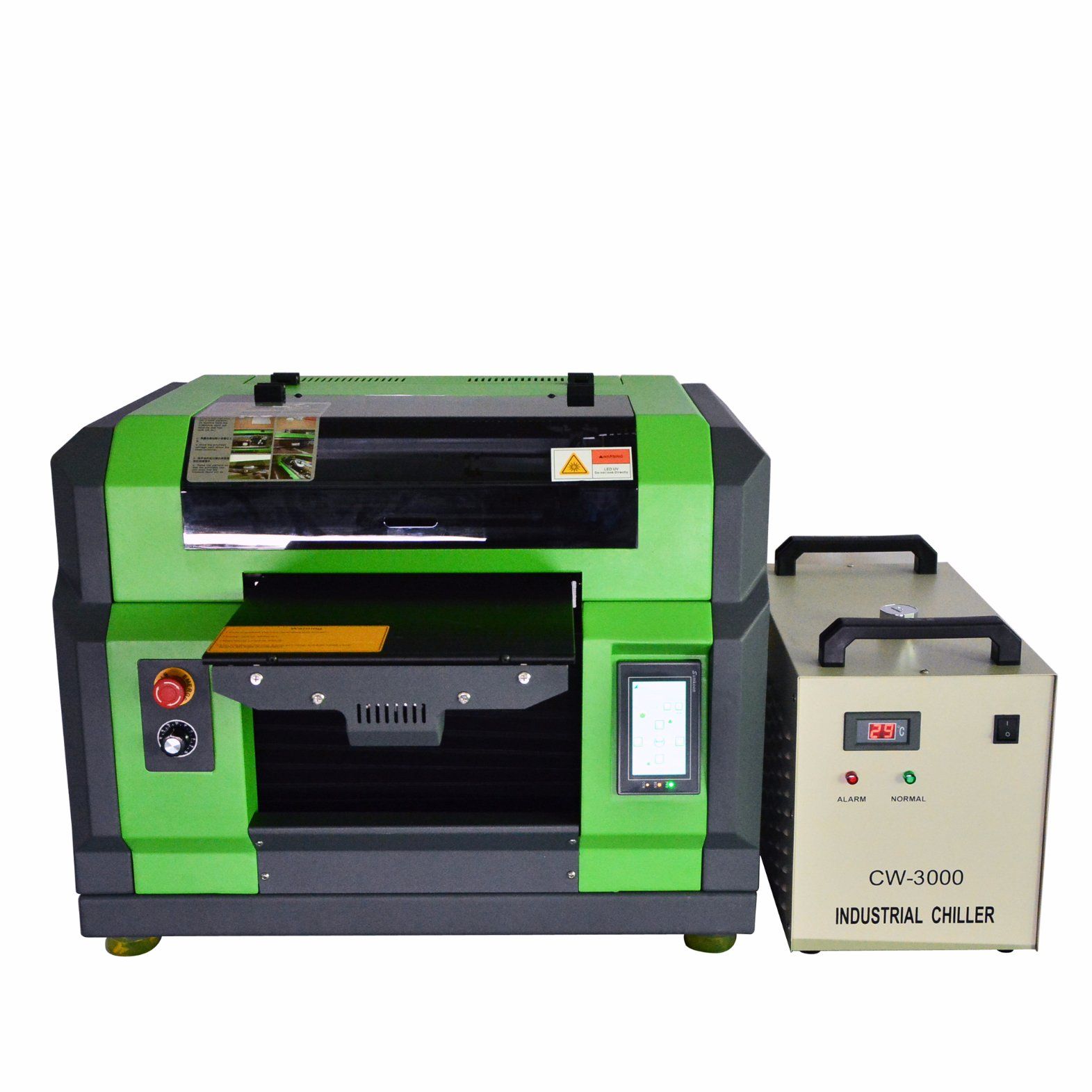

Name: Murphy-Jet 3D Metal Printer for Sale A3+
Brand: china-crystals.com
SKU: 826995845
Availability: InStock
Rating: 5 (37 reviews)

Price:	US $ 5169-5659/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	Murphy-Jet
Printer Model:	Murphy-Jet
Printing Technology:	Micro Piezo
Print Head:	Dx5
Ink Type:	UV Curing Ink, Soft UV Ink, Eco Solvent Ink
Color:	8color Cmyk+Wwww
Printing Size:	33*50cm
Print Speed:	80s/Full Size
Printing Material:	Metal, Glass, Crystal, Tile Ceramic, Acrylic, PVC
Media Thickness:	170mm
Rip Software:	Focusrip V8.2.6 One Pass Printing Software
Plate:	Lithography Printing
Structure:	Platen Press
Color & Page:	Double Faced Multi Colors
Printing Interface:	USB2.0
System Supported:	Win7/Win8/Win10
Printing Speed:	64s/A4

Product Description

Different ink is suitable Murphy Jet a3 uv flatbed printer

New low cost Murphy-Jet A3 uv flatbed printer was specical designed for customer who want to get a industrial printing speed and commercial printing result, special for customer who want to get a vivid color result and high density of white ink printing. Also this UV flatbed printer digital cell phone case printing machine was built with industrial level configuration as Linear rail for both X carriage and Y flatbed motion. Dual Servo motor go with the Ball screw to let the motion with high precision. Also the one pass printing model (Print white ink and color ink in one time) and high carriage printing frequency up to 18000K can save the time and improve the printing speed for customers with this stable printing effect.

New low cost Murphy-Jet A3 uv flatbed printer can print on metal, glass, crystal, tile ceramic, acrylic, phone case, PVC, PU, Leather, Silicome, wooden... ...No matter what material printed on, it will dry immediately. The speed for printing 1 iphone 5s case about 1-2min. Please check the clear explaination as following:

Model	Murphy-Jet A3 uv flatbed printer
Print Method	Eightcolor On-demand inkjet (micro piezo print technology, intelligence drops transformation technology)
Print head	R2000 with DX5 MicroPiezo print head
Printer resolution	5760*1440dpi
Print speed (Two heads)	120seconds / Full A3 size
Print direction	Unidirection / Bidirection
Ink cartridge type	Split type
Minimum ink drop size	<1.5PL
Ink cosume	15-20ml/square meter
Ink supply system	CISS
Ink configuration scheme	8 color: CMYK+WWWW
Max printable area	A3 320 *580mm
Max adjustable height	170mm
Max object thickness	160mm
Printing gap	1mm-5mm
Height adjust	electric
Printing resolution	7201080dpi / 7201440dpi / 7202160dpi/ 7202880dopi
Speed	400 Mbp
Support Ink type	LED-UV Curing ink /soft uv ink/ flexible ink
Color management	ICC Curve &Default ICM
Rip software	FocusRIP-8.2.6 / Photoprint servo
Printhead Protection	Intelligent Self Protect System
Power	100-120V/200-240V 50-60HZ (Special requirements can be customized)
Printing Interface	USB2.0/3.0/LTP
Operation System	WindowsXP/32bit, WIN7/32bit WindowsXP/64bit, WIN7/64bit
Working Environment	50%humidity, 21-29Degree, Clean room, low dust, less sun light, good
Printer Size	L900mmW750mmH600mm
Shipping Size	L1080mmW950mmH850mm
Printer N.Weight/G.Weight	90kg/120kg

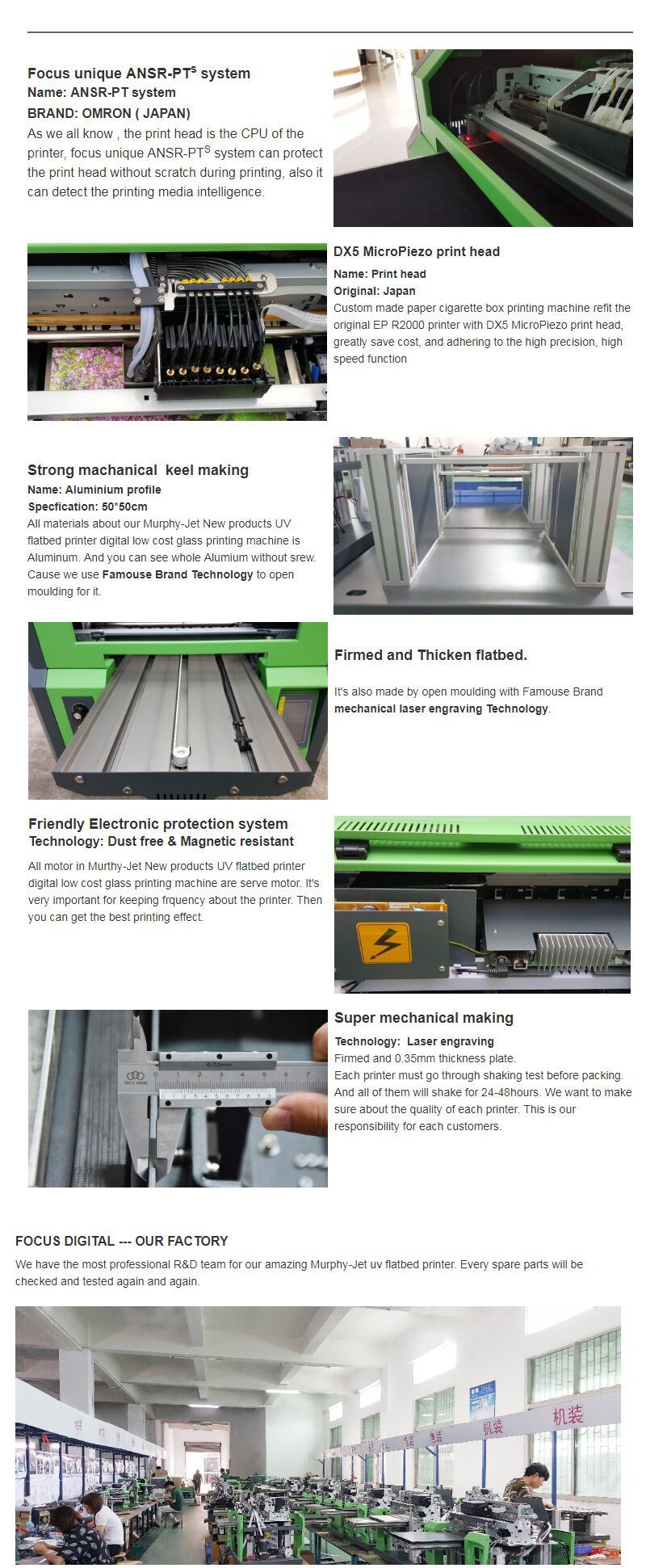

1. Focus unique ANSR-PT^s system

Name: ANSR-PT system
BRAND: OMRON ( JAPAN)

As we all know , the print head is the CPU of the printer, focus unique ANSR-PT^S system can protect the print head without scratch during printing, also it can detect the printing media intelligence.

2. The Focus Murphy-Jet digital cell phone case printing machine UV flatbed printer refit the original EP R2000 printer with DX5 MicroPiezo print head, greatly save cost, and adhering to the high precision, high speed function

3.All materials about our Murphy-Jet is Aluminum. And you can see whole Alumium without srew. Cause we use Famouse Brand BRO Technology to open moulding for it.

4. It's also made by open moulding with Famouse Brand BRO mechanical laser engraving Technology.

5. Friendly Electronic protection system

Technology: Dust free & Magnetic resistant

All motor in Murthy-Jet are serve motor. It's very important for keeping frquency about the printer. Then you can get the best printing effect.

6. Super mechanical making

Technology: Laser engraving

Firmed and 0.35mm thickness plate.

Each printer must go through shaking test before packing. And all of them will shake for 24-48hours. We want to make sure about the quality of each printer. This is our responsibility for each customers.

FOCUS DIGITAL --- OUR FACTORY

We have the most professional R&D team for our amazing Murphy-Jet digital cell phone case printing machine UV flatbed printer. Every spare parts will be checked and tested again and again.

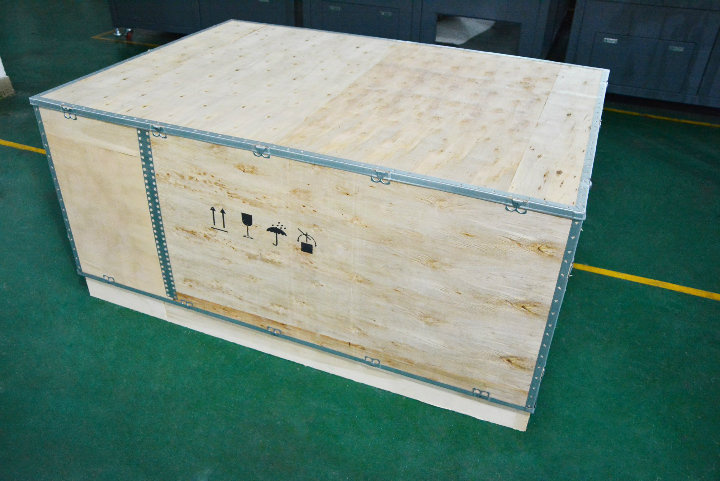

Packing:

Priinted Samples

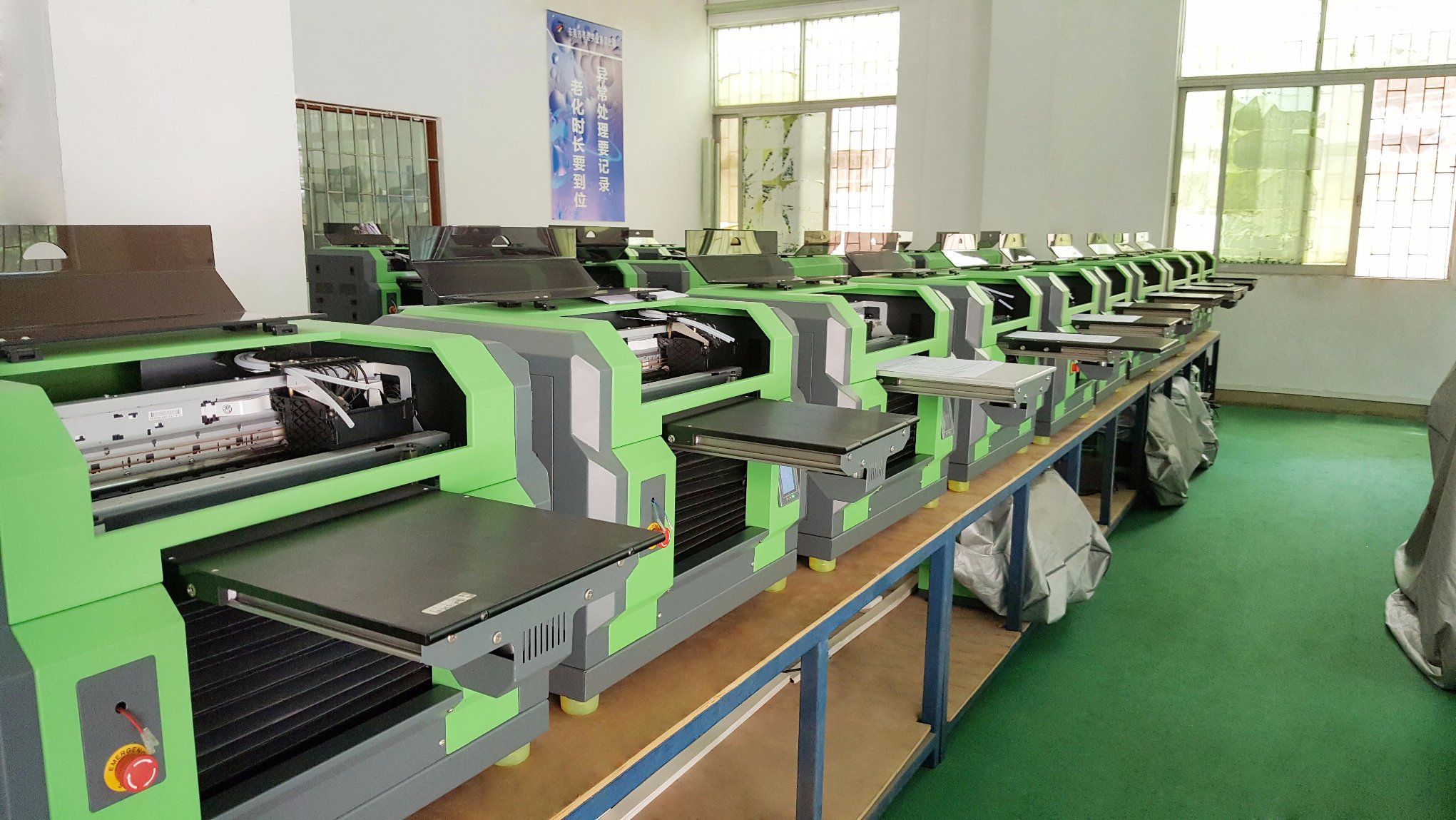

Factory Show
